A precise HVAC service call for an Amana PTAC installed under a window
In Saint-François, in eastern Laval, our AirGreen team was called for an HVAC repair on an Amana PTAC installed under a window, in a very common setup for condos, rental apartments, senior residences, small offices, and residential units where mechanical space is limited. This type of unit, often called a PTAC or packaged terminal unit, combines heating and cooling in a single module that passes through the wall, with a visible interior grille and an exterior section that exhausts or draws in air depending on the mode used.
The client contacted us because the unit was still working, but irregularly. The reported symptoms were clear: reduced airflow, louder noise than before, less effective cooling on hot days, and the impression that the PTAC had to run longer to achieve the same comfort level. In this type of situation, it is important not to jump to conclusions about a major breakdown. An Amana PTAC can lose a lot of performance for relatively simple reasons, but it can also hide more serious problems with the fan, coil, condensate drain, controls, or electrical supply.
At AirGreen, we approach every HVAC service call with a structured method: observing the installation, checking symptoms, inspecting the unit, performing electrical tests, targeted cleaning when necessary, validating drainage, then controlled restart. This service in Saint-François clearly illustrates why a PTAC / VTAC repair must be done thoroughly, especially when the unit is used as the main source of comfort in a room.

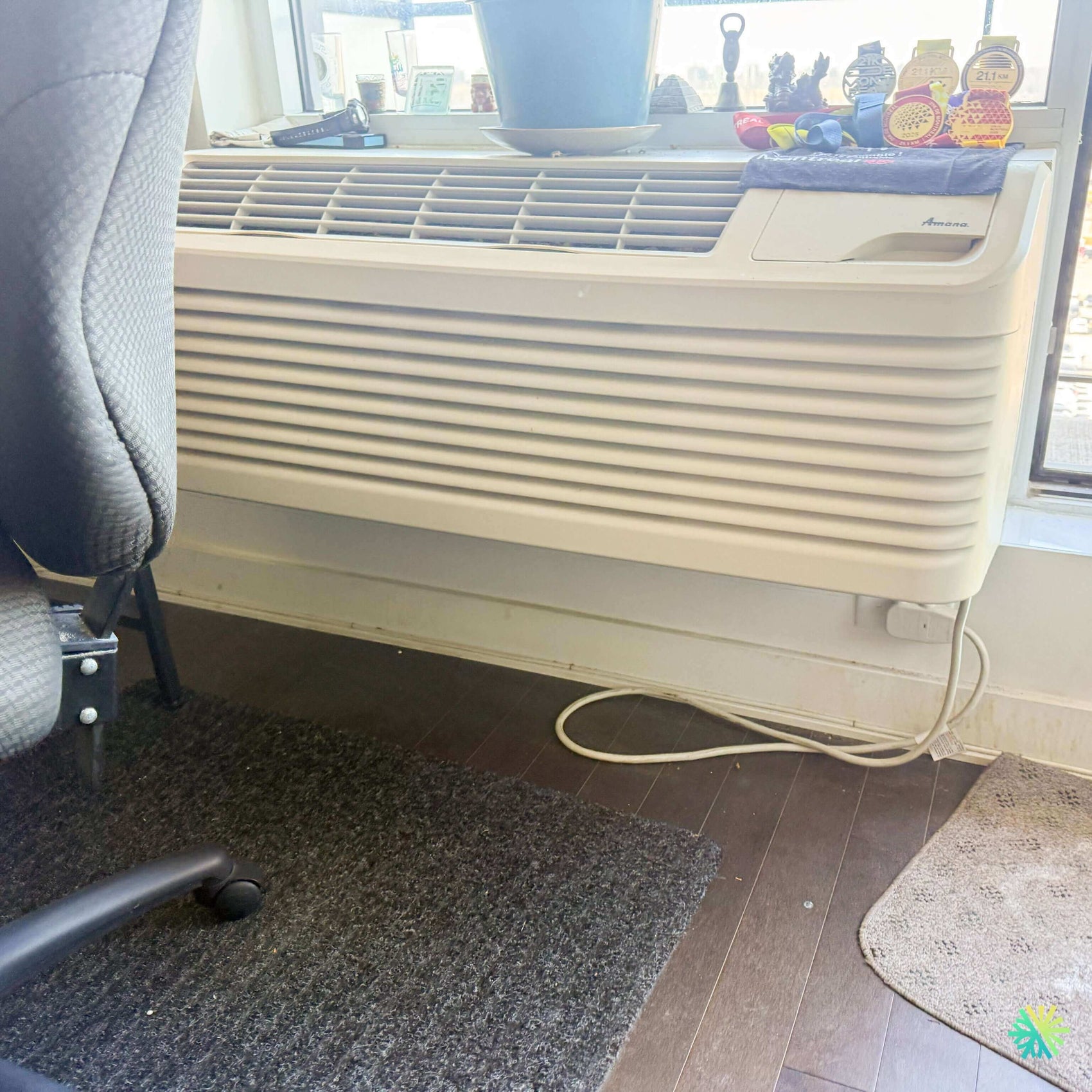

An Amana PTAC used daily in a residential space
The unit observed was an Amana PTAC, installed under a large window, in a living space where the unit was visibly used regularly. The design corresponds to a typical terminal unit: long horizontal front, return and blowing grille at the front, integrated controls on the upper right side, power supply nearby, and installation directly in a wall opening designed for this type of machine.
In this case, the interior setup was also important. Several items were placed very close to the unit: furniture, rugs, curtains, objects on top, and immediate proximity to the blowing area. This detail may seem minor, but it often plays a direct role in a PTAC’s performance. A unit like this must breathe freely. If the return air is partially blocked or if circulation around the front is limited, the system works harder, becomes noisier, accumulates more dust, and can give the impression of being at the end of its life when sometimes maintenance or targeted repair is enough to restore good performance.
The client explained that the unit was still producing air, but comfort had become less stable. Some days, the PTAC seemed to work properly; other times, performance decreased and noise increased. This intermittency is typical of units whose mechanical components or exchange surfaces are dirty, but it can also be related to a worn fan motor, an unbalanced blower wheel, a poorly positioned temperature sensor, or a drainage problem.
Symptoms observed before our diagnosis
Upon our arrival, we paid attention to several visible and functional clues. The goal was not only to confirm that the unit was noisy or blowing less strongly, but to understand why.
The main symptoms observed and confirmed were as follows:
- Reduced airflow at the unit's outlet.
- Dust accumulation visible in certain areas of the grille.
- Noisier operation when the fan speed increased.
- Extended air conditioning cycle, a sign that the unit was taking longer to reach the requested temperature.
- Less efficient heat exchange, possibly caused by a dirty coil or insufficient air circulation.
- Risk of partial blockage around the front panel, worsened by the room layout.
These symptoms are common on Amana PTACs installed for several years, especially in spaces where the unit runs for long periods in summer and sometimes as auxiliary heating in fall or spring. Unlike a wall-mounted heat pump with an indoor unit placed high, the PTAC is located near the floor. It therefore more easily draws in dust, carpet fibers, pet hair, textile particles, and light debris. In an area like Saint-François, where many homes are exposed to humidity variations and periods of intense summer heat, a poorly maintained PTAC can quickly lose its efficiency.
Diagnosis, repair, and performance restoration of the Amana PTAC
Visual inspection and check of the immediate environment
The first step was a complete visual inspection of the installation. We checked the front panel, grilles, air intake area, general condition of the casing, filter accessibility, clearance around the unit, and the condition of the power supply. In an HVAC intervention, the environment around the unit matters as much as the machine itself.
A PTAC must have reasonable clearance in front of the grille to allow proper air intake. When a chair, thick rug, curtain, or decorative objects are too close to the unit, air circulation is reduced. This increases pressure on the fan, reduces cooling capacity, can cause longer cycles, and increases internal dirt buildup. In the case of this Amana PTAC in Saint-François, we explained to the client that some simple adjustments around the unit would help preserve the repair and prevent the problem from returning quickly.
We also checked the power cord and the wall outlet. For PTAC units, the power supply must be stable, suitable for the device, and in good condition. A poor connection, a weakened outlet, or an overload can cause intermittent symptoms. Here, no obvious overheating was observed at the outlet, but the check still confirmed that the power supply did not seem to be the main cause of the problem.
Access to filters and observation of dirt buildup
We then accessed the filters and accessible internal areas. As often with devices installed near the floor, the filters showed an accumulation of dust and particles. Even when the filter still looks “okay” to the naked eye, a thin layer of dust can significantly reduce airflow. On a PTAC, the fan must work harder to draw air through the front, then push it through the indoor coil.
This restriction can cause several effects:
Reduced air conditioning performance
When air passes less effectively over the cold coil, the device removes heat from the room less efficiently. The customer then lowers the requested temperature, the PTAC runs longer, but comfort does not improve proportionally.
Increased noise
A fan struggling through a clogged filter or grille often produces a louder sound. In some cases, vibrations increase because the fan wheel also accumulates dirt.
Risk of freezing or abnormal condensation
A reduced airflow can excessively lower the coil temperature. Depending on conditions, this can lead to ice formation or less effective condensate management.
Premature wear
The more a device operates under strain, the more its mechanical and electrical components are stressed. A simple lack of maintenance can therefore accelerate the wear of a fan motor or a relay.
In this case, cleaning the filter was not just a maintenance measure: it was an integral part of the diagnosis and repair.
Checking the fan and blower wheel
After the initial cleaning, we checked the fan's behavior. The noise reported by the customer could come from several sources: unbalanced blower wheel, weakened motor, debris buildup, poorly secured panel, or vibration transmitted to the casing. We therefore tested the device at different speeds to observe the sound variation.
The operation of the fan indicated an air restriction and a slight vibration, with no immediate sign of a completely faulty motor. The blower wheel had accumulated dust, which can create a subtle imbalance. Even a light buildup, when unevenly distributed, can cause a rotating noise or vibration that becomes more noticeable over time.
We performed targeted cleaning of accessible sections, then checked that the panels were properly positioned. On a PTAC, a poorly latched front panel can amplify noise and give the impression that the unit is more damaged than it actually is.
Indoor coil inspection
The indoor coil is one of the most important components of a PTAC. It enables heat exchange with the room air. When it is dirty, even partially, performance drops quickly. During this service in Saint-François, we found a buildup that reduced air exchange efficiency. The coil was not completely blocked but dirty enough to explain some of the symptoms.
We performed proper cleaning considering the type of unit and its indoor location. The goal was to remove dust and particles that limited heat exchange without damaging the fins. A common mistake is using too much pressure or inappropriate products. On a compact unit like a PTAC Amana, precision is required because components are close together and access can be limited.
Condensate drainage inspection
In cooling mode, a PTAC removes moisture from the air. This moisture becomes condensate water that must be properly drained. A partially clogged drain can cause odors, overflows, corrosion, unusual noises, or water accumulation in the pan.
During this repair, we checked the drainage area and the condensate pan. Even if the customer did not report a major leak, a unit that cools less effectively and runs longer can produce more condensation, especially on humid days. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, we often see this type of problem in summer, when PTAC units run almost continuously for several days.
Drainage was checked and cleaned in accessible areas. This step is essential because a repair that ignores condensate issues can leave the customer with a different problem a few weeks later.
Electrical tests and basic inspections
An Amana PTAC may look mechanical in appearance, but its electrical controls play a major role: built-in thermostat, relays, sensors, control board, fan motor, compressor, capacitor depending on the unit’s design, and internal protections. We therefore validated the basic controls, the unit’s responses to mode changes, and operational stability.
The unit responded correctly to controls. The compressor started, the fan followed the requested speeds, and cycles became more stable after cleaning and reassembling components. There was no indication justifying an immediate full replacement. This is an important point: in many cases, a customer believes they need to replace their PTAC, while a professional diagnosis shows that targeted intervention can extend the unit’s lifespan.
Repair completed and unit put back into service
The repair consisted of a combination of technical actions:
- Cleaning of filters and air intake areas.
- Targeted cleaning of the indoor coil.
- Inspection of the blower wheel and reduction of vibrations caused by dirt buildup.
- Condensate drainage check.
- Inspection of panels, facade, and vibration points.
- Complete test in ventilation and air conditioning mode.
- Usage tips to avoid blockages around the unit.
After restarting, the airflow was more consistent, the noise had decreased, and the unit responded better to temperature requests. The customer especially noticed that the PTAC no longer needed to work as hard to create a feeling of coolness. This is often the most appreciated result after a good PTAC repair: comfort returns, but the unit also seems less “strained.”
Why this intervention should not have been postponed
A PTAC operating with reduced airflow can continue running for a long time before completely breaking down. This is precisely what makes it deceptive. Since it still produces some cold or hot air, many owners delay calling for service. However, each week of constrained operation can worsen wear and tear.
In this specific case, waiting longer could have led to:
Overconsumption of electricity
A unit that runs longer to reach the same temperature consumes more energy. Even if the PTAC is not completely defective, its efficiency decreases.
Fan motor wear
When air circulation is poor, the fan works under bad conditions. This can accelerate motor fatigue.
Moisture buildup
Neglected drainage or a clogged coil can cause imperfect humidity management, especially in hot and humid periods.
A more costly breakdown
Preventive or semi-corrective intervention often costs less than an emergency repair with major component replacement.
Practical advice given to the client after the repair
At the end of the service, we took the time to explain to the client how to maintain the performance of the Amana PTAC. Our recommendations were simple but very important:
Keep the front clear
Avoid placing furniture, thick rugs, heavy curtains, or decorative objects directly in front of the grilles. Air must circulate freely.
Clean the filters regularly
For a frequently used PTAC, monthly cleaning during intensive periods can make a big difference. In dusty environments or with pets, the frequency should be increased.
Avoid placing objects on the unit
Objects placed on top can hinder airflow, transmit vibrations, and sometimes fall into grille areas.
Monitor noise changes
A new noise, even a slight one, can indicate buildup, vibration, or a component starting to weaken.
Have the unit inspected before the hot season
A service call before the heat waves helps avoid emergencies in the middle of summer, when the demand for HVAC repair in Laval is higher.
AirGreen expertise for PTAC and VTAC in Greater Montreal
PTAC and VTAC require special expertise. They are not diagnosed exactly like a wall-mounted heat pump, a central heat pump, or an electric furnace. Their compact size, wall-mounted position, integrated drainage, and frequent use in apartment buildings require an adapted approach.
At AirGreen, we work on this type of device in Montreal, Laval, Longueuil, on the North Shore and the South Shore, for both residential clients and building managers, condominium associations, and rental property owners. This type of service requires not only a technical understanding of the machine but also attention to building constraints: access, noise, clearance, electrical supply, exterior facade, condominium rules, and occupant comfort.
In this intervention in Saint-François, our priority was to give the client a reliable, quieter, and more efficient device without pushing for an unnecessary replacement. The diagnosis confirmed that a targeted restoration was the best option at this stage.
A repair that improves comfort and extends lifespan
After our intervention, the client regained better comfort in the room. The Amana PTAC was blowing more freely, the noise was less disturbing, and the cooling cycle seemed better balanced. This result shows that a well-executed HVAC repair is not just about replacing a part. It involves understanding the entire system: device, environment, air circulation, maintenance, drainage, and actual usage.
A PTAC is often a discreet device, but it works hard. When well maintained and repaired at the right time, it can continue to provide stable comfort for a long time. Conversely, when neglected, it becomes noisy, less efficient, and more expensive to operate.
For AirGreen, this repair of an Amana PTAC in Saint-François represents exactly the type of intervention where field experience makes the difference: a methodical diagnosis, a repair proportional to the problem, practical advice, and a concrete result for the client.
