A built-in device that cooled poorly, vibrated, and raised concerns about air infiltration
During this service call in Anjou, in the east of Montreal, our AirGreen team worked on a Carrier PTAC installed directly in a wall opening. This type of device, often used in apartments, condos, rental residences, offices, or hotel-type units, operates differently from a classic wall heat pump. It is a compact built-in unit, with a front grille, integrated controls, external venting, and air circulation through a wall sleeve.
The client contacted us because the device no longer provided the expected comfort. Cooling was weak, airflow seemed irregular, a vibration noise was heard when the fan sped up, and a sensation of warm or humid air seemed to return around the unit. At first glance, the Carrier was still operational: the buttons responded, the fan worked, and the device started. Yet, its actual performance was insufficient.
With this type of system, it is important not to limit yourself to a single hypothesis. A PTAC can lose performance for several reasons: coil dirt buildup, saturated filter, unbalanced fan, clogged condensate tray, poorly angled sleeve, weakened seals, unstable power supply, or even compressor aging. Our role was therefore to diagnose the entire installation, not just the visible unit on the front.
An old but still recoverable Carrier PTAC

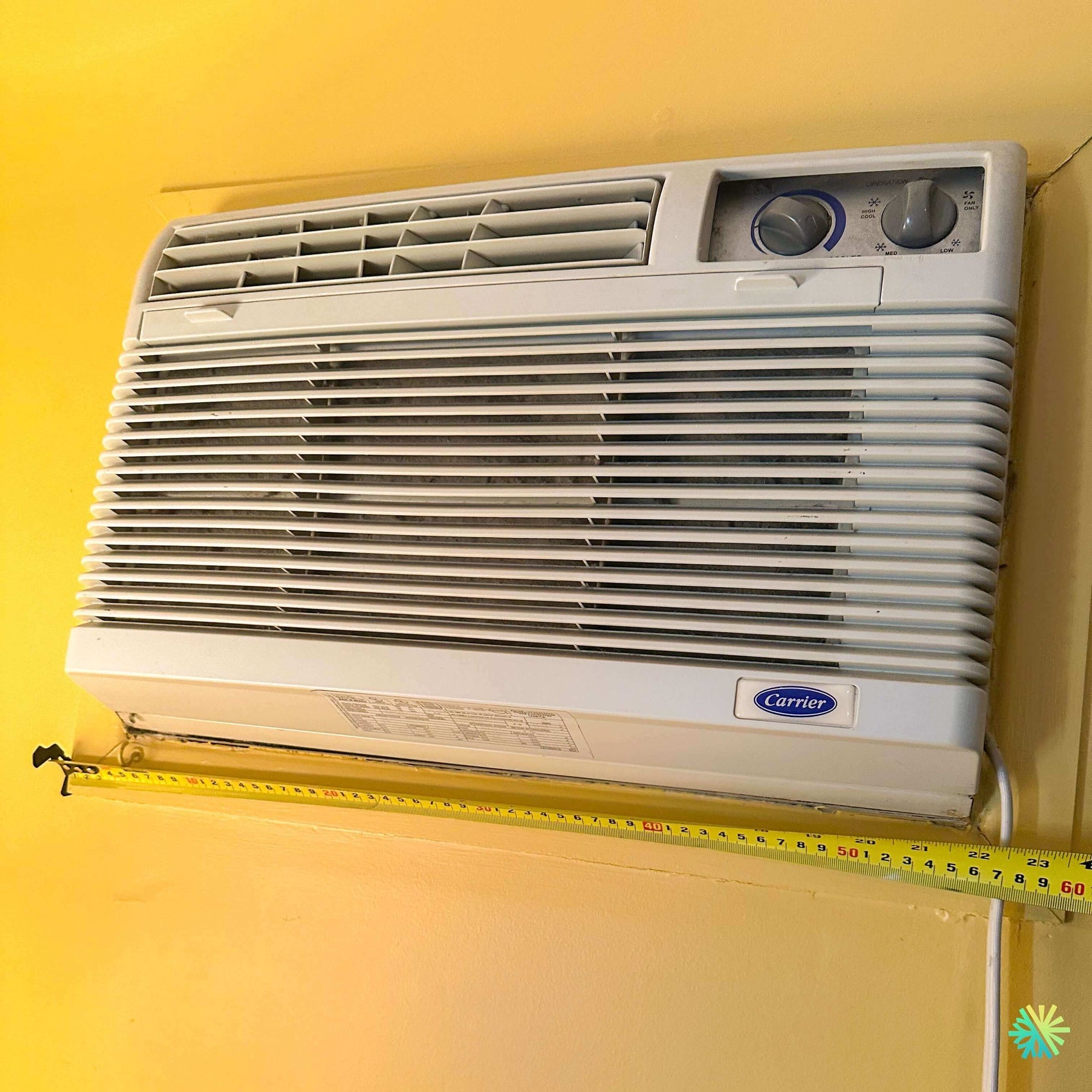

The observed device was an older generation Carrier PTAC, recognizable by its mechanical controls integrated on the right side, its mode selector, temperature knob, and large horizontal front grille. The front showed normal signs of use, but also a visible accumulation of dust behind the grilles. The lower edge of the unit also showed signs of wear around the wall mounting point.
Having a measuring tape during the intervention was important: we needed to validate the dimensions of the unit, the sleeve, and the wall opening. In the case of a PTAC / VTAC, dimensional compatibility is essential, especially if a repair eventually leads to a replacement recommendation. Unlike a simple wall air conditioner, a PTAC must fit properly into an existing cavity. A gap of a few centimeters can create sealing, drainage, vibration, or access problems.
Symptoms reported before our diagnosis
The client described three main problems to us. First, the unit seemed to blow air, but the room no longer cooled down quickly. Then, a vibration noise appeared intermittently, especially when the fan was running at high speed. Finally, there was a sensation of outside air entering around the unit, particularly near the right side and the base.
These symptoms directed our inspection towards several specific areas:
- the condition of the filter and the indoor coil;
- the cleanliness of the fan;
- the fastening of the unit in its sleeve;
- the drainage slope;
- the condition of the peripheral seals;
- the operation of the mechanical selector;
- the sealing around the frame;
- the actual cooling capacity after cleaning.
A built-in unit can sometimes give the impression that the problem comes from the compressor, while the main cause is related to air circulation or wall installation. This is especially common in older buildings in Montreal, Laval, Longueuil, on the North Shore and the South Shore, where some PTAC units have been in service for many years.
First step: inspection of the facade, grilles, and controls
We started by checking the facade of the Carrier. The grilles were functional, but the air did not circulate perfectly evenly. Some sections blew stronger than others, which possibly indicated internal buildup or a fan unbalanced by dust.
The mechanical controls were then tested. The selector allowed switching between ventilation and cooling modes, but the unit’s response was not as clear as it should be. On older PTACs, mechanical controls can wear out over time. Poor contact, imprecise positioning, or internal resistance can cause irregular cycles. In this case, the controls remained usable, but we noted that they should be monitored.
Checking airflow and the coil
The airflow was insufficient for a unit of this size. Once the grille was inspected, we found that dust accumulated behind the front panel was limiting circulation. In a compact HVAC system like a PTAC, internal space is limited. When the indoor coil and air passages are clogged, the unit has to work harder to produce a lesser result.
A dirty coil causes several consequences:
Less effective cooling
Air no longer passes properly through the fins. Even if the compressor is running, heat exchange becomes less efficient. The customer then feels warm or moderately cool air, without a real drop in room temperature.
Risk of poorly controlled condensation
When the heat exchanger is dirty, moisture can accumulate unevenly. This can cause odors, water stains, or a sensation of humid air.
Noisier fan
A fan that forces air through a blocked passage becomes noisier. The noise heard by the customer could therefore come from both clogging and mechanical vibration in the sleeve.
Diagnosis of the wall sleeve and sealing joints
An important feature of this service call concerned the embedding of the unit. The PTAC Carrier was installed in a wall opening whose edges showed signs of aging. Poor sealing around the chassis can allow outside air, moisture, dust, and sometimes water during heavy rain to enter.
We checked the seating of the unit, the stability of the chassis, and the visible seals around the opening. A weakness was noted at the base. It was not a major infiltration, but enough to explain the sensation of stray air reported by the customer. In a PTAC installation, the unit must be well supported, slightly tilted according to drainage requirements, and properly sealed around its entire perimeter.
A common mistake is to replace only the unit without fixing the sleeve. If the new PTAC is installed in a worn, poorly insulated, or deformed frame, problems quickly return: noise, condensation, loss of efficiency, vibration, and discomfort.
Technical cleaning, stabilization, and recommissioning of the PTAC
Cleaning of accessible components
After the diagnosis, we performed a technical cleaning of the accessible areas. The filter, grilles, air passages, and visible internal surfaces were cleaned to restore better airflow. With an older unit, caution is needed: plastics can be fragile, clips worn, and replacement parts are not always quickly available.
Cleaning removed a significant layer of dust. This step immediately improved the unit’s airflow. The air flow became more consistent, and the fan noise decreased.
Checking the condensate tray and drainage
We then inspected the drainage area. In a PTAC, condensation water must be properly managed to avoid odors, internal corrosion, and leaks inside. A partially clogged tray can also contribute to persistent humidity around the unit.
The drainage was checked and cleared as far as accessible. The goal was to ensure that water could be properly drained and that the unit was not operating in an overly humid internal environment. After this step, the risk of odor and abnormal condensation was reduced.
Stabilization of the unit in its opening
The vibration noise partly came from the base of the unit. The device was not dangerously unstable, but it had a slight play in its frame. We therefore checked the support points, corrected the vibrating areas, and recommended a more durable peripheral sealing repair if the customer wishes to keep the unit for several more seasons.
For a PTAC, stability is directly linked to comfort. A slight vibration in the chassis can become very annoying when the unit runs for a long time during a heat period. It can also accelerate the wear of internal components.
Measuring the opening for a possible replacement solution
Since the unit was old, we took the necessary measurements to document the installation. This step is useful even when repair is possible. It allows the customer to have a clear view: keep the unit with maintenance and monitoring, or plan a compatible replacement if performance decreases further.
A replacement of a Carrier PTAC should not be improvised. You need to check:
- the width and height of the opening;
- available depth;
- the type of existing sleeve;
- electrical supply;
- condensate drainage;
- compatibility with the external grilles;
- the condition of the seals and wall support.
This approach avoids unpleasant surprises when installing a new unit.
Result after intervention
After cleaning, checking the drainage, and stabilizing the unit, the Carrier PTAC returned to a more acceptable operation. The airflow was more consistent, vibration noise had decreased, and the blown air was cooler than before the intervention. The customer also received clear explanations about the actual condition of the unit and the limitations related to its age.
This intervention did not turn an old PTAC into a new unit, but it allowed for a reasonable extension of its use. In many cases, this is exactly what a customer is looking for: an honest repair, an accurate diagnosis, and a realistic recommendation.
Mistakes to avoid with an old PTAC
A built-in unit like this requires different attention than a wall-mounted heat pump or a standard wall air conditioner. Here are the most common mistakes we observe during our service calls:
Ignoring the sealing around the unit
Even if the PTAC works, poor sealing can let outside air in. This increases the cooling load, reduces comfort, and can promote moisture around the wall.
Letting the filter get clogged
A dirty filter reduces airflow, increases noise, decreases efficiency, and can accelerate system wear.
Forcing mechanical buttons
On older models, mechanical selectors must be handled carefully. Forcing a button can damage the internal mechanism or create a bad contact.
Neglecting drainage
Poor condensate drainage can cause odors, water stains, and even damage to the wall or floor.
Replacing without measuring
A PTAC is not universal. Before proposing a replacement, you must measure the opening, check the sleeve, and confirm the electrical supply.
Why AirGreen works on PTAC units in Anjou and Greater Montreal
The PTAC / VTAC are special equipment. They combine ventilation, cooling, sometimes heating, external exhaust, and wall integration in a single compact unit. Their repair requires mechanical, electrical, and architectural understanding. At AirGreen, we work on this type of equipment in residential and light commercial sectors, notably in Anjou, Montreal, Laval, Longueuil, on the North Shore and the South Shore.
Our approach is to diagnose the device, but also its environment: wall, sleeve, drainage, power supply, access, sealing, and the customer's actual use. This comprehensive assessment allows us to propose a sustainable solution.
A service call that clarified the best decision
In this case in Anjou, the repair of the Carrier PTAC restored better comfort while preparing the customer for a future decision. The device could still operate, but its age and installation required monitoring. Thanks to cleaning, drainage inspection, vibration reduction, and measurements, the customer now has a clear situation: continue using the device with maintenance, or plan a compatible replacement when the time comes.
A good HVAC service call is not just about getting a device running again. It should also help the customer understand what is happening, avoid unnecessary expenses, and protect their long-term comfort.
