A complex technical intervention in a house in Sainte-Julie
At AirGreen , we were recently called to Sainte-Julie for a Midea VRF system repair , a cutting-edge technology often used in large residences or commercial buildings. The customer contacted us after noticing a complete system failure : no heating or air conditioning, despite a lit control panel.
Initial diagnosis: a faulty dual-module compressor

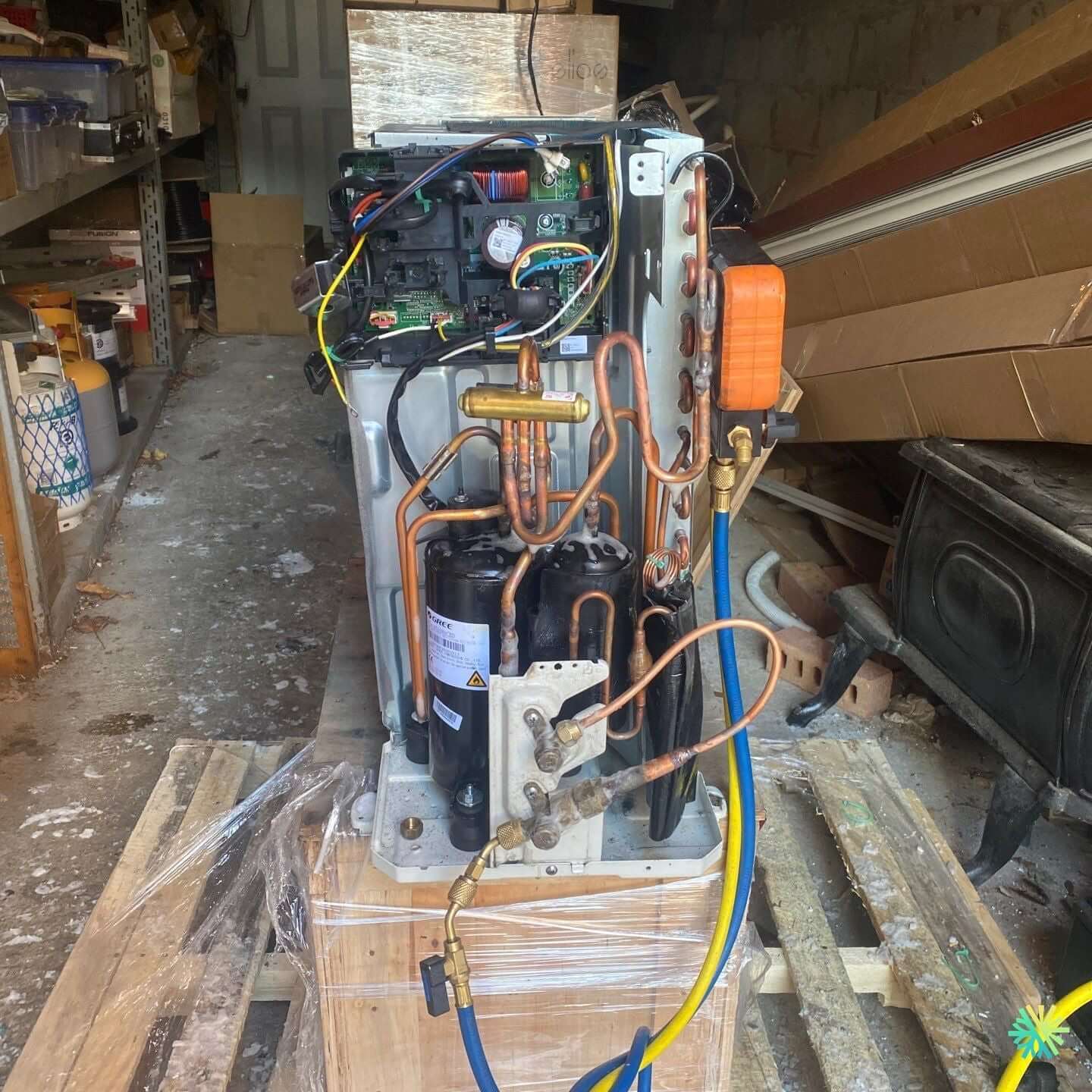

Upon arriving on site, our technicians immediately carried out a complete analysis of the VRF outdoor module . This type of Midea equipment is distinguished by the presence of several interconnected scroll compressors and a sophisticated electronic control board . As soon as the panel was opened, a communication error code between the inverter boards was detected.
Our continuity and voltage tests revealed an unstable power supply to the power module , caused by a fault in the internal wiring —a relatively rare but critical problem in VRF systems because it can prevent compressors from starting properly and distort refrigeration circuit pressures.
Repair Steps: AirGreen Methodology
1. Electrical verification and isolation of circuits
We first disconnected the main power supplies to isolate each component:
-
Compressor resistance measurement using a megohmmeter.
-
Checking the continuity of the temperature and pressure sensors .
-
Main board (PCB) check, where a power surge had left heat marks on a connector.
2. Replacement of the damaged electronic module
After confirming the diagnosis, we proceeded to completely replace the inverter module (Midea reference MIV-48H2). This part is essential, as it regulates the speed of the variable frequency compressors according to the demand of the indoor units.
3. Recharging and balancing the refrigeration circuit
Once the modules were reinstalled, the system was evacuated to -30 inHg for 45 minutes, ensuring no moisture or leaks. We then proceeded to accurately recharge R410A refrigerant according to the manufacturer's specifications (measured to the nearest gram).
4. Calibration of the VRF system
The final step was to synchronize the indoor units with the outdoor unit via the Midea VRF Net protocol. Automatic calibration detected and paired each of the eight wall-mounted units connected to the network.
Result: restored performance and comfort
Upon commissioning, the system resumed stable operation:
-
Head pressure balanced at 410 psi.
-
Suction pressure stabilized at 130 psi.
-
Blowing temperature at 23°C in heating mode.
The customer immediately noticed a rapid rise in ambient temperature and a reduction in operating noise, a sign of a compressor that had become perfectly synchronous again.
What this service call illustrates
This repair in Sainte-Julie demonstrates the importance of regular maintenance and diagnostics performed by certified VRF technicians . Variable refrigerant flow systems like Midea's are technologically complex : a simple voltage fault, a cracked weld, or an ill-fitting connector can cause a total failure.
At AirGreen, we have Midea's specialized diagnostic tools (VRF Service Checker) and a complete inventory of compatible electronic boards and compressors , which allows us to quickly restore comfort, even on advanced installations.
Key Takeaways for VRF Owners
-
Monitor error codes : an intermittent message may be hiding a more serious problem.
-
Have the wiring inspected after any power surges or fluctuations.
-
Schedule annual preventive maintenance to clean refrigeration circuits and check electronic connections.
-
Entrust your VRF repairs to certified experts : multi-compressor systems require precise know-how.
Thanks to our in-depth expertise in Midea technologies , we were able to get this complex system up and running again in a single visit, ensuring the Sainte-Julie family enjoys lasting comfort, both summer and winter.
