Repair of a Midea VRF system in Sainte-Julie

AirGreen intervention on a Midea VRF outdoor module: electronic card failure and communication diagnosis

At AirGreen , our technicians specializing in VRF (Variable Refrigerant Flow) systems work daily on complex installations for residential, commercial, and multi-unit buildings in Montreal and the South Shore. This technical service took place in Sainte-Julie , where a professional client contacted us after a complete heating failure on a latest-generation Midea VRF system.

The outdoor unit, mounted on a stone slab next to the building, showed flashing lights on the main circuit board —a typical sign of a communication error code between the indoor and outdoor modules .

Symptoms observed on site

When we arrived, the client mentioned:

  • None of the interior modules were responding;

  • The outside fan remained inactive;

  • Supply voltage was present, but no compressor start was audible;

  • The LED indicators on the power board (PCB) were displaying an abnormal blinking code.

These signs pointed to an electronic failure or a past surge , very common on VRF systems exposed to current variations.

AirGreen Technical Diagnosis

Our Midea Pro Partner certified technicians have carried out a series of in-depth checks:

1. Electrical and safety inspection

  • Supply voltage control (208-230 V three-phase) — compliant;

  • Checking grounding and fuses;

  • Disconnect the main circuit breaker before intervention for safety reasons.

2. Checking the communication wiring

The F1/F2 wiring, connecting the indoor units to the outdoor module, showed slight oxidation on the terminals , probably due to condensation and humidity. A thorough cleaning was carried out using a dielectric contact spray and an antistatic brush.

3. Printed Circuit Board (PCB) Analysis

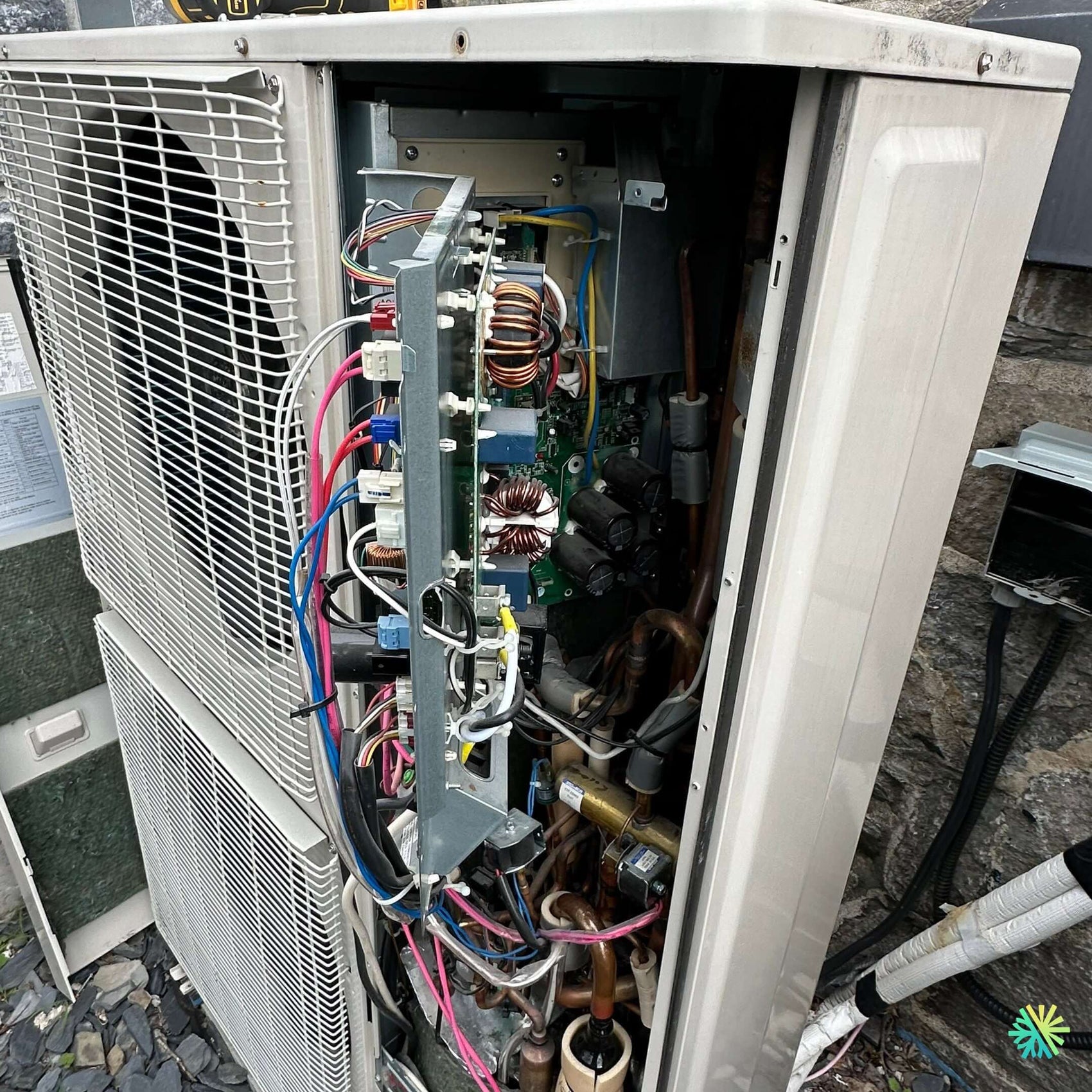

Opening the panel revealed an exposed Power Board and Main PCB .
Our measurements confirmed:

  • 12 V DC voltage missing on the communication bus → probable fault of the internal regulator;

  • Swollen capacitors on the low voltage power section;

  • Heating residue on the main inductance coil.

4. Continuity test of probes and compressor

The DC inverter compressor was intact, with normal resistance values. The temperature sensors (thermistors) met Midea standards.

The problem therefore came exclusively from the main electronic card , damaged by a power surge.

Repair and recommissioning

Our intervention consisted of:

  1. Disconnect the complete power supply from the system ;

  2. Remove the original electronic board and inspect the associated wiring;

  3. Install a new original Midea PCB board , programmed according to the software version of the outdoor module (firmware version G4);

  4. Carry out automatic addressing settings for indoor units;

  5. Test RS485 communication between modules via our Midea Smart Service Tool diagnostic interface;

  6. Perform a complete cycle in heating mode to check the modulation of the inverter compressor.

After replacement, the system rebooted without error. The LED indicators stabilized in normal mode, confirming successful network synchronization.

Results obtained

After 25 minutes of operation:

  • The discharge pressure has stabilized at 350 psi ,

  • The discharge temperature measured at 46°C ,

  • The indoor units distributed uniform hot air, without fluctuations.

The client immediately regained indoor comfort and optimal energy stability . The entire VRF system was certified compliant after comprehensive testing.

AirGreen Prevention and Recommendations

Midea VRF systems offer exceptional energy efficiency, but their performance depends directly on the integrity of their electronic boards. Here are some tips from our experts:

  • Install a voltage regulator or surge protector upstream of the power circuit;

  • Clean and tighten electrical connections once a year;

  • Schedule preventative maintenance before the heating or cooling season;

  • Avoid water infiltration around the electronic compartment (protect with a cover or seal).

These simple measures significantly extend the life of the system and prevent costly breakdowns.
