An electric furnace that was no longer properly distributing heat throughout the house
In this HVAC repair project in Ahuntsic-Cartierville, our AirGreen team worked on a residential electric furnace connected to an existing duct network, located in a typical mechanical basement in Montreal. The client contacted us because the system was operating irregularly: some rooms were still receiving warm air, while other areas of the house remained uncomfortable despite a constant thermostat demand.
Upon arrival, several visual clues quickly helped us identify the elements to check: an electric furnace cabinet installed under a metal plenum, several rigid ducts connected to the distribution network, restricted mechanical access, as well as an air return possibly affected by the system's age and dust accumulation. In homes in Montreal, especially in Ahuntsic-Cartierville, this type of installation is common: ducts have sometimes been modified over the years, and a furnace that still seems robust can lose a lot of efficiency if the airflow, electrical components, or internal controls are no longer perfectly balanced.
Complete diagnosis of the electric furnace
Our intervention began with a structured system check. An electric furnace should never be evaluated solely based on the thermostat. Even if the thermostat calls for heat, the problem can come from several components:
- defective electrical sequencer;
- worn internal relay;
- partially functional heating element;
- weakened blower motor;
- filter too restrictive or clogged;
- blockage in the return or air distribution;
- loose electrical connections;
- low voltage control issue;
- imbalance in the ducts.
In this specific case, we first confirmed the furnace’s electrical supply, then checked the system’s response to a heating demand. The fan started, but the airflow seemed insufficient compared to the expected capacity. The heat was not distributed steadily, creating an impression of intermittent operation.
Inspection of the duct network and plenum

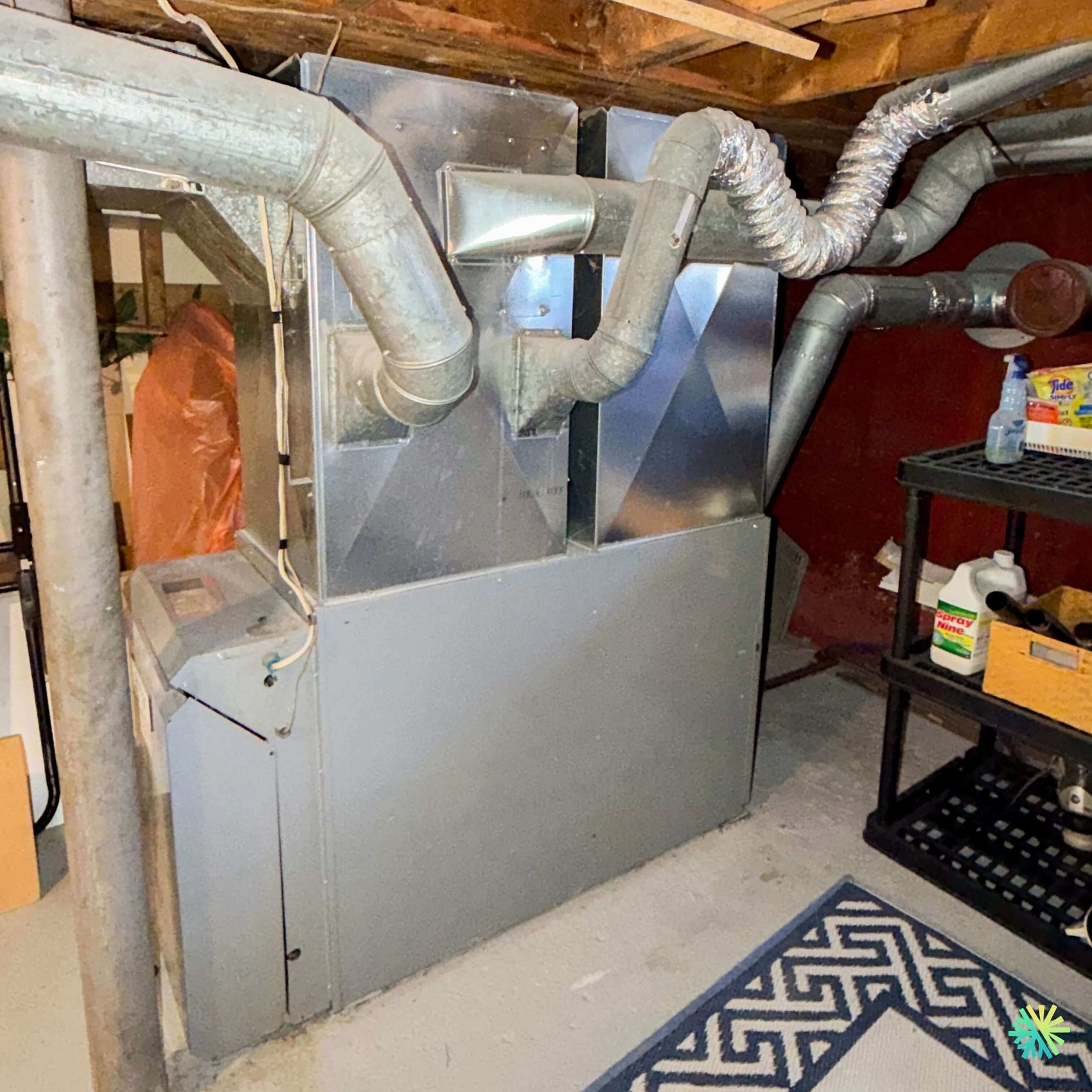

The site photo shows a furnace connected to a metal plenum with several duct branches. This type of setup requires special attention because a comfort issue is not always caused by the furnace itself. A poorly adjusted duct, an air leak at the plenum, or too high static pressure can significantly reduce system performance.
Our technician therefore inspected:
- the visible plenum joints;
- the main duct connections;
- the flexible sections;
- signs of air leaks;
- the pressure felt at the main outlets;
- the general condition of the return air;
- accessibility for future maintenance.
In many homes in Laval, Longueuil, the North Shore, and the South Shore, we observe the same phenomenon: the customer believes their furnace is "weak," while in reality the distribution network limits the performance. Here, the furnace had to be analyzed as a complete system, not just as a standalone device.
An HVAC repair focused on airflow, electrical safety, and reliability
Checking internal electrical components
On an electric furnace, the heating elements consume significant power. Connections, relays, and sequencers must be in good condition to avoid incomplete cycles, heat loss, or unexpected shutdowns. We therefore checked the voltages, heating calls, and startup sequence.
The main problem stemmed from a combination of reduced airflow and irregular response in the internal control. The furnace was heating, but it was not delivering its full output consistently. After inspection, some contact points and connections needed tightening and reorganization. The system was not completely broken, but it was operating below its normal performance level.
Targeted cleaning and restart
An essential part of this intervention was cleaning and restoring accessible areas. In a furnace connected to old ducts, dust buildup can hinder airflow and cause localized overheating. Neglected maintenance also increases stress on the blower motor.
We performed:
- inspection of the blower compartment;
- filter condition check;
- airflow control;
- cleaning of accessible areas;
- tightening of relevant connections;
- a heating operation test;
- airflow validation after intervention.
After restarting, the system showed a more stable response. Warm air circulated better through the ducts, and the client noticed an immediate improvement in comfort.
Why this type of problem should not be ignored
An electric furnace that heats "a little" can give a false sense of security. However, partial operation can lead to:
- higher electricity consumption;
- longer heating cycles;
- premature motor wear;
- internal overheating;
- uneven heat distribution;
- more frequent service calls in the middle of winter.
In an area like Ahuntsic-Cartierville, where many properties have aging central systems, a quick electric furnace repair can prevent premature replacement. At AirGreen, we always prioritize an honest diagnosis: if a repair is feasible, we do it; if the system is too worn or dangerous, we clearly explain the replacement options.
Common errors observed on electric furnaces
During our HVAC service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, certain errors often recur:
Replacing the thermostat without checking the furnace
A new thermostat does not fix a problem with the relay, sequencer, motor, or airflow. It can temporarily mask the real issue.
Using a filter that is too restrictive
Some high-density filters greatly reduce airflow if the furnace or air return is not designed for this resistance.
Closing too many grilles in the house
Closing several air vents increases pressure in the ducts and can harm the furnace’s operation.
Neglecting the ducts
An old, poorly sealed, or unbalanced duct network can lose a large part of the heat produced.
Final result: comfort restored and a more reliable system
At the end of the service, the electric furnace operated more steadily, with better warm air distribution. The client was reassured about the overall condition of the system and informed about points to watch for upcoming seasons: regular maintenance, proper filter replacement, periodic inspection of electrical components, and monitoring airflow.
This repair in Ahuntsic-Cartierville clearly illustrates AirGreen’s approach: not just addressing the symptom, but understanding the entire HVAC system. A furnace, a plenum, ducts, a thermostat, and an air return work together. When one element is neglected, the comfort of the whole house can be affected.
AirGreen: expertise in electric furnace repair in Greater Montreal
AirGreen works on electric furnaces, central heat pumps, wall-mounted heat pumps, wall air conditioners, MultiZone systems, air exchangers, and other residential HVAC equipment throughout Greater Montreal.
We serve, among others:
- Montreal;
- Ahuntsic-Cartierville;
- Laval;
- Longueuil;
- the North Shore;
- the South Shore.
For a furnace that heats poorly, a noisy fan, an electrical failure, an unusual smell, or uneven air distribution, a professional inspection often helps avoid costly repairs and extends the system's lifespan.
