Repair of an electric furnace in Île-des-Sœurs

An electric furnace that heated poorly despite a functional duct network

In a residence located in Île-des-Sœurs, our AirGreen team was called for a typical problem of aging central systems: the electric furnace seemed to start, the fan worked, air circulated through the ducts, but comfort was no longer there. Some rooms received lukewarm air, others remained cold, and the client noticed an unusual temperature variation between heating cycles.

On site, the installation showed the characteristics of a classic residential central system: an electric furnace connected to a duct network, a metal plenum, internal electrical connections, technical documents attached to the unit, as well as an accessory installed on the duct, possibly related to humidity control or indoor air. The mechanical environment was compact, with several components around the unit, requiring a methodical and careful inspection.

At AirGreen, we know that an electric furnace repair is not just about randomly replacing a part. A central unit can seem to be working while a heating element, a relay, a heating sequence, an electrical connection, a low voltage control, or an air restriction significantly reduces its performance. This is exactly the kind of precise diagnosis we made during this service call in Île-des-Sœurs, in the Montreal area.

Symptoms reported before our arrival

The client described several signs that already pointed the diagnosis toward a problem combining heating and air distribution:

• Air came out of the vents but lacked heat.
• The cycles seemed longer than usual.
• The thermostat called for heat, but the temperature rose slowly.
• Some areas of the house were less comfortable.
• No complete furnace shutdown was observed, which made the malfunction less obvious.
• The system sometimes seemed to heat normally, then lose efficiency.

This type of failure is common on a residential electric furnace: unlike a total failure, a partial loss of heating can remain unnoticed for several days. The fan continues to operate, the thermostat continues to respond, but one or more heating stages may no longer activate properly.

First visual inspection of the electric furnace

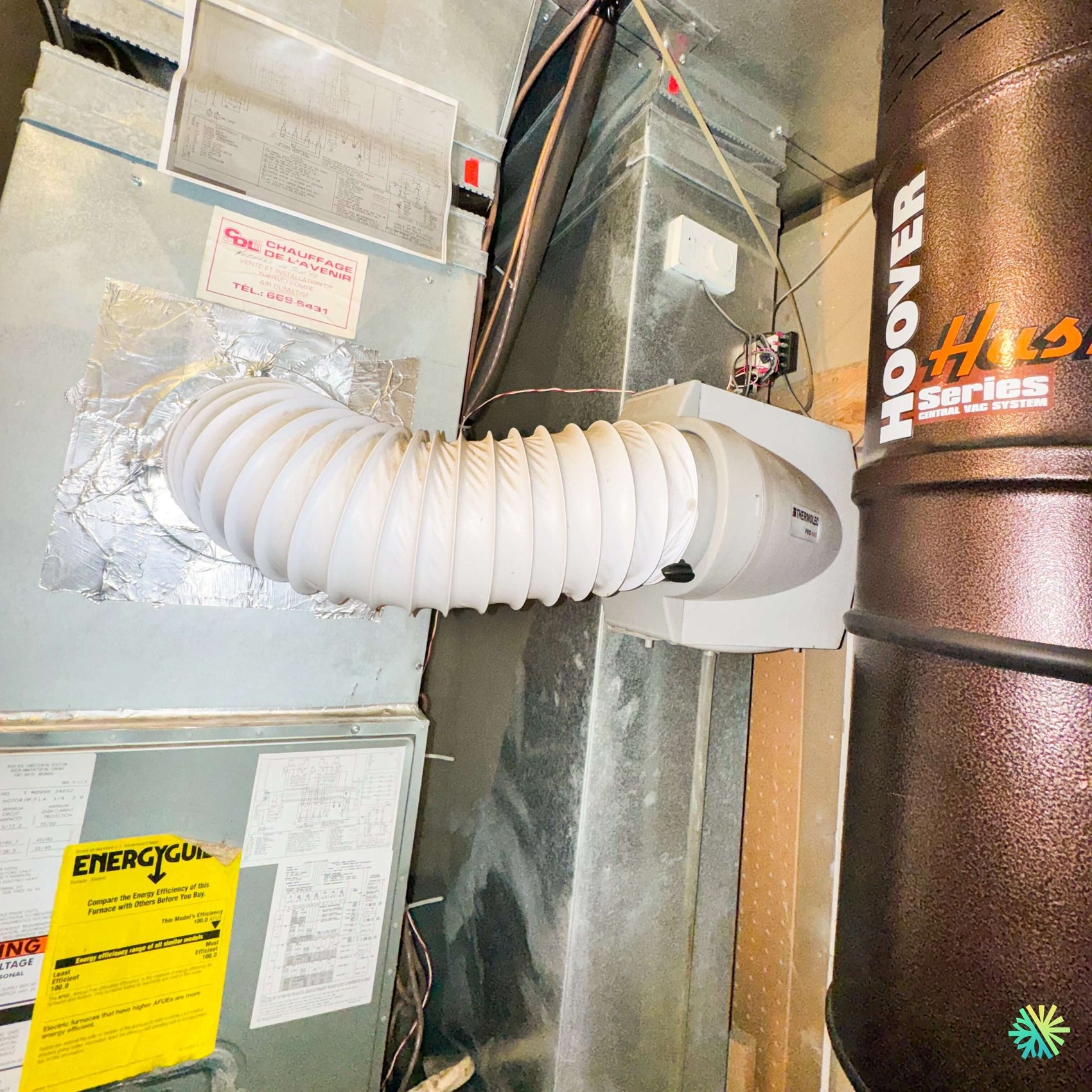

Before opening the service panels, our technician inspected the entire installation. The photo shows a central furnace installed in a tight mechanical space, with a metal duct, a white flexible duct connected to a duct accessory, visible control wires, and an existing duct network.

This initial visual inspection is important because it helps identify:

• The approximate age of the installation.
• The general condition of the duct and plenum.
• Potential signs of overheating, dust, condensation, or corrosion.
• The presence of accessories that could influence indoor air.
• Areas where control wires or electrical cables may be exposed.
• Access constraints for electrical tests.

In this case, the device was not just an isolated furnace: it was part of a complete central system. A heating failure could therefore come from the furnace itself, the thermostat, the low voltage control, the ventilation, the airflow, or even an accessory connected to the duct.

Thermostat and heating request verification

The first step in the diagnosis was to confirm that the thermostat was indeed sending a heating request. An electric furnace usually operates with a low voltage control circuit that controls the fan and heating stages. If the thermostat signal is incomplete, intermittent, or poorly relayed, the device may ventilate without producing the expected thermal power.

We therefore checked:

• The heating request at the thermostat.
• The fan response.
• The startup delay of the heating elements.
• The stability of the low voltage signal.
• The visible connections at the control terminal block.

This step ruled out a simple programming error or an obvious thermostat problem. The system was receiving a heating request, but the heat output remained insufficient.

Internal electrical inspection: the key to diagnosis

On an electric furnace, the critical components are often located behind the service panels: heating elements, sequencers, relays, internal fuses, circuit breakers, transformer, terminal block, and power wiring. Our technician carried out the necessary checks while following the safety rules specific to electric heating devices.

The diagnosis focused on several specific points:

Heating elements

Heating elements must activate according to the thermostat’s demand. When an element no longer works or a full stage does not engage, the air remains lukewarm despite normal ventilation.

We checked the continuity and response of the elements to determine if the furnace was heating at full capacity or only partially.

Relays and sequencers

Sequencers often control the progressive activation of heating elements. Their role is essential: they prevent all elements from starting abruptly at the same time and allow for an orderly power increase.

A worn sequencer can cause:

• Late activation of elements.
• A stage that no longer starts.
• Intermittent heat.
• Longer cycles.
• An overload or irregular behavior.

In this service call, tests revealed abnormal behavior in the control of a heating stage. The furnace was not using its full capacity, which explained the lack of heat felt in the house.

Connections and tightening points

Electric furnaces generate a heavy load. Over the years, some connections can loosen slightly due to thermal cycles. A weakened connection can cause performance loss, localized overheating, or intermittent failure.

Our technician inspected accessible connections, signs of excessive heat, the condition of the wires, and the general cleanliness of the electrical compartments.

Checking airflow in the ducts

A central heating problem does not always come from heat production. Poor airflow can also give the impression that the furnace is not heating well. If the filter is clogged, if the fan is dirty, or if the duct network is partially restricted, the heat produced is not distributed properly.

During this service call at Île-des-Sœurs, we paid special attention to the airflow because the installation was connected to an existing duct network. An electric furnace can operate electrically but provide poor comfort if the air does not circulate efficiently.

The checks included:

• The condition of the filter.
• The air pressure felt at the main outlets.
• The behavior of the fan.
• Unusual noises in the ducts.
• Potential restrictions around the plenum.
• The possible impact of accessories connected to the duct.

This approach is particularly important in residences in Montreal, Laval, Longueuil, the North Shore, and the South Shore, where many central installations have been modified over the years: adding a humidifier, replacing a thermostat, changing a motor, adding a central air conditioner, or converting an old system.

The duct accessory: an element not to be overlooked

In the photo, you can see an accessory installed on the duct, connected by a white flexible conduit. This type of component can be associated with humidity management or air circulation between two sections of the network. Even though the call mainly concerned the electric furnace, we inspected its potential impact on the system.

A poorly adjusted, poorly powered, or poorly connected accessory can influence:

• The airflow.
• The humidity level.
• The perceived comfort.
• Condensation in certain sections.
• The overall performance of the central system.

As part of an AirGreen service call, we do not just look at the defective part. We evaluate the entire HVAC installation to understand why the customer feels a loss of comfort.

A targeted repair to restore heat and secure operation

After electrical tests and airflow verification, our diagnosis isolated the main problem: the furnace was not delivering its full heating power due to a faulty stage control. The fan was running, the thermostat demand was present, but one segment of the electric heating was not activating properly.

This situation perfectly explained the symptoms: the air was not cold, but it was not hot enough to respond quickly to the demand. The system worked longer, consumed unnecessarily, and offered uneven comfort.

The solution applied on site

Our intervention consisted of restoring the heating circuit to working order by correcting the faulty control component and securing the necessary connections. Once the repair was completed, we restarted the furnace to observe the full behavior of the heating cycle.

We validated:

• The heat call at the thermostat.
• The fan startup.
• The correct activation of heating stages.
• The air temperature at the outlet.
• The absence of abnormal electrical noise.
• Cycle stability.
• The return to a constant and warm air distribution.

This final check is essential. In an HVAC repair, success is not limited to replacing a part. It is necessary to confirm that the device works under real conditions, with its duct network, thermostat, filter, and accessories.

Result: comfort restored in the home

After the repair, the electric furnace regained a much more stable heat output. The client noticed a clear difference in the temperature of the air distributed through the ducts. The cycles became more consistent, the temperature rise faster, and the overall operation more reassuring.

The goal was clear: restore heating without unnecessarily recommending a full replacement. When a device can be repaired effectively, AirGreen favors a precise, professional, and lasting intervention.

Why this type of breakdown is common in electric furnaces

Electric furnaces are robust, but they are subjected to heavy electrical loads, especially during periods of intense cold. In Île-des-Sœurs, as elsewhere in Greater Montreal, central systems can be used for long periods in winter. Over time, some control components may lose reliability.

The most common breakdowns include:

Defective heating element

An element may stop working partially or completely. The system continues to ventilate, but the heat produced decreases.

Worn sequencer or relay

A relay may no longer properly transmit power to a heating stage. The problem can be intermittent, making diagnosis difficult.

Clogged filter

A filter that is too dirty reduces airflow, increases the fan's effort, and can create a feeling of insufficient heating.

Loose electrical connection

Repeated heating cycles can affect some connection points. A professional inspection can detect these signs before they become dangerous.

Incorrectly configured thermostat

A thermostat that is replaced or programmed incorrectly can prevent some heating stages from activating as expected.

Mistakes to avoid before calling a technician

When an electric furnace is not heating properly, many homeowners try to fix the problem themselves. Some simple checks are helpful, but internal electrical handling should be avoided.

Basic checks to perform:

• Confirm that the thermostat is set to heating mode.
• Replace or inspect the filter.
• Check that the air vents are not blocked.
• Make sure the circuit breakers have not tripped.
• Listen for unusual noises or overheating smells.

Actions to avoid:

• Opening electrical panels without technical expertise.
• Resetting a tripped breaker multiple times.
• Short-circuiting a control.
• Randomly unplugging a thermostat wire.
• Forcing the operation of a device that smells burnt.

An electric furnace can contain significant power circuits. Professional intervention protects the device, the home, and the occupants.

The importance of regular HVAC maintenance

This service call in Île-des-Sœurs highlights the importance of regular HVAC maintenance, especially for central systems that combine heating, ventilation, filtration, and sometimes humidification. A device may seem functional for years but accumulate small imbalances: neglected filter, worn relay, loose wire, poorly adjusted accessory, partially restricted duct.

Preventive maintenance allows you to:

• Check electrical components.
• Clean accessible sections.
• Confirm proper airflow.
• Detect signs of overheating.
• Optimize comfort.
• Reduce the risk of breakdowns in the middle of winter.
• Extend the furnace’s lifespan.

For clients located in Montreal, Laval, Longueuil, on the North Shore or the South Shore, AirGreen regularly works on residential central systems of various ages, configurations, and brands. Each installation has its history, constraints, and particularities.

AirGreen expertise tailored to central systems

Repairing an electric furnace requires a complete understanding of central heating. The technician must be able to read the thermostat’s behavior, interpret the furnace’s reactions, test heating stages, understand airflow, and assess the influence of the duct network.

In this project in Île-des-Sœurs, our added value came precisely from this comprehensive approach. We treated the breakdown as a system problem, not just an isolated part. This method helps avoid incomplete diagnoses and temporary repairs.

When to repair and when to consider replacement

One question often comes up during service calls: should the furnace be repaired or replaced? The answer depends on several factors:

• The age of the device.
• The cost of repair.
• The availability of parts.
• The frequency of breakdowns.
• The condition of the duct network.
• The desired energy performance.
• The owner’s future projects, such as adding a central heat pump.

In this specific case, the repair was appropriate because the problem was targeted and the device could regain adequate performance. However, we also informed the client of signs that might justify medium-term consideration: repeated breakdowns, high consumption, increasing noise, persistent discomfort, or the desire to combine electric heating and a central heat pump.

AirGreen for electric furnace repair in Île-des-Sœurs

This service call clearly illustrates our way of working: precise diagnosis, clear explanation, structured intervention, and complete validation of the result. An electric furnace that heats poorly may seem simple at first glance, but it requires a rigorous method to identify the real cause of the problem.

AirGreen offers HVAC repair, maintenance, diagnostics, and central system replacement services throughout Greater Montreal, including Île-des-Sœurs, Montreal, Laval, Longueuil, the North Shore, and the South Shore. Whether it’s an electric furnace, a central heat pump, a wall air conditioner, a wall heat pump, a multi-zone system, or an air quality accessory, our team works with a technical and transparent approach.

A reliable central system starts with a good diagnosis

The comfort of a home does not depend solely on the rated power of a device. It depends on the balance between heating, ventilation, control, air distribution, and maintenance. When one element weakens, the whole system can seem less efficient.

In Île-des-Sœurs, this electric furnace repair restored stable heating, improved indoor comfort, and reassured the client about the actual condition of their system. For AirGreen, this is exactly the role of a good service call: find the cause, fix the problem, and let the system run with confidence.
