When a drop in airflow turns an electric furnace into an unstable system
In Vaudreuil-Dorion, our AirGreen team worked on a residential electric furnace connected to a duct network, equipped with a White-Rodgers electronic filter installed directly on the return air. The customer had contacted us because the heating seemed to operate irregularly: some rooms took longer to warm up, the airflow seemed weaker than before, and the system appeared to shut off before reaching the requested temperature.

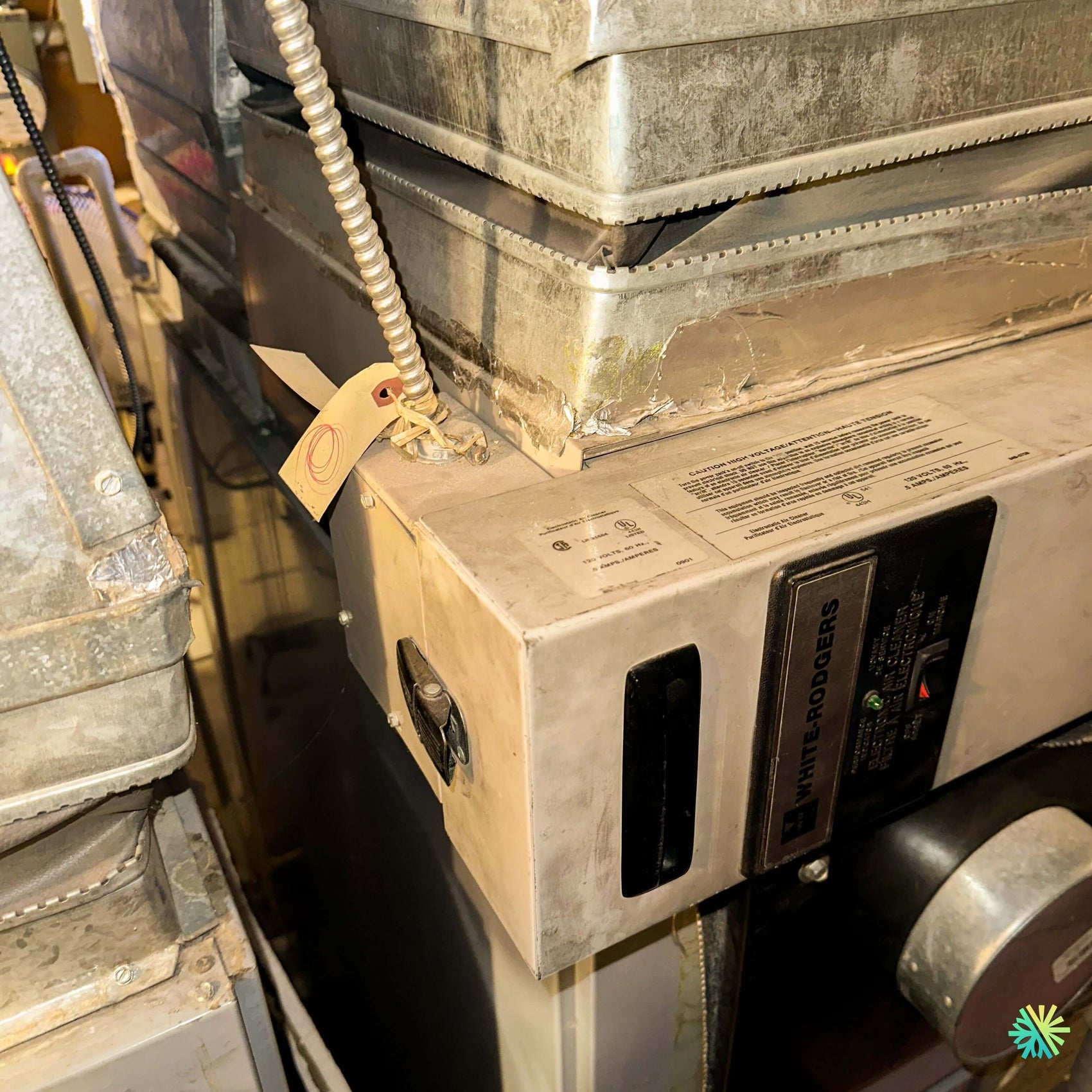

On site, the installation showed several important clues: a White-Rodgers Electronic Air Cleaner unit, aging metal ducts, plenum connections worn from use, tight mechanical access, and visible dust buildup around some joints. In this type of HVAC system, the electric furnace can be electrically sound while losing a lot of performance if the air circulation is poor. A clogged electronic filter, a mispositioned cell, an open safety contact, or a restriction in the return air can cause overheating, quick shutdowns, and uneven comfort.
A typical service call, but a diagnosis that required precision
The customer described a frustrating situation: the furnace would start, the fan would activate, but the heat was not distributed evenly throughout the house. The thermostat called for heat, but the result didn’t always follow. This kind of symptom might suggest a faulty heating element, a poorly calibrated thermostat, or an unstable control board. However, in many service calls for electric furnaces, the real cause lies in the airflow.
At AirGreen, we started by analyzing the entire system rather than just focusing on the furnace. The White-Rodgers electronic filter, placed on the return air path, needed to be inspected first. When an electronic filter is too dirty or its internal cells are not properly installed, air struggles to pass through the device. The furnace then receives less air, the temperature in the plenum rises faster, and internal safety mechanisms can shut off the heating before the house is comfortable.
Inspection of the White-Rodgers electronic filter
The White-Rodgers housing visible on the installation is designed to improve indoor air filtration. It works with electronic cells that capture suspended particles. This type of accessory can be very useful, but it requires regular maintenance. Unlike a simple disposable filter, an electronic filter must be cleaned properly, reinstalled in the correct direction, and powered electrically in a stable way.
During our inspection, we checked:
- the condition of the electronic filter housing;
- the alignment and insertion of the cells;
- the internal contacts;
- the presence of dust and deposits;
- the operation of the power indicator light;
- the panel safety switch;
- the impact of the filter on the return airflow.
The objective was to determine if the filtration system was harming the furnace’s performance. In an installation like this, a simple bad contact can prevent the filter from working properly. Conversely, a very dirty filter can allow the furnace to produce heat but prevent that heat from being distributed effectively.
Checking the electric furnace and heating elements
After inspecting the return air, our technician continued the diagnosis on the electric furnace itself. An electric furnace generally operates with sequenced heating elements, a fan, relays or sequencers, thermal safeties, and a low-voltage control circuit. If an element does not activate, the heat may be insufficient. If the fan runs too slowly or if the air is blocked, the furnace can overheat.
We therefore checked the heating demand, the fan response, the activation sequence of the elements, and the stability of the operation. The goal was not just to confirm that "it heats," but to verify if the system heated at the right time, with the right airflow, and without triggering thermal protection.
In this service call in Vaudreuil-Dorion, the diagnosis directed our attention to an airflow problem combined with insufficient maintenance of the filtration module. The furnace could produce heat, but the system was hindered by a restriction that reduced its overall efficiency.
The critical role of airflow in an electric furnace
Insufficient airflow can cause several symptoms:
- uneven heating between rooms;
- short cycles;
- feeling that the furnace is "straining";
- irregular blowing temperature;
- more pronounced noise in the ducts;
- triggering of safety limits;
- higher electrical consumption for less comfort.
In many homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore, we encounter systems where the electric furnace is still functional, but the duct network, filters, or accessories create significant restrictions. This is especially common when the electronic filter has not been cleaned for a long time or when the cells have been incorrectly replaced after maintenance.
Cleaning, repositioning, and validation of contacts
The intervention included targeted cleaning of the accessible components of the White-Rodgers electronic filter and careful repositioning of the internal elements. We paid special attention to the contacts, the access panel, and the safety switch. On these systems, the panel must be properly closed to allow normal operation. A poorly engaged panel can cut power to the filter or create an intermittent condition that is difficult to identify.
After cleaning and checking the contacts, we restarted the system to observe the furnace’s reaction. The airflow improved, and the heating behavior became more stable. This step confirmed that the restriction in the return air was a major contributor to the client’s symptoms.
Inspection of the visible duct network and joints
The service image also shows a network of metal ducts with old joints, sealing tape, and sections that have accumulated dust over time. In a tight mechanical room, these details matter. A return air leak can draw dust from the technical room. A supply air leak can reduce the amount of warm air sent to the rooms. A poorly sealed joint can also generate noise and reduce system efficiency.
We inspected the visible areas around the plenum, the White-Rodgers box, and the adjacent ducts. When necessary, we recommend correcting air leaks and reviewing the sealing of the joints, especially when the system already shows signs of dust, vibration, or aging.
Thermostat and heating control check
A complete diagnosis does not stop at the mechanical room. The thermostat plays a central role in the heating demand. Poor configuration, too short a cycle, or unstable communication can amplify the symptoms. We therefore confirmed that the control correctly sent the demand to the furnace and that the system responded consistently.
In this case, the demand was properly transmitted, but the actual performance depended on the system’s ability to circulate air. The thermostat requested heat; the furnace responded; the main problem was in the distribution efficiency.
More stable heating and a better-informed client about system maintenance
After the intervention, the electric furnace returned to more regular operation. The airflow was more consistent, cycles were less abrupt, and heat was better distributed throughout the house. The client especially understood one essential point: an electric furnace is not just a heating device; it is a complete system that depends on the air return, blowing, filtration, thermostat, and the condition of the ducts.
Why the electronic filter should not be neglected
A White-Rodgers electronic filter can provide good filtration, but it must remain clean to avoid becoming a restriction. When the cells are loaded with dust, air circulates less well. When the contacts are dirty or misaligned, filtration may stop working properly. When maintenance is delayed too long, the furnace may start showing symptoms that seem more serious than they really are.
We recommend that owners regularly check:
- the visual condition of the electronic cells;
- the cleanliness of the casing;
- the operation indicator light;
- the closing of the access panel;
- signs of dust around the air return;
- unusual noises in the ducts;
- the strength of the airflow at the outlets.
These simple checks often help avoid an emergency call during a cold spell.
Common errors observed on electric furnaces
During our service calls in Vaudreuil-Dorion and the greater metropolitan area, several errors often recur. The most common is replacing or cleaning only the visible filter without checking the actual impact of the filtration system on airflow. Another mistake is increasing the thermostat temperature to compensate for weak heating. This does not fix the air restriction; the furnace simply runs longer and may reach its limits more quickly.
It is also important to avoid leaving service panels poorly closed. On some devices, a poorly replaced panel can cause intermittent interruptions or alter the operation of an accessory. Finally, a dusty or poorly sealed duct network can reduce efficiency even if the furnace is still in good condition.
AirGreen expertise tailored to existing systems
Not all HVAC interventions involve recent systems. Many homes in Vaudreuil-Dorion, Montreal, Laval, Longueuil, the North Shore, and the South Shore have robust but aging equipment that requires patient and structured diagnostics. In this type of installation, it is important to recognize accessories, understand their interaction with the furnace, and distinguish an electrical failure from an airflow problem.
This repair of an electric furnace with White-Rodgers electronic filter demonstrates the importance of a comprehensive approach. Replacing a part without checking airflow could have led to unnecessary costs. By analyzing the system as a whole, we were able to fix the root cause of the problem and restore more reliable heating to the customer.
Practical advice after the intervention
After restarting the system, we advised the customer to monitor heating stability over the following days. When airflow is restored, the home can gradually regain better thermal balance, especially if some rooms had been less well heated for some time.
We also recommended periodic maintenance of the electronic filter and a preventive inspection before the cold season. An electric furnace can operate for many years, but it must breathe properly. A blocked return air or a poorly maintained filter unnecessarily increases stress on the equipment.
Conclusion: an effective repair thanks to a complete reading of the HVAC system
The service call in Vaudreuil-Dorion addressed an irregular heating problem on an electric furnace equipped with a White-Rodgers electronic filter. The diagnosis highlighted the importance of airflow, filter cleanliness, proper panel closure, checking contacts, and the overall condition of the ducts.
The result is clear: a more stable furnace, improved air distribution, and a customer reassured about the condition of their system. In a home heated by an electric furnace, comfort depends as much on heat production as on the quality of air circulation. It is precisely this comprehensive vision that allows AirGreen to offer reliable, durable HVAC repairs tailored to the realities of Quebec homes.
