A Goodman electric furnace that required a precise and methodical HVAC diagnosis
In Anjou, our AirGreen team was called for a problem with a Goodman electric furnace installed in a residential mechanical space connected to a central duct network. The client noticed a significant drop in comfort: some rooms were heating less effectively, the system seemed to run longer than usual, and the blown air no longer provided the expected warmth.

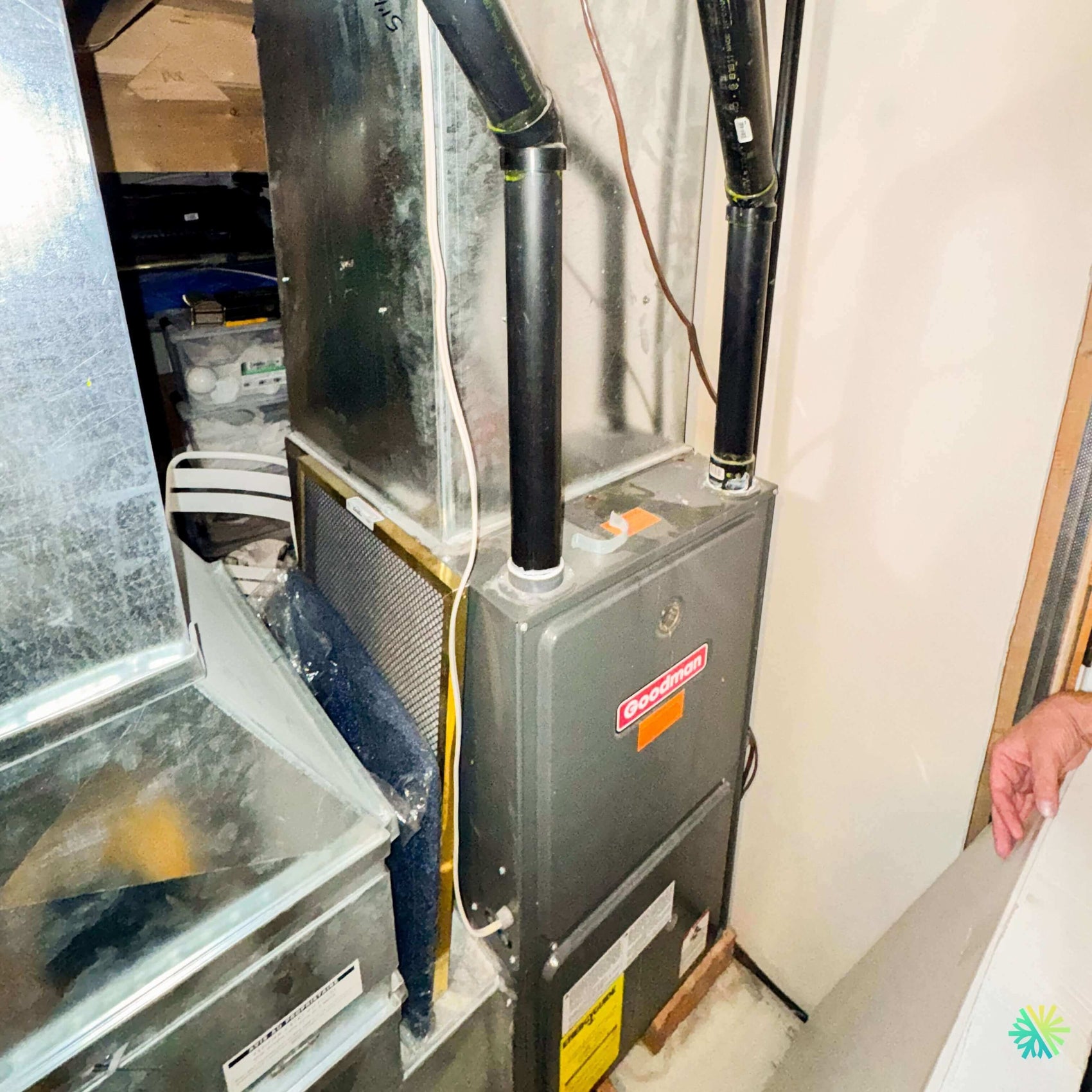

Upon arrival, the mechanical environment gave us several important clues. The furnace was installed in a confined space, connected to metal ducts, with a side air return and visible electrical connections. This type of installation requires careful inspection, as a simple performance loss can stem from an electrical issue, a clogged filter, a faulty heating element, a relay, an internal control, or inadequate airflow.
At AirGreen, we always approach this type of HVAC service call with a structured method: understand the symptoms, check safety features, analyze airflow, inspect internal components, test electrical supply, then confirm the actual operation of the machine before leaving the site.
A central installation that requires a full system reading
An electric furnace never works alone. It depends on a complete system: ducts, electrical supply, thermostat, filter, fan, sequencers, heating elements, safety controls, and air circulation. In this particular case in Anjou, the Goodman furnace was integrated into an existing duct network, which made the diagnosis more complex than a simple part replacement.
We first checked the thermostat and heating controls. A poorly configured thermostat can cause a cycle that is too short, delay the activation of heating elements, or send an incomplete request to the furnace. Then, we inspected the access panel, visible wiring, connections, and the overall condition of the unit.
One of the key points was to determine whether the problem came from heat production or hot air distribution. These two realities are different: a furnace can produce heat properly but not distribute it effectively if the fan, filter, or duct network limits the flow. Conversely, the fan may operate normally, but the air can remain lukewarm if a heating element or relay does not activate properly.
Symptoms observed before the intervention
The customer mainly reported:
- less consistent warmth in the house;
- longer heating cycles;
- a feeling of lukewarm rather than hot air;
- concern about system reliability before colder periods;
- an operation that seemed different from previous seasons.
These symptoms are common on a central electric furnace, but they should never be interpreted too quickly. Replacing a part without diagnosis can be unnecessarily expensive and may not solve the real cause of the problem.
Electrical diagnosis of the Goodman furnace
Our technician performed a series of safe electrical tests to verify the furnace’s power supply, control circuits, and activation of internal components. On a Goodman electric furnace, the heating elements are usually activated in stages. If one stage does not start, the system may continue to blow air but with reduced capacity.
So we checked:
- the power supply voltage;
- the main connections;
- the relays and sequencers;
- the heating elements;
- safety limits;
- the operation of the fan;
- signals from the thermostat;
- the condition of the filter and return air.
An important point in this type of intervention is not to rely solely on the sound of the fan. Many customers hear the furnace running and think everything is active, while one or more heating elements may be inoperative. This is exactly why a professional HVAC diagnosis is essential.
Airflow and return check
The installation image showed a tight mechanical space, with a furnace placed near ducts and other components. In this type of setup, airflow can be influenced by several factors: an overloaded filter, partially blocked return air, poorly adjusted ducts, improperly closed panels, or dust buildup on certain components.
We inspected the filter and the airflow. A neglected filter can cause internal overheating, trigger safety protections, and reduce overall performance. In more advanced cases, it can also strain the fan motor and create unstable cycles.
Air circulation is particularly important in an electric furnace, as the heating elements need sufficient airflow to dissipate the heat produced. Insufficient airflow can raise the internal temperature of the device and trigger safety shutdowns.
A precise HVAC repair to restore heating
After a complete inspection, our intervention identified the cause of poor performance and restored the furnace to reliable working condition. The work involved securing the device, testing components, correcting detected anomalies, and validating full heating operation.
AirGreen intervention steps
Our team followed a precise sequence:
- Securing the work area.
- Verification of the thermostat and heating demand.
- Visual inspection of the Goodman electric furnace.
- Control of the electrical supply.
- Testing of heating elements and control relays.
- Verification of the fan and airflow.
- Inspection of the filter and air passages.
- Correction of problematic connections or components according to the diagnosis.
- Controlled system restart.
- Validation of the supply air temperature and the complete cycle.
This method helps avoid quick conclusions. A furnace can have several small problems at once: a restrictive filter, a weakened connection, an aging relay, or a poorly adjusted thermostat. It is the overall diagnosis that allows for a reliable repair.
Why this type of breakdown should not be ignored
An electric furnace that heats less effectively may seem to still work "fairly well," but it is often the start of a more serious problem. If a heating element stops working, other components may be overworked. If the airflow is insufficient, safety features may repeatedly shut off the heating. If an electrical connection is weakened, it can cause local overheating.
In Greater Montreal, especially in Montreal, Laval, Longueuil, on the North Shore and the South Shore, cold periods place a heavy load on heating systems. Preventive or quick repairs help avoid a complete breakdown at the worst time.
Mistakes to avoid with an electric furnace
During this type of service call, we often see the same mistakes:
Waiting for the system to stop completely
A drop in heat is already a sufficient sign to request a check. Waiting for a total breakdown often increases costs and discomfort risks.
Replacing the thermostat without diagnosis
The thermostat can be the cause, but not always. On an electric furnace, the problem can come from relays, heating elements, safety devices, or airflow.
Neglecting the filter
A dirty filter can cause a cascade of problems: loss of airflow, overheating, short cycles, noise, discomfort, and premature wear.
Opening the unit without electrical knowledge
An electric furnace contains power circuits. Tests must be done carefully by a qualified technician.
Result after the repair
Once the service was completed, the Goodman furnace returned to more stable operation. The client noticed improved heat output and better consistency in the heating cycle. We also explained the points to monitor in the following weeks: filter replacement frequency, thermostat behavior, cycle duration, and air flow quality in the rooms.
The goal was not just to get the unit running again, but to make the system more reliable for the cold season. A well-executed electric furnace repair must always end with a full validation: heat demand, activation, blowing, temperature rise, normal shutdown, and absence of abnormal signs.
AirGreen: expertise in electric furnace repair in Anjou and Greater Montreal
At AirGreen, we regularly work on residential central systems: electric furnaces, central heat pumps, wall units, multizone systems, ducts, air quality accessories, and complete HVAC equipment. Every service call is handled with the same rigor, whether in Anjou, Montreal, Laval, Longueuil, on the North Shore or the South Shore.
Our field experience allows us to quickly identify the most likely problems while checking every essential element before recommending a solution. In the case of this Goodman furnace, the tight mechanical space, existing ducts, and intermittent symptoms required a precise approach. This is exactly the type of situation where professional diagnosis makes all the difference.
Practical tips to extend the lifespan of an electric furnace
To keep a Goodman electric furnace in good condition, we recommend:
- replace or clean the filter regularly;
- keep the area around the device clear;
- monitor for unusual noises;
- check that all parts receive sufficient airflow;
- do not ignore a drop in performance;
- schedule maintenance before the coldest periods;
- have the system inspected if cycles become too long or too short.
A well-maintained furnace offers better comfort, consumes less unnecessarily, and reduces the risk of breakdowns during peak season.
A reassuring intervention for the client
This service in Anjou clearly illustrates the importance of a comprehensive approach to HVAC repair. The client didn’t just want a quick answer; they wanted to understand why their system was no longer heating as before and whether their furnace could still be reliable.
Our role was to diagnose, fix, and explain. This transparency is essential in residential service. Once the repair was completed, the client knew exactly what had been checked, what had been fixed, and how to monitor their system going forward.
An electric furnace put back into service methodically
This repair of a Goodman electric furnace in Anjou shows that a central heating problem must always be analyzed as a whole. Performance depends not only on the device but also on the thermostat, airflow, ducts, filter, and internal electrical components.
With a thorough diagnosis and well-executed intervention, AirGreen restored comfort, improved system reliability, and reassured the client before the more demanding cold periods.
