A Lincoln furnace with intermittent failure in a Lachine basement: when heating becomes unstable
At AirGreen, we were called to Lachine for a service on a Lincoln electric furnace connected to an existing duct system. The client contacted us after noticing abnormal heating behavior: the furnace would start, blow air, then sometimes stop too quickly, failing to stabilize the temperature in the house.

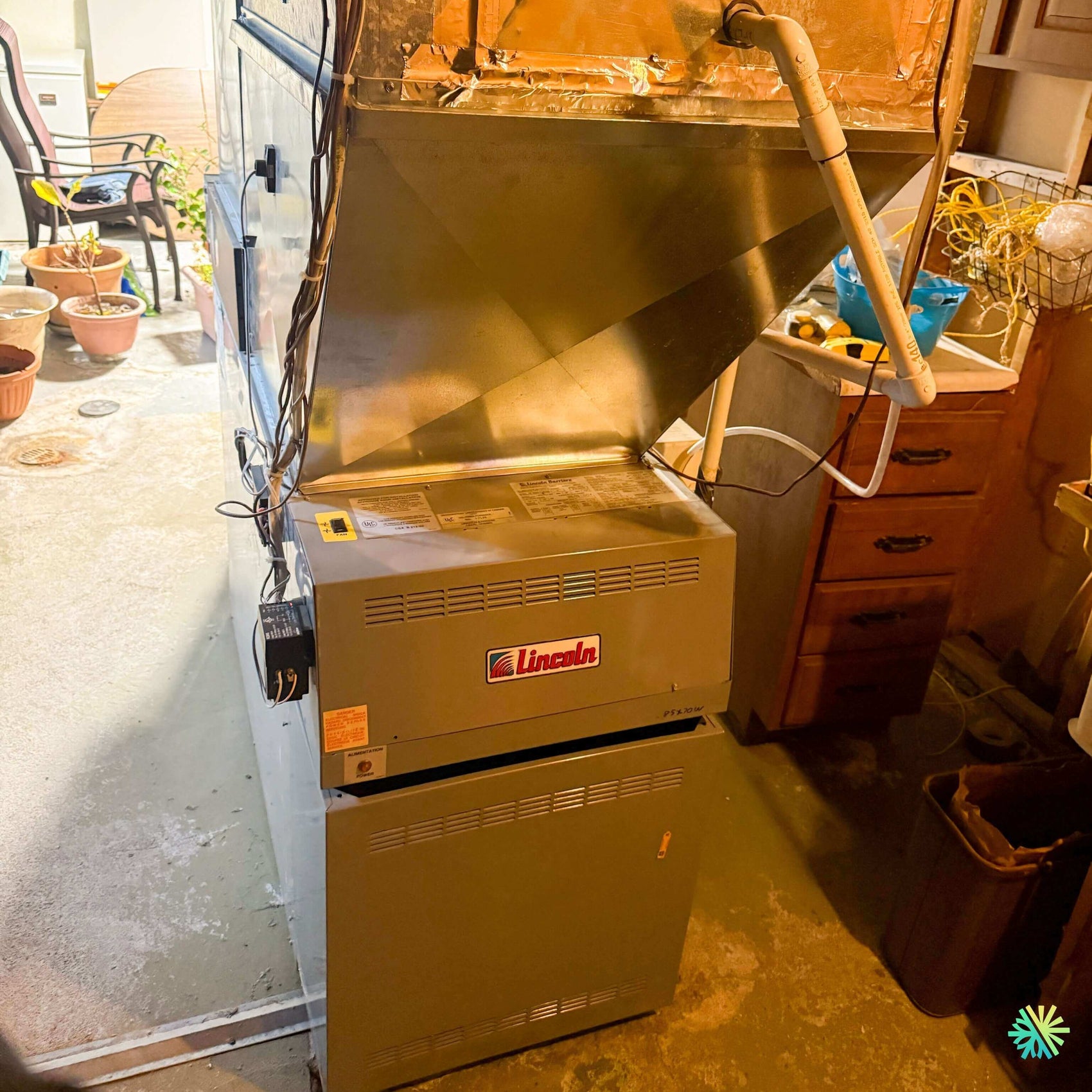

At first glance, the unit still seemed in good overall condition. The furnace was installed in a mechanical room in the basement, with a metal plenum above, an existing duct network, and several visible connections around the unit. However, as is often the case with forced-air heating systems, the real problems are rarely on the surface.
Symptoms observed by the client
The owner described several specific signs to us:
- uneven heating from one room to another;
- air sometimes blown lukewarm rather than hot;
- short and repetitive cycles;
- fan continuing to run after the heat stopped;
- relay noise louder than usual;
- indoor temperature difficult to maintain during cold periods.
These symptoms indicated a possible anomaly in the heating sequence, airflow, or internal electrical components of the furnace.
Complete inspection of the electric furnace
Our technicians first secured the intervention, then conducted a methodical inspection of the Lincoln electric furnace.
We checked:
- the main power supply;
- the internal connections;
- the relays and sequencers;
- the heating elements;
- the fan motor;
- the filter condition;
- the air return;
- the supply plenum;
- the static pressure in the ducts;
- the thermostat response.
This step is essential because an electric furnace can seem to be working even when part of its actual capacity is missing.
Diagnosis: unstable heating sequence and air restriction
After several tests, we identified two main causes.
A weakened relay in the heating circuit
One of the relays responsible for activating the heating elements was responding irregularly. In some cycles, the heating demand was transmitted correctly. At other times, the activation remained partial, which explained the lukewarm air and inefficient cycles.
Reduced airflow
The air return and some internal furnace areas had dust buildup. This restriction reduced airflow and forced the system to work under less efficient conditions.
An electric furnace must maintain a precise balance: too little air harms efficiency, while unstable electrical sequences directly reduce heat output.
Repair, adjustments, and system performance restoration
Replacement of the faulty relay
We replaced the relay showing intermittent response. This part plays a central role in the heating demand, as it safely activates the electrical elements according to the thermostat control.
After replacement, we tested several full cycles to confirm the heating elements responded correctly.
Heating element verification
Heating elements were tested individually. No burnt elements were detected, avoiding a more costly replacement.
Measurements confirmed the furnace could still produce full capacity once the electrical control was stabilized.
Targeted cleaning and improved airflow
We cleaned critical areas around the fan, air return, and accessible panels.
This intervention reduced air resistance and improved heat distribution in the duct network.
Thermostat validation
The thermostat was tested to confirm it was correctly sending the heating demand. In this case, the thermostat was not the cause of the problem.
This is a common mistake: replacing a thermostat without a full diagnosis can leave the real problem unresolved.
Final tests after repair
After restarting, we performed several checks:
- blow temperature;
- cycle stability;
- relay response;
- fan operation;
- electrical current;
- airflow at main outlets;
- normal shutdown after demand is met.
The system returned to much more stable operation.
Result for the client
After our intervention, the Lincoln electric furnace in Lachine produced more consistent and better-distributed heat. The client regained reliable indoor comfort, without short cycles or excessive temperature variation.
Improvements observed:
- warmer blown air;
- more regular heating cycles;
- reduced operating noise;
- better distribution in rooms;
- stabilized electrical operation;
- reduced risk of major failure.
Why this type of problem is common with electric furnaces
In Montreal, Laval, Longueuil, on the North Shore and the South Shore, many homes still have robust but aging forced-air systems. These devices can last a long time, provided the electrical components and airflow are regularly inspected.
Over time, relays, sequencers, and connections can wear out. At the same time, dust, neglected filters, and unbalanced ducts can reduce system efficiency.
Mistakes to avoid with an electric furnace
Ignoring short cycles
A short cycle is never trivial. It can indicate an electrical problem, air restriction, or overheating.
Leaving a dirty filter too long
A clogged filter reduces airflow and increases the load on the furnace.
Closing too many registers
Closing multiple air vents can unbalance the system and reduce efficiency.
Waiting for a complete breakdown
A furnace that heats less effectively often gives warning signs. Quick intervention can prevent more extensive repairs.
Replacing parts without diagnosis
A good HVAC service call always starts with measurements, not assumptions.
The AirGreen approach to heating repairs
At AirGreen, we work on electric furnaces, central heat pumps, wall-mounted heat pumps, wall air conditioners, and residential HVAC systems throughout the greater Montreal area.
Our goal is simple: identify the real cause of the problem, repair what needs to be fixed, and validate the result with concrete tests.
In this case in Lachine, the targeted replacement of a relay, combined with improved airflow, restored performance without a full device replacement.
A Lincoln furnace put back into service for reliable heating
This repair of a Lincoln electric furnace in Lachine demonstrates the importance of an accurate diagnosis when a system heats irregularly. The problem was not a total failure but a combination of unstable electrical control and weakened air circulation.
Thanks to AirGreen's intervention, the client now benefits from more consistent, safer heating that is better suited to the home's needs.
