An aging electric furnace that heated intermittently in a basement in Montreal-North
In a residential building in Montreal-North, our AirGreen team was called for a heating problem that was becoming increasingly concerning: a Lincoln electric furnace installed in a mechanical room in the basement was no longer producing consistent heat. The client had noticed that the system sometimes started normally, then stopped too soon, while at other times the fan ran without the blown air being warm enough.

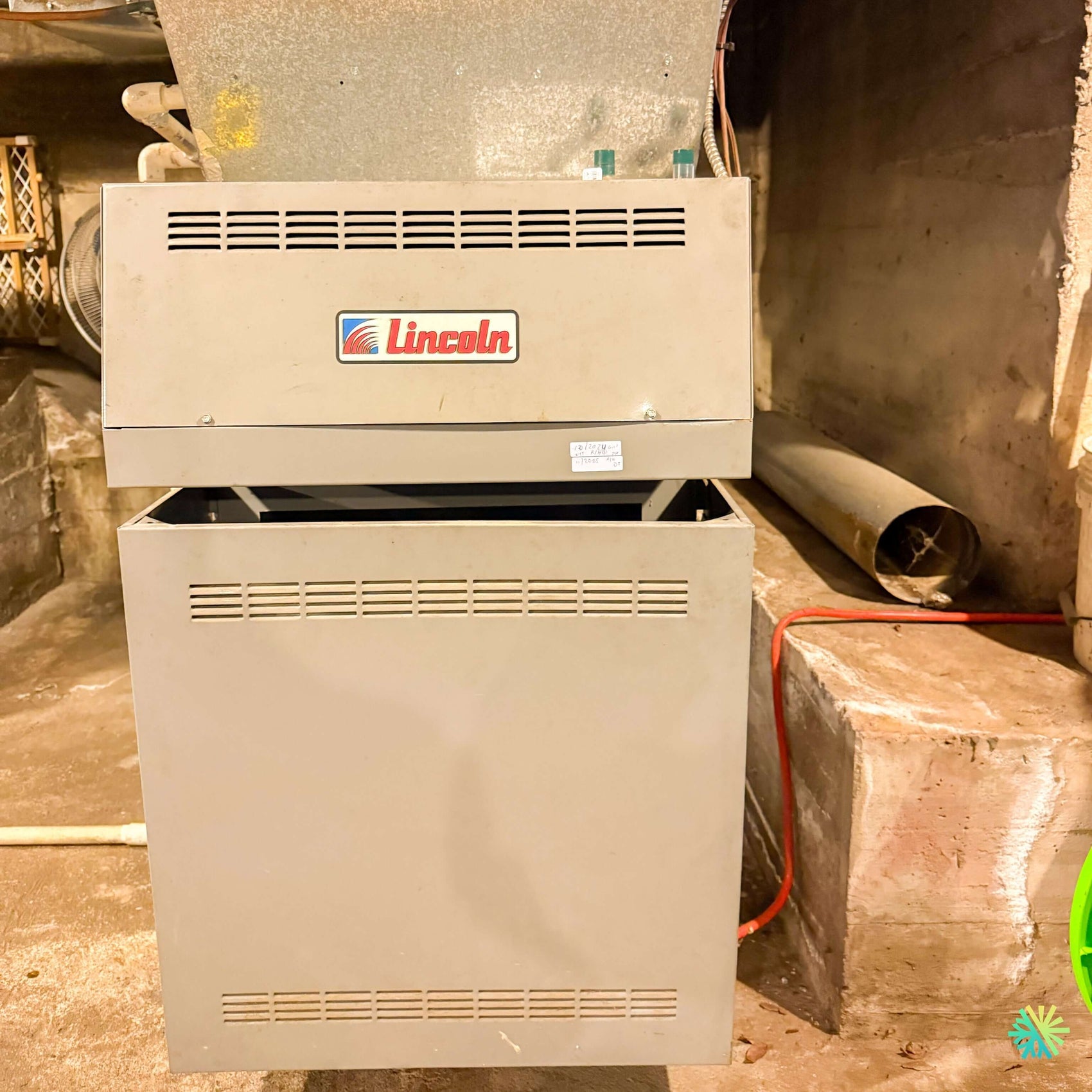

This type of service call requires special attention, especially when it involves an older generation electric furnace connected to a duct network. In the photo, you can clearly see a sturdy furnace cabinet installed under a metal plenum, with the Lincoln logo on the front panel. The technical environment — concrete, ducts, restricted access, apparent age of the equipment — indicates a typical residential installation that we often encounter in certain areas of Montreal, but also in Laval, Longueuil, on the North Shore and the South Shore.
At AirGreen, servicing an electric furnace never just means confirming that "it heats" or "it doesn't heat." We need to understand the full sequence: thermostat call, electrical power, relays or sequencers, heating elements, fan, safety controls, airflow, filter, plenum, and distribution in the rooms.
A problem that mainly occurred during cold periods
The client explained to us that the furnace could run for a short period, but the indoor temperature remained unstable. The house had difficulty reaching the requested setpoint, especially in the morning and evening, when heating needs were higher.
The reported symptoms were as follows:
- warm air rather than hot at the ventilation outlets;
- fan running, but insufficient heating;
- irregular shutdowns and restarts;
- slight smell of hot dust during startups;
- feeling that some parts were receiving less air than before;
- abnormally long heating time;
- louder operating noise in the mechanical room.
These signs can point to several causes: a poorly calibrated thermostat, a clogged filter, a weakened fan motor, a faulty relay, an end-of-life heating sequencer, a partially inactive heating element, a loose electrical connection, or an air restriction in the duct network.
In this specific case, the age of the Lincoln furnace required a cautious and structured approach. A part replaced without a full diagnosis can mask a more serious problem. Conversely, an old unit does not always need to be replaced immediately if the fault is localized and the essential components remain safe.
Visual inspection of the Lincoln electric furnace
Upon arrival, we started by inspecting the installation. The furnace was located in a relatively tight mechanical space, surrounded by concrete and metal ducts. This context greatly influences the technician’s work: access to panels, electrical connections, and internal components must be done methodically.
The unit showed several typical signs of a system that has been running for many years:
Sturdy front panel, but marked by age
The furnace casing was still well in place, but there was dust, some signs of wear, and slight visual deformation due to age. This is not automatically a problem, but it indicates that connection points and internal components need to be carefully checked.
Metal plenum above the furnace
The distribution plenum was directly connected to the cabinet. We checked for any obvious air leaks around accessible joints. A significant leak at the plenum can reduce overall performance, even if the furnace is producing heat properly.
Access to the filter and air return
In an electric furnace, a filter that is too dirty can cause a reduction in airflow. When air circulation is poor, the heating elements can overheat, safety limits may interrupt the cycle, and the customer experiences unstable heating.
Wiring and power supply
Since this is an electric furnace, checking the power supply is fundamental. These systems can demand significant power, depending on the device's kilowatt capacity. A worn, oxidized, or poorly tightened connection can cause intermittent symptoms and represent a risk not to be overlooked.
HVAC diagnosis: find the real cause before replacing parts
After securing the system, we proceeded with the necessary electrical and mechanical checks. The goal was to determine whether the problem came from the control, power, airflow, or heating elements.
Thermostat verification
We first confirmed that the thermostat was indeed sending a heating request. The control signal was present, which allowed us to rule out a simple thermostat failure as the main cause.
A thermostat can, however, contribute to some comfort issues if the setpoint, anticipation, differential, or control mode are not appropriate. In this case, the thermostat responded correctly, and the fault was further along in the heating sequence.
Verification of the heating sequence
In an electric furnace, heating elements usually do not all activate at the same time. They are controlled by relays, contactors, or sequencers, depending on the device design. These components allow staged heating startup to avoid a sudden electrical demand and stabilize heat production.
Our tests revealed irregular behavior in the activation of heating stages. Part of the heating responded, but not always consistently. This explained why the customer sometimes felt lukewarm air: the fan could run, but not all heating elements engaged as expected.
Inspection of heating elements
We checked the accessible elements to confirm their continuity and general condition. An open or burnt element can significantly reduce the furnace's heating capacity. In this case, not all elements were at fault; the main problem was more related to the power control and some connections.
Electrical connections and signs of fatigue
Particular attention was paid to the internal connections. In older systems, repeated heating and cooling cycles can cause slight loosening of some connections. This phenomenon can create resistance, excessive heat, intermittent outages, or premature wear of relays.
We identified a weakened connection and signs of wear on a heating-related control component. This kind of finding is important because you should never just “restart” the furnace if an electrical component shows signs of fatigue.
Repair completed: electrical correction, reorganization, and full testing
Once the diagnosis was confirmed, we carried out the necessary work to restore stable and safe operation.
Power supply safety restoration
Before any internal intervention, the power supply was cut off and verified. On an electric furnace, this step is essential. Power circuits can supply high-demand heating elements, and every handling must follow a strict procedure.
Connection correction
Problematic connections were tightened or corrected based on their condition. When a connection shows too much wear, it’s better to replace it rather than just reposition it. The goal is not just to make the device work for a few minutes but to prevent the same problem from returning during future heating cycles.
Replacement of a weakened control component
The component responsible for the irregular heating activation was replaced with a part compatible with the furnace’s configuration. In a Lincoln electric furnace of this type, compatibility is crucial: amperage, activation sequence, control voltage, and capacity must be respected.
We then confirmed that the heating stages activated correctly and that the fan followed a consistent sequence.
Internal cleaning and airflow verification
Cleaning of accessible areas was done to remove dust buildup that could contribute to odors and reduced efficiency. The filter was inspected, and we explained to the customer the importance of replacing it regularly, especially when the system runs frequently during winter.
An electric furnace can be in good electrical condition but perform poorly if the airflow is insufficient. That’s why we also checked:
- the air return;
- the air outlet at the plenum;
- the general condition of the ventilation compartment;
- the presence of visible restrictions;
- the fan's response when heating is requested.
Post-repair tests: more stable heat and better controlled operation
After the correction, the Lincoln furnace was restarted for a series of tests. We observed the full sequence: thermostat demand, control activation, heating start, fan operation, rise in blown air temperature, and controlled shutdown.
The results were clearly better:
- more stable activation of heating stages;
- warmer blown air;
- more consistent operating cycles;
- no premature shutdown during the test;
- more regular operating noise;
- better response to thermostat demand;
- no immediate anomalies on the corrected connections.
The customer noticed a clear difference: the furnace no longer just blew lukewarm air, it started producing more consistent heat in the duct network.
Why old electric furnaces require thorough diagnostics
Electric furnaces like this Lincoln often look simple, but their operation relies on several components working together. A single weak element can disrupt the entire heating system.
Sequencers and relays wear out over time
Each heating cycle stresses the control components. After several years, a relay can stick, hesitate, overheat, or fail to transmit power properly.
Electrical connections can deteriorate
Heat, vibrations, and age can affect connections. A loose connection can cause intermittent operation and should always be taken seriously.
Airflow directly affects safety
A neglected filter or a partially blocked air return can raise the furnace's internal temperature. Safety limits may then cut off the heating to protect the device.
A weak fan can mimic a heating failure
If the air circulates poorly, the customer may think the elements are not heating. In reality, heat may be produced but poorly distributed in the rooms.
Mistakes to avoid with an electric furnace that heats poorly
When an electric furnace shows intermittent symptoms, certain reactions can worsen the situation. We recommend avoiding:
- to constantly raise the thermostat without diagnosis;
- to keep using a device that emits a suspicious electrical smell;
- to repeatedly reset circuit breakers without identifying the cause;
- to replace the thermostat before checking the furnace;
- to block air returns with furniture or objects;
- to neglect replacing the filter;
- to disassemble the panels without qualification;
- to ignore a heater that alternates between hot air and lukewarm air.
An electric furnace has no flame or combustion, but it remains a powerful device. Internal components must be inspected with the right tools and methods.
Repair or replace: a decision that depends on the actual condition of the unit
In this service in Montreal-North, the repair was relevant because the fault was localized and the furnace could be restarted in a stable way. However, we also discussed with the client the age of the unit and the importance of monitoring its behavior over the coming months.
A repair is often advantageous when:
- the fault is clearly identified;
- major components remain functional;
- compatible parts are available;
- the casing and duct network are in acceptable condition;
- the repair cost remains reasonable compared to replacement.
Replacement becomes more logical when breakdowns repeat, when multiple heating stages are damaged, when the fan is at the end of its life, or when the electrical and mechanical installation requires a major upgrade.
An AirGreen intervention that restores confidence in the heating system
This service on a Lincoln electric furnace in Montreal-North clearly illustrates our way of working: precise diagnosis, electrical safety, targeted correction, airflow verification, and thorough testing before leaving the site. The client needed a clear answer, not a guess. By identifying the real cause of the instability, we were able to restore heating and improve comfort in the home.
At AirGreen, we service residential heating systems throughout the greater metropolitan area, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Our HVAC service calls cover electric furnaces, wall heat pumps, central heat pumps, wall air conditioners, multi-zone systems, air exchangers, and many other residential equipment.
An aging electric furnace can still be useful when it is properly diagnosed, well maintained, and carefully repaired. In this case, the intervention restored more consistent heat, reduced the client’s worry, and extended the use of the unit without immediate replacement.
