An aging central system that was blowing air but no longer heating consistently
In the Îles-Laval, our AirGreen team was called for a heating problem on a Luxaire central electric furnace, connected to an existing metal duct network in a basement mechanical room. The unit was installed in a typical environment for older homes in the area: limited space, galvanized ducts, multiple connections, limited service access, and dust accumulation around the base of the equipment.
The client contacted us because the house was no longer reaching the temperature set on the thermostat. The ventilation started, air circulated through some vents, but the heat felt was weak and irregular. At times, the device seemed to operate normally; at other times, it blew lukewarm air without managing to stabilize comfort. This kind of symptom is particularly important to diagnose quickly, as a central furnace can continue to circulate air even when part of its heating, control, or safety system no longer responds properly.
A Luxaire furnace connected to an existing duct network

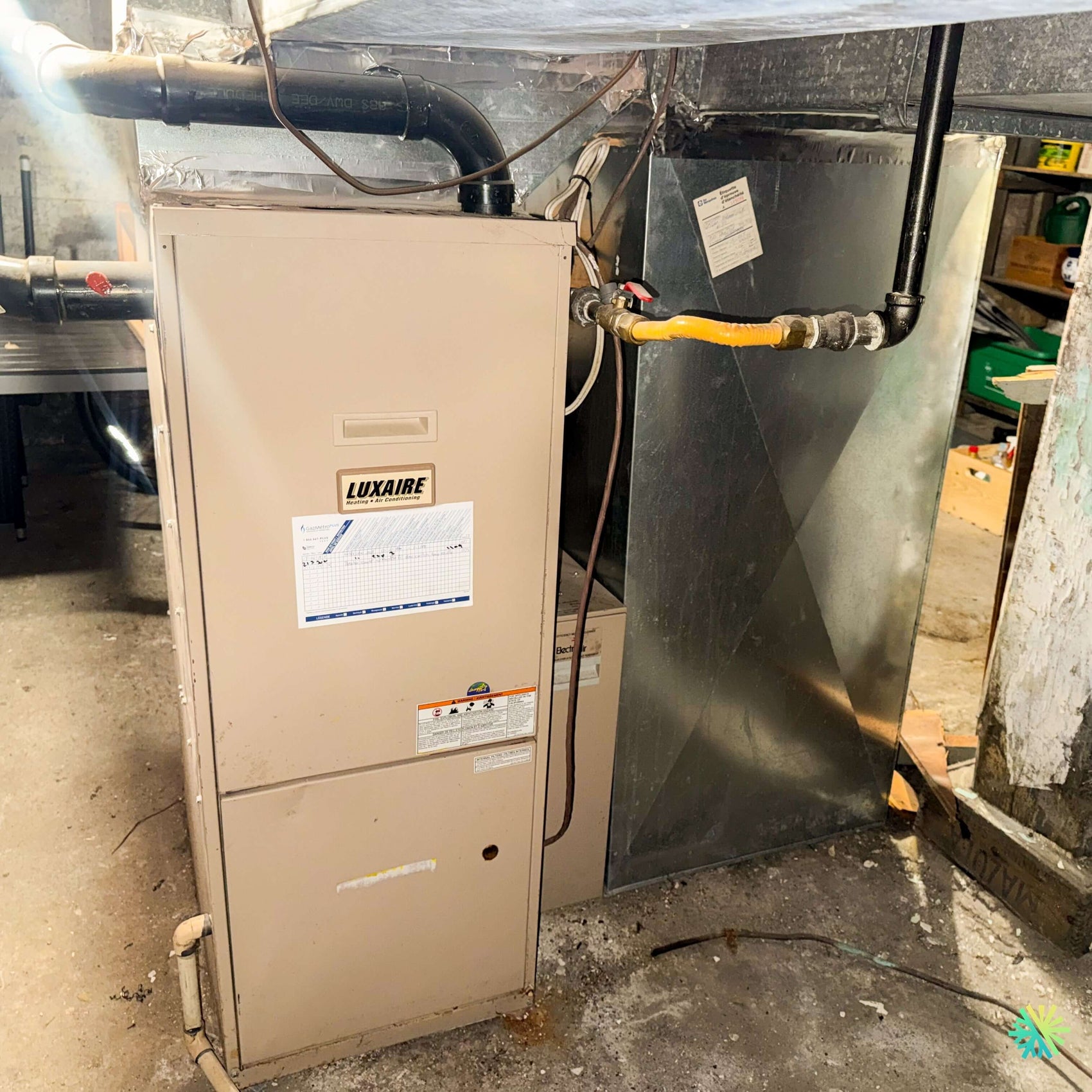

Upon our arrival, the visual inspection revealed a Luxaire Heating & Air Conditioning furnace installed next to a large sheet metal air return. The unit was connected to the main network by an upper plenum, with several ducts visible around the device. The front panel still had the maintenance label, indicating the unit had been serviced before, but the overall condition of the mechanical room showed that a full inspection was necessary.
In a space like this, several factors can influence performance:
- the condition of the filter and the air return;
- the cleanliness of the ventilation compartment;
- the startup sequence;
- the operation of heating elements or stages;
- the condition of relays, terminals, and safety devices;
- the pressure in the ducts;
- the quality of the connections to the plenum;
- the presence of moisture or corrosion at the base;
- vibrations coming from the cabinet or the motor.
The device was not simply evaluated as an isolated machine. We had to analyze the entire HVAC system: the furnace, the thermostat, the duct network, the return air, the supply air, and visible signs of wear.
Reported problem: unstable temperature and cycles that are too long
The client had noticed that heating took much longer than before to raise the indoor temperature. Some rooms remained comfortable, while others stayed cool. This imbalance gave the impression that the unit was working without reaching its full capacity.
The most important symptoms were as follows:
- active ventilation, but insufficient heat;
- longer heating cycles than usual;
- indoor temperature rising slowly;
- discomfort in distant rooms;
- normal operating noise, but reduced output;
- feeling of lukewarm air at the registers;
- need to raise the thermostat to get an acceptable result.
These signs often point the diagnosis toward a partial loss of capacity. On a central electric furnace, this can be caused by a defective heating stage, a relay that no longer closes properly, a high-limit safety that cuts off too early, a clogged filter, or insufficient airflow.
Our approach: do not confuse blown air with effective heating
One of the most common mistakes with a central furnace is to believe the unit is working simply because the fan is running. In reality, ventilation is only part of the system. A furnace can blow air without producing enough heat, especially if an electric stage does not activate or if a safety device interrupts the sequence.
So we began by confirming three essential points:
Thermostat demand
The thermostat had to send a clear request to the furnace. We checked that the heating call was properly transmitted, that the unit responded to this request, and that the sequence started normally.
Ventilation
The blower motor had to operate steadily, without excessive vibration or obvious weakness. A dirty fan wheel, a worn-out motor, or an overly restrictive filter can reduce airflow and cause internal overheating.
Actual heat production
We then evaluated the supply air temperature and the stability of the heat produced. The goal was not just to feel if the air was warm, but to understand if the furnace delivered consistent and sufficient heat throughout the cycle.
Return air and filter inspection
The large return air plenum located next to the furnace played a central role in this diagnosis. If the air does not return properly to the unit, the furnace cannot redistribute heat efficiently. A poorly maintained, improperly positioned, or too restrictive filter can reduce overall performance.
During the inspection, we checked:
- access to the filter;
- presence of dust around the return;
- seal of the connection to the plenum;
- airflow to the unit;
- signs of visible duct restrictions.
An electric furnace needs a stable airflow to operate correctly. When the airflow decreases, internal temperatures rise quickly, which can trigger safety devices and interrupt certain cycles. The customer then experiences irregular heating, even if the unit still seems active.
Internal components diagnosis
After checking the air, we continued with the inspection of accessible internal components. On a Luxaire central furnace, control elements must be evaluated rigorously, especially when the problem is intermittent.
We paid particular attention to the following elements:
- heating relays;
- contactors;
- electrical terminals;
- safety switches;
- high limit;
- connections;
- blower motor;
- ventilation compartment;
- sequence between heating and ventilation.
The diagnosis identified irregular operation in the heating sequence. The unit responded well to the demand, but the heat was not maintained consistently. The behavior indicated a partial loss of efficiency, likely worsened by the state of the airflow and wear on some control components.
Targeted repair, securing operation, and restoring reliable heating
Once the cause was isolated, our intervention focused on restoring the system's condition. The goal was not to unnecessarily replace the entire unit but to restore reliable, safe, and consistent operation.
Heating sequence correction
We corrected the control sequence so that the unit could respond more efficiently to the thermostat's demand. An electric furnace must follow a precise order: receiving the heating call, controlled startup, stage activation, adequate ventilation, maintaining supply air temperature, and safe shutdown at the end of the cycle.
After correction, we restarted the unit to observe its behavior over a full cycle. The heating was more stable, the ventilation better synchronized, and the supply air temperature more consistent.
Safety checks
Safety devices play an essential role in a central furnace. They protect the unit against overheating, ventilation faults, and abnormal conditions. When a safety device trips too quickly, it should never be bypassed. It is important to understand why it activates.
We therefore confirmed:
- that the high limit did not cut off prematurely;
- that the airflow allowed a normal temperature rise;
- that the unit showed no visible overheating;
- that the cycles completed without abnormal interruption;
- that the electrical components remained stable during the heating call.
This step is important, especially in a residence in Îles-Laval where cold periods may require prolonged system operation.
Cleaning and preventive inspection
The environment around the furnace showed typical signs of a mechanical basement: dust, debris, aging ducts, and partially cluttered access. Even if these elements do not directly cause a breakdown, they can worsen an existing problem.
We therefore recommended special attention to preventive maintenance:
- replace the filter regularly;
- keep access to the furnace clear;
- avoid dust buildup around the base;
- monitor any signs of moisture;
- have visible ducts checked during maintenance;
- do not ignore unusual noises;
- schedule an inspection before the cold season.
An aging central system can still provide excellent service, provided it is properly maintained and diagnosed at the first signs of weakness.
Why the duct system so strongly influences performance
In this case, the duct system was a major factor. A furnace can produce enough heat, but if the return air is poorly balanced or if the plenum has leaks, comfort in the home can remain unsatisfactory. Central heating relies on a balance between production, circulation, and distribution.
A poor duct system can cause:
- high static pressure;
- reduced airflow;
- cold parts;
- ventilation noise;
- longer cycles;
- excessive motor strain;
- internal overheating;
- premature wear of components.
That’s why our HVAC diagnosis never stops at the front panel of the unit. We also look at what surrounds it: ducts, return air, clearance, condition of the mechanical room, and actual behavior in the home.
Mistakes to avoid with a Luxaire central furnace
This service call in Îles-Laval highlights several common mistakes we observe during service calls.
Constantly increasing the thermostat
When the furnace does not heat enough, turning up the thermostat does not fix the cause. It simply prolongs the cycles and can increase the wear on the unit.
Neglecting lukewarm air only
Lukewarm air at the vents can indicate that a heating stage is not working. As long as the breakdown is partial, it may go unnoticed, but consumption increases and comfort decreases.
Forgetting the filter
A damaged filter can turn a small problem into a recurring breakdown. In a central furnace, the filter protects both air quality and mechanical operation.
Ignoring signs around the unit
Humidity, rust, excessive dust, vibrations, or electrical noise must be taken seriously. These signs often help identify the real cause of the breakdown.
Final result: more stable heat and a reassured client
After the repair and testing, the system returned to more consistent operation. The furnace responded better to demand, the heat distribution was more even, and the observed cycles were more coherent. The client noticed improved indoor comfort, especially in areas where the air had previously seemed too weak or too lukewarm.
We also explained the points to monitor in the weeks following the intervention: temperature stability, cycle duration, startup noise, filter condition, and comfort differences between rooms. These observations allow for quick action if another system component begins to show signs of wear.
AirGreen in Îles-Laval, Laval, and Greater Montreal
This repair of a Luxaire electric furnace in Îles-Laval clearly illustrates our approach: a structured diagnosis, targeted correction, and thorough validation of the result. We regularly work on HVAC systems in Laval, Montreal, Longueuil, on the North Shore and the South Shore, addressing heating breakdowns as well as ventilation, performance, or uneven comfort issues.
Every furnace has its story: the age of the unit, the quality of the duct network, previous maintenance, thermostat settings, mechanical access, and usage habits. Our role is to understand this story to make the right diagnosis and avoid unnecessary replacements.
In this case, the repair extended the equipment's lifespan, improved the residence's comfort, and restored the client's confidence in their central heating system.
