A Philco electric furnace that started without heating properly: a precise HVAC diagnosis in a confined mechanical space
In Laval, our AirGreen team was called for a Philco electric furnace repair installed in a tight mechanical space, typical of many residences where the central heating system occupies a utility closet or a small utility room. The client reported a frustrating problem: the fan sometimes seemed to run, the thermostat was indeed calling for heat, but the air coming out of the vents remained lukewarm, then became almost cold after a few minutes. In some rooms, the temperature no longer rose as before, even when the setpoint was increased.

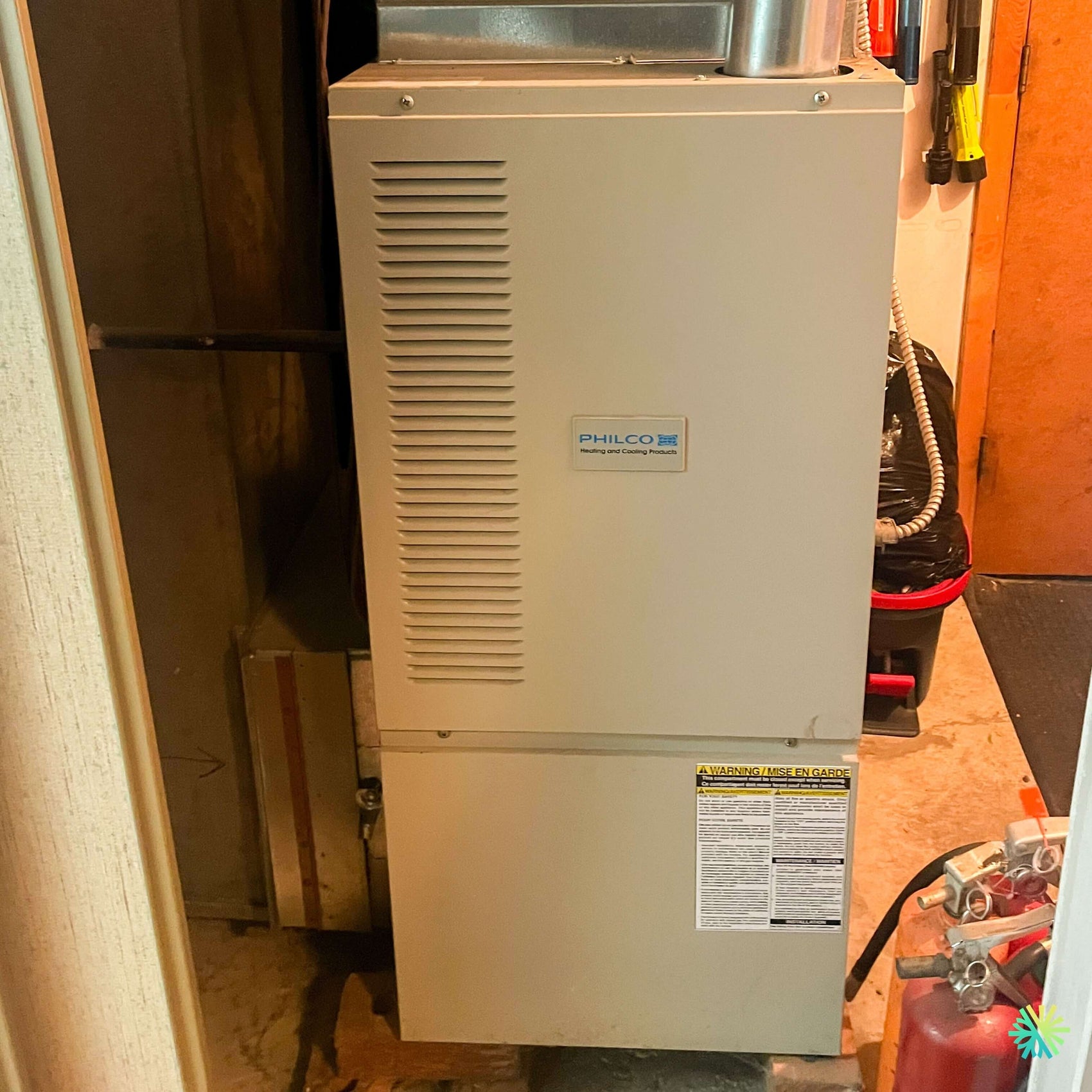

The unit seen on site was a Philco electric furnace connected to a duct network, with a vertical cabinet, a ventilated front access panel, an upper plenum, and a round outlet connected to the air distribution. The system was not new, but it was still repairable. The main issue was therefore to determine whether the failure came from the heating elements, the sequence control, the thermostat, the ventilation motor, an internal safety, or an airflow problem.
On an electric furnace, the diagnosis must be done rigorously. The fact that the fan is running does not mean the heating elements are working. Conversely, heating elements can be quickly shut off by a safety if the air circulation is poor. Our intervention in Laval was therefore structured around a simple logic: confirm the heating demand, check the power supply, test the heat stages, measure the blower behavior, and validate the output temperature after correction.
An old central unit, but still relevant to diagnose
Philco electric furnaces of this type are still found in several homes in Laval, Montreal, Longueuil, and on the north and south outskirts. They are often simple, robust, and designed to last, but their reliability depends on a few key components:
- the electric heating elements;
- the sequencers or heating relays;
- the blower motor;
- the high temperature safety limits;
- the low and high voltage wiring;
- the thermostat;
- the filter and airflow in the ducts.
In this specific case, the customer had already replaced the filter recently, but the problem persisted. This is an important point: a clean filter alone does not guarantee good airflow. You also need to check the blower wheel, motor speed, dampers, registers, ducts, and the condition of internal components.
Symptoms observed before the intervention
Upon our arrival, the customer described a repetitive sequence: the furnace responded to the thermostat call, a ventilation noise was heard, then the heat remained insufficient. The device could then run for a long time without actually raising the ambient temperature.
The observed signs were as follows:
- warm blown air, then sometimes almost neutral;
- lack of clear heat at the registers;
- longer heating cycles than usual;
- more noticeable discomfort on the ground floor;
- thermostat showing an active heating demand;
- no circuit breaker tripped at the electrical panel;
- intermittent operation of the heating stages.
These signs pointed to a partial failure. An electric furnace can lose one or more heating stages while continuing to blow air. The customer then has the impression that "the furnace is working," but the actual power is no longer sufficient to heat the house.
Securing the device and visual inspection
Before opening the device, we secured the intervention. An electric furnace operates with high-power circuits; tests must be carried out carefully and according to a precise method. We then inspected the cabinet, panels, plenum, visible connections, and the immediate environment.
The mechanical space was tight, with little clearance around the furnace. This constraint always complicates the work, as every measurement, every access to wiring, and every inspection of the heating compartment must be done without damaging the ducts or nearby components.
Inside, we found a normal accumulation of dust related to the age of the installation, but especially heat marks near a connection of a heating stage circuit. This type of sign should never be ignored. A connection that heats up can cause loss of contact, intermittent cutoffs, irregular operation, or even accelerated deterioration of the sequencer.
Electrical diagnosis: thermostat, sequencer, and heating elements
The first technical step was to confirm that the furnace was indeed receiving the heating demand.
Verification of the heat call
The thermostat was sending the signal correctly. The low voltage control was present, stable, and consistent with the requested setpoint. We could therefore rule out a simple thermostat failure.
Testing the heating stages
We then checked the activation of the heating stages. On this type of furnace, the electric elements do not always activate all at once. A sequencer allows the stages to turn on progressively to reduce the instantaneous current draw and protect the components.
The diagnosis showed that one of the stages was not activating properly. The device received the command, but the heating power was incomplete. The blower was working, but the air passed through partially active elements, which explained the insufficient heat at the registers.
Identification of the faulty component
The main problem came from a weakened heating sequencer, combined with an oxidized connection on a stage power supply circuit. The sequencer reacted irregularly: sometimes it engaged the stage, sometimes it stayed open or cut off too early. This intermittent failure matched exactly the symptoms reported by the customer.
The heating elements themselves were not all burned out. It would therefore have been unnecessary and costly to replace the entire heating block without confirming the control. Our diagnosis allowed us to target the real cause.
Repair performed: replacement of the sequencer and restoration of the connections
We replaced the defective sequencer with a part compatible with the furnace specifications. This step is essential: a poorly adapted sequencer can activate the stages at the wrong time, create an overload, or prevent the furnace from operating according to its original design.
We also cleaned and redid the problematic connection. The wire and terminal showed signs of local overheating; we therefore corrected the contact to prevent recurrence. In an electric furnace, a simple loose terminal can have significant consequences because the heating circuits carry a high current.
After the repair, we checked:
- the quality of the connection tightening;
- the absence of abnormal heat at the terminals;
- the progressive activation of the stages;
- the stability of the low voltage control;
- the fan’s behavior during heating;
- the temperature of the air blown at the registers.
Checking airflow and the ventilation compartment
Even though the main failure was electrical, we also checked the airflow. An electric furnace repaired electrically can still malfunction if air does not circulate properly. In this case, the filter was acceptable, but the return air compartment and some grilles needed monitoring.
We recommended the customer keep the registers open in main areas and avoid using an overly restrictive filter. Many owners think they improve air quality by choosing a very dense filter, but on an older furnace, this can reduce airflow, increase internal temperature, and cause safety shutdowns.
Final tests: stable heat and normal operation
Once the sequencer was replaced and the connections restored, we restarted the furnace on a heat call. The startup was normal. The stages activated progressively, the fan maintained a constant flow, and the blown air became noticeably warmer again.
We let the system run long enough to confirm that the intermittent failure did not return. The output temperature was consistent, safety devices did not shut off prematurely, and the thermostat could finally raise the ambient temperature steadily.
For the customer, the difference was immediate: the furnace no longer just blew lukewarm air. It produced stable heat, distributed throughout the house, with more predictable operation.
What this electric furnace repair in Laval demonstrates
This intervention on a Philco electric furnace in Laval illustrates a common reality in HVAC service: a failure is not always total. Often, the system continues to operate partially, which makes the problem harder for the owner to understand. The fan runs, the unit makes noise, the thermostat calls for heat, but the house does not warm up.
In this case, targeted replacement of the sequencer and fixing a weakened connection restored performance without unnecessarily replacing the entire unit.
Mistakes to avoid when an electric furnace heats poorly
When an electric furnace no longer heats properly, certain actions can make the situation worse.
Constantly increasing the thermostat setpoint
Turning the thermostat very high does not fix a heating stage failure. If only part of the elements work, the furnace will continue to lack power, no matter the setpoint requested.
Ignoring a persistent hot or burnt dust smell
A slight smell at the first seasonal start-up can happen, but a persistent smell should be checked. It may indicate dust buildup, a heating connection, or a worn electrical component.
Assuming the motor is always the cause
Low heating does not automatically mean the fan is defective. In this case, the motor was running, but the heating power was incomplete due to the sequencer.
Replacing the furnace too quickly
An older furnace can sometimes be effectively repaired if the structure, main components, and duct network are still in good condition. A professional diagnosis helps decide between repair and replacement with concrete facts.
Why call AirGreen for HVAC repair in Laval
At AirGreen, we service heating, air conditioning, and ventilation systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our service calls are designed to identify the real cause of the problem, clearly explain the situation to the client, and perform a lasting repair when the device allows.
For this Philco electric furnace, our intervention restored heat, secured connections, and extended the system's use. The client regained stable comfort, with a better understanding of signs to watch for in upcoming seasons.
When to request a service call for an electric furnace
A service call is recommended if you notice:
- a drop in heat at the vents;
- a fan that runs without producing enough heat;
- very long cycles;
- frequent shutdowns before reaching the requested temperature;
- an unusual hot smell;
- a circuit breaker that trips;
- parts that heat unevenly;
- a furnace that seems to operate only at reduced power.
These symptoms can come from a sequencer, a relay, a component, a safety limit, a motor, a filter, or a wiring problem. A complete HVAC diagnosis helps avoid unnecessary replacements and fixes the problem at its source.
