When an electric furnace still heats but no longer heats properly
In Laval-Ouest, our AirGreen team responded to a service call on a Ruud electric furnace installed in a residential mechanical room. The client contacted us because the heating system no longer provided the expected comfort: the house eventually warmed up, but more slowly than before, with prolonged cycles, irregular air circulation, and the impression that the furnace was working without quickly reaching the thermostat’s requested temperature.

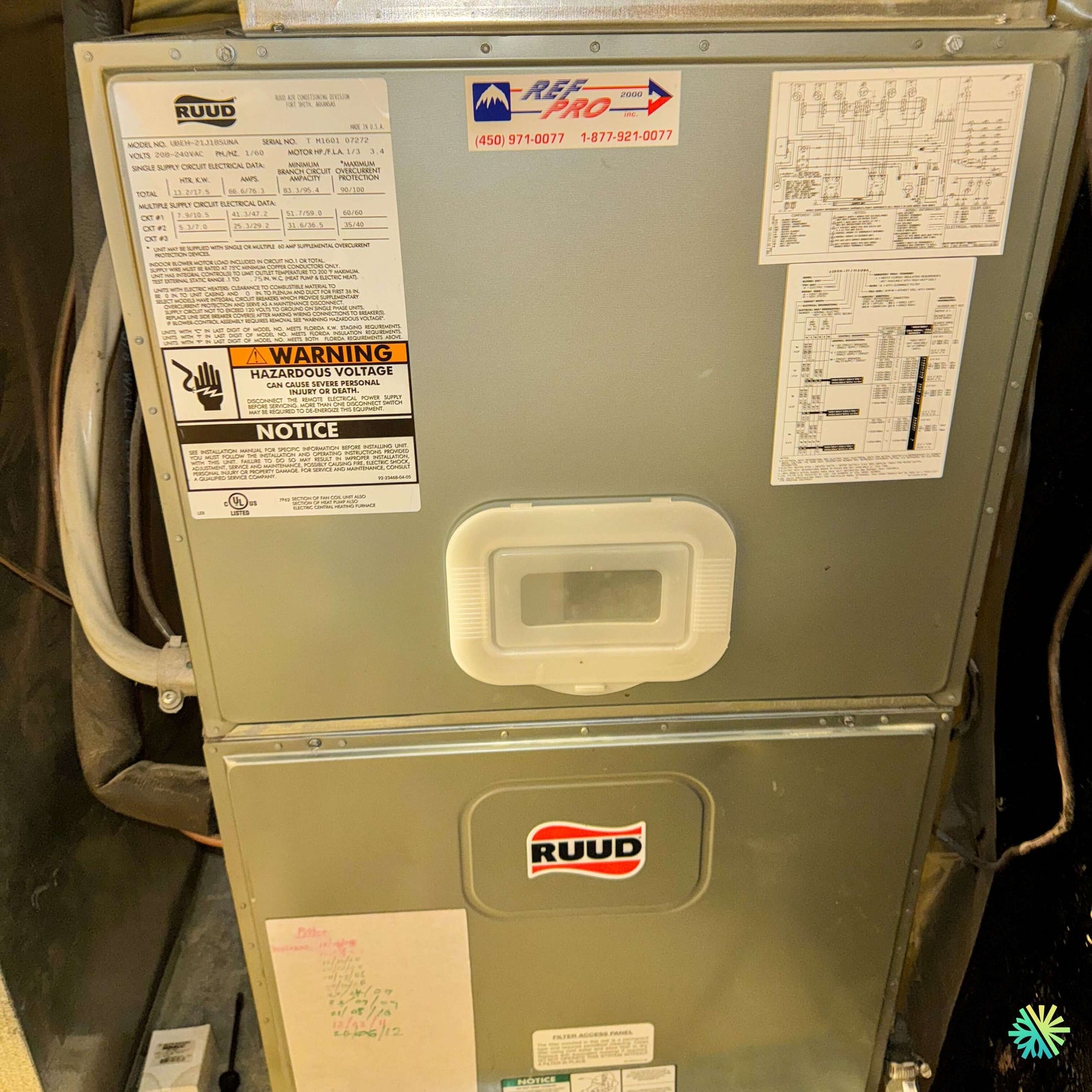

On site, we found an electric furnace branded Ruud, connected to an existing duct network, with a nameplate indicating a power supply of 208-240 V, a blower motor, and high-intensity electric heating circuits. This type of equipment is common in many homes in Laval, Montreal, Longueuil, on the North Shore and South Shore, especially in residences where central electric heating has replaced old oil systems or accompanies a central heat pump.
The challenge with this type of HVAC intervention is not to jump to conclusions too quickly. An electric furnace can produce heat even when part of the system is malfunctioning. If a heating element, sequencer, relay, safety limit, or ventilation component is faulty, the customer often experiences a gradual drop in performance rather than a complete failure.
An initial inspection focused on electrical safety
Before any handling, we started with a safety check. An electric furnace like this operates with significant loads. The heating circuits, connections, relays, and terminal blocks must be inspected thoroughly, as a poor connection can cause overheating, a hot smell, intermittent shutdowns, or even damage internal components.
So we checked:
- the general condition of the furnace panel;
- possible signs of overheating near the connections;
- the power supply circuits;
- the furnace's response when heating is requested;
- the operation of the blower;
- the activation sequence of the heating elements;
- the filter condition and air circulation;
- the safety limits and accessible internal controls.
The nameplate visible on the device confirmed that it was not a small auxiliary unit but a central electric furnace designed to supply a duct network. In this context, an airflow or electrical control problem can affect the entire house.
Symptoms observed during the service call
The customer was not only reporting a lack of heat. They described irregular behavior: some periods where the air seemed sufficiently warm, then other times when the system blew for a long time without effectively raising the indoor temperature.
This type of symptom can be related to several causes:
- one or more heating elements that no longer activate;
- an electrical sequencer that improperly activates the heating stages;
- a thermal limit that cuts off too quickly;
- a clogged filter reducing airflow;
- a worn-out or dirty blower;
- a misconfigured thermostat;
- a relay or control board problem;
- an unstable power supply on one of the circuits.
In this specific case, we paid particular attention to the heating sequence. On an electric furnace, the elements do not always activate all at once. They are often controlled in stages to avoid a sudden electrical demand. If a single stage does not start properly, the furnace can still operate but with reduced power.
Ruud Electric Furnace Diagnosis
Our diagnosis was carried out in several steps to isolate the real cause of the problem.
Thermostat and Heating Request Verification
We first confirmed that the thermostat was correctly sending the heating request. A misconfigured thermostat can mimic a furnace failure, especially when it is programmed for a heat pump, auxiliary heating, or a multistage system.
We checked the control, the furnace response, and the delay between the thermostat request and the actual system activation. The request was properly transmitted, which allowed us to focus the diagnosis on the device itself.
Blower Control
The blower plays a central role in an electric furnace. Even if the heating elements work, the hot air must be properly moved through the ducts. Too low an airflow can cause internal overheating, trigger a safety limit, and greatly reduce comfort in distant rooms.
We inspected:
- motor start-up;
- ventilation stability;
- abnormal noises;
- the condition of the filtration compartment;
- possible restriction in the return air;
- the consistency of airflow with the heating demand.
Weakened airflow can turn a simple heating demand into a long and inefficient cycle. In many homes in Laval-Ouest, ducts were sometimes designed for older systems or modified over the years. That’s why we always check the whole system: furnace, filter, return air, supply, and distribution.
Inspection of heating elements and controls
We then checked the behavior of the heating elements. A Ruud electric furnace of this type can have several heating circuits. When one circuit no longer activates, the system sometimes continues to blow lukewarm air but without sufficient capacity to maintain comfort during cold days.
The diagnosis focused on:
- electrical elements;
- relays or sequencers;
- connections;
- thermal limits;
- signs of wear;
- performance variations between stages.
This step is essential because replacing a part without validating the full sequence can leave the problem unresolved. A furnace may have a still-good element but a faulty relay. Conversely, a relay may work, but an element may no longer heat properly.
On-site intervention performed
After the inspections, our team proceeded with the necessary corrections to stabilize the furnace’s operation. The goal was not just to restart the heating, but to ensure the unit responded properly to a real demand, with consistent airflow and safe activation of components.
The intervention included:
- a cleaning and inspection of the filtration area;
- a blower check;
- a tightening of accessible connections;
- a verification of heating stages;
- a test of safety limits;
- an observation of the complete heating cycle;
- a validation of operation after correction.
Once the adjustments were made, the Ruud furnace returned to a more stable operation. The blown air was more consistent, the heating cycle was more coherent, and the customer could better understand what had caused the performance drop.
What this electric furnace repair in Laval-Ouest reminds us of
An electric furnace repair requires a methodical approach. Unlike some devices that fail suddenly, an electric furnace can gradually lose part of its capacity. The customer then notices that the heating is slower, some rooms remain cool, or the system seems to run too long.
Why an electric furnace can become less efficient
In a residence, the central furnace often works several hours a day during winter. Over time, some components can wear out or become unbalanced.
The most common causes are:
A filter that is too dirty
A clogged filter reduces airflow. The furnace then struggles to heat the home and may even trigger its internal safety features.
A defective relay or sequencer
If a heating stage does not activate, the available power decreases. The system may seem to operate normally, but it only heats at a fraction of its capacity.
A weakened blower
A tired motor, a dirty fan wheel, or poorly adjusted airflow can reduce the distribution of warm air in the ducts.
A thermal limit triggered too often
When the furnace overheats, a safety limit cuts off the heating. This protects the equipment but creates irregular cycles and discomfort in the home.
A poorly configured thermostat
A wrong setting can prevent the furnace from properly using its heating stages, especially if the system is paired with a central heat pump or auxiliary heating.
Mistakes to avoid with an electric furnace
During our interventions in Laval, Montreal, Longueuil, on the North Shore and South Shore, we often see the same mistakes recurring.
The first is waiting for the furnace to stop completely. A drop in performance is already an important signal. The faster the intervention, the more it is possible to avoid a major breakdown.
The second is replacing the thermostat without diagnosis. A thermostat may be the cause, but the furnace's internal components should not be ignored.
The third is neglecting the filter. A dirty filter can cause symptoms that resemble an electrical failure: short cycles, low heat, blower noise, discomfort in certain rooms.
The fourth mistake is underestimating the importance of the duct network. A high-performing furnace cannot properly heat a home if the air return is insufficient or if the distribution is unbalanced.
The importance of a complete inspection by an HVAC team
At AirGreen, we treat every service call as a thorough investigation. An electric furnace is not just a box that heats air. It is a set of electrical, mechanical, and air distribution components that must work together.
In this intervention in Laval-Ouest, our approach allowed us to verify safety, identify possible causes of performance decline, and restore the system to a more reliable operating condition. The client also received practical advice to prevent the situation from recurring quickly.
Practical advice after an electric furnace repair
After an intervention like this, we generally recommend monitoring a few simple elements:
- replace or clean the filter according to the recommended frequency;
- keep return and supply vents clear;
- avoid closing too many registers in the house;
- listen for changes in blower noise;
- note if some rooms become colder than others;
- have the system checked before the coldest weather;
- do not ignore a warm smell or unusual shutdown.
These simple actions often help extend the furnace’s lifespan and maintain better comfort during the winter.
Final result: more stable heating and a reassured client
At the end of the service call, the Ruud electric furnace in Laval-Ouest was operating more consistently. The heating demand was better monitored, the ventilation was more coherent, and the critical components had been checked.
The client now knew what to watch for and better understood the role of each component: thermostat, blower, filter, relay, heating elements, and safety limits. This understanding is important because it helps avoid unnecessary expenses and allows for quicker action when a symptom reoccurs.
AirGreen works on residential HVAC systems in Laval-Ouest, Laval, Montreal, Longueuil, on the North Shore and the South Shore, with a precise, professional approach tailored to the realities of Quebec homes.
