An electric furnace that heats intermittently in a condo in the Old Port of Montreal
In a residential building in the Old Port of Montreal, our AirGreen team was called for an electric furnace repair that particularly worried the occupants: the system would start, blow lukewarm air for a few minutes, then stop before reaching the temperature set on the thermostat. Comfort was no longer stable, the temperature varied from room to room, and the client feared a complete breakdown during cold weather.

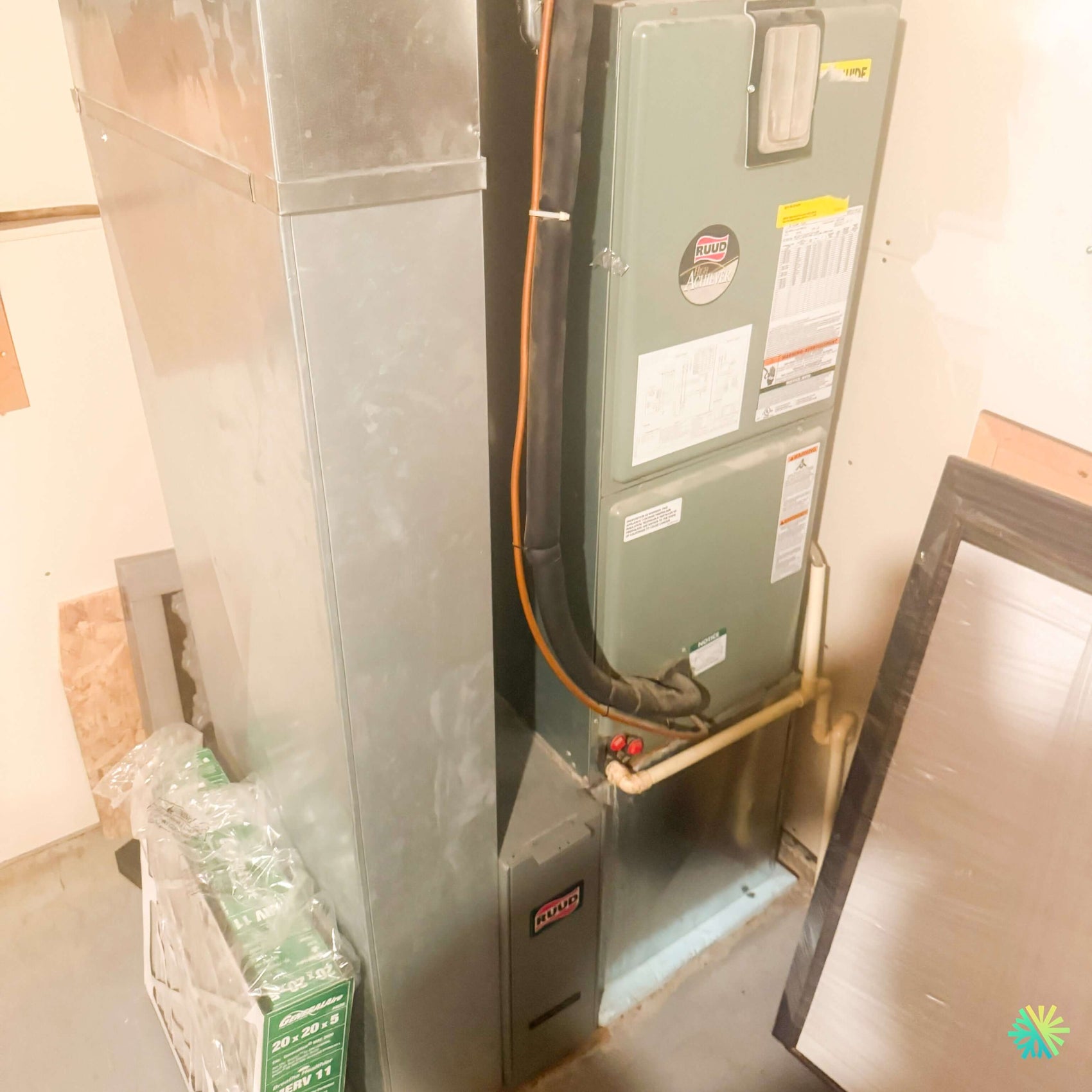

The equipment in place was a Ruud Achiever electric furnace, installed in a compact mechanical room, connected to a network of metal ducts and an existing central system. Visually, the installation showed several typical elements of a residential central system: a vertical indoor cabinet, a return air with a large pleated filter, a PVC drainage pipe, insulated refrigerant lines, and a connection to the distribution ducts. This type of configuration is common in condos and townhouses in the Old Port, Montreal, Laval, Longueuil, the North Shore, and the South Shore, where mechanical space is often limited and every component must operate precisely.
At AirGreen, we know that an electric furnace that heats intermittently should never be taken lightly. The problem could come from a poorly calibrated thermostat, insufficient airflow, an overly restrictive filter, a faulty relay, a temperature limit that triggers too quickly, a worn-out fan motor, or a partially defective heating element. Our intervention was therefore structured around a complete diagnosis rather than a simple random part replacement.
Symptoms observed before our arrival
The client had noticed several specific signs:
- The furnace started normally but stopped before the end of the cycle.
- The air coming out of the grilles sometimes became lukewarm rather than clearly hot.
- The thermostat kept calling for heat, even after the unit stopped.
- Some parts remained colder, especially areas far from the main plenum.
- The system seemed to be working harder for several weeks.
- The filter had been replaced recently, but the problem persisted.
These symptoms pointed to a problem with airflow, electrical sequence, or thermal safety. In an electric furnace, the heating elements must be cooled by sufficient airflow. If air circulation is poor, the internal temperature rises too quickly, the safety limit cuts off the heating, then the unit tries to restart. This cycle can give the impression of an intermittent failure while the system is protecting itself against overheating.
First visual inspection of the Ruud furnace
Upon opening the mechanical room, our technician noticed that the furnace was installed in a confined space, with limited access on the sides. This constraint is important: when a central unit is wedged between a return duct, pipes, a wall, and finishing panels, every intervention must be planned to avoid damaging ducts, low-voltage wires, refrigerant lines, or drainage.
We first checked the general condition of the unit:
- Panels well secured.
- Filter present in the return air.
- PVC drain connected.
- Insulated refrigerant lines.
- Visible connections without immediate signs of external burning.
- Metal ducts in good overall condition.
- No visible signs of water leakage on the floor.
The Ruud brand being visible on the cabinet, we directed our diagnosis according to the operating logic of a central electric furnace of this family: heat call at the thermostat, activation of the heating sequence, fan start, progressive powering of the heating elements, control by safety limits, then controlled shutdown when the set temperature is reached.
Checking the thermostat and heating demand
The first test focused on the thermostat. A common mistake is to immediately suspect the furnace when the control signal is unstable. So we checked:
- Heating demand.
- Thermostat programming.
- Temperature differential.
- Continuity of the low voltage signal.
- The device’s response during a manual call.
The thermostat was correctly sending the demand. The problem did not come from poor programming or an obvious thermostat defect. The furnace was receiving the heating command but was not maintaining its full cycle consistently.
Filter and static pressure analysis
The filter visible on site was a large volume pleated filter, MERV 11 type. This type of filter can provide good filtration when compatible with the system, but it can also become too restrictive if the return air is undersized, if the ducts are already tight, or if the fan does not adequately compensate for the pressure loss.
Our technician then checked the filter’s condition, orientation, insertion in the casing, and impact on airflow. The filter was not completely clogged, but the measured static pressure indicated a restriction higher than what we want to see for stable operation. In an electric furnace, this detail is crucial: even a recently replaced filter can impair heating if its air resistance exceeds the actual capacity of the duct network.
We then tested the system with a temporary diagnostic setup to observe the furnace’s reaction. The cycle became more stable, confirming that airflow played a role in triggering the thermal safety.
Inspection of heating elements and internal safety devices
After securing the device and following the necessary electrical procedures, we inspected the accessible internal components:
- Heating elements.
- Heating sequencers or relays.
- Electrical connections.
- Temperature limits.
- Fan motor.
- Blower compartment.
- Low voltage control wires.
- Visible overheating points.
No major signs of burning were found on the main visible connections, but a heating relay showed irregular behavior during testing. Activation was not always clear, and the sequence between the fan and the heating elements was not optimal. This type of defect can create a situation where the element heats up too quickly compared to the actual airflow, increasing the risk of triggering the thermal limit.
The high-temperature safety was therefore doing its job, but it was triggered too often. Our goal was not to bypass this safety but to correct the cause that made it activate.
Final diagnosis: combination of air restriction and unstable electrical sequence
The diagnosis highlighted two combined factors:
- An airflow too limited under certain conditions, worsened by filter resistance and the compact return configuration.
- An irregular heating relay causing a less stable operating sequence than expected.
These two elements explained the reported symptoms: intermittent heating, incomplete cycles, sometimes lukewarm air, unstable indoor temperature, and the impression that the furnace “struggles” without delivering full performance.
In the field of HVAC service, this type of situation is common: the failure is not always caused by a single completely broken part. It can result from a combination of technical details that together create instability. This is precisely where a methodical diagnosis makes the difference.
A targeted repair to restore heating, safety, and comfort
After explaining our findings to the client, we proceeded with a targeted intervention. Our priority was to restore reliable, safe, and durable operation of the Ruud electric furnace, without recommending an unnecessary replacement of the entire unit.
Replacement of the defective heating relay
The relay responsible for controlling a heating stage was replaced with a compatible component. This operation requires special attention because electric furnaces operate with high loads. A loose connection, a mispositioned wire, or an inappropriate part can cause new problems, including overheating, electrical noise, irregular cycles, or premature failure.
Our technician therefore:
- Cut and secured the power supply.
- Confirmed the absence of voltage before intervention.
- Removed the unstable component.
- Installed the compatible replacement relay.
- Checked the connections.
- Inspected the associated wires.
- Restarted the system in test mode.
- Observed several complete heating cycles.
The furnace's behavior stabilized from the first tests. The heating elements activated correctly, the fan followed the proper sequence, and the thermal limit no longer prematurely cut off the cycle.
Airflow optimization and filtration recommendations
We then worked on the airflow aspect. The goal was not to randomly reduce filtration quality but to help the client choose a filter truly suited to their system. In some condos in the Old Port of Montreal, return air ducts are designed with little margin. A very dense filter can improve particle capture but reduce airflow to the point of harming heating performance.
We recommended using a filter compatible with the actual capacity of the system, monitoring:
- Replacement frequency.
- Filter thickness.
- MERV rating.
- Cleanliness of the return air.
- Signs of restriction: louder noise, short cycles, low airflow at vents, overheating.
We also checked the accessible vents and advised the client not to close too many registers in the rooms. Closing several air outlets may seem useful to redirect heat, but it often increases static pressure and can worsen the short cycling of an electric furnace.
Performance tests after repair
Once the repair was completed, we conducted a series of tests to confirm the result:
- Start-up from the thermostat.
- Stable activation of the heating demand.
- Regular fan operation.
- Normal sequence of heating elements.
- Consistent blowing temperature.
- No premature shutdown.
- Safety checks.
- Observation of the complete cycle until stabilization.
The system returned to a much more consistent operation. The blown air was warmer, cycles were longer and more regular, and the indoor temperature rose gradually. The client also noticed an improvement in the perceived airflow at the vents, especially after the recommended adjustments to filtration and register use.
What this intervention shows about central electric furnaces
An electric furnace is often seen as a simple device, but its proper operation depends on a precise balance between electricity, airflow, thermal control, and duct distribution. An intermittent failure should not be treated as a mere system whim. It can signal component wear, air restriction, or an operating condition that strains the device.
In this case in the Old Port, the repair helped avoid several risks:
- Accelerated wear of heating elements.
- Repeated triggering of safety limits.
- Persistent discomfort in the home.
- Inefficient electrical consumption.
- Premature replacement of a still repairable unit.
- Complete breakdown during a period of high demand.
For AirGreen, a good HVAC repair is not just about “getting the unit running again.” It means understanding why it stopped working properly, fixing the cause, and giving the customer concrete advice to prevent the problem from recurring.
Mistakes to avoid with an electric furnace
This intervention illustrates several common mistakes we observe in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore.
Using a filter that is too restrictive without checking airflow
A higher-quality filter is not automatically better for all systems. If the furnace lacks air, it can overheat and shut off its cycles. The right filter is the one that protects indoor air while respecting the system’s capacity.
Ignoring short cycles
A furnace that starts and stops too often is not operating normally. Even if it eventually heats a bit, these short cycles can reduce the lifespan of relays, heating elements, and the fan motor.
Closing too many vents
Closing several dampers can increase pressure in the ducts. In a central system, this can harm airflow and cause internal temperature problems.
Replacing the unit without a complete diagnosis
In many cases, a targeted repair is enough. Replacing an entire furnace without testing the relays, limits, thermostat, airflow, and connections can be unnecessarily expensive.
Neglecting preventive maintenance
Even a combustion-free electric furnace needs to be inspected. Electrical connections, the motor, the blower compartment, the filter, and safety devices must be checked periodically.
Why call AirGreen for electric furnace repair
Our team works weekly on central systems, central heat pumps, electric furnaces, central air conditioners, and residential or commercial HVAC equipment in Greater Montreal. This field experience allows us to quickly recognize signs of electrical failure, lack of airflow, or control problems.
For a service call like this, our approach is based on three principles:
- Diagnosis before replacement.
- Electrical safety before restart.
- Real performance before closing the service.
We don’t just check if the unit “starts.” We observe how it starts, how it heats, how it ventilates, how it stops, and how it reacts after several cycles. This difference is essential, especially with central equipment installed in tight spaces like the one observed in the Old Port of Montreal.
Final result: stable heating and a reassured client
At the end of the service, the Ruud electric furnace was operating regularly. The client regained more stable heating, better air distribution, and a clear understanding of what caused the problem. The relay repair, combined with adjustments and recommendations on airflow, restored comfort without a full equipment replacement.
This type of service call is exactly what we prioritize at AirGreen: precise intervention, clear explanation, useful repair, and measurable results. Whether in the Old Port, Montreal, Laval, Longueuil, on the North Shore, or on the South Shore, our team is equipped to rigorously diagnose and repair central HVAC systems.
For an electric furnace repair, an intermittent heating problem, low airflow, a thermostat failure, unusual noise, or repeated shutdowns, AirGreen offers professional service tailored to the realities of residential and commercial buildings in Greater Montreal.
