A Smallair electric furnace that heated intermittently: an HVAC service call where the electrical diagnosis changed everything
In LaSalle, in a residential area of Montreal where many properties have forced-air systems installed for several years, our AirGreen team was called for a HVAC service call on a Smallair electric furnace connected to a duct network. The client contacted us because the heating was no longer responding consistently: some operating periods seemed normal, then the air became lukewarm, the fan sometimes continued without real heat production, and the control switches on the side of the unit raised doubts about their proper functioning.

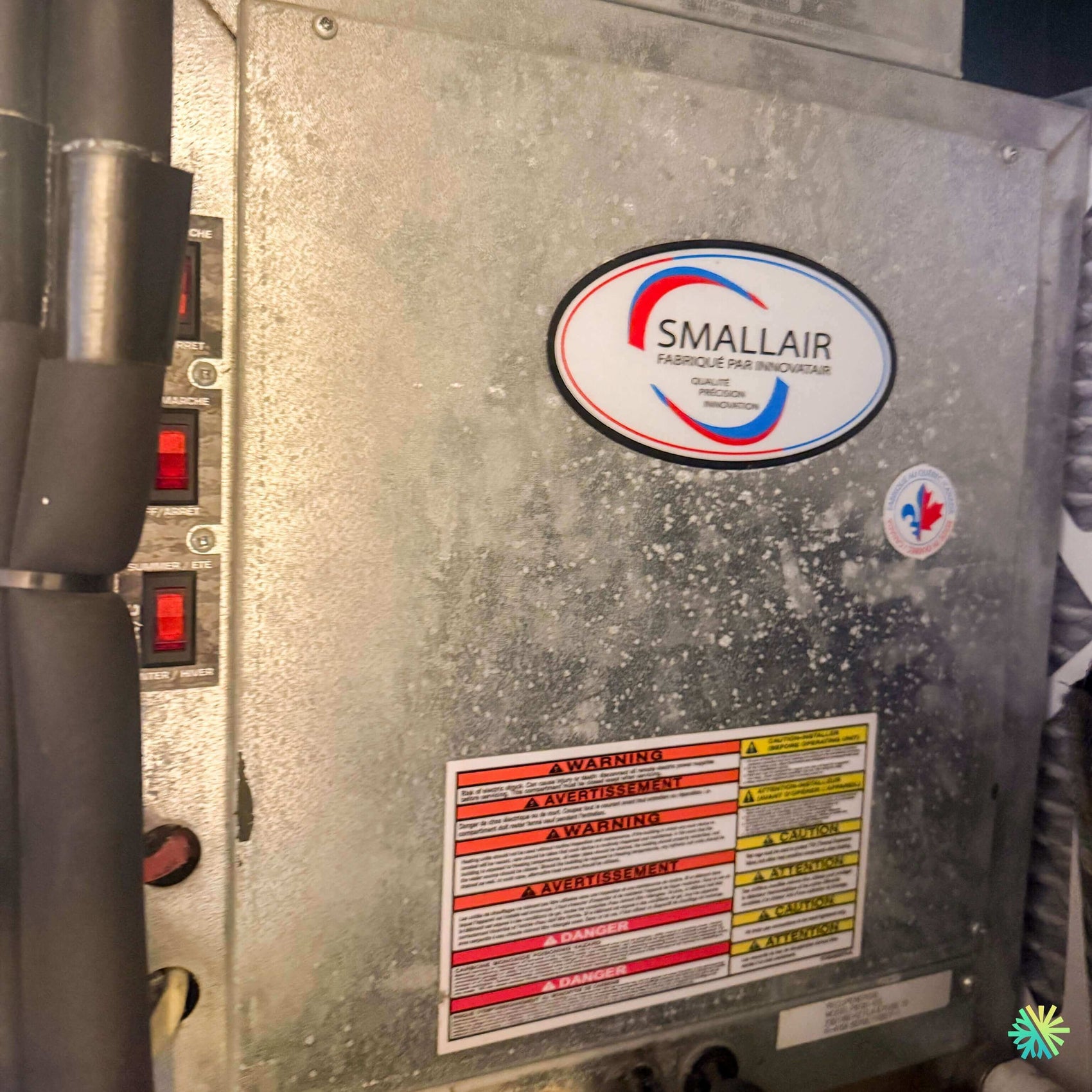

On site, the equipment observed was a metal cabinet branded Smallair, an electric furnace made for residential forced-air installations. The unit had a galvanized front with visible safety labels, red side switches for on/off and reset, as well as connections to insulated ducts. This setup corresponds to an electric furnace used to distribute warm air throughout the house via existing ducts, a system still very common in many homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
This type of intervention requires a precise method. An electric furnace may seem simple because it contains neither a gas burner nor an oil tank, but its internal components require thorough diagnostics: heating elements, sequencers, relays, high limit switch, blower motor, capacitor, thermostat, low voltage wiring, and main electrical supply. A misinterpretation can lead to unnecessarily replacing an expensive part or, worse, leaving an intermittent failure in place that will recur during the next cold wave.
Reported symptoms: irregular heat, continuous ventilation, and discomfort in the house
When taking the call, the client described a very typical situation of an intermittent electrical failure on a forced-air furnace. The house sometimes eventually reached the requested temperature, but the system took much longer than before. At other times, the air coming out of the vents seemed barely warm, even though the thermostat clearly called for heat.
The client had also noticed that the fan could continue running even as the feeling of heat diminished. This detail is important: in an electric furnace, the fan and heating elements are not always controlled in the same way. It is possible that the blower works properly, but only part of the heating elements activate. The result is misleading: air circulates, the system seems to be running, but the actual heating power is insufficient.
The main symptoms were as follows:
- intermittent heating;
- warm air at the registers;
- longer cycles than before;
- fan running without sufficient heat;
- concern related to the visible switches on the side of the furnace;
- need for a safety check before a cold period.
In a house in LaSalle, where winters can place a heavy demand on a central system, this kind of problem should not be ignored. A partially functioning electric furnace can consume a lot of energy without providing the expected comfort.
Visual inspection of the Smallair electric furnace
Our technician started with a complete inspection of the installation. The exterior condition of the cabinet showed a normal accumulation of dust and marks on the metal surface, but no major visible deformation. The ducts around the furnace were in place, with partial insulation on some connections. On the left side of the unit, the visible red switches were for local controls, including startup and some reset or ventilation functions.
We also checked access to the service panel, the general condition of the closure screws, the presence of warning labels, the wiring routing, and the proximity of ducts. This step may seem simple, but it often helps detect revealing signs: overheating marks, smell of heated components, poorly secured wiring, excessive vibration, or improperly closed panel.
In this case, the first observation was clear: the device needed an internal check because the symptoms could not be explained solely by a misadjusted thermostat or a clogged filter.
Thermostat and heating demand verification
Before opening the electrical compartment, we confirmed the heating demand at the thermostat. A furnace can be wrongly blamed when the thermostat, its wiring, or its settings send an incomplete signal. We therefore tested the communication between the thermostat and the furnace, checking the device's response when the requested temperature was increased.
The heating demand was properly transmitted. The problem therefore did not come from a simple setpoint error. The device received the order to heat, but not all components responded stably. This observation directed the diagnosis towards the power and sequencing components.
Electrical diagnosis: sequencers, relays, and heating elements
An electric furnace does not start all its heating elements abruptly at the same time. To avoid overload and ensure controlled temperature rise, sequencers or relays activate the heating stages progressively. When a sequencer becomes worn out, it can operate intermittently: one stage heats, another does not activate, or the heat appears with a delay.
We opened the service panel and carried out a safe inspection of the components. Our technician checked:
- the main power supply;
- the visible connections;
- the condition of the terminal blocks;
- the response of the relays;
- the activation of heating stages;
- the high safety limit;
- the behavior of the blower motor;
- signs of overheating around the components.
The diagnosis revealed an anomaly in the control circuit of a heating stage. A sequencing relay showed irregular behavior: it did not always engage properly, which prevented some heating elements from operating at full capacity. This was consistent with the customer's symptoms: only lukewarm air, prolonged cycles, and unstable comfort.
Replacement of the defective component and securing of the connections
After confirming the diagnosis, we replaced the faulty sequencing relay with a part compatible with the furnace configuration. The replacement was carried out following the safety sequence: power cut-off, voltage absence check, connection identification, clean replacement, terminal tightening, and controlled power restoration.
We also took the opportunity during the intervention to secure some accessible connections and check the general condition of the wires around the heating area. On an electric furnace, slightly loose connections can create excessive heat, accelerate component wear, and cause intermittent failures. Tightening and visual inspection are therefore an integral part of a well-executed HVAC repair.
No blower motor replacement was necessary. The fan responded correctly, and its operation was stable. There was also no immediate sign justifying a complete replacement of the unit.
Filter, airflow, and blower check
Once the electrical part was corrected, we continued with the ventilation. An electric furnace can heat properly, but if the airflow is insufficient, the heat will not be well distributed. Worse, a lack of airflow can trigger the high limit and shut off the elements to protect the unit.
We then inspected the filter, the blower compartment, and the air pressure felt at the main outlets. The filter showed a buildup that justified its replacement or, depending on the type, a thorough cleaning. An overly clogged filter strains the motor, limits circulation, and can worsen overheating problems.
After correction, the blower was tested with a full heating demand. The airflow was more consistent, and the output temperature stabilized much more convincingly.
Operation test after repair
The restart was done gradually. We observed the fan starting, the activation of the heating stages, and the temperature rising. The replaced relay responded correctly, and the heating elements activated in a more regular sequence.
The customer quickly noticed a difference: the air coming out of the registers was warmer, the system seemed less hesitant, and the home regained a more stable comfort. This result confirmed that the main cause was not a general weakness of the furnace, but a targeted failure in the electrical sequencing.
For a Smallair furnace, this type of repair can effectively extend the equipment's lifespan, especially when the cabinet, motor, and heating elements remain in acceptable condition.
Important lessons from an electric furnace repair in LaSalle
An electric furnace can operate partially without being completely broken
One of the most common mistakes is to believe a system is either functional or completely out of service. In reality, an electric furnace can operate partially: the fan runs, some heat is produced, but the actual power is insufficient. The customer then feels progressive discomfort rather than a clear breakdown.
This is precisely what makes diagnosis important. Without electrical testing, one might think it’s just a dirty filter or an inaccurate thermostat. In this case, the combination of symptoms pointed more toward a heating stage problem.
Visible switches do not replace a real diagnosis
On the observed Smallair unit, several switches were accessible on the side. These controls can be useful, but they alone do not allow understanding what is happening inside the furnace. Resetting a unit without identifying the cause can temporarily restore operation, but the failure often returns.
At AirGreen, we avoid quick conclusions. An HVAC service call must confirm the real cause, especially when it involves a central electric unit that heats the whole house.
Signs to watch for on an electric furnace
An owner in Montreal, Laval, Longueuil, on the North Shore or the South Shore should request an inspection when they notice:
- less heat than before;
- a fan that runs for a long time without heating enough;
- abnormally long cycles;
- a smell of heated dust or hot component;
- a new noise in the blower;
- circuit breakers that trip;
- an unstable temperature from one room to another;
- an increase in consumption without improved comfort.
These signs may indicate an air restriction, a faulty relay, a worn sequencer, a tired motor, an inactive heating element, or thermal protection that activates too often.
Why HVAC maintenance remains essential, even on an electric furnace
An electric furnace requires less combustion maintenance than a gas or oil system, but that does not mean it can be neglected. The filter, blower, electrical connections, relays, and safety limits must be checked periodically. Dust buildup or poor airflow can reduce efficiency, increase internal temperature, and accelerate component wear.
In the case of this Smallair electric furnace in LaSalle, the intervention avoided premature replacement and restored more reliable system performance. The client was reassured, not only because the heat returned but also because the cause was clearly identified.
The AirGreen approach to electric furnace repairs
Our technicians regularly work on electric furnaces, central heat pumps, wall systems, multizone systems, air exchangers, and other HVAC equipment in Greater Montreal. Each service call is treated as a distinct case. We observe the installation, listen to the symptoms, test the components, and explain the results clearly.
For an electric furnace, our approach aims to answer three essential questions:
Is the device correctly receiving the heating demand?
The thermostat and low-voltage wiring must be confirmed before looking for a more complex fault.
Are all heating stages working?
A partial loss of power is common and can go unnoticed without precise testing.
Is the air circulating sufficiently?
Even with functional heating elements, poor airflow harms comfort and can trigger internal protections.
Final result: stable heat, safe operation, and reassured client
At the end of the intervention, the Smallair electric furnace was operating more stably. The heat was better distributed, the heating sequence was restored, and the checked components showed no signs requiring immediate full replacement. The client was able to resume normal use of their system with a better understanding of the actual condition of their equipment.
This type of repair demonstrates the importance of an accurate diagnosis. A furnace that seems tired is not always ready to be replaced. Sometimes, a targeted electrical component, a neglected filter, or a connection to fix is enough to restore comfort and confidence.
