A central heating failure that required a real electrical diagnosis, not just a simple thermostat replacement
In a building located in Île-Bizard–Sainte-Geneviève, our AirGreen team was called for a YORK electric furnace repair installed in a horizontal configuration, connected to a network of metal ducts in an elevated technical space. The unit, visible in a mechanical area with guardrails, ventilation ducts, low voltage wiring, and electrical supply, played a central role in the building's heat distribution. When the system started blowing lukewarm air, then sometimes cold air, the client quickly understood that it was not just a temporary discomfort.
The electric furnace in question was a YORK unit of the air handler with electric elements type, used to supply a duct network. In this type of HVAC installation, heating power is generally expressed in kilowatts rather than BTU. On site, the capacity was verified from the nameplate and the configuration of the elements: a unit of about 20 kW, or approximately 68,000 BTU/h of electric heating capacity when all stages function properly.
The reported problem was clear: the ventilation started, air circulated through the ducts, but the heat was not consistent. At times, the system seemed to respond to the thermostat's demand. At other times, the temperature stagnated despite an active heating request. This kind of symptom is common on a central electric furnace when one of the heating stages no longer engages, when a sequencer becomes defective, when a relay sticks, or when a thermal protection cuts off part of the elements.
An elevated installation that complicates access and requires a rigorous method

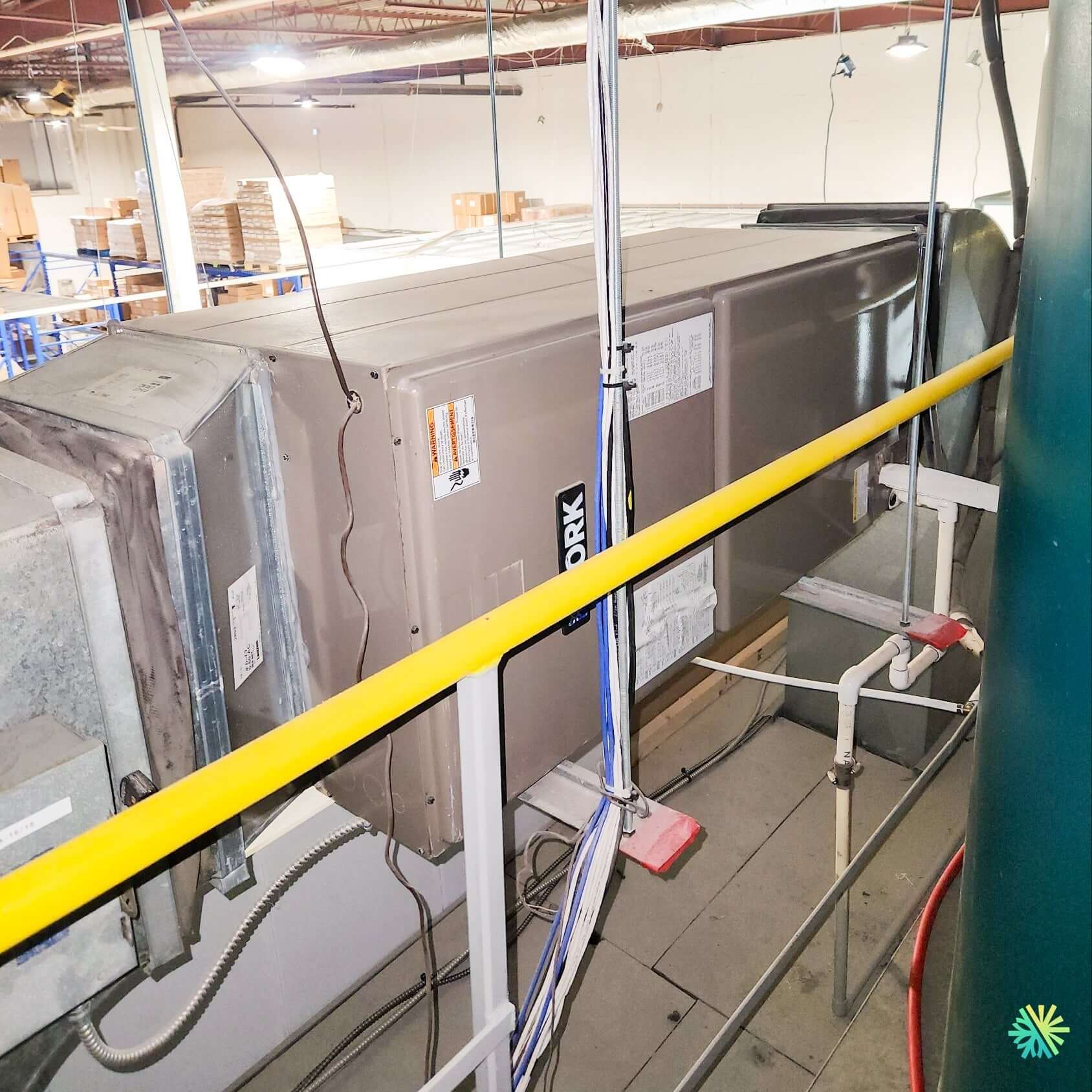

The photo clearly illustrates the reality of this type of service call: the YORK unit is installed in an elevated technical space, surrounded by ducts, piping, cables, and metal structure. It is not a furnace accessible in a clear basement. Access is restricted, the work area is narrow, and every handling must be done carefully.
In this context, our first priority was to secure the intervention. An electric furnace of this power includes high-intensity circuits, heating elements, power terminals, a 24 V transformer, relays, sequencers, and safety protections. A quick but incomplete diagnosis can lead to a wrong conclusion, especially when the fan is still running. Many customers then think the thermostat is the cause, while the problem is often in the heating sequence or the power supply to the elements.
We therefore followed a structured method:
- Verification of the thermostat demand;
- Confirmation of the low voltage signal to the furnace;
- Inspection of electrical connections;
- Voltage measurement at terminals;
- Testing of sequencers and relays;
- Verification of the element amperage;
- Control of the blower motor;
- Inspection of the filter and air restriction;
- Validation of thermal safety devices;
- Observation of the system’s behavior over a full cycle.
This approach is essential for central systems that we repair in Montreal, Laval, Longueuil, on the North Shore and the South Shore, because symptoms can look similar even when the causes are very different.
Symptoms: ventilation present, insufficient heating
The customer described a very specific situation: the system started, but the blown air was not hot enough. The indoor temperature rose slowly, especially during colder periods. The fan ran longer than usual, giving the impression that the furnace was trying to compensate without ever fully reaching its capacity.
This type of behavior can come from several causes:
An inactive heating stage
In a multi-stage electric furnace, the elements do not always activate all at once. The system can start a first stage, then add a second or third depending on demand. If a sequencer or relay stops working, part of the capacity disappears. The furnace continues to blow air, but it no longer produces all the expected heat.
A weakened power connection
Over time, an electrical connection can loosen slightly due to heating cycles, vibrations, and thermal expansion. A heated terminal, damaged wire, or oxidized terminal block can create excessive resistance. In an electric heating system, this type of fault must be addressed quickly.
An air restriction
A clogged filter, insufficient air return, or an overly restricted duct can cause internal overheating. The thermal protection may then cut off certain elements to prevent excessive temperature. The customer then experiences irregular heat, even though the furnace is not completely broken.
A low voltage control problem
The thermostat, transformer, or 24 V wiring can also cause intermittent heating calls. However, this hypothesis must be confirmed by measurement, not by randomly replacing the thermostat.
AirGreen Diagnosis: isolate the real cause rather than replacing parts unnecessarily
After confirming that the thermostat was indeed sending a heating request, our technician opened the access panels of the YORK furnace to inspect the electrical section. Since the unit was installed horizontally, special care was needed to access the components without forcing cables, panels, or adjacent ducts.
Initial measurements showed that the main power supply was present. The fan responded normally, indicating that the blower was not the main cause. However, the blowing temperature did not match what is expected from an electric furnace of this capacity when all stages are active.
By measuring the amperage of each heating stage, we found that some elements were not consistently engaging. The problem came from a defective heating sequencer, combined with a power connection showing signs of overheating. This combination perfectly explained the symptoms: the furnace could produce some heat, but it did not reach its full capacity. The fan continued to push air through the ducts, but the thermal energy produced was insufficient.
The repair: sequencer replacement and restoration of connections
Once the diagnosis was confirmed, we proceeded with the repair. The faulty sequencer was replaced with a part compatible with the YORK furnace configuration. The affected connections were properly redone, with wire inspection, replacement of the damaged terminal, and controlled tightening of the terminals.
This step requires precision. A loose connection can heat up. An ill-fitting connection can cause an electrical arc. A replaced part without checking the entire circuit can lead to recurrence. Our intervention therefore did not just involve removing one component and installing another: we validated the entire electrical path of the affected stage.
After the replacement, we restarted the system and observed the full sequence:
- fan startup;
- receipt of the heating demand;
- progressive activation of elements;
- stable increase in blowing temperature;
- amperage matching the expected capacity;
- no abnormal odor;
- no electrical noise;
- maintaining the cycle without safety shutdown.
The result was immediate: the YORK furnace regained a much more consistent heating capacity. The blown air was noticeably warmer, the system no longer seemed to run unnecessarily, and the indoor temperature could rise normally again.
Why this diagnosis was important
With an electric furnace, it’s tempting to quickly conclude that the thermostat is responsible, especially when the fan starts. However, in this case in Île-Bizard–Sainte-Geneviève, the thermostat was doing its job. The real problem was in the power section of the device.
A wrong diagnosis could have led to three costly mistakes:
Unnecessarily replacing the thermostat
A new thermostat would not have reactivated a heating stage blocked by a faulty sequencer. The customer would have paid for a part without solving the problem.
Replacing the furnace too early
Even if the device showed a fault, it was not necessary to replace the entire system. A targeted repair extended the lifespan of the installation.
Ignoring a heated connection
A connection showing signs of overheating should never be left in place. On high-power electrical equipment, this situation can worsen over time and compromise system reliability.
The role of ventilation and ducts in performance
A central electric furnace never works alone. It depends on the duct network, air return, filter, static pressure, and proper operation of the blower. In this installation, we also checked that air was circulating properly through the YORK unit and connected ducts.
A heating system can produce enough heat but distribute it poorly if the ducts are blocked, improperly sized, or if the filter is too restrictive. Conversely, a fan pushing a lot of air through partially active elements will give the impression of lukewarm or cold air. This is exactly why we measure temperature and amperage together: one confirms the comfort sensation, the other confirms the actual power consumed by the elements.
Final result: central heating restored and customer reassured
At the end of the intervention, the YORK electric furnace was operating with a stable heating sequence. The elements responded correctly, the blowing temperature returned to a normal range, and the customer had a clear explanation of the problem. The system did not need to be replaced, but it required precise electrical repair.
This type of service call highlights the importance of comprehensive HVAC expertise. An electric furnace is not just a box that heats air. It is a set of electrical, mechanical, and control components that must operate in the correct sequence. When one of these components becomes unstable, comfort decreases, consumption increases, and system reliability is compromised.
Best practices to remember after this YORK electric furnace repair
Do not confuse circulating air with effective heating
The fact that the fan is running does not mean the furnace is heating properly. If the blown air feels lukewarm, if the indoor temperature rises slowly, or if the system runs continuously, a full diagnosis is necessary.
Avoid random replacements
Changing the thermostat, breaker, or even the furnace without precise measurements can be costly and delay the real repair. In this case, the cause was a sequencer and a power connection, not the wall control.
Have electrical connections checked
Electric furnaces use significant loads. Connections must remain clean, tight, and in good condition. Periodic checks can prevent intermittent failures and improve installation safety.
Watch for signs of partial heating
Partial heating can be subtle. The system works but not at full capacity. The most common signs are:
- less warm air blown;
- longer cycles;
- temperature stagnation;
- higher electricity bill;
- occasional trips;
- slight overheating smell;
- discomfort in certain areas of the building.
Schedule maintenance before the coldest weather
An electric furnace should ideally be checked before the intensive heating season. In Île-Bizard–Sainte-Geneviève, as elsewhere in Greater Montreal, cold periods can quickly reveal the weaknesses of a central system. Preventive maintenance allows checking the blower, elements, safety devices, relays, sequencers, filters, and connections.
The AirGreen approach to electric furnace repairs
At AirGreen, we repair residential and commercial HVAC systems throughout the region: Montreal, Laval, Longueuil, the North Shore, and the South Shore. Every service call is handled with a clear method: understand the symptoms, check control signals, measure electrical components, inspect air circulation, and confirm the final result with real tests.
This repair of a YORK electric furnace in Île-Bizard–Sainte-Geneviève perfectly illustrates our way of working: precise intervention, thorough diagnosis, targeted repair, and a system put back into service without unnecessary replacement.
