A Zuba-Central electric furnace in Lachine that no longer heated with the expected stability
In a residence in Lachine, our AirGreen team was called for a central heating problem that had become increasingly uncomfortable: the house was still receiving air through the ducts, but the heat was no longer consistent. At times, the system seemed to work normally; at other times, the blown air became too lukewarm, the cycle lasted a long time, and the indoor temperature struggled to reach the setpoint.
The unit in place was a Zuba-Central electric furnace, integrated into a metal duct network, with a humidification system installed on the return or plenum. This type of equipment is often at the heart of a home’s winter comfort, especially in an area like Lachine where temperature fluctuations can put a lot of pressure on a central system. When an electric furnace starts producing uneven heating, the entire circuit must be diagnosed: electrical supply, heating sequence, ventilation, controls, thermostat, airflow, humidifier, drain, ducts, and internal protections.
At AirGreen, we approach this kind of service call methodically. A central furnace is not just a device that “heats or doesn’t heat.” It’s a complete system, where a small defect in airflow, a weakened connection, a worn electrical component, or a misinterpreted control can create real discomfort throughout the house.
Description of the observed installation

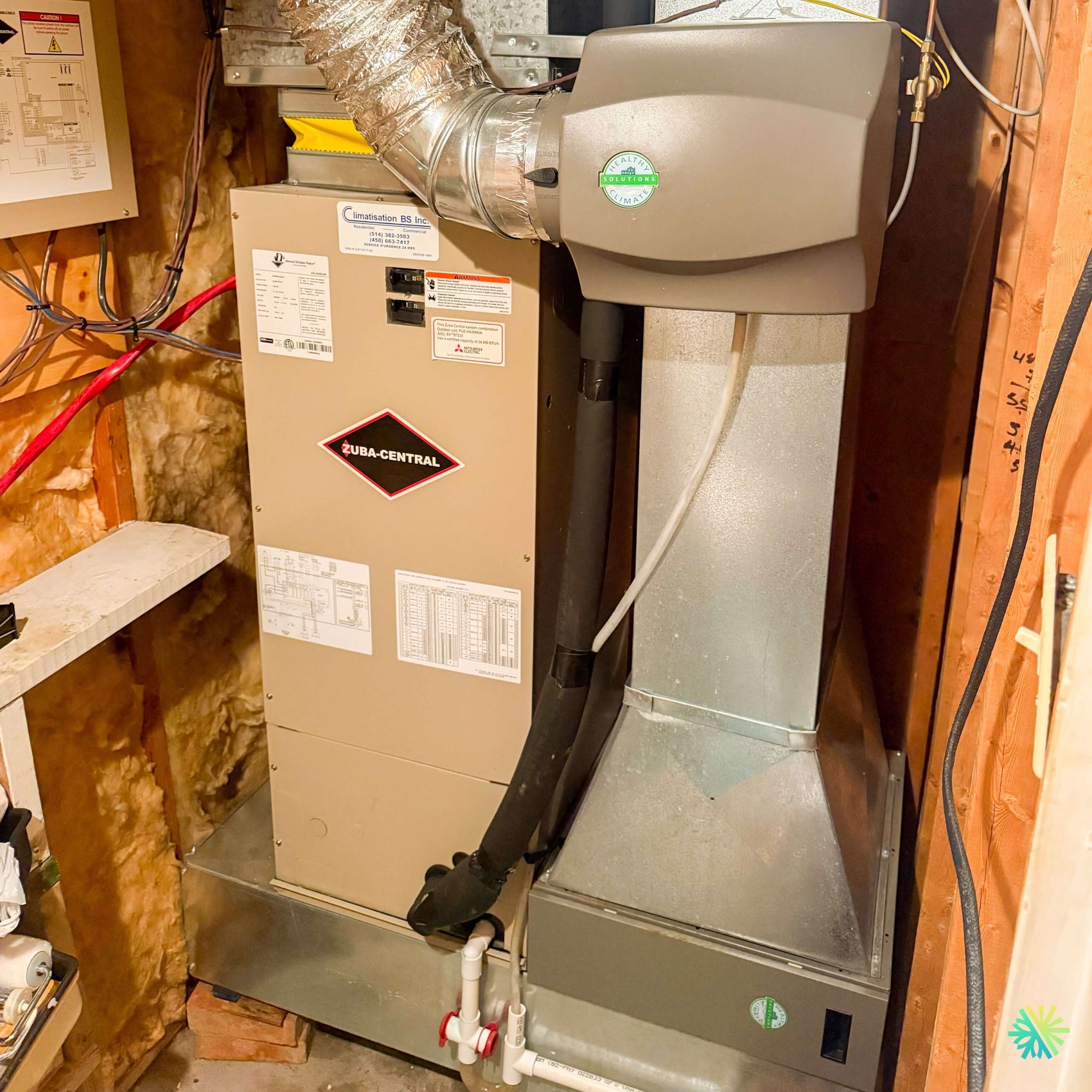

The installation was located in a tight mechanical space, typical of many houses and plexes in Montreal. A central cabinet Zuba-Central was clearly visible, connected to a metal plenum and a duct network. On the side, a humidifier from Healthy Climate Solutions was connected to the system, with its drainage tube visible. The system was installed between wooden studs, insulation, and several electrical and mechanical connections.
This setup has several important points to check:
- The electric furnace itself.
- The airflow through the coil and the plenum.
- High voltage electrical connections.
- Low voltage controls.
- The thermostat and heating demand.
- Heating relays or sequencers.
- Operation of the ventilation motor.
- The humidifier and its drainage.
- Possible restriction in the ducts.
- General condition of panels, access points, and connections.
The client did not report a total failure, but rather a loss of performance. This is often more complex than a completely stopped unit, as it requires identifying what works, what works poorly, and what works only intermittently.
Symptoms reported by the client
Before our arrival, the client had noticed several unusual signs:
- The house took longer to warm up.
- The air at the vents seemed less warm than before.
- Ventilation started, but heat was not always present.
- The system seemed to run longer cycles.
- Some rooms received less comfort.
- Humidification seemed less consistent.
- No major noise indicated an obvious mechanical failure.
This type of situation can easily lead to wrong conclusions. Some immediately think the furnace is done. Others raise the thermostat temperature significantly, which can strain the system without fixing the cause. In this case, it was necessary to confirm whether the heating demand was properly transmitted and if the heating elements responded correctly.
First step: visual inspection and electrical safety
When an electric furnace is involved, safety comes first. We started with a complete visual inspection of the unit and its environment. An electric furnace operates with significant loads; a loose connection, a worn contactor, or localized overheating can cause intermittent symptoms.
We checked:
- The condition of access panels.
- Presence of heat marks or discoloration.
- Visible wires and their routing.
- Low voltage connections.
- The condition of switches and protections.
- Cleanliness around the cabinet.
- The condition of the plenum and ducts.
- Humidifier connection.
- Visible drains and pipes.
- Signs of moisture or condensation.
No visual element indicated an immediate major failure, but the installation showed several areas where further diagnosis was needed, notably the control connections, ventilation, and heating sequence.
Thermostat and heating demand diagnosis
The first technical question was simple: was the furnace correctly receiving the heating demand?
Our technicians tested the system's response to different settings. The thermostat did send a request, but the device's response was not always perfectly synchronized. The ventilation started, but the electric heat did not always follow consistently. In an electric furnace, this sequence is essential. If the fan blows before the elements are fully engaged, the customer will feel lukewarm air. If a relay or sequencer responds late or irregularly, the house may heat slowly despite an apparently active system.
We then proceeded with a check of internal controls and heating stages.
Checking relays, sequencers, and heating elements
In an electric furnace, heat is generally produced by electrical elements activated in stages. Depending on the system capacity, not all elements necessarily activate at the same time. This logic protects the equipment, stabilizes the electrical load, and allows a gradual temperature rise.
During this service call in Lachine, we checked:
- Continuity of heating circuits.
- Activation of electrical stages.
- Relay response.
- Control stability.
- Delays between the thermostat request and actual activation.
- Blow temperature before and after activation.
- Ventilation behavior during the demand.
The diagnosis showed that part of the problem came from an unstable heating sequence. The system was not completely out of service, but it did not deliver heat with the expected regularity. A control connection and a heating relay were inspected, tightened, and tested. Where a component showed signs of weakness, we made the necessary correction to restore more reliable activation.
Central ventilation: a factor as important as the heating elements
Even when the heating elements are working, comfort can remain poor if the air does not circulate properly. In a central furnace, airflow directly affects the temperature felt at the vents, the cycle duration, and the balance between rooms.
We therefore checked the operation of the fan:
- Motor startup.
- System stability.
- Unusual noises.
- Airflow at the plenum.
- Difference between return and supply.
- Possible restriction in the filter.
- Effect of the duct network on distribution.
An overly restrictive filter, a partially blocked return air, or an unbalanced plenum can give the impression that the furnace is not heating enough. In this case, the airflow was functional, but some maintenance-related elements needed attention. We recommended keeping a clean filter compatible with the system’s ventilation capacity, as a filter that is too dense can reduce efficiency even when new.
Inspection of the humidifier connected to the system
The unit visible on the side of the duct network was a Healthy Climate Solutions humidifier. A central humidifier can improve winter comfort, but it must be inspected when a heating system shows signs of instability or abnormal humidity.
We checked:
- Humidifier connection.
- Presence of water or traces of leakage.
- The drain tube.
- General condition of the housing.
- Possible impact on airflow.
- Signs of leaks or condensation.
In several homes in Montreal, Laval, Longueuil, on the North Shore and South Shore, we see central humidifiers running for years without sufficient maintenance. A saturated pad, a poorly positioned drain, or poorly controlled water supply can create secondary problems. In this case, the humidifier did not seem to be the main cause of the heating loss, but its maintenance was part of the recommendations to preserve overall performance.
Fault correction, performance tests, and return to comfort
After electrical, mechanical, and ventilation checks, our intervention focused on restoring the heating sequence. We corrected weak control points, validated connections, cleaned accessible areas, checked the thermostat response, and observed the unit during a full cycle.
Steps performed on site
The intervention included notably:
- Complete diagnosis of the heating demand.
- Check of accessible electrical connections.
- Testing of heating relays and sequencers.
- Validation of electric heating stages.
- Central fan inspection.
- Airflow control.
- Filter check and possible restrictions.
- Central humidifier inspection.
- Drainage check.
- Final test with supply air temperature measurement.
- Clear explanation to the client about the system’s condition.
The goal was not just to confirm that the unit started. We waited for the furnace to go through a sufficiently long cycle to confirm that the heat was stable, the ventilation was working properly, and the supply air temperature matched the expected operation.
Result obtained after the intervention
After correction, the system responded much more consistently. The blown air was warmer, cycles were more logical, and the electric furnace responded better to the thermostat’s demand. The client noticed an immediate improvement in comfort, especially in areas where the air had previously seemed too warm.
The final result was clear: the system did not need to be replaced immediately. It rather required a targeted technical intervention to correct heating instability and restore a normal operating sequence.
Why this type of diagnosis is important
An electric furnace can show several misleading symptoms. A client may feel cold air even though the heating elements are partially working. A thermostat may seem defective when the problem is actually a relay. A system may heat, but too slowly, simply due to an airflow restriction. That is why a complete diagnosis is essential.
A bad diagnosis can lead to:
- Replacing a thermostat unnecessarily.
- Ordering a part that is not the cause.
- Ignoring a fragile electrical connection.
- Blaming the duct network without proof.
- Replacing a furnace that can still be repaired.
- Allowing a humidifier or drain to create secondary problems.
At AirGreen, our priority is to find the real cause. This allows the client to make a good decision without unnecessary expenses.
Mistakes to avoid with a central electric furnace
During this service in Lachine, we also reminded the client of several important best practices.
Do not excessively raise the thermostat temperature
When the house does not heat up quickly enough, drastically increasing the setpoint does not solve the problem. This can prolong cycles, put more strain on the equipment, and mask the symptom without fixing the cause.
Do not ignore warm air at the vents
Slightly warm air for a few moments at startup can be normal depending on the system sequence. However, if the air remains warm throughout the cycle, a check is necessary.
Do not install just any filter
An overly restrictive filter can reduce airflow and harm performance. It is important to choose a filter suited to the system, especially when an electric furnace operates with an existing duct network.
Do not neglect the humidifier
A central humidifier is a useful accessory, but it must be maintained. Poor drainage or a worn evaporation panel can affect comfort and create water or moisture marks.
Do not wait for a complete breakdown
A furnace that heats less effectively than before should be inspected before a total breakdown. Intermittent signs are often the first warnings of a worn component.
Signs that an electric furnace needs to be inspected
A HVAC service call is recommended if you observe:
- Lukewarm or cold air at the vents.
- Slow heating despite a good setpoint.
- Fan running without heat.
- Very long cycles.
- Circuit breaker that trips.
- Overheating smell.
- New noise in the cabinet.
- Significant temperature difference between rooms.
- Humidifier that is leaking.
- Thermostat that no longer seems to properly control the system.
These signs do not always mean that a replacement is necessary. They mainly indicate that a precise diagnosis is needed.
AirGreen expertise on central systems in Lachine
Central systems require a different expertise than wall-mounted heat pumps. You need to understand the electrical logic, airflow, ducts, accessories, and interactions between components. A Zuba-Central electric furnace installed in a tight mechanical space also demands rigor, as access to components can be limited.
Our team regularly works on central systems in Lachine, Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each visit is structured around a real diagnosis, targeted correction, and performance validation. For this client, the goal was achieved: the heating became stable again, the blown air more consistent, and the system more reassuring for the cold season.
This repair demonstrates that a well-executed service call can extend the lifespan of an electric furnace, prevent premature replacement, and restore reliable comfort throughout the home. In a central system, the difference often lies in the details: a well-validated heating sequence, correct airflow, solid connections, and a methodical diagnosis.
