A high-up intervention on an outdoor central heat pump installed on a wall-mounted bracket
In LaSalle, our AirGreen team was called for an HVAC repair intervention on a residential central heat pump whose outdoor unit was installed high up, on a wall-mounted bracket fixed to the brick. Upon arrival, the installation showed several important particularities: limited access, large outdoor condenser, tight clearance with the ladder, exposed refrigerant piping, control wiring exposed in a small electrical box, and a unit visibly marked by many years of use.
This type of service call requires a different approach than a simple ground-level check. A central heat pump is not just an outdoor unit: it works with an indoor system connected to ducts, a thermostat, a dedicated power supply, a refrigerant circuit, a condenser fan, a compressor, safety controls, and sometimes a furnace or air handler. A failure can therefore come from several components, and a too-quick diagnosis can easily lead to a wrong part replacement.
At AirGreen, we treated this service call as a true complete system diagnosis, not just a simple visual inspection of the condenser.
The problem reported by the customer: unstable performance and irregular operation
The customer contacted us because the central heat pump was no longer delivering consistent performance. According to the symptoms observed in the house, the air distributed through the ducts seemed less cool than before, the outdoor unit started irregularly, and the system sometimes ran for a long time without quickly reaching the temperature set on the thermostat.
In a house equipped with a central heat pump, these signs can come from several causes:
- a dirty outdoor condenser;
- an outdoor fan that is not running at full efficiency;
- a weakened electrical capacitor;
- a restriction in the refrigerant circuit;
- a refrigerant leak;
- poor communication between thermostat, indoor unit, and outdoor unit;
- a contactor problem;
- an abnormal pressure caused by deficient heat exchange;
- a lack of maintenance that affected air circulation.
On site, the outdoor unit featured a wide front grille, typical of a high-capacity central condenser. The nameplate was not clearly readable in the photo to precisely confirm the brand and model, but the installation clearly corresponded to a residential central heat pump with a wall-mounted outdoor condenser. In this context, we proceeded as with a complete central system, checking the outdoor unit, accessible electrical connections, fan behavior, coil condition, and circuit performance indicators.
An outdoor installation that complicated access for diagnosis

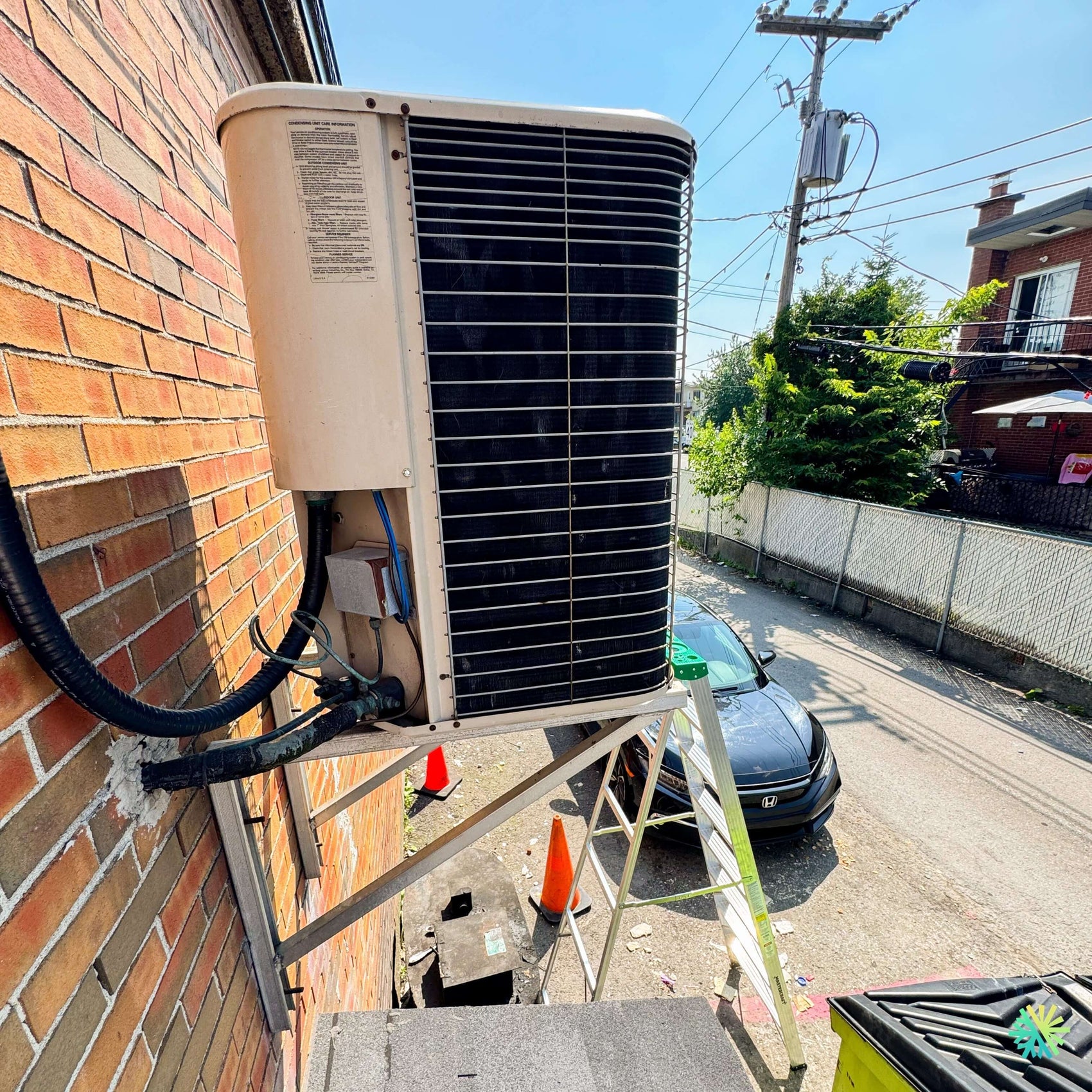

The unit was installed above ground level, on a metal structure attached to the brick wall. This installation choice may be necessary in certain areas of Montreal, especially when floor space is limited, when the unit needs protection from snow, or when a narrow yard does not allow for a conventional ground base.
However, this setup makes service calls more technical. The technician must secure access, stabilize the ladder, work carefully around the unit, avoid damaging the wall, piping, refrigerant insulation, and electrical connections, all while maintaining a stable position to take measurements.
In this specific case, several elements drew attention:
- the proximity of the brick and the wall, which can limit air circulation around the unit;
- the visual condition of the outdoor coil, which appeared covered in dust and debris;
- the presence of insulated refrigerant lines coming out of the wall;
- the low-voltage wiring visible near the junction box;
- the apparent age of the device, suggesting normal wear of some electrical components.
A HVAC repair on this type of system therefore requires understanding both refrigeration mechanics and the physical constraints of the installation.
Diagnosis: start with air, electricity, and condenser behavior
The first step of our diagnosis was to assess the general condition of the outdoor unit. On a central heat pump, the condenser must be able to reject or absorb heat efficiently depending on the mode used. If the outdoor coil is dirty, if the grille limits air flow, or if the fan is not working properly, the system can lose a large part of its performance.
Outdoor coil inspection
The outdoor coil was visually darkened and showed signs of clogging. A dirty coil is not just an aesthetic problem: it increases operating pressures, reduces heat exchange, and forces the compressor to work harder. In some cases, this can cause safety shutdowns, reduced efficiency, noise, increased electricity consumption, or premature wear.
We inspected the fins, the exchange surface, the protective grille, and areas where debris can accumulate. In the alleys and dense residential areas of LaSalle, condensers can be exposed to dust, pollen, leaves, street particles, and urban residues. Over time, this accumulation can be enough to reduce performance.
Basic electrical check
The second part of the diagnosis concerned the electricity. In this type of failure, it is common to find a weakened capacitor, a worn contactor, a damaged low-voltage wire, or a poor connection tightening. We therefore checked the start behavior, current draw, contactor response, and accessible connections.
A system that starts irregularly can give the impression that the compressor is at the end of its life, while the problem sometimes comes from a much less expensive part. This is exactly why a methodical diagnosis is essential: replacing a compressor or recommending a complete equipment change without checking the control and start components would be a costly mistake for the customer.
Outdoor fan observation
The condenser fan is also a critical component. Even if the compressor is running, a slow, noisy, or intermittent fan can prevent the unit from properly exchanging heat. We therefore paid attention to the startup, speed, vibrations, and sound produced by the motor.
An unusual noise can indicate a worn bearing, an unbalanced blade, an obstruction, or an electrical weakness. In a high installation, vibrations can also be amplified by the wall mount, making the problem more noticeable inside or to neighbors.
Work performed: technical cleaning, securing, and restoring operational condition
After the checks, our intervention focused on restoring the components that directly affected the system’s performance and reliability.
Cleaning the outdoor condenser
We performed cleaning suited to the condenser, taking into account the height access and the proximity of the brick wall. The goal was to restore better airflow through the coil without damaging the fins. On a central heat pump, this step can have an immediate impact on operating pressure and the unit’s ability to heat or cool effectively.
Inadequate cleaning, done with too much pressure or at the wrong angle, can bend the fins and make the situation worse. This is a common mistake we see in many service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore: the unit looks clean from a distance, but the coil is deeply clogged, or the fins have been damaged by overly aggressive cleaning.
Checking connections and the control circuit
We then checked the accessible electrical connections, including the control wires and visible connection points near the unit. On an outdoor installation exposed to the elements, vibrations, freeze-thaw cycles, and the age of the equipment can weaken certain contact points.
An unstable low-voltage connection can prevent the unit from responding properly to the thermostat. This can cause intermittent symptoms: one day the device works, the next it refuses to start, then it runs again for no obvious reason. For the client, this is frustrating. For a technician, it’s a sign to test the system under different conditions rather than relying on a single reading.
Operation test after intervention
Once the fixes were made, we restarted the system to observe its behavior under real conditions. The goal was not just to confirm the unit started, but to verify stable operation, that the outdoor fan responded properly, that the condenser breathed better, and that the central system regained more consistent performance.
In a house with ducts, comfort also depends on air distribution. Even if the outdoor unit works, a clogged indoor filter, a worn blower motor, or poorly balanced ducts can reduce comfort. We therefore explained to the client the signs to watch for and best practices to prevent the problem from recurring.
What this repair in LaSalle shows about central heat pump maintenance
An outdoor central heat pump, especially when installed at height, must be maintained regularly. The unit is exposed to sun, rain, snow, frost, street dust, and significant temperature variations. In LaSalle, as in many urban areas of Montreal, tight spaces and installations near alleys can accelerate condenser clogging.
Mistakes to avoid with an outdoor central heat pump
Several problems could have been avoided with some simple practices. We especially recommend avoiding:
- to let leaves, dust, or debris accumulate around the condenser;
- to block air circulation with objects, fences, bins, or structures placed too close;
- to clean the unit with excessive water pressure;
- to ignore difficult starts or intermittent stops;
- to delay a service call when the device takes longer than before to reach the requested temperature;
- to replace parts randomly without a complete electrical and refrigeration diagnosis;
- to neglect the indoor filter of the central system.
A central system is never limited to its outdoor condenser. You have to consider the whole: thermostat, indoor unit, ducts, electrical supply, refrigeration, air circulation, and general maintenance.
Why call AirGreen for HVAC repair in LaSalle
This intervention clearly illustrates our way of working: observe the context, secure access, diagnose before replacing, clearly explain the situation to the client, and aim for a lasting solution. A central heat pump repair requires precision, especially when the device is old or installed in a difficult location.
Our team regularly works in Montreal, Laval, Longueuil, on the North Shore and the South Shore for service calls related to central heat pumps, wall-mounted heat pumps, multi-zone systems, electric furnaces, central air conditioners, and residential HVAC equipment. Each building has its constraints: installation height, outdoor clearance, electrical access, equipment age, duct condition, client usage habits, and maintenance history.
In LaSalle, the result of this intervention was a more stable restart, better air exchange at the condenser, and a client better informed about the actual condition of their system. The goal was not just to get the device running again, but to reduce the risk of repeated breakdowns and extend the lifespan of the central heat pump when it remains technically reasonable.
Practical advice after central heat pump repair
After this type of service, we recommend the owner monitor a few simple signs in the following days:
Operating time
If the heat pump runs much longer than before to reach the same temperature, it should be noted. This may indicate a loss of efficiency, a charge problem, a clogged indoor filter, or new dirt buildup.
Unusual noises
A buzzing, clicking, metallic vibration, or difficult start can reveal an electrical or mechanical problem. The earlier the diagnosis, the simpler the repair options usually are.
Air circulation in the home
A central heat pump depends on good duct distribution. If some rooms become uncomfortable, if airflow decreases, or if the system seems to be straining, the filter, registers, and indoor unit should be checked.
Seasonal maintenance
Maintenance before peak demand periods often helps prevent breakdowns during heatwaves or early cold spells. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, HVAC systems experience large temperature swings; seasonal checks are therefore a smart preventive measure.
A repair that puts comfort back at the heart of the home
For this client from LaSalle, the priority was clear: to restore a reliable system, avoid a complete breakdown, and understand if the central heat pump could still operate properly. Our intervention identified the factors affecting performance, corrected accessible elements, and restored more stable system operation.
The value of a good HVAC service call is not measured only by the part replaced. It is measured by the quality of the diagnosis, the safety of the intervention, the clarity of explanations, and the ability to make an informed decision: repair, perform more maintenance, plan a future replacement, or monitor certain components.
At AirGreen, this approach guides our interventions in central heat pump repair in LaSalle and throughout Greater Montreal.
