A Carrier central heat pump losing performance in a very confined outdoor space
In Bois-des-Filions, on the North Shore, our AirGreen team was called for a service call on a Carrier central heat pump installed in a narrow side yard, between a brick wall, a window, a metal fence, and several outdoor elements exposed to the weather. Upon arrival, the installation environment gave us several important clues: moisture accumulation on the ground, residual snow presence, hoses on the ground, limited lateral clearance, and the outdoor condenser installed on an elevated metal support.
The client contacted us because the heat pump seemed to be working but was no longer delivering the expected performance. Heating was irregular, the outdoor unit produced a louder noise than usual, and the house struggled to reach the requested temperature on cold days. This type of situation is common with older or poorly maintained central heat pumps, especially when the outdoor unit is installed in a space where air circulation may be compromised.
Our intervention aimed to determine whether the problem was due to lack of maintenance, air restriction, an electrical issue, an incomplete defrost cycle, a faulty sensor, or a possible refrigerant circuit imbalance.
Visual inspection of the outdoor Carrier unit

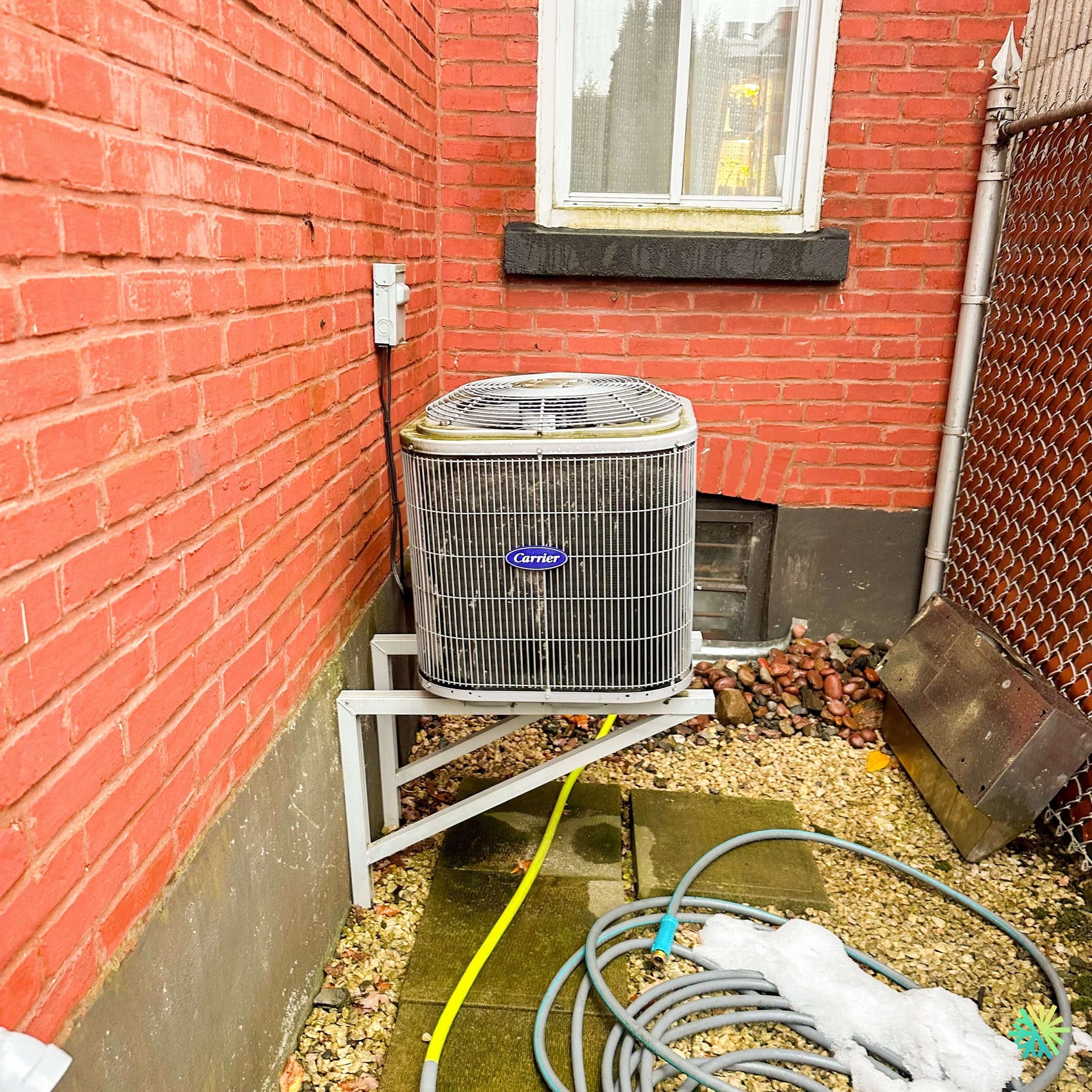

The central heat pump observed on site was an outdoor Carrier unit, a residential central condenser type, connected to an indoor duct system. The unit was installed on a fixed metal support, which is generally preferable to installation directly on the ground, especially in regions like Montreal, Laval, Longueuil, the North Shore, and the South Shore, where snow, ice, and moisture can quickly affect HVAC equipment.
However, even with an elevated support, several installation elements required thorough inspection:
- limited clearance between the condenser and the brick wall;
- accumulation of dirt on protective grilles;
- signs of moisture near the base of the unit;
- presence of leaves, dust, and debris in the immediate area;
- risk of recirculation of hot or cold air in the narrow space;
- direct exposure to rainwater, snowmelt, and ground splashes.
In this specific case, the positioning of the unit was not necessarily incorrect, but it required more rigorous maintenance than a unit installed in an open space. A central heat pump must be able to draw in and expel air without obstruction. When the space is tight, even a slight accumulation of dust, ice, or debris can significantly reduce system efficiency.
Symptoms reported by the client
The client had noticed several warning signs:
Less consistent heating
The house struggled to reach the requested temperature, especially in the morning and during rapid temperature drops. The system seemed to start normally, but indoor comfort was unstable.
Unusual outdoor noise
The Carrier condenser produced a louder noise than usual. This noise was not a violent knocking or constant squeaking, but rather a vibration combined with a more forced operation of the outdoor fan.
Longer cycles
The heat pump ran longer without necessarily improving comfort. This behavior can indicate a loss of performance, air restriction, incorrect sensor reading, or reduced heat transfer.
Possibly incomplete defrosting
The client had also noticed ice around the unit during certain periods. A thin accumulation can be normal in winter, but persistent, thick, or uneven ice can indicate a defrosting problem, sensor issue, ventilation problem, or airflow restriction.
HVAC diagnosis performed by AirGreen
Our diagnosis was structured in several steps to avoid a too quick conclusion. In the HVAC field, a heat pump that heats poorly does not always have a refrigerant problem. Very often, the cause is simpler: blocked outdoor heat exchanger, poor clearance, poorly positioned sensor, unstable power supply, weakened fan, or neglected maintenance.
Clearance and airflow check
We first assessed the Carrier unit’s ability to breathe properly. The space between the brick wall and the condenser was tight, which can increase the risk of air recirculation. When a heat pump expels cold air in heating mode, this air must be effectively evacuated. If cold air remains trapped around the unit, the heat pump works under more difficult conditions, reducing its performance.
We also checked the top part of the unit, where the fan expels air. The top grille showed traces of dirt and external deposits. Nothing indicated a complete blockage, but overall it confirmed that technical cleaning was necessary.
Outdoor coil inspection
The outdoor coil is one of the most important components of a central heat pump. It allows heat exchange with the outside air. When the fins are dirty, crushed, or partially blocked, the system can still operate but with reduced efficiency.
On this Carrier unit, we observed:
- dust embedded in certain areas of the coil;
- fine debris accumulated in the fins;
- traces of moisture promoting dirt adhesion;
- beginning of dirt buildup on the section exposed to the courtyard.
We performed proper cleaning of the coil, respecting the fragility of the fins. The goal was not only to make the unit cleaner but to restore effective heat exchange.
Outdoor fan inspection
The outdoor fan was inspected to confirm its mechanical operation. We paid attention to startup, rotational stability, vibrations, blade condition, and operating noise. Vibration in a metal-supported installation can sometimes be amplified by the structure, especially if the anchors, brackets, or support points are no longer perfectly stable.
In this case, the fan was running, but the unit transmitted a noticeable vibration. We checked the fastenings, the support base, and contact points to reduce unwanted noise.
Electrical check and system control
A Carrier central heat pump can show signs of reduced performance even if the compressor starts and the fan runs. That’s why we proceeded with an electrical inspection.
Power supply and connections
We checked the electrical supply, visible connections, and accessible control circuit components. In outdoor installations, moisture, temperature variations, and freeze-thaw cycles can accelerate wear on certain contacts.
The goal was to confirm that the unit received stable power and that the control components showed no obvious signs of overheating, oxidation, or poor contact.
Thermostat and heating demand
We also validated the heating demand logic from the thermostat. For a central heat pump, poor settings can cause inefficient cycles or too quick a reliance on electric backup. In many homes in the Bois-des-Filions area, especially when systems are combined with existing ducts, thermostat settings can directly impact comfort.
We confirmed that the heating demand was properly transmitted to the system and that the observed behavior mainly came from the outdoor unit and its immediate environment.
Technical cleaning and correction of operating conditions
After the diagnosis, we made the necessary corrections to improve the heat pump’s efficiency.
Condenser cleaning
Cleaning the outdoor condenser removed dirt accumulated on the fins and grilles. This step is often underestimated, but it can make a significant difference in the performance of a central heat pump, especially in a tight space where air circulates less freely.
A clean condenser allows:
- better heat absorption in heating mode;
- more stable operating pressure;
- less compressor strain;
- more effective defrosting;
- a reduction in prolonged cycles;
- a longer component lifespan.
Stabilization and vibration reduction
We also worked on vibration points. The elevated metal support was useful for protecting the device from snow, but such a structure can amplify certain noises if it is not well stabilized. Our technicians checked the base, fastenings, and contact points to limit the transmission of vibrations to the wall and surrounding structure.
Checking drainage around the unit
The presence of moisture on the ground and melting snow around the unit was also taken into account. A central heat pump produces water during defrost cycles. This water must be able to drain properly to prevent ice formation under or around the condenser.
In this type of installation, it is important to keep the area under the unit clear. If ice accumulates up to the base of the unit, it can harm the fan, coil, or air circulation.
Result of the intervention
After cleaning, checks, and adjustments, the Carrier central heat pump regained more stable operation. The external noise was reduced, air circulation improved, and the system was able to operate with less strain.
The client mainly noticed a difference in heating consistency. The unit no longer had the same forced behavior, and the cycles were better balanced. We also explained the signs to watch for during very cold days: abnormal ice buildup, sudden noise, rapid performance drop, or excessive use of electric backup.
Practical tips to avoid a new loss of performance
For an installation similar to the one observed in Bois-des-Filions, we recommend particular vigilance regarding the outdoor environment of the heat pump.
Keep the perimeter clear
Even if space is limited, avoid storing objects near the condenser. Hoses, panels, bins, dead leaves, compacted snow, or debris can hinder air circulation.
Monitor ice in winter
A light layer of frost can be normal. However, a thick, persistent, or localized buildup may indicate a problem. In this case, do not hit the ice with a tool, as the fins and coil can be damaged.
Regularly clean the area around the unit
Narrow side yards easily accumulate dust, leaves, gravel, and moisture. Seasonal cleaning around the heat pump helps prevent many problems.
Schedule an annual HVAC maintenance
An annual maintenance allows checking the condition of the coil, the fan, electrical connections, drainage, operating pressures, and the overall behavior of the system. This is especially important for central heat pumps installed in tight urban environments, common in Montreal, Laval, Longueuil, on the North Shore and the South Shore.
Why this repair perfectly illustrates our approach at AirGreen
This intervention on a Carrier central heat pump in Bois-des-Filions shows that a good HVAC diagnosis is not just about replacing parts. You have to understand the whole system: the outdoor unit, the installation, the environment, the thermostat, air circulation, drainage, and usage habits.
In this case, the solution involved a complete inspection, technical cleaning, electrical verification, and correction of operating conditions. The result: a quieter, more stable system better prepared for cold periods.
At AirGreen, we regularly work on Carrier central heat pumps, as well as other residential brands, throughout Greater Montreal. Our field experience allows us to quickly identify details often missed during a simple inspection: insufficient clearance, a partially clogged coil, vibration transmitted by a mount, ice buildup, or a defrost cycle that is not working properly.
Local expertise for residential HVAC systems
The region’s climate conditions require well-installed, well-maintained, and well-diagnosed equipment. A central heat pump that works properly in the fall can show its limits as soon as the first severe cold if maintenance has been neglected or if the outdoor unit operates in a too confined space.
Our teams understand the realities of residential installations in Bois-des-Filions, on the North Shore, in Montreal, in Laval, in Longueuil, and on the South Shore: narrow alleys, compact backyards, wall mounts, heavy snow, difficult drainage, old ducts, poorly configured thermostats, and central systems combined with electric auxiliary heaters.
Every detail matters. It is this precision that helps avoid incomplete diagnoses, unnecessary replacements, and recurring breakdowns.
