When a Coleman central heat pump starts losing efficiency before breaking down
In the Saint-François area of Laval, our AirGreen team was called for a service call on a Coleman central heat pump installed outside a residence. The customer had noticed a gradual drop in performance: the system was still running, but it no longer provided the same comfort as before. In cooling mode, the house took longer to cool down. In heating mode, the heat pump seemed to work harder. Outside, an intermittent metallic noise could be heard near the condenser.

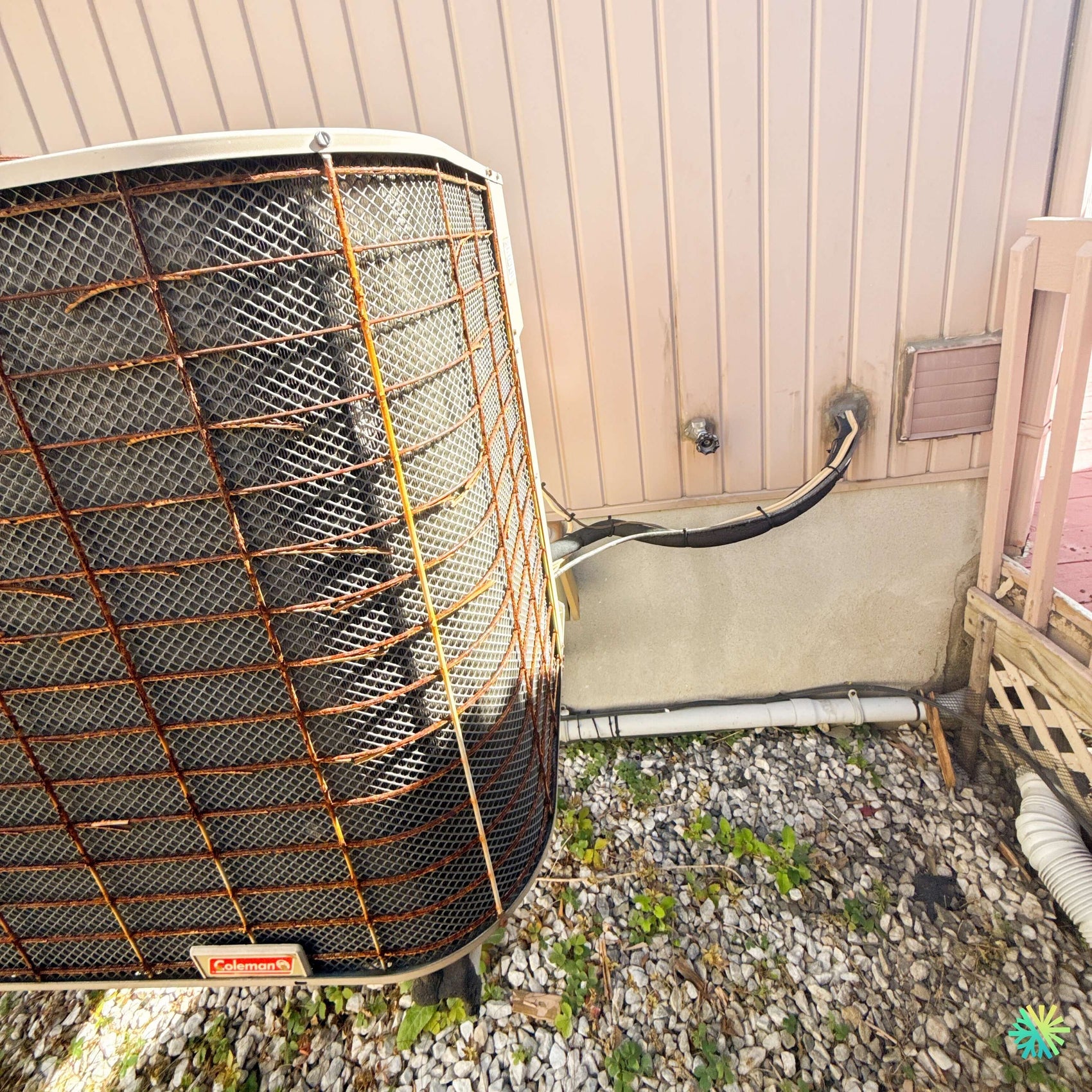

The installation photo already revealed several important clues: a Coleman outdoor central unit, a coil protected by a heavily rusted metal grille, refrigerant lines passing through the wall, exposed line insulation, a wall outlet near the unit, and a relatively tight installation space. This type of setup is common in homes in Laval, Montreal, Longueuil, on the North Shore and South Shore, where central heat pumps are often installed in side yards, near a balcony, fence, or exterior wall.
At AirGreen, we approach this type of HVAC repair methodically. A central heat pump that still works "a little" can hide a combination of problems: electrical weakness, airflow loss, clogged coil, mechanical vibration, worn contactor, weakened capacitor, or even defrosting issues. In this particular case, the customer didn’t want to wait for a complete breakdown. They wanted to understand why their Coleman system seemed less stable and why indoor comfort was no longer consistent.
A Coleman central heat pump used for the whole house
Unlike a wall-mounted heat pump that cools or heats a single room or area, a central heat pump serves the entire home through a duct network. The outdoor unit works with an indoor unit, often an electric furnace or central fan, to distribute air to each room.
The machine on site was a Coleman residential central heat pump, with typical capacity for a single-family home. The exact model and tonnage were verified on site from the nameplate, but the appearance, condenser format, and installation clearly corresponded to a central unit designed to supply a ducted system. In this type of equipment, efficiency depends on several elements that must work together:
- the compressor, which ensures refrigerant circulation;
- the outdoor fan motor, which expels or captures heat depending on the mode;
- the outdoor coil, which must stay clean and well ventilated;
- the capacitor, essential for starting and maintaining the motor;
- the contactor, which powers the unit when there is a demand;
- the sensors and controls, which manage cycles and system protection;
- the indoor airflow, which directly influences the perceived temperature.
A weakness in just one of these components can reduce efficiency. Weakness in two or three elements at once can create confusing symptoms, especially when the unit continues to start.
Symptoms observed by the client
The client had noted several changes in the HVAC system’s behavior:
- longer cycles than before;
- slower to reach indoor temperature;
- vibration noise near the outdoor unit;
- feeling that the outdoor fan was working irregularly;
- performance drop on hotter days;
- more frequent triggers of the indoor ventilation;
- discomfort in certain rooms farther from the duct network.
These symptoms did not allow for an immediate conclusion of a single failure. A central heat pump can become less efficient for several reasons, some of which are only visible during electrical and thermodynamic measurements. Our goal was therefore to follow a complete sequence: visual inspection, electrical check, startup observation, outdoor ventilation test, operating pressure check, and then validation of the result after intervention.
Outdoor inspection: a rusted grille and a coil to monitor
The first striking element was the metal protective grille installed in front of the condenser. It was heavily rusted. A protective grille can be useful to prevent certain impacts or block direct access to the coil, but when it deteriorates, deforms, or becomes too restrictive, it can cause two problems.
The first problem is the noise. A rusted grille can vibrate when the outdoor fan starts or when the compressor runs at certain frequencies. The client specifically described an intermittent metallic sound. After inspection, we found that some mounting points were less secure and the grille could resonate during operation.
The second problem is the airflow. A central heat pump needs a constant airflow through the coil. A grille that is too tight, deformed, clogged with debris, or poorly positioned can reduce heat exchange efficiency. In this installation in Saint-François, the proximity of the wall, the presence of the balcony, and the limited side space made airflow even more critical.
We also noticed that the insulation of the refrigerant lines was exposed to the elements. Damaged insulation on the suction line can slightly reduce system efficiency and promote condensation or heat loss. This was not the main cause of the failure, but it was an issue to fix to improve the installation's durability.
Electrical diagnosis: weakened capacitor and worn contactor
After the visual inspection, our technicians secured the power supply and conducted electrical tests. On a Coleman central heat pump, as on several residential central units, the run capacitor plays a crucial role for the outdoor fan motor and sometimes for the compressor depending on the configuration.
Measurements revealed a weakened capacitor, whose value no longer matched the expected specifications. A capacitor losing capacity can cause:
- slower fan startup;
- motor overheating;
- vibration at startup;
- unstable cycles;
- a drop in efficiency;
- accelerated wear of the compressor or motor.
We also observed signs of wear on the contactor. The contact points showed visible wear, which can create less clean power supply and cause irregular starts. A worn contactor does not always cause an immediate complete shutdown. It can operate intermittently, generate heat, produce a slight buzzing, or lead to unstable power supply to the outdoor unit.
In this case, the combined replacement of the capacitor and contactor was the most responsible solution. Replacing only one component could have left an active weak point in the circuit.
A complete HVAC repair to stabilize operation and extend lifespan
The intervention was carried out in several stages to correct immediate problems and improve the reliability of the Coleman central heat pump.
Capacitor replacement
We installed a capacitor compatible with the values required by the unit. This step requires precise adherence to microfarads, rated voltage, and connection type. A poorly chosen capacitor can damage the motor or create unstable behavior.
After replacement, the outdoor fan start was more decisive. The motor no longer seemed to hesitate at startup, and the measured amperage was more consistent with normal operation.
Contactor replacement
The worn contactor was also replaced. This part acts as a power switch controlled by the thermostat and the indoor system. When a heating or cooling demand is sent, the contactor closes the circuit to power the outdoor unit.
A faulty contactor can cause symptoms that are difficult to interpret: sometimes the unit starts, sometimes it delays, sometimes it produces a buzzing sound. By installing a new contactor, we eliminated the risk of intermittent failure and improved the electrical stability of the device.
Cleaning and clearing the outdoor coil
We then proceeded with an appropriate cleaning of the outdoor coil. The presence of dust, plant debris, particles, and air restrictions can reduce heat exchange capacity. A central heat pump must be able to absorb and release heat efficiently. If air circulation is poor, the compressor works harder, cycles lengthen, and consumption increases.
We also adjusted the fasteners of the protective grille to reduce metallic vibration. The rusty grille remained an element to monitor, and we recommended its replacement or restoration if the client wishes to keep physical protection in front of the condenser without hindering airflow.
Partial repair of the line insulation
The visible insulation on the refrigerant lines had deteriorated over time. We recommended fixing the exposed sections to protect the line and reduce thermal losses. This detail may seem minor, but it contributes to the overall performance of a central HVAC system, especially when the lines are exposed to sun, cold, humidity, and temperature fluctuations.
Operation tests after repair
Once the parts were replaced and adjustments made, we restarted the Coleman central heat pump and observed several cycles. We checked:
- the start-up stability;
- the fan motor amperage;
- the compressor behavior;
- the thermostat response;
- the grille vibration;
- the airflow around the condenser;
- the operating temperature;
- the absence of persistent abnormal noise.
The result was clear: the heat pump started better, the metallic noise was reduced, and overall operation was more stable. Inside, the system regained a better ability to meet demand, with more consistent comfort in the home.
What this intervention shows about older central heat pumps
This service call in Saint-François illustrates a common reality: an older central heat pump doesn’t always fail all at once. It often shows progressive signs. The customer hears a new noise. The house takes longer to heat or cool. The system runs longer. The thermostat seems to demand more. Then, one day, the unit won’t start.
Intervening before this stage often prevents more serious damage. A weakened capacitor can strain a motor. A worn contactor can cause irregular starts. An air restriction can overwork the compressor. A rusty protective grille can create vibrations and limit ventilation. Each problem alone may seem minor, but their combination directly affects reliability.
Mistakes to avoid with an outdoor central heat pump
In the service calls we perform in Laval, Montreal, Longueuil, on the North Shore and South Shore, we often see the same mistakes around outdoor central units.
Letting a rusty protective grille vibrate against the unit
A poorly secured metal protection can create a constant noise and transmit vibrations to the casing. Over time, this can loosen other components.
Neglecting the space around the condenser
A central heat pump needs enough air around it. A balcony, fence, wall, or vegetation too close can harm its performance.
Ignoring a slower fan start
A fan that takes longer to start may indicate a weak capacitor or a tired motor. This symptom deserves a quick check.
Replacing a part without measuring
Changing a capacitor without checking the amperage, contactor, and motor behavior can leave another active cause in the system.
Waiting for the system to stop completely
A planned repair often costs less than an emergency during a heatwave or cold spell.
A customer experience focused on clarity
After the repair, we explained to the client what had been found, which parts were replaced, and which elements needed monitoring. The client understood that the problem wasn’t caused by a single visible factor but by a combination of signs: electrical weakness, mechanical vibration, potential air restriction, and aging of some external components.
This transparency is essential in HVAC repairs. The client doesn’t just want the machine to start working again; they want to know if the system is reliable, if other work should be planned, and how to avoid another breakdown. In this case, the Coleman central heat pump was properly put back into service without a full equipment replacement.
AirGreen for central heat pump repairs in Saint-François and Greater Montreal
At AirGreen, we repair central heat pumps, central air conditioners, electric furnaces, wall-mounted heat pumps, multi-zone systems, air exchangers, and other residential HVAC equipment in Greater Montreal. Our services cover Saint-François, Laval, Montreal, Longueuil, the North Shore, and the South Shore.
This repair of a Coleman central heat pump in Saint-François demonstrates the importance of a thorough diagnosis. Replacing the capacitor and contactor, adjusting the grille, checking the coil, and analyzing the operation helped restore better performance and reassure the client about the overall condition of their system.
A central heat pump is a major piece of equipment in a home. When it starts making noise, losing efficiency, or starting irregularly, a well-executed service call can make all the difference between a targeted repair and an expensive breakdown.
