A Goodman outdoor unit stuck under a deck: when location becomes as important as the faulty part
In Sainte-Thérèse, on the North Shore, our AirGreen team was called for a Goodman central heat pump repair whose operation had become unstable. The client reported uneven comfort in the house: air was still coming out of the ducts, but the indoor temperature no longer dropped effectively in cooling mode, and the outdoor unit seemed to be working harder than before. At times, the system would start, then stop after a cycle that was too short. In other situations, the outdoor fan struggled to start, accompanied by a subtle electrical noise, similar to a buzzing.

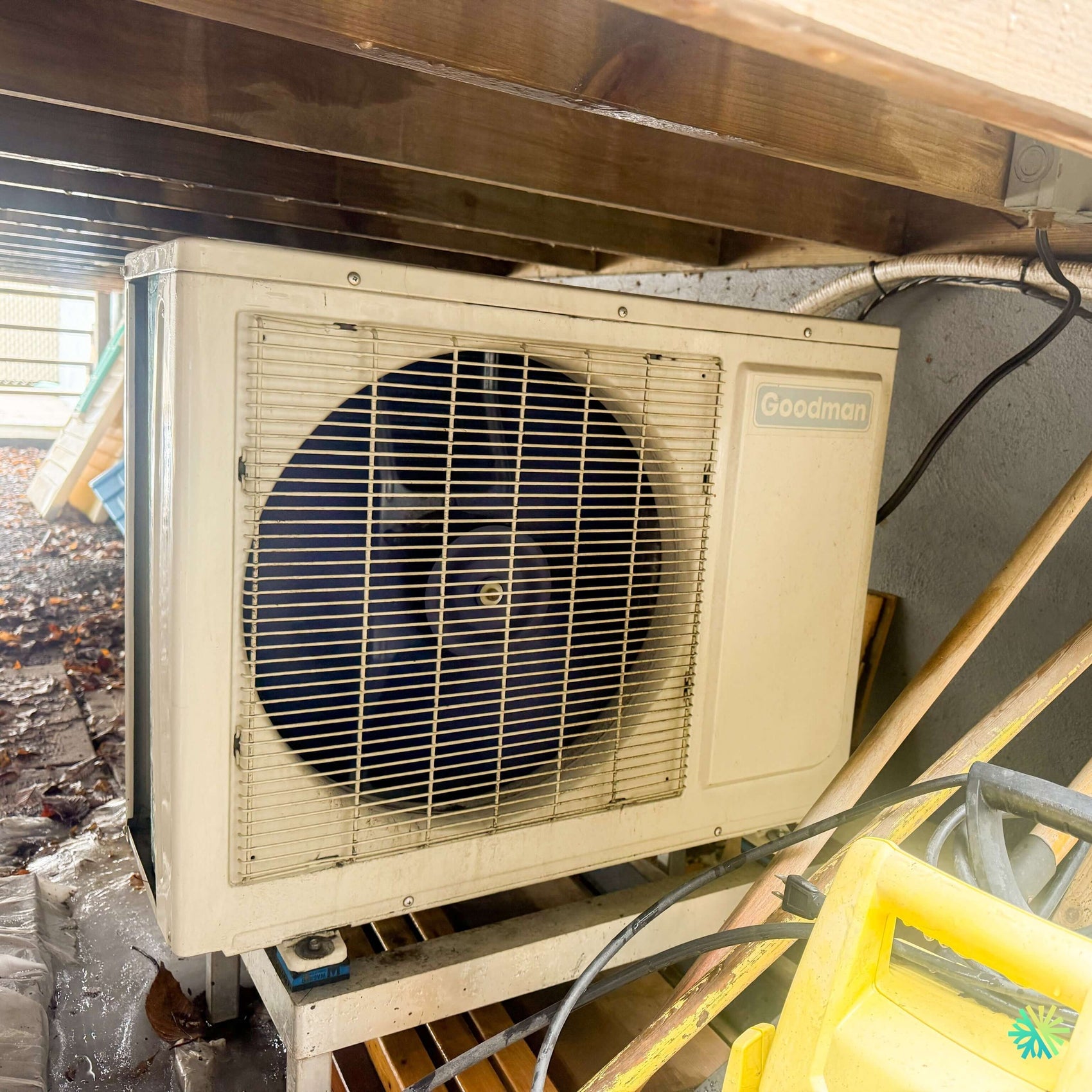

On site, the installation setup already explained part of the challenge: a Goodman outdoor unit placed under a wooden structure, with limited vertical clearance, damp surfaces around the unit, nearby plant debris, and restricted technical access. This type of configuration is not uncommon in homes in Sainte-Thérèse, Blainville, Rosemère, Boisbriand, and other areas of the North Shore, but it requires special attention. A central heat pump is not just about being properly connected: it also needs to breathe.
In this case, our intervention was not limited to replacing an electrical component. We had to analyze the complete behavior of the outdoor unit, check the power supply, measure the fan response, inspect the coil condition, assess air circulation constraints, and confirm that the system could resume stable operation without overheating or repeated shutdowns.
The inspected system: a Goodman central heat pump connected to a duct network
The equipment in question was a residential Goodman outdoor unit, connected to an indoor central system by refrigerant lines and electrical supply. This type of machine is generally used to heat and cool an entire house through a duct network. Unlike a wall-mounted heat pump, which directly treats one zone, a central heat pump depends on a balance between several elements:
- the outdoor unit;
- the indoor coil;
- the furnace or central blower;
- the thermostat;
- the ducts;
- the filter;
- the indoor airflow;
- the refrigerant lines;
- the electrical components;
- the clearance around the condenser.
Even though the visible problem seemed to come from the Goodman outdoor unit, our AirGreen approach was to check the system as a whole. A startup failure, loss of performance, or abnormal noise can come from a weak capacitor, a worn fan motor, a worn contactor, air restriction, a dirty coil, or a pressure problem related to lack of ventilation around the unit.
Symptoms observed before our intervention
The customer had noticed several worrying signs. The system was not completely stopped, but it no longer operated reliably. This kind of partial failure is often more misleading than a total shutdown because it gives the impression that the machine still works "well enough," while some components are already struggling.
The main symptoms were as follows:
- less effective cooling in the house;
- shorter operating cycles;
- unusual noise at startup;
- outdoor fan sometimes slow to start;
- feeling that the machine was working harder;
- discomfort in some distant rooms;
- possible increase in operating time to reach the requested temperature.
These signs quickly led us to check the electrical and mechanical components of the outdoor unit. On a Goodman central heat pump, a fan that starts with difficulty or a unit that seems to struggle can indicate a weakened capacitor, a motor losing efficiency, a dirty outdoor coil, or too high condensation pressure due to poor air exchange.
An installation environment that complicated the diagnosis
The Goodman unit was installed under a deck, with little space above. This setup sometimes partially protects the unit from direct snow, but it can also cause significant problems.
Limited vertical clearance
An outdoor unit must expel hot air in summer and evacuate cold air in winter. When the clearance above the fan is too limited, the expelled air can become trapped under the structure. In cooling mode, this raises the temperature around the condenser and can increase operating pressures. In heating mode, it can promote moisture, frost, and debris buildup.
Accumulation of leaves and moisture on the ground
In the photo, you can see a damp outdoor environment, with leaves and dirt near the unit. These elements can be sucked toward the coil, partially block the grille, or reduce heat exchange efficiency. A dirty outdoor coil forces the compressor to work harder, increasing the risk of failure.
Restricted technical access
The presence of the deck, wiring, and nearby objects complicates access to the service panels. For a technician, this means working more carefully to check components without damaging connections, refrigerant lines, or the surrounding structure.
AirGreen diagnosis: find the real cause before replacing
Our technician began by securing the intervention and checking the outdoor unit’s power supply. On a central heat pump, high-voltage components must be inspected thoroughly, especially when the customer mentions humming or hesitant starting.
Contactor check
The contactor is the component that allows the outdoor unit to receive the necessary power when the thermostat calls for heating or cooling. A worn, burnt, or dirty contactor can cause intermittent starts. In this case, we checked its condition, response to the thermostat demand, and electrical contact stability.
Capacitor test
The run capacitor is an essential part for the fan motor and, depending on the setup, for the compressor. When it loses capacity, the motor may try to start but fail to do so properly. The humming noise heard by the customer was consistent with this type of weakness.
We measured the capacitor value and found it was no longer optimal. A weakened capacitance may seem minor, but it can cause accelerated motor wear, irregular cycles, and an overall drop in performance.
Outdoor fan inspection
The Goodman unit's fan needed to be carefully inspected, as it was at the center of the symptoms. We checked:
- starting;
- rotation;
- noise;
- stability;
- vibrations;
- condition of the grille;
- presence of obstruction;
- operating temperature.
A fan that does not run at full capacity prevents the condenser from properly rejecting heat. In cooling mode, this can quickly reduce system efficiency.
Inspection of the outdoor coil
The location under the deck favored the accumulation of dust, debris, and moisture. We therefore inspected the outdoor coil to assess airflow restriction. A dirty coil does not always cause an immediate failure, but it amplifies all other problems. If a capacitor is already weak, a clogged coil can turn a minor electrical weakness into a recurring failure.
The repair performed on the Goodman unit
After diagnosis, we made the necessary corrections to stabilize the operation of the Goodman central heat pump.
Replacement of the weakened capacitor
The faulty capacitor was replaced with a part compatible with the device’s specifications. This step restored a more decisive fan start and reduced the risk of irregular cycles. A capacitor must always be replaced with a matching value; installing an unsuitable part can damage the motor or cause a more serious failure.
Targeted cleaning of the grille and coil
We removed visible debris and performed appropriate cleaning of the ventilation area. The goal was to improve airflow through the condenser without damaging the fins or forcing water toward sensitive components. In an installation under a deck, cleaning must be done precisely because the limited space promotes dirt recirculation.
Verification of electrical connections
Accessible connections were inspected and tightened as needed. Vibrations, humidity, and the age of the equipment can weaken some connections. Good electrical contact reduces the risk of overheating, intermittent starting, or unexpected shutdowns.
Operation tests after repair
Once the part was replaced and the unit cleaned, we restarted the system under real conditions. The outdoor fan started correctly, the buzzing noise disappeared, and the operating cycle became more stable again. We also checked that the unit showed no immediate signs of overload or ventilation-related issues.
Result: a more stable heat pump and restored comfort
After our intervention, the Goodman central heat pump in Sainte-Thérèse regained much more reliable operation. The outdoor fan started normally, the system responded better to the thermostat’s demand, and the house could once again enjoy more consistent comfort.
The client also received practical recommendations regarding the maintenance of the outdoor unit, especially because of its location under a deck. In this context, repair is not always enough: it is also necessary to prevent conditions that could cause the failure to recur.
What this Goodman repair teaches us about central heat pumps installed under a deck
An outdoor unit installed under a structure requires more attention than one installed in an open space. The problem is not only the brand or age of the machine. Even a good heat pump can lose efficiency if it lacks air, accumulates debris, or if its electrical components operate in a humid and poorly ventilated environment.
Mistakes to avoid with a central outdoor unit
Allowing leaves to accumulate around the condenser
Leaves, dust, and debris can reduce airflow and clog the coil. The area around the unit must be kept clear, especially in fall and spring.
Storing objects too close to the unit
In the photo, you can see equipment and objects nearby. Even if they do not completely block the unit, they can limit service access and hinder airflow. A central heat pump must have enough space to operate and be properly maintained.
Ignoring a buzzing noise
A buzzing noise at startup is often a sign of electrical weakness. Waiting can damage the fan motor or compressor. A capacitor usually costs less to replace than a full motor.
Neglecting to clean the outdoor coil
A dirty coil forces the system to work harder. This increases energy consumption, reduces comfort, and accelerates component wear.
When to request an AirGreen service call?
A service call for Goodman central heat pump is recommended if you notice:
- a loss of air conditioning;
- less effective heating;
- an outdoor fan that does not start;
- a buzzing noise;
- short cycles;
- unusual ice;
- a very dirty outdoor unit;
- an electrical smell;
- a circuit breaker that trips;
- a house that no longer reaches the requested temperature.
At AirGreen, we work on central systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore, with a clear method: complete diagnosis, targeted repair, result validation, and advice tailored to the client’s actual installation.
HVAC expertise that goes beyond part replacement
This repair in Sainte-Thérèse illustrates an important reality: an HVAC failure is rarely isolated from its environment. In this case, the weakened condenser explained the difficult startup, but the location under the deck and the accumulation of debris also contributed to the loss of performance. By treating only the part, the problem could have returned. By treating the system in its context, we provided the client with a more durable solution.
Our AirGreen team regularly works on central heat pumps, central air conditioners, electric furnaces, multi-zone systems, wall units, and HVAC accessories throughout the greater metropolitan area. Each intervention is tailored to the equipment, the home, and the site constraints.
Conclusion: a successful Goodman repair in Sainte-Thérèse
This repair of a Goodman central heat pump in Sainte-Thérèse restored the startup of the outdoor unit, improved air circulation around the condenser, and secured the system’s operation. The client regained more stable comfort, a quieter machine at startup, and a better understanding of the maintenance steps to prioritize.
A central heat pump is a significant investment. When it shows signs of weakness, a quick and precise intervention can prevent more extensive repairs. With AirGreen, homeowners in Sainte-Thérèse, Montreal, Laval, Longueuil, the North Shore, and the South Shore benefit from rigorous HVAC service focused on the actual performance and durability of the system.
