A service call on the South Shore: a condenser at a complete standstill
A homeowner in Châteauguay , on the South Shore of Montreal , contacted us after noticing that his KeepRite central system was no longer starting. The indoor blower was operating normally, but no signal was being transmitted to the outdoor condenser , and the fan remained stationary.

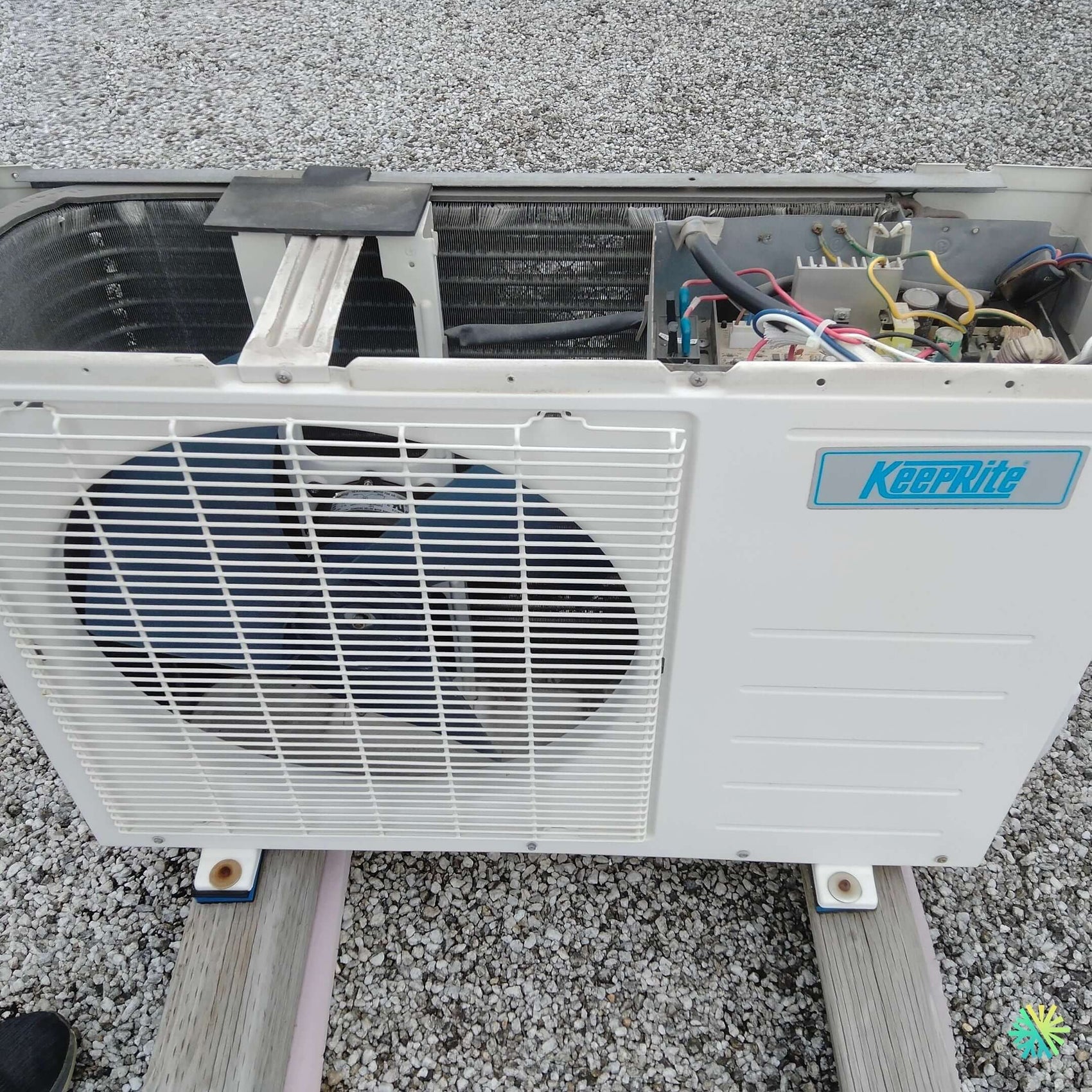

On-site, our AirGreen team immediately identified a KeepRite central heat pump unit, installed on a flat, gravel-covered roof typical of multi-unit residential buildings. The client, concerned about the approaching warm weather, wanted to ensure their system was repaired before the peak summer season.
KeepRite Condenser In-Depth Diagnostics
The diagnosis began with a complete visual inspection. Upon removing the front hood, several things caught our attention:
-
Significant accumulation of dust and debris on the control board and main contactor.
-
Frozen fan , indicating possible start capacitor failure.
-
There were no burn marks on the cables or the connection terminal, which ruled out a major electrical fault.
Step 1: Check the power supply
We measured a stable voltage of 240 volts , confirming that the power supply was correct. However, no current was flowing to the fan motor , indicating a faulty start capacitor .
Step 2: Test the Capacitor
Using a digital multimeter, we measured the capacitance of the combined capacitor (fan + compressor).
-
Nominal value: 45/5 µF
-
Measured value: 12/1 µF
This significant difference confirmed advanced wear of the component, typical after several years of exposure to heat and vibrations.
Complete repair and return to service
We have carried out a refurbishment of the starting circuit :
-
Replacement of the capacitor with a new model, of the same capacity and nominal voltage (440 V).
-
Complete cleaning of the electrical compartment and the condenser with compressed air.
-
Check the contactor (no excessive tapping or electric arcing).
-
Measurement of intensities after start-up:
-
Compressor: 8.2 A (within standards).
-
Fan: 1.3 A (stabilized after 30 seconds).
-
Once the system was restarted, the air temperature at the duct outlet dropped from 24°C to 12°C — proof of optimal performance.
AirGreen Results and Maintenance Tips
The client immediately noticed the return of comfort and fresh air flow in all rooms. This type of intervention is a classic at the start of summer , often linked to a lack of spring maintenance.
Our technicians took advantage of the visit to recommend some good preventive practices :
-
Check the capacitor and contactor annually , especially on systems exposed to the sun.
-
Clean the condenser fins to prevent overheating.
-
Monitor fan vibrations , which are sources of premature deterioration.
-
Perform a complete maintenance before the hot season , including gas pressures, leak testing and electrical calibration.
A tired capacitor can cause random restarts, excessive power consumption and even compressor failure , a much more expensive repair.
