A central heat pump that no longer met the comfort demand in a house in Île-des-Sœurs
In Île-des-Sœurs, a service call brought us to an outdoor central heat pump of the Lennox brand, a residential unit using R-410A connected to an indoor duct system. The client had noticed a clear drop in performance: the house took too long to cool, the system ran for a long time, but the air distributed through the vents no longer provided the expected comfort.
This type of situation is common with central systems installed for several years. A central heat pump may seem to operate normally from the outside — fan running, usual noise, electrical supply present — while gradually losing its actual capacity. In this specific case, the outdoor unit was installed near the wall, on metal supports, with a wall-mounted electrical disconnect nearby and several visible refrigerant and electrical conduits between the house and the condenser.
At AirGreen, we approach this type of intervention with a structured method: understand the symptoms, check the electrical supply, measure critical components, inspect the refrigerant circuit, observe the mechanical condition of the unit, and confirm the system’s performance before leaving the site.

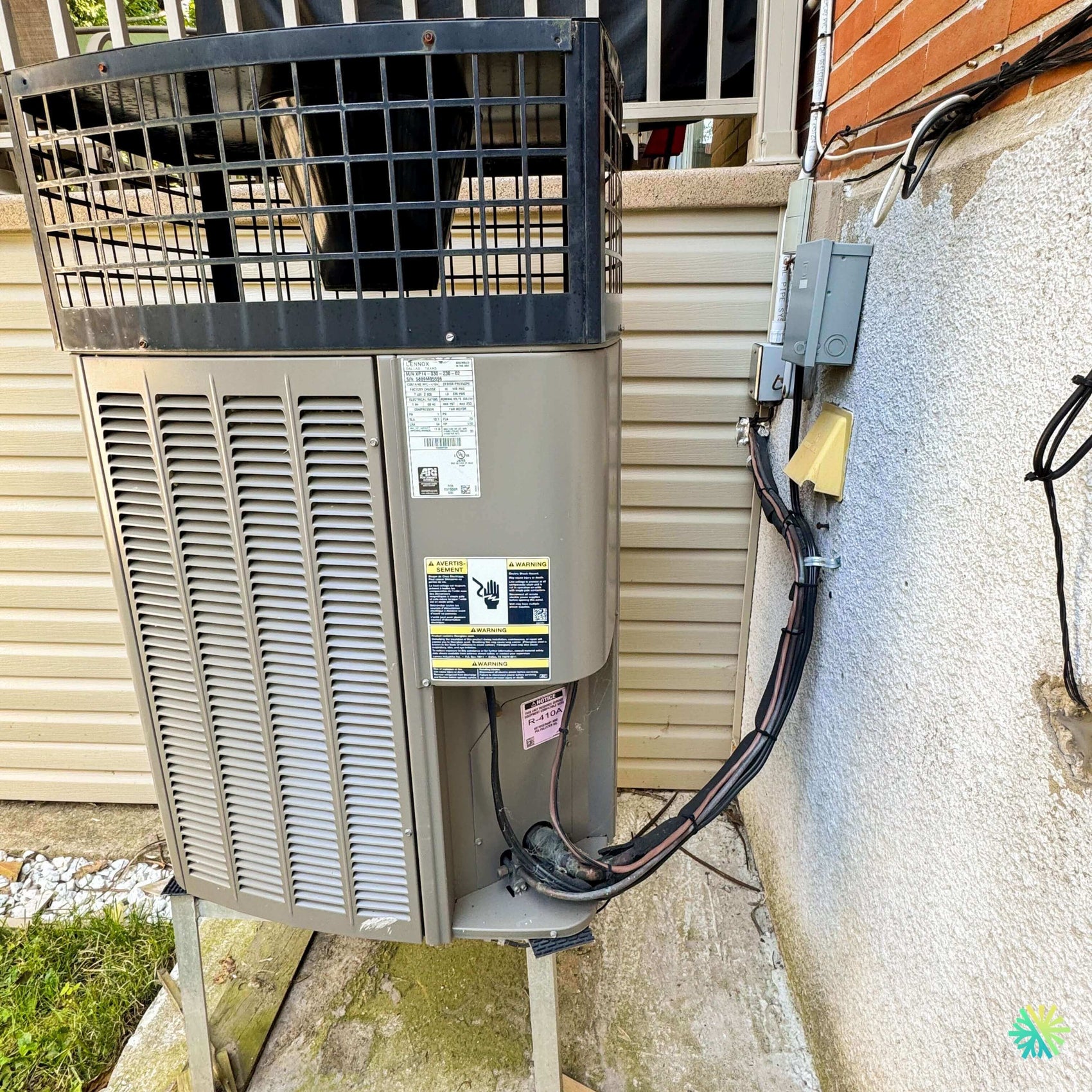

A Lennox central unit exposed to outdoor stresses
The machine observed on site was a traditional design Lennox central heat pump, with a large outdoor cabinet, a top protective grille, and ventilated side panels. This format is typical of central systems serving the entire house through a duct network.
The unit operated with R-410A refrigerant, a fluid still very common in existing residential installations in Montreal, Laval, Longueuil, on the North Shore and the South Shore. The nameplate indicated a 208/230 V power supply, which requires a thorough check of the electrical circuit, disconnect switch, contactor, connections, and panel protections.
The installation also had several important details for the diagnosis:
- the unit was mounted on metal legs;
- the refrigerant lines entered the house near the foundation wall;
- the insulation of the lines showed signs of wear;
- the outdoor disconnect was accessible but exposed to the weather;
- the top grille protected the fan but could trap leaves, dust, and debris;
- the side panels showed possible air circulation, but to be checked under load.
These elements are not only visual. They directly affect the performance of an HVAC installation. A central heat pump can lose efficiency when the outdoor heat exchange is limited, when electrical connections age, or when some starting components weaken.
Symptoms reported before our arrival
The client described a gradual discomfort rather than a complete breakdown. The house remained livable, but the system had to run longer to reach the requested temperature. The thermostat did call for cooling, the outdoor unit started, but the performance was not consistent.
The main symptoms were as follows:
- less cold air at the ventilation outlets;
- longer operating cycles;
- feeling that the heat pump is “struggling” without delivering its normal output;
- slightly more pronounced starting noise;
- performance varies depending on the outside temperature;
- no obvious tripping of the circuit breaker.
This type of panel can point to several causes: weakened capacitor, worn contactor, dirty outdoor coil, air restriction, weak fan motor, refrigerant charge loss, thermostat problem, low voltage communication fault, or a combination of several factors.
Our role was therefore not to replace a random part, but to find the real cause of the performance drop.
Electrical diagnosis: the first critical point on a central heat pump
On a central heat pump, the diagnosis always starts with safety. The power supply was isolated at the outdoor disconnect before opening the electrical compartment. Once safety checks were completed, we checked the available voltage, the condition of the wires, the quality of the connections, and the control components.
The wall disconnect switch, visible near the unit, plays a crucial role: it allows quick power cut-off for maintenance. However, over time, temperature changes, humidity, and vibrations can affect electrical contacts. A weakened connection can cause overheating, voltage drop, or intermittent operation.
In this case, the checks showed that the main power supply was present, but the unit’s startup was not optimal. The contactor showed wear on its contact points, and the run capacitor displayed values below its nominal capacity. On a central heat pump, a weak capacitor can cause difficult starting of the compressor or fan motor, reducing efficiency and increasing mechanical stress.
Inspection of the outdoor condenser and airflow
After electrical checks, we inspected the condenser. The top grille, vented panels, and side fins must allow sufficient airflow to reject or absorb heat depending on the mode used. Even if the unit appears clear, a buildup of dust, pollen, fine leaves, or dirt between the fins can impair heat exchange.
During this service in Île-des-Sœurs, the unit was not completely clogged, but it needed targeted cleaning. An aging central condenser can be particularly sensitive to reduced airflow. When heat is not properly rejected in cooling mode, operating pressure rises, the compressor works harder, and indoor comfort decreases.
We therefore carried out a professional cleaning of the outdoor section, avoiding any excessive pressure that could bend the fins. The goal was to improve heat exchange without damaging the coil.
Checking the R-410A refrigeration circuit
A drop in performance often leads customers to believe that it is "running low on gas." However, adding refrigerant without a diagnosis is a costly and sometimes damaging mistake. On a central R-410A heat pump, pressures must be analyzed under the correct operating conditions, taking into account the outdoor temperature, indoor temperature, airflow, and thermostat demand.
Our technicians therefore let the system run under load to stabilize the measurements. Pressures, line temperature, compressor behavior, and indoor temperature differential were checked. The goal was to confirm whether the problem really came from the refrigeration circuit or rather from an electrical component and weakened heat exchange.
In this case, the main cause was not a simple refrigerant leak. Performance was affected by a combination of weak electrical startup, worn contactor, and reduced outdoor heat exchange. This distinction is important: replacing or adding refrigerant would not have fixed the root problem.
Repairs performed on site
The intervention was carried out in several steps to restore the Lennox central heat pump to stable operation.
Replacement of the run capacitor
The weakened capacitor was replaced with a part compatible with the device’s specifications. This component helps the fan motor and compressor operate properly. When it loses capacity, the unit may start with difficulty, run hotter, consume more energy, and deliver uneven performance.
After replacement, the startup became smoother and more stable.
Replacement of the worn contactor
The contactor is the electromechanical switch that allows power to the outdoor unit when the thermostat calls for heating or cooling. Over time, its contacts can wear out, pit, or create electrical resistance.
Replacing the contactor provided a more reliable power supply and eliminated the risk of intermittent failure.
Cleaning of the outdoor condenser
The condenser was carefully cleaned to improve airflow. This step is essential for central systems, especially when installed near a wall, vegetation, outdoor dust, or in an environment where debris can accumulate.
Better heat exchange means less stress on the compressor and more consistent performance.
Tightening and inspection of connections
Visible and accessible electrical connections were inspected and tightened as needed. We also checked the general condition of the low-voltage wires and the wiring near the disconnect switch. A neglected connection can cause repeated failures, even after replacing a part.
Final performance check
Once the parts were replaced and cleaning completed, the unit was restarted. We checked the startup, the operation of the outdoor fan, the compressor behavior, refrigerant circuit pressures, and the supply air temperature inside.
The system regained more stable operation, with better efficiency and more comfortable air distribution in the house.
What this HVAC repair reminds us about residential central systems
A central heat pump is a robust piece of equipment, but it depends on several components that must work together. A failure is not always spectacular. Sometimes, the system still starts, the fan still runs, the thermostat still responds, but comfort decreases because one or two key components are weakened.
Do not confuse operation with performance
A device that works is not necessarily a device performing well. During this service call on Île-des-Sœurs, the system was not completely stopped. This is precisely what made the diagnosis more delicate. Replacing a part without measurement could have missed the real cause.
In the HVAC services we perform in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we often observe this confusion: as long as the unit makes noise, people believe it is working normally. However, a capacity drop may already be present.
Mistakes to avoid with a central heat pump
Several actions can worsen a situation or unnecessarily increase the bill:
Adding refrigerant without a full test
R-410A does not disappear without reason. If refrigerant is missing, a leak must be found. If none is missing, adding more can cause overload and damage the compressor.
Ignoring electrical components
A weak capacitor or worn contactor can cause the same symptoms as a more serious problem. Electrical measurements are therefore essential.
Neglecting condenser cleaning
A dirty outdoor coil reduces efficiency. Even a thin layer of dirt can affect pressures and operating temperature.
Letting the line insulation deteriorate
Refrigerant lines must be well protected. Damaged insulation can reduce efficiency and expose the lines to the elements.
Waiting for a complete breakdown
When a central heat pump shows signs of weakness, a quick intervention often prevents a compressor failure or a more costly repair.
A reassuring service for the client
After the repair, the client noticed an improvement in indoor comfort. The system responded better to the thermostat's demand, cycles were more consistent, and the air distributed through the ducts reached a more satisfactory temperature.
This service perfectly illustrates our approach at AirGreen: analyze before replacing, measure before concluding, and clearly explain to the client what was found. A successful HVAC repair is not just about getting a machine running again; it must also restore the owner's confidence in their system.
Why call AirGreen for a central heat pump
Central systems require expertise different from wall units. It is necessary to understand the interaction between the outdoor unit, indoor unit, duct network, thermostat, electrical circuit, and refrigerant circuit.
At AirGreen, we work on central heat pumps, central air conditioners, wall systems, electric furnaces, multi-zone systems, and many other residential HVAC equipment. Our field experience in Greater Montreal allows us to quickly identify the details that make a difference: access to the disconnect switch, condition of the lines, clearance around the condenser, aging components, system behavior under load, and final performance quality.
For a home in Île-des-Sœurs or a property in Montreal, Laval, Longueuil, on the North Shore or the South Shore, a well-maintained central heat pump remains an essential element of daily comfort. When it loses efficiency, a professional diagnosis often helps avoid unnecessary expenses and extend the system's lifespan.
