A Lennox outdoor unit that was struggling to breathe: the detail that makes all the difference during an HVAC service call
In Laval, our AirGreen team was called for a Lennox central heat pump repair installed in a residential side yard. The customer reported growing discomfort in the house: some rooms cooled with difficulty, the system seemed to run longer than before, and the outdoor unit made a louder noise at startup. The situation was all the more concerning because the device was connected to a central duct network, so any drop in performance quickly affected several areas of the house.

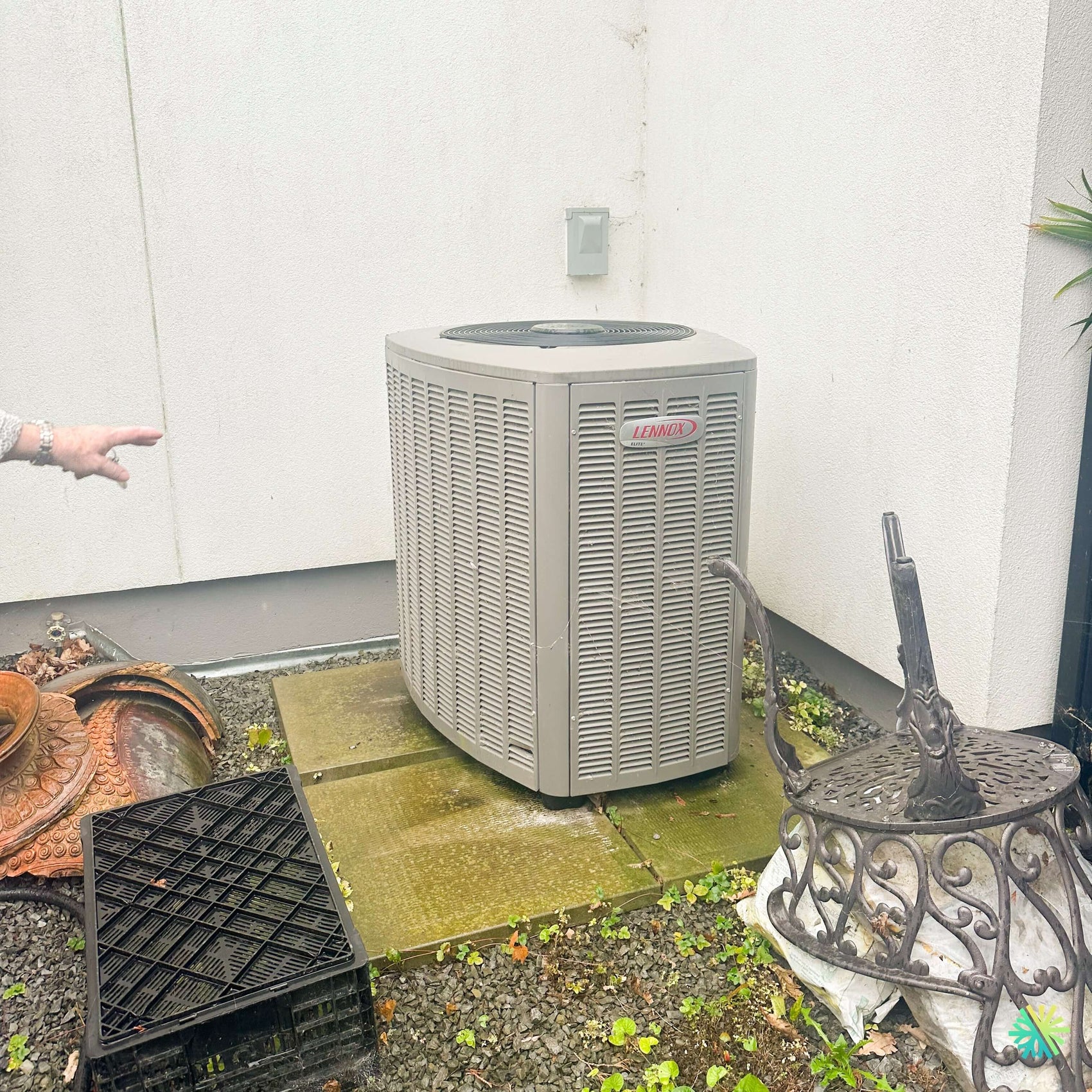

On site, the Lennox outdoor unit, from the central residential series, was installed on ground slabs near a foundation wall, in a relatively narrow space. The device had a vertical intake grille on its sides and a top fan, typical of a central heat pump or a central condenser. The Lennox logo was visible on the front, and the immediate environment showed several important elements for diagnosis: vegetation around the base, wet slabs, proximity to outdoor objects, dirt marks, and potentially limited air circulation.
In a central system, the outdoor unit is not just a “box outside.” It is responsible for essential heat exchange. If it breathes poorly, if its fan struggles, if the outdoor coil is clogged, or if an electrical component weakens, overall performance quickly drops. This is exactly what we found during this service call in Laval.
Symptoms reported before our intervention
Before our arrival, the customer had noticed several signs that should not be ignored. The central system was working, but it no longer delivered the same results as before. The house took longer to reach the desired temperature, and the outdoor unit seemed to start with a slight hesitation. The customer also observed that the top fan sometimes ran irregularly after a shutdown cycle.
These symptoms can come from several causes:
- A dirty outdoor coil.
- Air restriction around the unit.
- A weakened capacitor.
- A worn-out fan motor.
- Abnormal refrigerant pressure.
- A poorly calibrated thermostat.
- An interior filter that is too dirty.
- A loss of ductwork network performance.
- A control board or contactor problem.
Our job was therefore to avoid quick conclusions. An effective HVAC repair always begins with a structured sequence of checks, especially on a Lennox central heat pump where several indoor and outdoor components work together.
Inspection of the outdoor environment
The first observation concerned the unit’s location. The device was placed on slabs, near an exterior wall, with various objects around the area: decorative elements, vegetation, gravel, ground moisture, and limited lateral clearance. Even when the unit is not completely blocked, a cluttered space can hinder heat dissipation in summer or heat exchange in heating mode.
On a central heat pump, the outdoor coil must be able to freely draw in and expel air. When leaves, pollen, dust, seeds, grass, or debris accumulate in the fins, the compressor works harder. This stress can lead to increased electricity consumption, less effective blowing temperature, longer cycles, and in some cases, system protection shutdown.
We therefore started by clearing the immediate area around the unit, then inspected the side panels. A buildup of fine particles was visible in the grilles and around the base. It was not a massive obstruction, but significant enough to reduce heat exchange efficiency, especially during hot days when air conditioning demand is higher.
Electrical diagnosis: a weakened capacitor confirmed by measurements
After the visual inspection, we safely cut the power to access the electrical compartment. The contactor, connections, low voltage control wires, and capacitor were checked. The contactor showed signs of normal wear but no advanced burning. The connections were stable. The critical point was on the running capacitor side.
The measured capacitor was below its acceptable nominal value. On an outdoor unit, this component helps the fan motor and sometimes the compressor to start and operate properly depending on the configuration. When it weakens, the device can still operate, but with harder starts, louder noise, less stable ventilation, and an increased risk of complete failure.
In this case, the capacitor was not completely dead, which explained why the system was still working. But it was weak enough to affect the behavior of the outdoor fan and contribute to the symptoms observed by the customer.
Cleaning the outdoor coil and correcting the airflow
Once the electrical diagnosis was established, we proceeded to clean the outdoor coil. This step must be done carefully. The fins of a coil are fragile and can easily bend if excessive pressure is applied. Poorly executed cleaning can worsen the restriction instead of improving it.
We removed visible debris, cleaned the side grilles, checked the unit’s base, and cleared the areas where air needed to flow. The presence of moisture on the slabs and vegetation around the unit also led us to recommend more frequent maintenance of the outdoor area. A central unit installed on the ground must remain clean, stable, and clear to preserve its performance.
The goal was not just to make the device cleaner. It was necessary to restore normal heat exchange so the compressor wouldn’t have to compensate for poor air circulation.
A targeted repair that restored the central heat pump’s performance
After confirming the problem, we replaced the weakened capacitor with a part compatible with the Lennox unit specifications. The new component was installed correctly, connections were tightened, then we restarted the system to validate its behavior under real conditions.
Operation tests after replacement
Once power was restored, we performed a series of tests:
- Starting the outdoor unit.
- Checking the upper fan.
- Listening to operating noise.
- Checking the contactor.
- Measuring electrical parameters.
- Validating the air conditioning cycle.
- Checking the supply air temperature inside.
- Observing compressor stability.
- Checking air circulation at the condenser.
- Communication with the central thermostat.
The startup was smoother, the fan ran more steadily, and the initial noise had decreased. Inside, the central system distributed more consistent air through the ducts. The client quickly noticed that the heat pump no longer seemed to struggle as before.
Why the problem seemed more serious than it was
In several service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we encounter central systems that seem to be at the end of their life but are actually suffering from a set of fixable problems: lack of exterior maintenance, weakened electrical component, saturated interior filter, insufficient clearance, or poor thermostat adjustment.
In this service in Laval, the Lennox central heat pump did not need immediate replacement. It required a professional diagnosis, proper cleaning, and the replacement of a specific electrical part. This is an important distinction because replacing an entire unit without confirming the actual condition of the components can unnecessarily cost the client a lot.
Mistakes to avoid with a central heat pump installed on the ground
This service allowed us to remind the client of several essential points. A central unit installed in a yard, even if it seems sturdy, requires a clean and stable environment.
Letting vegetation grow around the unit
Small plants, leaves, and grass around the condenser may seem insignificant. However, they eventually get sucked toward the grilles, especially when the fan runs for long periods.
Placing objects too close to the unit
Chairs, bins, decorations, storage crates, or flower pots can obstruct clearance. A central heat pump needs enough space to efficiently draw in and expel air.
Cleaning with too much pressure
A jet that is too strong can bend the coil fins. This reduces airflow and can create a more costly problem to fix.
Ignoring difficult startups
A louder or hesitant start is often an electrical sign. Waiting for a complete failure can result in a day without air conditioning or heating, depending on the season.
Replacing the thermostat without diagnosis
The thermostat is sometimes wrongly blamed. In this case, the problem mainly came from the outdoor unit and the capacitor, not the wall control.
Maintenance advice given to the client
At the end of the service, we recommended that the client maintain regular clearance around the outdoor unit and schedule periodic maintenance of the central system. A central heat pump operates with several components: outdoor unit, indoor unit, duct network, filter, thermostat, condensation drain, and electrical supply. Neglecting any one part can affect the entire system.
We advised:
- To clear vegetation around the unit.
- To keep decorative objects at a distance.
- To regularly check the visual condition of the grilles.
- To replace or clean the interior filters according to usage.
- Not waiting if an unusual noise appears.
- Scheduling HVAC maintenance before peak demand periods.
- Monitoring cycles that are too long or too short.
These simple actions can extend the lifespan of a central system and reduce the risk of emergency calls during the hottest or coldest days.
AirGreen expertise tailored to Lennox central systems
At AirGreen, we work on central systems from various brands, including Lennox, Carrier, Goodman, York, Trane, Bosch, Midea, Gree, Napoleon, and many others. A central heat pump repair requires a complete understanding of HVAC operation: refrigeration, electricity, ventilation, control, drainage, and air distribution.
In this specific case in Laval, the intervention combined three essential aspects: observation of the outdoor installation, precise electrical diagnosis, and improvement of air circulation. This method helps avoid unnecessary replacements and reliably restores the system to service.
The result was tangible: a more stable Lennox unit, quieter startup, better air distribution throughout the house, and a client reassured about the condition of their equipment. For a central system, this type of targeted repair can make a big difference in daily comfort.
Reliable HVAC service in Laval and Greater Montreal
This repair of a Lennox central heat pump in Laval clearly illustrates the importance of a complete diagnosis. A noise, a drop in performance, or a difficult start should not be treated as minor details. They are often the first signs of a problem that can be fixed before it becomes major.
AirGreen offers diagnostic, repair, maintenance, and replacement services for residential HVAC systems in Greater Montreal, including Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our approach is simple: understand the problem, test the components, repair what needs to be fixed, and give the client clear recommendations to maintain their comfort.
In this Laval courtyard, the Lennox central heat pump mainly needed to breathe properly and have an electrical component in good condition. Once these issues were fixed, the system returned to much more stable operation without a complete equipment replacement.
