A high-elevation intervention on a York central heat pump installed on a technical terrace
In Varennes, on the South Shore, our AirGreen team was called for a service call on a York central heat pump installed in an outdoor technical space, elevated, along a glass facade. This type of configuration requires a very precise approach: access is more restricted than at ground level, several HVAC units are close to each other, air circulation can be influenced by walls, guardrails, and glazing, and each intervention must be carried out with particular attention to safety, equipment stability, and building protection.
The client had reported a drop in cooling performance, noisier operation than usual, and a sensation of less cold air inside. The heat pump was still running, but it seemed to be struggling, especially during the hotter parts of the day. In a central system, this kind of symptom should never be ignored: an outdoor unit struggling to reject heat can quickly lead to increased pressure, higher electricity consumption, intermittent shutdowns, or even premature compressor wear.
On site, we identified a York central heat pump of residential or semi-commercial size, installed among other outdoor equipment. The unit was positioned on a narrow technical platform, with several neighboring condensers. This arrangement is common in certain condo buildings, multi-family buildings, upscale residences, and small commercial buildings in Montreal, Laval, Longueuil, the North Shore, and the South Shore. It allows grouping HVAC equipment in a discreet space, but it also imposes significant constraints during diagnosis and repair.
Reported symptoms before the intervention
Before our arrival, the customer had noticed several signs indicating a central system losing efficiency:
- The air blown through the ducts was less cool than before.
- The outdoor heat pump seemed to run longer to reach the setpoint.
- A louder ventilation noise was noticeable near the outdoor unit.
- Comfort varied from one room to another.
- The system seemed more sensitive on hot and humid days.
- No obvious error code was visible on the thermostat side, which complicated the analysis for the customer.
These symptoms can come from several causes: dirty outdoor coil, weakened fan motor, faulty capacitor, worn contactor, inadequate refrigerant charge, clogged indoor filter, insufficient airflow in the ducts, or poor heat exchange caused by the unit’s location.
At AirGreen, we never replace a part randomly. A central system must be diagnosed as a complete set: outdoor unit, refrigeration circuit, indoor ventilation, electrical supply, thermostat, ducts, filters, and installation environment.
Initial visual analysis: a demanding location for a central unit

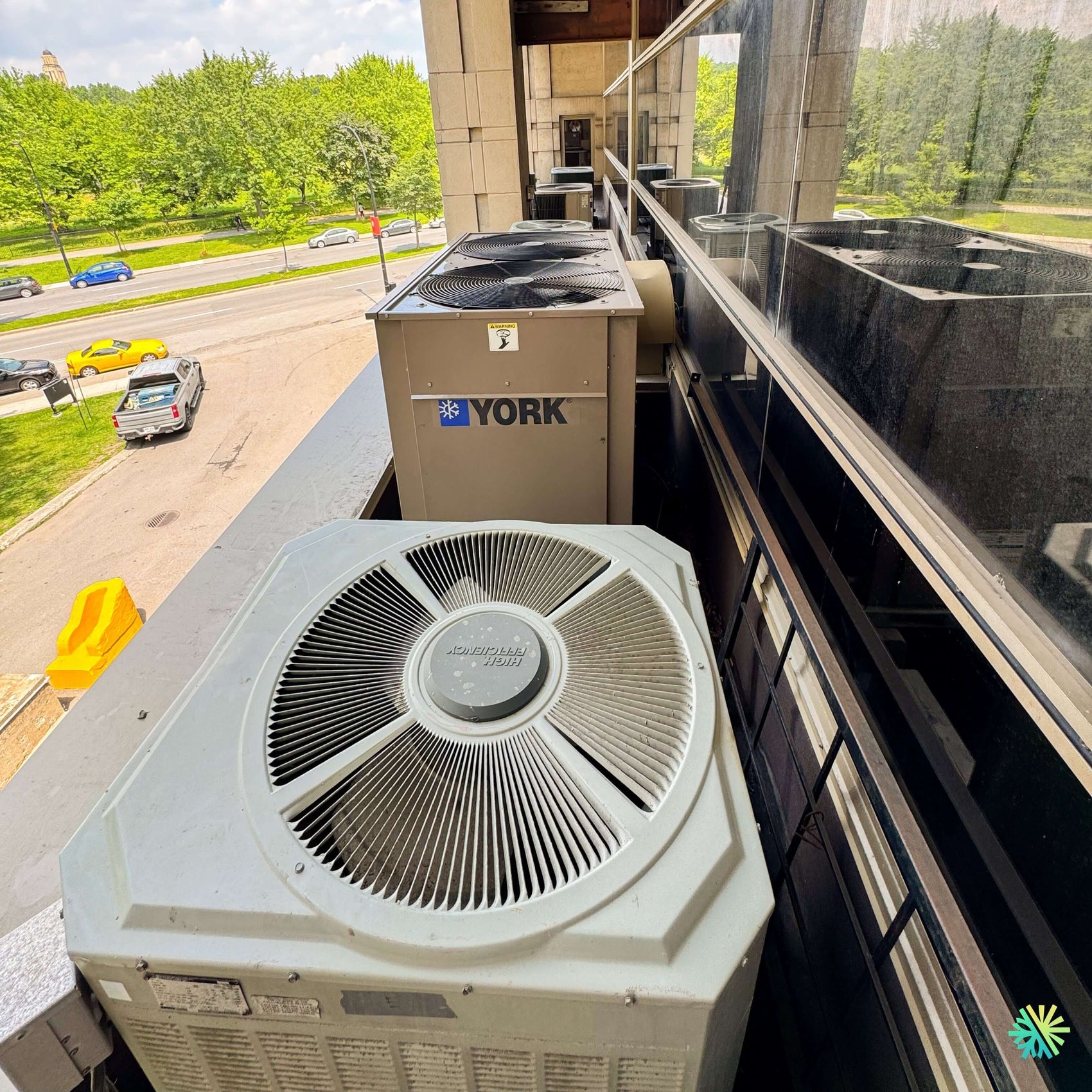

The York unit was installed on a narrow technical terrace, close to other devices. The intervention image clearly shows several condensers lined up, with top fans and sometimes limited clearances. This context is important because a central heat pump must be able to effectively expel heat in cooling mode and capture outdoor energy in heating mode.
When several units are close together, hot air recirculation can occur. The air expelled by one machine can be taken in by another, especially when walls, windows, or guardrails alter the natural airflow. The result: the device works harder, pressures increase, efficiency decreases, and the customer experiences a loss of comfort indoors.
We also observed visible deposits on some grilles and exterior surfaces. In an environment exposed to traffic, trees, pollen, urban dust, and humidity, the outdoor coils gradually become dirty. Even if the unit looks clean from a distance, the fins can be partially clogged deep inside, which reduces heat exchange.
Complete diagnostic of the York central heat pump
Our diagnosis was carried out in several steps to isolate the real cause of the performance drop.
Thermostat and cooling demand check
We first validated the thermostat demand. The cooling signal was properly transmitted to the equipment. The indoor unit responded, the ventilation started, and the outdoor unit received the call to operate. This first step allowed us to rule out a simple problem of a misconfigured thermostat or absent demand.
Electrical inspection of the outdoor unit
We then inspected the accessible electrical components of the York central heat pump. On this type of unit, some elements are particularly critical:
- The contactor, which powers the compressor and outdoor fan.
- The capacitor, which helps start and run the motor and compressor.
- Electrical connections, which can loosen due to vibrations.
- Low voltage control wires.
- Signs of heating, oxidation, or moisture.
During our check, the contactor showed signs of wear, with marked contact points. This kind of wear can cause irregular starting, unstable power supply, or abnormal electrical noise. The capacitor also showed a weakened value compared to expected tolerances. Although the system could still start, these two components increased the risk of intermittent shutdown and poor performance.
Outdoor fan inspection
The upper fan of the York unit was observed during operation. The motor started, but the effort seemed higher when the unit was under load. A fan working against a dirty coil can give the impression of a faulty motor when the main cause is sometimes insufficient heat exchange.
We checked the rotation, noise, vibrations, blade condition, and motor stability. No major blockage was detected, but the combination of a dirty coil and a weakened capacitor explained part of the irregular behavior.
Reading pressures and analyzing refrigeration performance
Once the electrical checks were completed, we analyzed the refrigeration circuit. The pressures indicated difficulty in heat rejection, consistent with a dirty outdoor coil and less effective ventilation. We also checked the temperatures to confirm that the heat pump was still producing cold, but with reduced efficiency.
The diagnosis prevented a premature conclusion such as “lack of refrigerant.” This is a common mistake. When a system cools less, many owners immediately think of a leak or low gas. However, a dirty coil, insufficient airflow, or a weakened electrical component can produce very similar symptoms.
On-site repair performed
After identifying the main causes, we carried out a targeted intervention to restore the central heat pump’s operation.
Replacement of the weakened capacitor
The existing capacitor was replaced with a compatible part meeting the equipment’s required values. This component is essential for the proper startup and operation of the fan motor and compressor. A weak capacitor can cause:
- Difficult startups.
- An overheating motor.
- A compressor that strains.
- Intermittent shutdowns.
- Performance decline.
- Premature component wear.
After replacement, the unit’s startup was more decisive and stable.
Replacement of the worn contactor
The contactor showing signs of wear was also replaced. This intervention improves the unit’s electrical reliability and reduces the risk of intermittent shutdowns. In a central system, a worn contactor can sometimes operate for several days without apparent issues, then cause a sudden failure on a high-demand day.
Outdoor coil cleaning
We performed a thorough cleaning of the outdoor coil to restore better airflow. This step is especially important in an environment where multiple units are placed side by side. A clean coil allows the system to reject heat more efficiently, reduce operating pressure, and lessen the load on the compressor.
The cleaning was done methodically, considering the elevated location and proximity to windows, glass surfaces, and other HVAC equipment. The goal was to clean effectively without causing uncontrolled runoff or damaging the fins.
Final operation check
After replacing parts and cleaning, we restarted the York central heat pump and observed its behavior over a full cycle. The startup was more stable, the fan worked better, noise was reduced, and temperature measurements confirmed improved efficiency.
The client experienced improved indoor comfort, with fresher air and a quicker system response. More importantly, the repair helped reduce the risk of a complete breakdown during upcoming heat periods.
HVAC lessons from this repair in Varennes
This intervention in Varennes shows how a central heat pump repair requires a comprehensive analysis. A central system is not just an outdoor unit: it depends on the balance between the compressor, fan, electrical components, coil, refrigerant, indoor unit, and ducts.
Why units installed on technical terraces require more attention
Equipment installed on a terrace, technical balcony, or elevated outdoor platform faces particular stresses.
Limited access for maintenance
When access is tight, maintenance is often postponed. Yet, these units need regular cleaning just as much as ground-installed devices. In some cases, they need it even more because air circulation is less natural.
Hot air recirculation
Proximity to walls, glazing, and other condensers can cause hot air recirculation. This forces the heat pump to operate under less favorable conditions, especially in summer.
Exposure to sun and reflective surfaces
Glazing and exterior surfaces can increase the temperature around the unit. Even a few extra degrees can affect operating pressures and reduce efficiency.
Multiple sources of noise
In a space where multiple devices operate simultaneously, an abnormal noise can be difficult to identify. You must isolate each machine, observe the cycles, and check mechanical and electrical components one by one.
Mistakes to avoid with a central heat pump
This repair highlights several common mistakes we see in Greater Montreal.
Replacing refrigerant without a complete diagnosis
Adding refrigerant without confirming a leak or checking heat exchange can mask the real problem. An incorrect charge can even damage the system. At AirGreen, we first check mechanical, electrical, and ventilation causes before concluding a refrigerant issue.
Ignoring a weak capacitor
A weakened capacitor may seem trivial, but it can lead to significant consequences. It forces the motor and compressor to work under poor conditions. A relatively simple part can therefore protect much more expensive components.
Neglecting the contactor
A worn contactor can cause intermittent failures that are difficult to reproduce. The system works during a test, then stops working later. When a contactor shows signs of wear, preventive replacement is often a wise decision.
Waiting for the unit to stop completely
A heat pump that is not working well already sends signals. Different noise, longer running time, less cool air, or higher consumption indicate that a diagnosis is necessary.
Result for the client: restored performance and peace of mind
At the end of the intervention, the York central heat pump in Varennes was operating more stably. The system started correctly, heat exchange was improved, noise was reduced, and measurements confirmed better performance. The client received clear recommendations for future maintenance, including periodic cleaning of the outdoor coil and monitoring for signs of abnormal operation.
For AirGreen, a successful repair is not just about getting a machine running again. It is essential to ensure the system operates under good conditions, that the client understands the causes of the problem, and that the risks of recurrence are reduced.
AirGreen: expertise in central heat pump repair on the South Shore
We regularly work on central heat pumps, central air conditioners, wall systems, MultiZone heat pumps, electric furnaces, and other HVAC equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each service call is handled with a rigorous method: inspection, diagnosis, measurements, repair, validation, and practical advice.
This intervention in Varennes illustrates our ability to work in complex contexts, such as technical terraces at height, confined spaces, and installations grouping several units. Our priority always remains the same: restore comfort, protect the equipment, and offer a durable solution.
