A service call on a hard-to-access outdoor unit installed in a narrow passageway
In the West Island area, our AirGreen team was called for a MultiZone heat pump repair where the outdoor unit was installed in a narrow side passage, between a textured wall, exposed metal ducts, and other mechanical building elements. This type of configuration is common in some residential buildings and condominiums in the West Island of Montreal, where space for HVAC equipment is limited and technical access requires a precise working method.

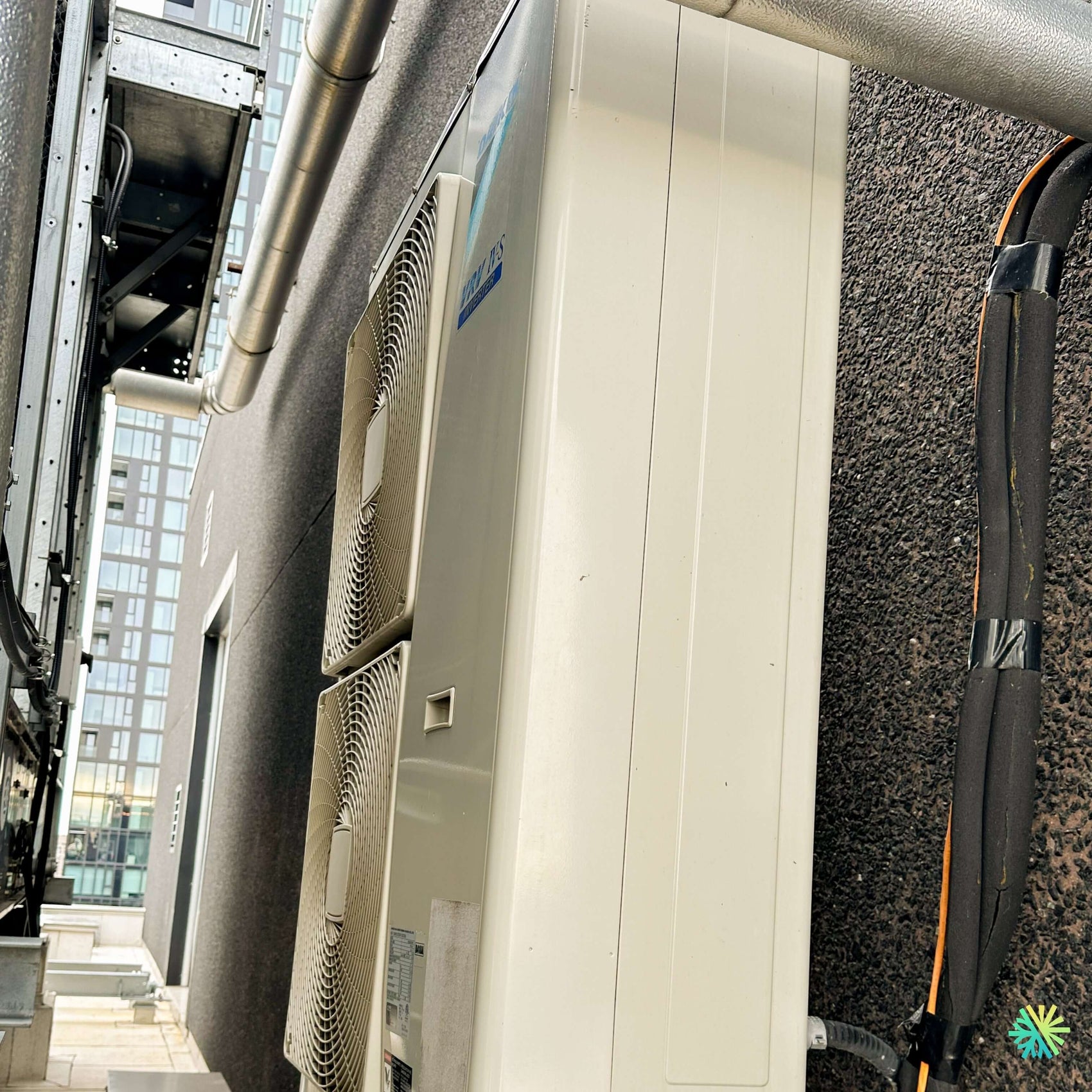

The device seen on site was a vertical outdoor unit with two fans, typical of a MultiZone heat pump or a wall system serving multiple indoor units. The exact brand and model were not clearly readable in the image, but the equipment configuration, cabinet height, presence of two stacked fans, and refrigeration connections indicated a high-capacity system, generally used to supply multiple indoor zones in a condo, townhouse, or multi-room residential building.
The client had reported a loss of efficiency, noisier operation outside, and a feeling that some rooms served by the heat pump were no longer receiving the same level of comfort. In this type of service call, it is important not to focus on just one symptom. A MultiZone heat pump can seem weak for several reasons: restricted outdoor air circulation, dirty coils, slowed outdoor fan, damaged refrigeration insulation, exposed fittings, affected temperature sensor, pressure problem, intermittent electronic board, or imbalance between the demands of different indoor zones.
An outdoor installation exposed to several constraints
Upon arrival, our technician first assessed the environment around the unit. The device was positioned near a wall, in a technical corridor where natural ventilation is less favorable than in an open space. This condition is particularly important for a heat pump, as the outdoor unit must expel or absorb heat depending on the mode used.
In cooling mode, the condenser must reject heat outside. If hot air remains trapped around the unit, the system works harder, pressure rises, and efficiency decreases. In heating mode, especially during cold periods, the unit must be able to draw in enough air to extract available heat. A confined space, nearby ducts, reflective wall surfaces, and physical obstacles can all affect performance.
In this particular case, several elements required special attention:
- the outdoor unit was installed very close to the wall;
- both fans needed to be inspected separately;
- the outdoor coil was exposed to urban dust and debris;
- the insulation on the refrigerant lines showed signs of wear;
- some wiring and duct sections appeared to have been repaired or protected with tape;
- access to the service panel required careful handling;
- the proximity of other mechanical installations complicated operational testing.
This was not a service call where the unit could simply be checked from a distance. It was necessary to open, test, measure, and observe the system’s behavior under real demand.
Symptoms reported by the customer
The customer had noticed that the system no longer responded as before. Some indoor zones struggled to reach the requested temperature, while the outdoor unit seemed to run longer. A louder noise was also heard near the area where the unit was located.
The main symptoms were as follows:
- reduced cooling performance;
- longer cycles;
- more noticeable outdoor noise;
- less consistent outdoor ventilation;
- variable discomfort from one room to another;
- concern about the condition of the refrigerant lines;
- suspected issue related to maintenance or wear of the installation.
On a MultiZone heat pump, these symptoms can be related to a single component or a combination of minor issues. For example, a dirty outdoor coil can reduce heat exchange, while damaged insulation on refrigerant lines can contribute to performance losses. Similarly, a weakened outdoor fan can increase system pressure without necessarily stopping the unit completely.
Initial diagnosis: ventilation, heat exchange, and connection status
Our first step was to confirm that the outdoor unit was receiving power correctly and responding to requests from the indoor units. A MultiZone system relies on communication between several components: the indoor wall units, the outdoor control board, sensors, the inverter compressor, and the fans.
The technician then checked the behavior of the two fans. On a vertical dual-fan unit, it is essential to confirm that both motors operate correctly, without excessive vibration, friction, or abnormal lag. A single weakened fan can cause condenser overheating, especially when multiple indoor zones demand air conditioning simultaneously.
We also inspected the outdoor coil. In a narrow passage like this, the unit can accumulate dust, fine particles, plant debris, fibers, and dirt carried by the air more quickly. This buildup reduces the coil’s ability to exchange heat with the outside air. Even if the unit looks clean at first glance, the fins can be deeply clogged.
The diagnosis included:
- verification of electrical supply;
- visual inspection of the outdoor cabinet;
- check of upper and lower fans;
- vibration observation;
- inspection of coil fins;
- check of refrigerant line condition;
- inspection of line insulation;
- inspection of accessible connections;
- operation test on demand;
- cycle stability analysis.
A common cause: condenser fouling and damaged refrigerant insulation
In this project, the intervention revealed two important elements. First, the outdoor coil needed serious technical cleaning. Second, the insulation around the refrigerant lines had lost some of its effectiveness. In the photo, you can see a line protected by black insulation, but some sections appear aged, cracked, or temporarily repaired. This situation is common on units exposed to weather, UV rays, temperature variations, and previous interventions.
Insulation of refrigerant lines is not just an aesthetic detail. It plays a direct role in the performance of a wall-mounted heat pump or MultiZone. When the insulation is damaged, the lines can suffer thermal losses, excessive condensation, and accelerated deterioration. In some cases, this can also complicate diagnosis, as the system seems to operate but does not reach its normal efficiency.
We therefore carried out targeted restoration:
- cleaning of the outdoor coil;
- clearing fins to improve airflow;
- inspection of fans and mounts;
- vibration check;
- repair of damaged insulation sections;
- protection of exposed pipes;
- tightening of accessible components;
- final test with air conditioning request.
The goal was to restore the best possible heat exchange and reduce the effort required from the compressor.
Why outdoor noise should never be ignored
A new noise on an outdoor heat pump always deserves a check. It can come from a vibrating grille, a loose panel, an unbalanced fan, a weakened support, contact with a duct, dirt buildup on the blades, or a more serious problem with the motor or compressor.
In this case, the noise seemed mainly related to a combination of less smooth ventilation, coil dirt buildup, and vibrations amplified by installation in a narrow corridor. Close walls can reflect sound and make the unit seem louder than it actually is. However, even when the acoustics amplify the noise, the mechanical cause must be addressed.
After cleaning and checking the supports, the operation was more stable. The client also received explanations on what to watch for: a metallic noise, squeaking, intermittent fan stops, or sudden changes in the compressor sound are signs not to ignore.
Technical challenges specific to MultiZone systems
A MultiZone system is more complex than a simple single-zone wall unit. When only one room has a comfort issue, it’s necessary to determine whether the problem comes from the indoor unit in that zone, communication, heat demand, the refrigerant circuit, or the outdoor unit. When there is a general drop in performance, attention focuses more on the outdoor unit, the coil, the compressor, the fans, pressures, and connections.
In the West Island, we often work on systems installed in renovated houses, condos, townhouses, and buildings where the outdoor location is not ideal. A heat pump may perform well on paper but lose some of its efficiency if the environment around the outdoor unit is not well managed.
The common mistakes we observe are as follows:
Allowing the outdoor unit to get dirty over several seasons
An outdoor condenser may seem sturdy, but its fins are delicate. A layer of dust or debris quickly reduces efficiency.
Neglecting the insulation of refrigerant lines
Cracked or open insulation must be fixed. Heat loss and moisture can affect performance and durability.
Installing or leaving obstacles too close to the unit
A heat pump needs space to breathe. Walls, ducts, fences, balconies, or nearby equipment can limit air circulation.
Jumping to the conclusion of a compressor failure too quickly
A loss of efficiency doesn’t automatically mean the compressor is faulty. The diagnosis must first check the air, coils, fans, sensors, and installation conditions.
Report an unusual noise
A small noise can turn into a more costly repair if a fan or support ends up deteriorating further.
A measurable result: improved performance, stabilized operation, and a reassured client
After the AirGreen intervention, the MultiZone heat pump returned to smoother operation. Cleaning the condenser allowed better airflow through the coil, while fixing the pipe insulation helped reduce losses and protect the installation. The fans were tested, the operating cycle was observed, and the outdoor unit was restored to better meet the demands of the indoor zones.
The client noticed a difference in system stability. The unit operated with less apparent effort, external noise was better controlled, and the serviced parts gradually regained more consistent comfort. In an HVAC repair, this type of result is important: it’s not just about getting a device running again, but restoring the system to reliable operating conditions.
The importance of preventive maintenance in the West Island
The climate of Greater Montreal puts a lot of strain on heat pumps. In summer, humidity and long heat periods stress the outdoor units for several hours a day. In winter and shoulder seasons, heating cycles, defrosting, and rapid temperature changes demand a clean, well-ventilated, and well-protected device.
In the West Island, many outdoor units are installed in side yards, narrow passages, technical balconies, or spaces shared by several mechanical systems. These locations require special attention. Annual or periodic cleaning can prevent:
- loss of efficiency;
- higher energy consumption;
- overheating in cooling mode;
- longer cycles;
- unusual noises;
- premature wear of fans;
- urgent service calls during peak periods.
Our AirGreen approach to HVAC repairs
At AirGreen, every service call for wall-mounted or MultiZone heat pumps is handled with a comprehensive diagnostic approach. We don’t just replace a part without understanding the cause. We check the environment, installation, mechanical condition, connections, ventilation, drainage when relevant, insulation, and signs of wear.
This method is especially useful for systems installed in confined spaces. A device may be technically functional but poorly ventilated. It may also be clean on the surface but clogged deep inside. It may produce cold air but lose efficiency due to deteriorated insulation. These details make all the difference between a temporary repair and a lasting intervention.
Our teams regularly work in Montreal, Laval, Longueuil, on the North Shore and the South Shore, for both residential systems and more complex condominium configurations. In the case of this repair in West Island, our experience with hard-to-access outdoor installations allowed us to work efficiently without overlooking critical points.
Practical advice after a MultiZone heat pump repair
At the end of the intervention, we recommended the client monitor certain signs in the following weeks:
- temperature difference between zones;
- unusual noise coming from the outdoor unit;
- intermittent fan shutdown;
- abnormal frost on the pipes;
- sudden drop in indoor airflow;
- musty smell in the wall units;
- very long cycles without reaching the setpoint.
We also explained that periodic inspection of the outdoor unit is especially important when the device is located in a narrow passage. The clearance around the heat pump, the condition of the insulation, the cleanliness of the coil, and the stability of the fans must be checked before periods of high demand.
A repair that protects comfort and the system’s lifespan
This intervention shows that a MultiZone heat pump repair is not just about looking for an obvious fault. You need to understand the system in its real environment. Here, the outdoor unit had to deal with a tight space, less favorable air exchange, exposure to urban dirt, and pipes whose insulation needed correction.
By restoring better air circulation, checking the fans, and protecting the refrigerant lines, AirGreen enabled the system to operate under better conditions. Indoor comfort was improved, the client received clear explanations about the condition of their device, and the installation was secured to continue meeting the housing needs.
