An outdoor wall unit vibrating under the eaves: precise diagnosis and repair on a brick facade

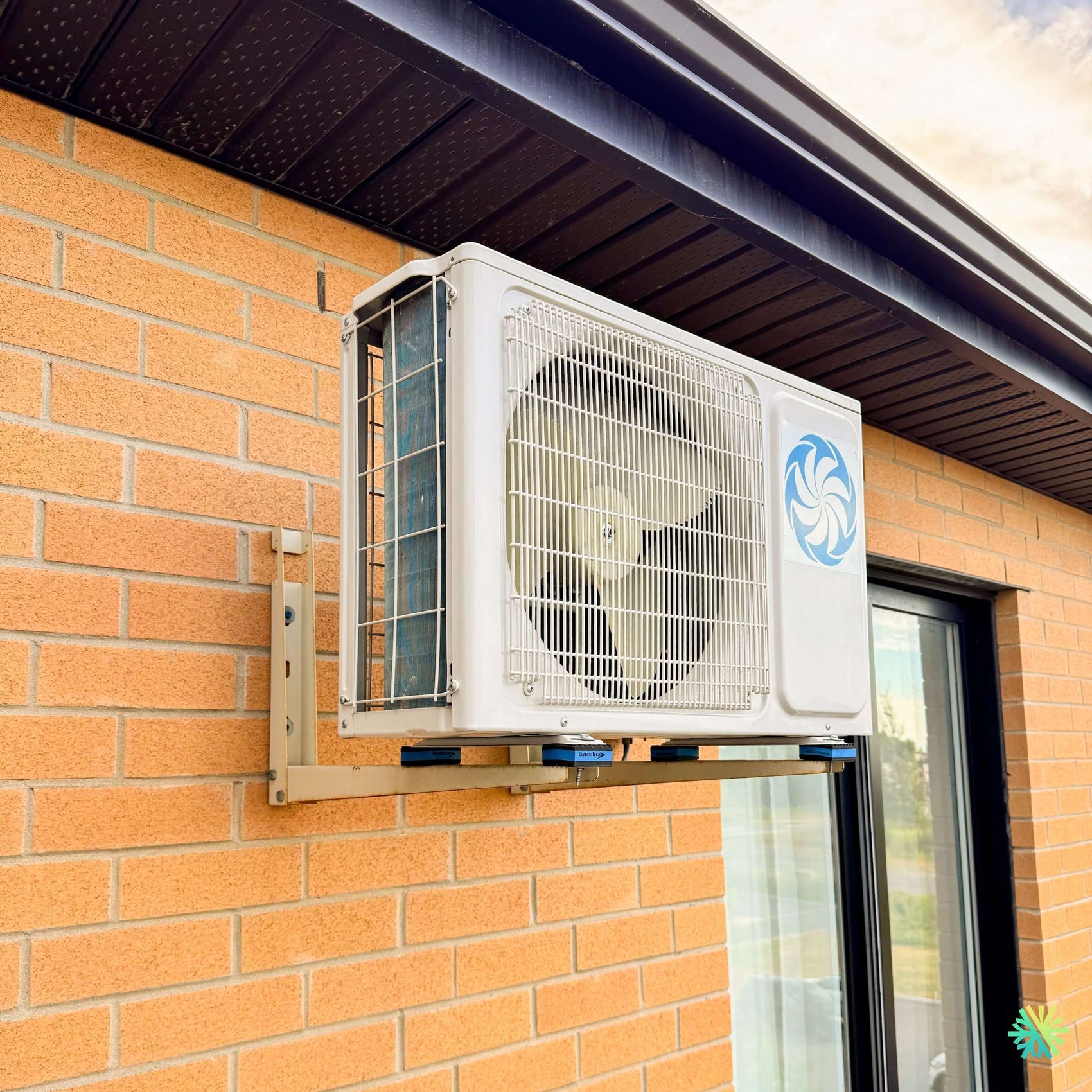

In Dorval, our AirGreen team responded to a service call on a residential wall-mounted heat pump whose outdoor unit was installed high on a wall bracket fixed directly into the brick. Upon arrival, several elements caught our attention: the compressor was placed under a soffit, near a window, on a metal structure exposed to vibrations, with an outdoor coil visible on the side and a protective grille installed in front of the fan.
The client contacted us because the wall-mounted heat pump was making abnormal noises during certain cycles, especially in heating mode, and seemed to lose efficiency in colder weather. Indoor comfort had not completely disappeared, but the device was no longer delivering the same performance as before. In this type of situation, it is essential not to limit yourself to a simple startup test. A wall-mounted heat pump can operate while having a mechanical, refrigeration, electrical, or installation problem that worsens over time.
This service call in Dorval perfectly illustrates the kind of HVAC diagnosis we regularly perform in Montreal, Laval, Longueuil, on the North Shore and the South Shore: a device still operational, but showing several signs that professional inspection is needed before a complete breakdown occurs.
A residential wall-mounted heat pump installed on a wall bracket
The observed device was a wall-mounted mini-split heat pump, consisting of an indoor wall unit and a compact outdoor compressor. The exact logo and nameplate were not clearly visible in the photo, but the setup matched a common residential machine, typically used in capacities of 12,000 to 18,000 BTU, depending on the area served and the building’s insulation.
The outdoor unit was mounted on a wall bracket above the ground, which offers several advantages in the Quebec climate:
- better protection against snow accumulation;
- easier to maintain ground clearance;
- reduced access for animals and debris;
- practical installation when floor space is limited;
- positioning suitable for row houses, duplexes, and bungalows with brick walls.
However, a wall installation also requires special attention. If the supports are not perfectly stable, if the anti-vibration pads are worn, or if the anchors in the masonry have shifted over time, the compressor’s operation can produce vibrations that transmit to the wall. In a brick house, this vibration can be amplified and become audible inside, especially at night or during defrost cycles.
Symptoms reported by the client
The client described several signs that appeared gradually:
- louder noise when the compressor starts;
- vibration noticeable near the exterior wall;
- less consistent heating on cold days;
- longer cycles than usual;
- feeling that the outdoor unit was working harder;
- slight dirt buildup on the outdoor coil;
- concern about the sturdiness of the wall mount.
These symptoms can come from several causes. A vibration can be related to the support, the fan, the compressor, the rubber pads, a loose part, or even the refrigerant lines if they touch a rigid surface. A loss of performance can come from a dirty coil, a lack of refrigerant, a faulty sensor, a slowed outdoor fan, or an electronic board that no longer properly controls the cycles.
Our role was therefore to isolate the real cause instead of unnecessarily replacing parts.
Visual inspection: the details that matter
We started by examining the outdoor unit as a whole. The positioning under the eaves offered some protection against the weather, but it was necessary to confirm that the top and side clearance allowed good air circulation. A wall-mounted heat pump must exhaust and absorb air efficiently. If hot or cold air recirculates around the condenser, the unit works harder, consumes more, and loses performance.
We also checked the condition of the outdoor coil. On the side of the unit, the fins were visible behind a metal guard. Over time, these surfaces can accumulate dust, pollen, fine leaves, dryer lint, road particles, and urban dirt. In Dorval as elsewhere in Greater Montreal, units located near roadways or wind-exposed areas often get dirty more quickly.
A partially clogged coil reduces heat exchange. In heating mode, this can cause longer cycles, less stable operating pressure, and more frequent defrosting. In cooling mode, the device may lose capacity and deliver less cold air.
Checking the wall mount and vibrations
The wall console was a central point of the diagnosis. We inspected the anchors, crossbars, supports under the unit, and contact points between the compressor and the support. Outdoor units installed on wall mounts should ideally rest on vibration-damping pads in good condition. When these pads are crushed, hardened, or displaced, the metal support can transmit vibrations directly to the structure.
We investigated:
- loose screws;
- slightly tilted supports;
- direct metal-to-metal contact;
- overly tight refrigerant lines;
- vibration of the side panel;
- poorly fixed protective grille;
- resonance noise in the brick facade.
In this case, part of the noise came from a set of small cumulative vibrations rather than a single defective part. This is a common diagnosis: the device works, the compressor is not necessarily broken, but the installation needs mechanical adjustment.
Electrical tests and outdoor fan behavior
After the mechanical inspection, we performed the operational tests. The outdoor fan had to spin freely, without friction, excessive wobbling, or bearing noise. An unbalanced blade, a slightly displaced grille, or a worn motor can generate a cyclical noise that increases with speed.
We also observed the compressor startup. A difficult start can be caused by electrical weakness, a faulty capacitor on some models, an aging electronic board, or unstable power supply. On modern wall-mounted heat pumps with inverter technology, electronic controls adjust the compressor speed, making the diagnosis more subtle than a simple "on or off."
We confirmed that the device responded to commands and that the operating sequence was consistent. No immediate signs of major compressor failure were detected during the tests, but the vibration level warranted corrective action.
Targeted cleaning of the outdoor coil
Part of the service involved carefully cleaning the outdoor coil. This step is often underestimated, even though it directly affects the performance of a wall-mounted heat pump. A dirty coil forces the unit to work longer to reach the desired temperature.
The cleaning was done carefully, without excessive pressure that could bend the fins. Condenser fins are fragile; aggressive washing can worsen the situation by reducing airflow. We removed visible dirt, checked water drainage, and confirmed that air could flow more freely through the exchanger.
After this cleaning, the outdoor unit’s operation was more stable, with better condenser airflow and less apparent strain during cycles.
Correction of vibration points
We then tightened accessible components and repositioned some support points. When necessary, anti-vibration pads can be added or replaced to isolate the compressor from the wall structure. In this case, the goal was to reduce noise transmission to the brick and prevent vibration from amplifying over time.
Special attention was also given to the refrigerant lines. Even if they are not always visible in a photo, they play an important role in transmitting vibrations. A line pressed too tightly against a wall, molding, or metal piece can produce intermittent buzzing inside.
Result: a quieter device and better-controlled performance
At the end of the service, the wall-mounted heat pump was operating more smoothly. The vibration noise had decreased, the outdoor fan was running properly, the coil was clear, and the wall bracket had been checked. The client was especially reassured on one important point: the problem did not necessarily indicate an imminent compressor failure, but rather a combination of dirt, mechanical vibration, and aging of the support points.
We recommended monitoring during the next heating cycles, especially in cold weather, when defrost cycles activate and the outdoor unit undergoes more thermal variations. If the noise were to return or increase, the next step would be a more thorough inspection of the fan motor, sensors, control board, and the exact condition of the compressor.
What this intervention in Dorval teaches about maintaining wall-mounted heat pumps
A wall-mounted heat pump installed outdoors is never completely “maintenance-free.” Even when it seems well protected under a soffit, it remains exposed to temperature changes, humidity, frost, dust, leaves, and repeated vibrations. In Dorval, as in many areas of Montreal, Laval, Longueuil, the North Shore, and the South Shore, brick houses can transmit vibrations more easily than expected.
Mistakes to avoid with an outdoor wall unit
The first mistake is ignoring a noise that recurs regularly. A slight humming can be normal, but a new, metallic, intermittent, or louder sound deserves a check. The longer you wait, the more screws, mounts, or moving parts can deteriorate.
The second mistake is washing the condenser with too much pressure. The coil fins can bend, which further blocks air and reduces performance.
The third mistake is letting snow, ice, or debris accumulate around the unit. Even a high installation must remain clear to allow proper air circulation.
The fourth mistake is assuming that a vibration automatically comes from the compressor. In many cases, the cause is much simpler: wall mount, worn cushion, loose panel, poorly fixed grille, or piping in contact with the structure.
Why choose AirGreen for a wall-mounted heat pump repair
At AirGreen, we approach every HVAC repair with a comprehensive method: listening to symptoms, visual inspection, mechanical tests, electrical checks, drainage control if necessary, performance validation, and clear recommendations. Our goal is not just to eliminate a noise for a few days but to understand why it appeared.
Our technicians work on wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, electric furnaces, air exchangers, and HVAC accessories throughout Greater Montreal. This experience allows us to quickly identify problems related to installation, wear, lack of maintenance, or defective components.
A successful repair is measured by restored comfort, stable operation, and the customer's confidence in their system. In this project in Dorval, the intervention extended the use of the device while reducing the risks of noise, performance loss, and premature wear.
