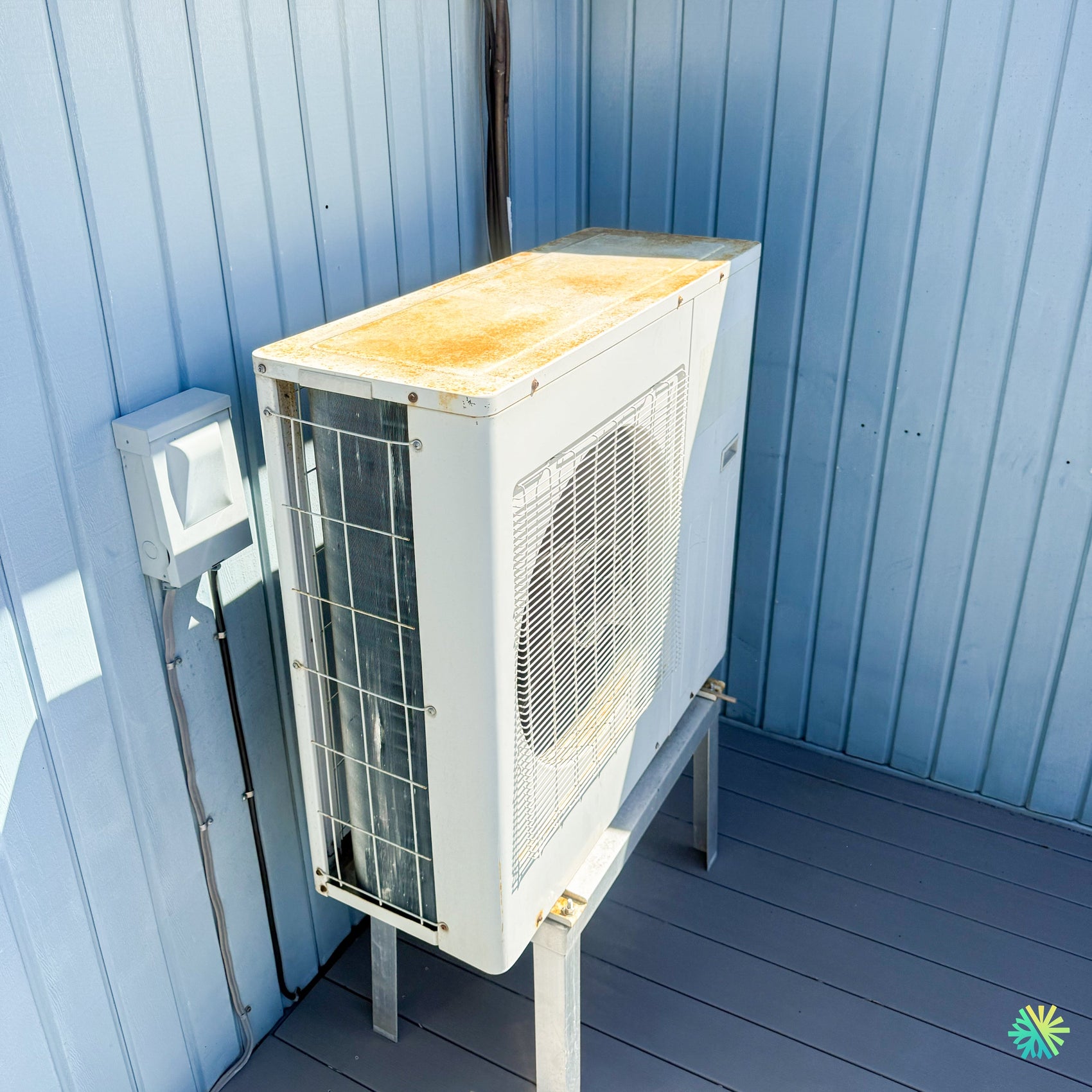

An outdoor wall-mounted heat pump exposed to sun, humidity, and seasonal wear
In Île-Bizard–Sainte-Geneviève, in the west of Montreal, our AirGreen team was called for a wall-mounted heat pump repair where the outdoor unit showed obvious signs of wear. Installed on a metal structure, near a blue exterior siding and connected to a wall-mounted electrical disconnect, this machine kept starting but no longer delivered the expected comfort inside the residence.
The client contacted us after noticing a gradual drop in performance. In cooling mode, the air blown by the indoor wall unit was less cold than before. In heating mode, the device seemed to run longer to reach the requested temperature. A sharper noise at startup and a slight vibration were also noticed near the outdoor unit. At first glance, the device was not completely broken, but its behavior clearly indicated that HVAC intervention was necessary.
This type of situation is common with wall-mounted heat pumps installed for several years: the outdoor unit is exposed to UV rays, rain, snow, freeze-thaw cycles, dust, pollen, leaves, vibrations, and surface corrosion. Over time, even a still functional device can lose efficiency if maintenance and electrical components are not kept up.
An outdoor unit installed in a confined space
The outdoor unit was located on a metal platform, close to the exterior wall of the house. This type of installation is common in Montreal, Laval, Longueuil, on the North Shore and on the South Shore, especially when the land is limited or when you want to keep the unit out of the snow.
The advantage of an installation on a stand is clear: it better protects the unit against snow accumulation on the ground and sometimes facilitates access to refrigerant lines. However, the space around the unit must remain clear. A wall-mounted heat pump needs good air exchange to operate properly. If the outdoor coil is dirty, if warm air recirculates too close to the wall, or if the unit is installed in a too confined corner, the compressor works harder and efficiency decreases.
On site, we observed several important clues:
- corrosion marks on the top panel;
- dirt accumulated on certain areas of the coil;
- aging pipe insulation near the wall penetration;
- external wiring to be checked at the disconnect switch;
- slight vibration at startup;
- limited technical access on one side of the unit;
- air exchange possibly reduced by the close proximity to the wall.
These details do not necessarily mean the machine needs to be replaced. They rather indicate that a structured diagnosis is necessary to avoid a more serious failure.
Symptoms reported by the customer
The customer described a gradual loss of performance. It was not a sudden breakdown but rather a decline in comfort. The indoor unit was still producing air, the remote control responded, the compressor started, but the unit no longer performed as before.
The main symptoms were as follows:
- less cold air in cooling mode;
- longer delay before reaching the requested temperature;
- longer and less efficient cycles;
- louder startup noise;
- noticeable external vibration;
- feeling that the unit was working harder;
- variable performance depending on the outside temperature.
At AirGreen, we place great importance on these progressive signs. A timely HVAC repair can prevent costly damage to the compressor, fan motor, or electronic board. A wall-mounted heat pump may still seem usable, but if it operates with a weakened capacitor, a dirty coil, or poor airflow, each cycle adds mechanical and electrical stress.
Visual and mechanical diagnosis of the outdoor unit
We started with a complete inspection of the outdoor unit. The top panel showed surface corrosion, probably caused by prolonged exposure to the elements. Surface corrosion is not always critical, but it indicates that the device has endured several seasons and that the condition of screws, panels, support, and fastening points should be monitored.
The outdoor coil was partially dirty. On a wall-mounted heat pump, the coil is essential: it allows the device to reject heat in summer and capture outdoor heat in winter. When the fins are clogged with dust, pollen, or plant debris, heat exchange becomes less efficient. The compressor must run longer to produce the same result.
We also checked the stability of the metal base. Vibration can come from an uneven support, loose screws, worn anti-vibration rubber, an unbalanced fan, or a compressor that starts with difficulty. In this case, the vibration seemed amplified by a combination of a slightly rigid support and less smooth electrical startup.
Electrical diagnosis: weakened startup
After securing the device, we checked the power supply, disconnect switch, connections, and starting components. Measurements revealed a weakness in the capacitor. The measured value was lower than expected for stable operation.
A weakened capacitor can cause several symptoms: slower startup, unusual noise, reduced efficiency, motor overheating, and irregular cycles. On a wall-mounted heat pump, this component is often small, but its role is major. It helps the fan motor and sometimes the compressor start properly. When it loses capacity, the device can continue to operate, but with more effort.
We also inspected the connections in the electrical compartment. Some terminals showed signs of light oxidation. With temperature changes and outdoor humidity, these connections can deteriorate over time. We cleaned and tightened the necessary points to ensure stable power supply.
Coil cleaning and correction of weak points
Once the diagnosis was confirmed, we proceeded with the intervention. The condenser was replaced with a part that meets the device's specifications. Electrical connections were checked, tightened, and secured. We then cleaned the outdoor coil with an appropriate method, without excessive pressure, to preserve the fins.
This step is essential. Many owners think a simple quick rinse is enough, but poor cleaning can bend the fins or push dirt deeper into the coil. Conversely, professional cleaning restores a significant part of the heat exchange.
We also checked the condition of the refrigeration line insulation. Damaged insulation can cause efficiency losses, condensation, premature copper exposure, and less stable system readings. In this case, we recommended preventive correction of the visible insulation near the wall penetration to protect the lines and improve the installation's durability.
Refrigeration circuit check
After electrical corrections and cleaning, we tested the full operation of the wall-mounted heat pump. We took pressure, temperature, superheat, and subcooling readings according to outdoor conditions. This step allows us to determine if the refrigeration circuit is consistent or if there is a sign of leak, restriction, or improper charge.
In this specific case, the initial readings were influenced by the lack of heat exchange and irregular startup. After cleaning and replacing the condenser, the system's behavior became more stable. No refrigerant was added without clear evidence of need.
This is a common mistake we often see: believing that a heat pump that cools less must automatically be "recharged." An unjustified recharge can cause an overload, increase pressures, and damage the compressor. At AirGreen, we always verify the problem with concrete measurements before working on the refrigerant.
Result: more stable performance and quieter operation
After the repair, the outdoor unit started more easily. The vibration at the start of the cycle was less pronounced, the fan ran smoothly, and the temperature blown inside improved. The client regained more effective air conditioning and better temperature control.
The system was not new, and we clearly explained this to the client. However, the repair corrected the main problems limiting its performance. Targeted replacement of the capacitor, coil cleaning, electrical check, and recommendations on line insulation gave the device better operating conditions.
What this repair in Île-Bizard–Sainte-Geneviève shows about wall-mounted heat pumps
An aging outdoor unit can still be smartly repaired
A wall-mounted heat pump showing rust or reduced performance is not automatically to be replaced. The real question is whether the major components are still in good condition and if the repair brings a real performance gain.
In this service call in Île-Bizard–Sainte-Geneviève, the device showed signs of aging, but the diagnosis did not point to a complete compressor failure. The problem was mainly a weakened start, reduced heat exchange, and some peripheral elements to fix. A well-targeted repair was therefore appropriate.
Mistakes to avoid with an outdoor wall-mounted heat pump
Ignoring surface corrosion
Corrosion on the top panel does not always cause an immediate failure, but it can indicate prolonged exposure to moisture. Screws, seals, panels, and the stability of the casing need to be monitored.
Letting the coil get dirty
A dirty coil can cause a wall-mounted heat pump to lose a lot of efficiency. The device works longer, consumes more, and wears out faster.
Blocking the space around the unit
Even if the device is installed on a stand, it needs to breathe. Objects, plants, walls that are too close, and snow accumulation can reduce performance.
Replacing the device without diagnosis
A full replacement may be justified in some cases, especially if the compressor, main board, or refrigeration circuit are severely compromised. But when the breakdown is due to a capacitor, neglected cleaning, or a minor electrical issue, a repair can be much more advantageous.
Why AirGreen takes the time to measure before repairing
Our approach is based on a simple logic: understand before acting. For a HVAC repair in Montreal, Laval, Longueuil, on the North Shore or on the South Shore, we analyze symptoms, environment, mechanical condition, electricity, airflow, and the refrigeration circuit.
This method helps avoid quick diagnoses that lead to unnecessary expenses. In the case of this wall heat pump in Île-Bizard–Sainte-Geneviève, each step helped pinpoint the real cause of the breakdown: the noise was not just mechanical, the performance drop was not only due to age, and the solution was not limited to a refrigerant recharge.
A repair that improves comfort and extends lifespan
The customer experienced a more stable, quieter, and more efficient system. The intervention also helped extend the unit's lifespan by reducing stress on electrical and mechanical components.
A well-maintained wall heat pump can still provide several seasons of service, provided that the first signs of weakness are addressed quickly. An outdoor unit exposed to the elements, especially in a climate like that of the greater Montreal area, deserves regular attention: coil cleaning, insulation inspection, connection checks, vibration control, and performance validation.
At AirGreen, we apply the same rigor to small wall systems as we do to central or multi-zone installations. Customer comfort often depends on technical details that only a complete diagnosis can reveal.
