A wall-mounted heat pump installed in a garage: precise diagnosis, complex access, and safe recommissioning
In a residential building in Laval, our AirGreen team was called for an operational problem on a wall-mounted heat pump whose outdoor unit was installed in an indoor parking lot, suspended above a vehicle traffic area. This type of configuration is common in some condominium or multi-unit buildings where access to an exterior facade is limited, balconies are restricted, or when the board of directors imposes very strict visual and architectural constraints.
At first glance, the equipment looked like a standard compact mini-split installation: a suspended outdoor unit, insulated refrigerant lines, dedicated electrical supply, a protective conduit, and a passage to the indoor wall unit. However, the environment made all the difference. A wall-mounted heat pump installed in a garage is not diagnosed like a device placed outside on a classic wall bracket. Air circulation, clearances, heat rejection, vibrations, condensation, parking dust, proximity to mechanical pipes, and service access must all be rigorously evaluated.
The client contacted us following recurring symptoms: decreased performance, irregular operation, louder noise than usual, and the impression that the device was no longer heating as effectively as before. In such situations, it is easy to jump to the conclusion of a refrigerant shortage or a worn-out compressor. Our approach is to start the diagnosis from the basics: observing the installation, checking clearances, electrical inspection, checking refrigerant connections, reading temperatures, analyzing fan behavior, and validating communication between units.
This intervention in Laval clearly illustrates the importance of a structured HVAC service. A wall-mounted heat pump repair is not just about replacing a part. It is necessary to understand why the system lost efficiency, what installation conditions affect its operation, and what corrections will prevent the problem from recurring a few weeks later.
A particular configuration: outdoor unit suspended in an indoor garage

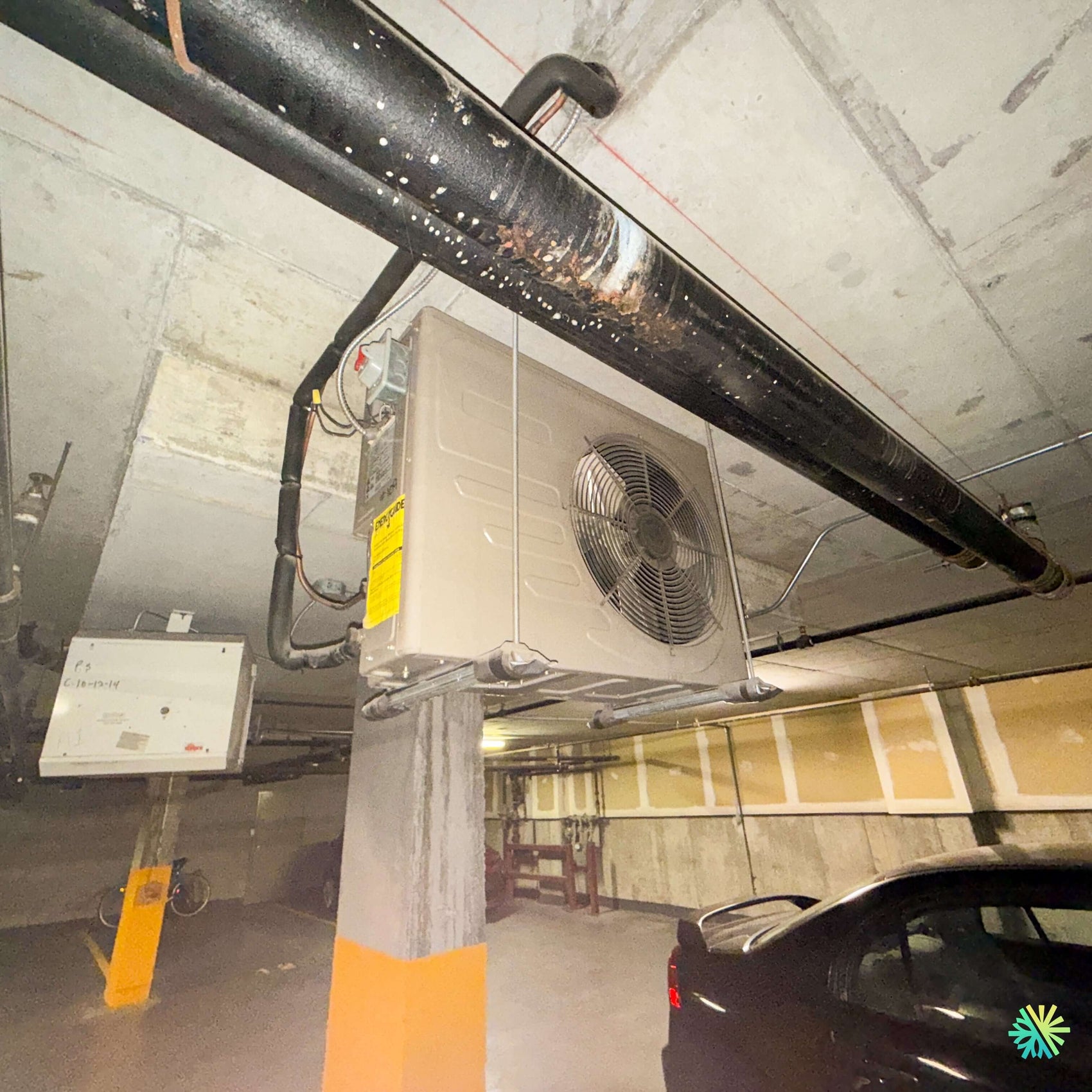

The outdoor unit visible on site was installed on a suspended metal support, just above a concrete pillar in an indoor parking lot. This location choice freed up the floor and protected the equipment from snow accumulation, but it also created several technical constraints.
In a garage, the ambient air is not the same as outside. The temperature may be more stable in winter, but the room’s ventilation, dust, exhaust gases, humidity, and heat rejected by other equipment can affect performance. A heat pump needs a sufficient volume of air to evacuate or capture heat depending on the mode used. If the air around the unit stagnates, if the fan pushes against an obstacle, or if the device recirculates its own air, performance drops quickly.
Several elements on this installation deserved special attention:
- Proximity to a black mechanical pipe on the ceiling;
- Limited clearance above the unit;
- Reduced service access around the fittings;
- Partially visible refrigeration lines with exposed insulation;
- Presence of an electrical box nearby;
- Possible vibration transmitted to the suspended support;
- Exposure to garage dust;
- Risk of poor air circulation around the heat exchanger.
These details may seem secondary, but in a residential HVAC repair in a building, they often determine the true cause of a problem.
Symptoms reported by the customer
The customer described a heat pump that was working but seemed less efficient than before. The indoor unit struggled to reach the requested temperature, especially on colder days. The system noise had also become more noticeable, as if the outdoor fan was working harder or as if a vibration was being transmitted to the structure.
The most common symptoms in this type of case are:
- Insufficient heating despite a high setpoint;
- Cycles longer than usual;
- Intermittent shutdown of the outdoor unit;
- Vibration or resonance noise;
- Dust accumulation on the heat exchanger;
- Refrigeration piping abnormally cold or hot depending on the mode;
- reduced airflow at the indoor unit;
- intermittent error code or difficulty restarting.
Our role was to determine whether the problem came from the device itself, the installation, maintenance, electrical supply, or a refrigerant imbalance.
First step: visual inspection and intervention safety
Before opening the equipment, we secured the work area. In an indoor parking lot, the intervention requires special attention: nearby vehicles, possible traffic, working height, limited clearance, and the presence of mechanical lines on the ceiling. Since the unit is suspended, it was necessary to work stably and ensure that panels could be removed without damaging the lines or components.
We first checked the general condition of the support. A suspended outdoor unit must be securely fastened, well leveled, and isolated as much as possible from vibrations. Even a small repeated vibration can create an unpleasant noise for occupants or weaken certain fittings in the long term. We then inspected the refrigerant lines, insulation, visible connections, and cable routing.
The insulation of the lines is often overlooked. When it is crushed, degraded, poorly sealed, or exposed to moisture, it can cause performance losses, condensation, and misleading readings of the system's behavior. In a garage, the insulation is also exposed to friction, surrounding mechanical work, and dust.
Electrical diagnosis: power supply, control, and safety
After the visual inspection, we proceeded with electrical checks. A wall-mounted heat pump depends on a stable power supply, clean connections, and good communication between the indoor and outdoor units. A simple loose contact, an oxidized connection, or unstable voltage can cause intermittent shutdowns or symptoms that resemble a mechanical failure.
Our checks focused on:
- power supply at the disconnect switch;
- the condition of the connections;
- communication between the units;
- signs of overheating;
- the start-up of the outdoor fan;
- the behavior of the electronic board;
- the response of the outdoor unit to heating and cooling demands.
No reliable diagnosis can be made without this step. In many service calls, expensive parts are unnecessarily replaced when the real cause is a loose terminal block, a damaged cable, or a poor power supply.
Refrigerant diagnosis: pressure, temperature, and heat exchange
The second part of the diagnosis concerned the refrigerant circuit. The client feared a refrigerant leak, which is a common concern when the heat pump loses performance. However, a drop in performance does not automatically mean gas is missing. A dirty heat exchanger, insufficient airflow, a faulty sensor, or poor clearance can produce similar symptoms.
We therefore analyzed the device’s operation under real conditions. Depending on ambient temperature and the requested mode, we observed the behavior of the lines, compressor startup, fan stability, temperature difference, and the system’s ability to maintain a normal sequence.
In this case, the diagnosis revealed a combination of factors rather than a single dramatic failure. The outdoor unit was working, but its heat exchange was penalized by the immediate environment and insufficient maintenance of certain dust-exposed areas. The fan had to operate in a space where clearance was not ideal, and vibrations were amplified by the device’s suspension.
Targeted cleaning and correction of weak points
Our intervention consisted of correcting elements that directly harmed efficiency. We performed targeted cleaning of the outdoor unit, paying special attention to the heat exchanger and areas where garage dust tended to accumulate. This type of dust is different from typical outdoor dirt: it can be fine, greasy, particle-laden, and stickier on surfaces.
We also reviewed the positioning and condition of certain protections around the lines. When insulation is poorly adjusted or weakened, it may need to be redone to limit losses and prevent condensation. We also checked the stability of the support and identified contact points likely to transmit vibrations.
In a suspended installation, the goal is not just to keep the device in place. It must operate without excessive resonance, without strain on the refrigerant lines, and without pushing against its environment. Repeated vibration can become a source of noise, but also a long-term mechanical risk.
Result: stabilized performance, reduced noise, and a better-equipped client to prevent recurrence
After the corrections were made, the wall-mounted heat pump returned to more stable operation. The system responded better to demands, noise was reduced, and cycles were more consistent. Most importantly, the customer received a clear explanation: the problem was not just an isolated failure but a combination of the installation environment, maintenance, and a few weak points to watch.
This is exactly what distinguishes a well-executed service call. An effective repair is not just about getting the device running again. It must allow the customer to understand what happened, what was fixed, and what needs to be monitored to preserve the system's lifespan.
Why an outdoor unit in a garage requires special attention
A wall-mounted heat pump is designed to exchange heat with the air around it. When the outdoor unit is installed inside a garage, it is important to ensure the space has sufficient ventilation and that the expelled air is not immediately drawn back into the device. Otherwise, the system can lose efficiency and run longer to reach the same setpoint.
The most common mistakes in this type of setup are:
- installing the unit too close to an obstacle;
- neglecting clearance above or in front of the fan;
- letting the heat exchangers get clogged;
- ignoring vibrations transmitted to the building;
- using an unsuitable support;
- forgetting to maintain the indoor unit filters;
- assuming that a garage protects the equipment from any problem;
- neglecting the annual check of the refrigeration circuit.
In Laval, as in Montreal, Longueuil, on the North Shore and the South Shore, we regularly encounter installations where the device still works but with reduced efficiency. It is often at this point that preventive maintenance or targeted repair can prevent a more serious breakdown.
The importance of the indoor unit in diagnosis
Even though the image shows the outdoor unit, a wall-mounted heat pump repair must always include a check of the indoor unit. Airflow, filter condition, turbine cleanliness, temperature sensor, and condensate drainage directly affect the system's performance.
A dirty indoor unit can give the impression that the outdoor unit is at fault. The compressor may be working properly, but if air does not circulate well inside, the client will feel a drop in comfort. That’s why we validate the entire system, from the thermostat to the outdoor heat exchanger, rather than limiting ourselves to the most visible part.
Parts and components monitored during the service call
During this type of intervention, our technicians pay special attention to the following components:
- outdoor fan;
- electronic board;
- temperature sensors;
- compressor;
- refrigerant fittings;
- line insulation;
- electrical disconnect switch;
- communication terminal block;
- mounting bracket;
- outdoor heat exchanger;
- indoor unit turbine and filters;
- condensate drainage.
In this case, no indication justified an immediate major replacement of the compressor or the entire unit. The priority was to restore operating conditions, reduce stress, and recommend maintenance monitoring suited to the garage environment.
When should you repair and when should you replace?
A client noticing a performance drop often wonders whether it’s better to repair or replace the heat pump. The answer depends on several factors: device age, parts availability, refrigerant type, compressor condition, installation quality, frequency of breakdowns, and repair costs.
In a case like this, repair and optimization were justified because the device could still function properly once secondary causes were corrected. Replacement becomes more relevant when:
- the compressor is defective;
- the main electronic board is expensive or unavailable;
- a significant leak is detected in a major component;
- the device is too old or inefficient;
- breakdowns keep recurring despite repairs;
- the current installation does not meet the necessary clearances;
- the client wants to benefit from a more efficient and quieter model.
At AirGreen, we always prioritize clear and logical recommendations. A well-done repair can extend the lifespan of a heat pump. But when a replacement is more cost-effective in the medium term, we explain it with concrete technical arguments.
Practical advice after the repair
Following the intervention, we recommended that the client maintain regular monitoring, especially due to the location of the outdoor unit. In a garage, dust and ambient ventilation can affect the device more quickly than expected.
To preserve the efficiency of a wall-mounted heat pump, we recommend:
- clean the indoor filters regularly;
- have the outdoor unit inspected at least once a year;
- monitor unusual noises;
- avoid storing objects near the unit;
- make sure air flows freely around the fan;
- report any performance drop quickly;
- do not ignore vibrations;
- have the refrigerant lines checked if the insulation appears damaged.
These simple actions reduce the risk of breakdowns and improve daily comfort.
HVAC expertise tailored to Laval buildings
Buildings in Laval have a wide variety of configurations: condos, indoor parking, high wall units, equipment installed on balconies, multi-zone systems, central heat pumps, and older installations that have been modified over the years. Each service call therefore requires reading the building, not just the device.
Our team handles wall-mounted heat pump repair, maintenance, electrical fault diagnosis, leak detection, electronic board replacement, drainage issues, noises, ice, performance losses, and more complex installations in condominiums. We serve Laval, Montréal, Longueuil, the North Shore, and the South Shore with a focus on technical precision and durable solutions.
What this intervention demonstrates
This repair in Laval shows that a wall-mounted heat pump can be affected by much more than just its age or brand. Location, clearances, support, dust, line insulation, and maintenance quality all play a major role. By identifying these factors, we were able to avoid premature replacement and provide the customer with a more stable, quieter, and better-understood system.
For AirGreen, good HVAC service relies on three elements: a complete diagnosis, targeted repair, and practical recommendations. It is this combination that restores comfort, improves performance, and reassures the customer about the actual condition of their equipment.
