An outdoor unit suffocated under an improvised shelter: an HVAC service call where air circulation was at the heart of the problem
In the Mercier–Hochelaga-Maisonneuve neighborhood, in Montreal, our AirGreen team was called for a HVAC service call on a residential wall-mounted heat pump whose outdoor unit was installed in a backyard, under a handmade protective structure made of translucent panels. At first glance, the intention behind this shelter was understandable: to protect the device from snow, leaves, and bad weather. However, in this particular case, this protection was causing a significant part of the problem.
The client contacted us because the wall-mounted heat pump was no longer delivering the expected performance. The indoor unit was working, the ventilation started, but the air produced was not effective enough. During cooling periods, the room took too long to cool down. In heating mode, the system seemed to run longer than before. The client also noticed that the outdoor unit became noisier at times, especially during prolonged cycles.
On site, our diagnosis quickly highlighted a common situation in the dense residential areas of Montreal, Laval, Longueuil, the North Shore, and the South Shore: a wall-mounted heat pump still functional but heavily affected by its outdoor environment. The device was not necessarily at the end of its life. It mainly needed air, clearance, cleaning, and a full check-up.
A wall-mounted heat pump installed in a confined space

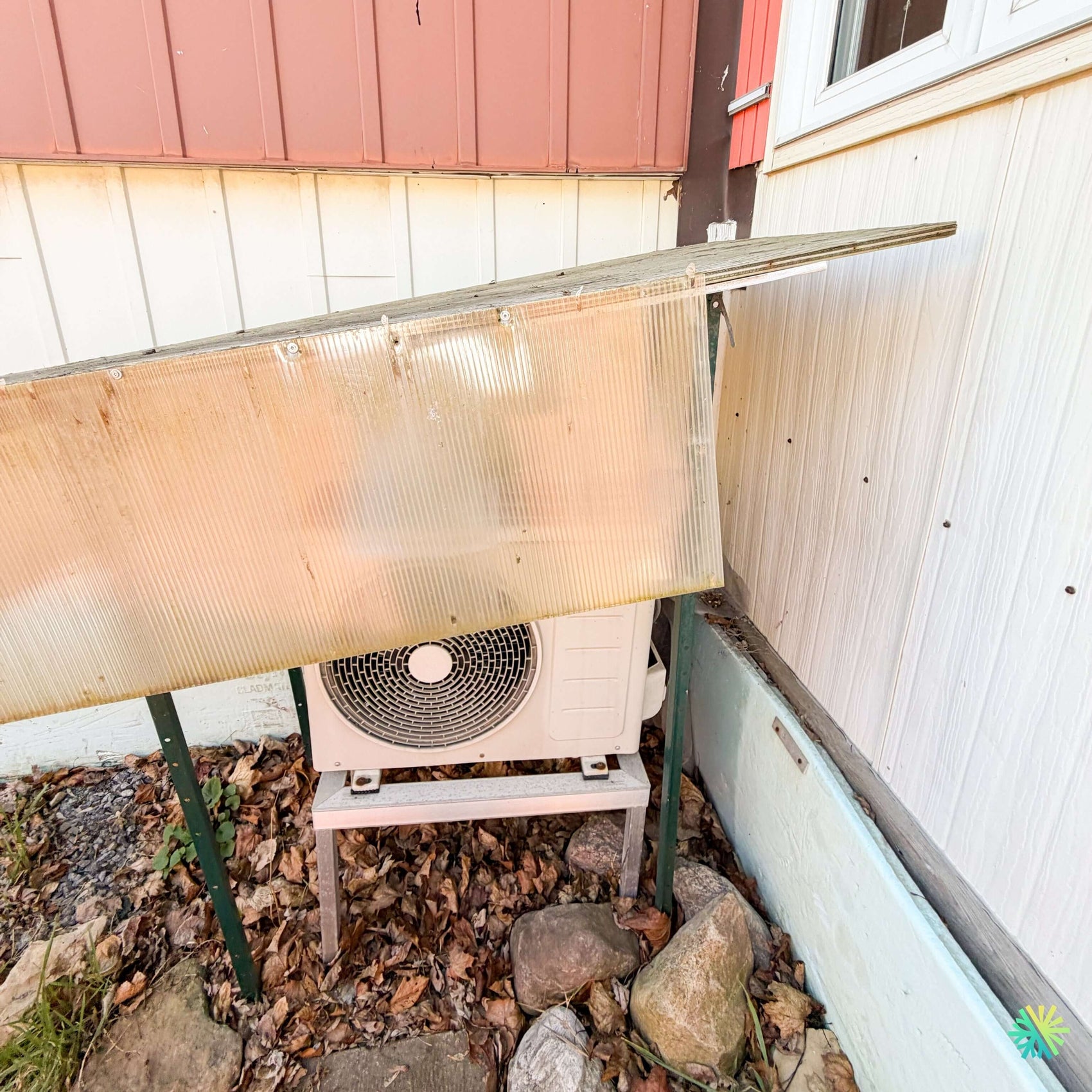

The outdoor unit observed was a compact condenser of a wall-mounted heat pump, installed on a small metal bracket near the foundation. The device was surrounded by dead leaves, stones, vegetation, close walls, and a rigid shelter placed directly above. This setup posed several technical challenges.
A wall-mounted heat pump operates through constant heat exchange with outdoor air. In cooling mode, the outdoor unit must reject the heat captured inside. In heating mode, it must extract the available heat from the outdoor air. In both cases, it needs free air circulation around the coil and fan.
In this installation, several elements could reduce this circulation:
- shelter too low above the unit;
- accumulation of leaves on the ground;
- limited lateral clearance;
- proximity to the foundation wall;
- possibility of recycling hot or cold air around the condenser;
- difficult maintenance access;
- outdoor support exposed to moisture and debris;
- risk of vibration against the protective structure.
The device was therefore placed in an environment that favored dirt buildup, longer cycles, and performance loss.
Symptoms reported by the customer
Before our intervention, the customer had noticed several signs indicating a problem more complex than a simple remote control adjustment.
Insufficient cooling
The system started, but indoor comfort arrived too slowly. The blowing temperature seemed less consistent, and the room no longer cooled as quickly as before. This symptom is often linked to weakened heat exchange, lack of airflow, or coil blockage.
Prolonged cycles
The heat pump ran for a long time before reaching the setpoint. A prolonged cycle may seem normal during a very hot or very cold day, but when it becomes frequent, the cause must be investigated. A device that runs longer consumes more and wears out its components faster.
More noticeable outdoor noise
The customer heard the outdoor unit more. This noise was not a violent banging but rather a heavier operating sound, as if the fan and compressor were working under unfavorable conditions. The shelter installed above could also amplify certain sounds or create resonance.
Irregular performance depending on outdoor temperature
When the outdoor unit is poorly ventilated, performance can vary greatly depending on the weather. In hot weather, the device rejects heat less effectively. In cold or humid weather, defrost cycles can become less efficient if air circulation around the condenser is poor.
Our on-site HVAC diagnosis
At AirGreen, we approached this service as a comprehensive diagnosis of a wall-mounted heat pump, not just a simple visual check. A machine may appear to be in good condition while being limited by its installation, environment, or maintenance level.
Outdoor environment inspection
The first step was to analyze the space around the unit. The shelter made of translucent panels was installed very close to the top of the condenser. Although it protected the device from leaves and direct snow, it reduced the top clearance and could hinder natural heat dissipation.
We also observed a significant accumulation of dead leaves around the base of the unit. These leaves can decompose, retain moisture, partially block the bottom of the coil, and promote fin clogging.
Outdoor coil inspection
The outdoor coil showed signs of dirt buildup. The fins were not completely clogged, but they were dirty enough to impair heat exchange. In a backyard like this, leaves, dust, small plant debris, and moisture often end up forming a film on the condenser.
A dirty coil forces the system to work longer. In air conditioning, pressures can increase. In heating, the ability to extract heat from outside air can decrease. In both cases, indoor comfort is affected.
Outdoor fan check
We checked the operation of the outdoor fan: rotation, noise, stability, and clearance in front of the grille. The fan was spinning, but the environment around the unit reduced the efficiency of air circulation. A fan can be functional without the system breathing properly.
Support and vibration inspection
The metal support was checked to ensure the unit was stable. Vibrations were amplified by the immediate environment, notably by the structure installed above and the proximity of walls. A vibration that seems minor can become disturbing when transmitted to a shelter, foundation, or light structure.
Refrigerant line inspection
We inspected the visible refrigerant lines and their insulation. Damaged or poorly protected insulation can reduce system efficiency, cause condensation, or expose the pipes to the elements. In this case, the lines were functional, but the humid and cluttered environment warranted regular monitoring.
General operation check
We then turned on the device and observed its behavior. The system responded to the demand, but it was clear that external conditions were affecting its performance. The diagnosis mainly pointed to a combination of reduced air circulation, a dirty coil, insufficient clearance, and debris accumulation.
The intervention carried out by AirGreen
After the diagnosis, we carried out a targeted intervention to restore better operating conditions to the wall-mounted heat pump.
Cleaning the outdoor coil
We cleaned the outdoor coil to remove dust and debris accumulated on the fins. This step is essential, especially for a unit installed near the ground and exposed to leaves. The cleaning was done carefully to avoid bending the fins or damaging components.
A clean coil allows better air circulation and more efficient heat transfer. After this intervention, the outdoor unit could better dissipate heat in cooling mode and better capture external energy in heating mode.
Clearing leaves and debris around the base
We removed dead leaves and debris around the unit. This cleaning is not just for aesthetics. Leaves accumulated at the base of a heat pump retain moisture and can partially block air circulation. They can also attract insects or accelerate corrosion of some metal parts.
Evaluation of the protective shelter
The shelter installed above the unit was an important part of the service. We explained to the customer that protection is only useful if it respects the necessary clearance around the machine. A shelter that is too low can harm the device more than it protects it.
We recommended modifying or raising the structure to allow more space above and around the condenser. An outdoor heat pump should never be enclosed, even partially, in a space that prevents air from circulating freely.
Vibration reduction
We checked the support points and accessible fastenings. The goal was to limit vibrations transmitted to the support and surrounding elements. When the outdoor unit operates in a tight space, any vibration can be amplified. After adjustment, the operating noise was more stable.
Performance test after intervention
Once the cleaning and checks were completed, we restarted the system. The wall-mounted heat pump returned to a more regular operation. The outdoor unit was breathing better, the cycles were more consistent, and the noise around the device had decreased.
The customer was also informed about the best maintenance practices to follow to prevent the problem from recurring quickly.
What this repair reveals about wall-mounted heat pumps in urban environments
This intervention in Mercier–Hochelaga-Maisonneuve clearly shows that a performance problem is not always caused by a defective part. Very often, the installation environment plays a major role. In urban neighborhoods of Montreal, outdoor units are sometimes installed in narrow yards, under balconies, near foundations, behind fences, or under makeshift shelters.
These constraints are real, but they must be managed properly. Effective HVAC repair involves both correcting technical components and improving the operating conditions of the device.
Mistakes to avoid with an outdoor wall-mounted heat pump unit
Building a shelter too close to the device
Protecting a heat pump from snow or leaves may seem logical, but a poorly designed shelter can reduce its efficiency. The outdoor unit must maintain sufficient clearance on the sides, in front of the grille, and above.
Letting leaves accumulate around the condenser
Dead leaves can harm ventilation and retain moisture. Simple seasonal cleaning around the device can prevent several problems.
Confusing protection with enclosure
An outdoor heat pump is not a device to be hidden in a closed box. It needs to breathe. The more freely air circulates, the more efficiently the system operates.
Ignoring a heavier operating noise
A louder noise may indicate that the fan is straining, the unit is vibrating, or the system is working under pressure. It is better to have the device checked before a complete breakdown occurs.
Adding refrigerant without a complete diagnosis
A loss of performance does not automatically mean a refrigerant shortage. Before any intervention on the refrigeration circuit, the coil, clearance, airflow, condition of indoor filters, electrical operation, and installation conditions must be checked.
Practical tips for owners
For a wall-mounted heat pump installed outdoors, we recommend keeping the area around the unit clean and clear. Owners can monitor a few simple things:
- remove leaves around the unit;
- avoid placing objects in front of the grille;
- do not install a shelter too low;
- check that snow is not blocking the condenser;
- monitor for unusual noises;
- request a HVAC maintenance before periods of heavy use;
- keep access clear for technicians.
These actions help preserve the device’s efficiency and reduce the risk of breakdown.
AirGreen expertise adapted to the realities of Greater Montreal
At AirGreen, we regularly work on wall-mounted heat pumps, wall air conditioners, multi-zone systems, and central equipment in the areas of Montréal, Laval, Longueuil, the North Shore, and the South Shore. Each service call is different, especially in residential installations where available space directly influences performance.
In this case in Mercier–Hochelaga-Maisonneuve, the main problem was not a spectacular breakdown. It was an accumulation of constraints: shelter too close, leaves on the ground, reduced clearance, dirty coil, and vibrations. By correcting these elements, we allowed the system to regain healthier operation.
Result for the client
At the end of the intervention, the client had a more efficient, better-ventilated, and quieter wall-mounted heat pump. Indoor comfort was improved, and the risks of overheating, prolonged cycles, and premature wear were reduced.
This type of service demonstrates the importance of an accurate diagnosis. Replacing a part without analyzing the environment would have been insufficient. Our intervention addressed the real cause of the problem and provided the client with clear recommendations to preserve their equipment.
