An old wall system that no longer distributed air properly in a Montreal residence
In a residence located in Mercier–Hochelaga-Maisonneuve, our AirGreen team intervened for a wall-mounted heat pump repair installed high up, near a sloped ceiling and an interior corridor leading to the dining room. The client had contacted us for a problem that initially seemed simple: the device was working, but comfort was no longer there. The indoor unit was blowing weakly, producing an irregular noise at the fan, and the air was no longer distributing effectively in the adjacent rooms.

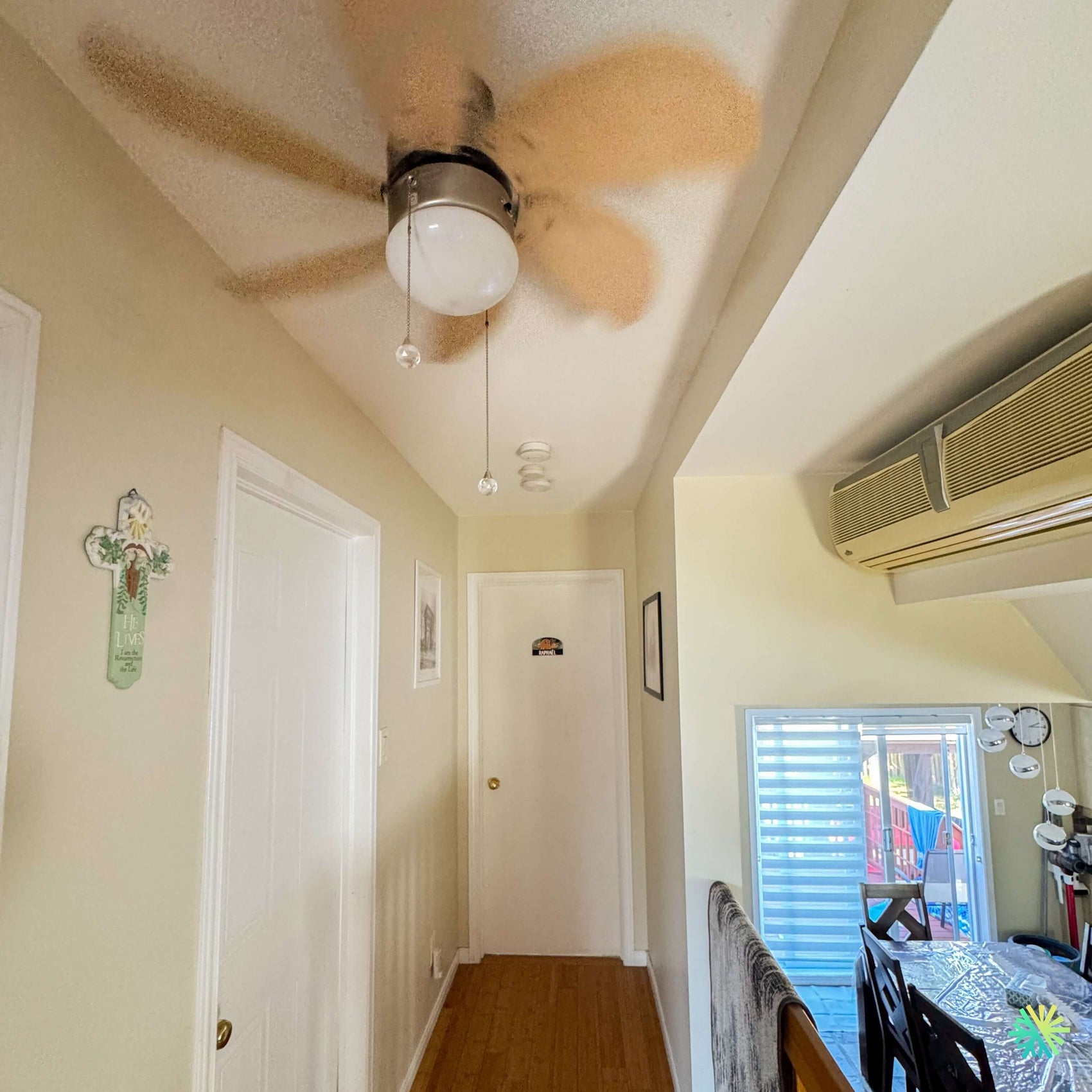

The service photo shows a wall-mounted mini-split indoor unit, with a yellowed casing from years of use, installed very high in a narrow traffic area. This type of installation is common in Montreal multiplexes, where the goal is to air condition or heat several zones from a strategic point. Here, the high position theoretically allowed air to be pushed toward the living space, but over time, internal dirt buildup, airflow loss, and wear on the distribution louver had greatly reduced the system’s efficiency.
A wall-mounted heat pump installed in a tricky location
The indoor unit was installed above an opening, on a high part of the wall, near a sloped ceiling. This setup may seem convenient, but it requires the tangential fan, directional louvers, and filters to be in excellent condition. When the airflow decreases, the device can still start normally but becomes unable to properly distribute heat or coolness.
The customer mainly noticed three symptoms:
- a low airflow, even at high speed;
- a light rubbing noise when the fan sped up;
- an indoor temperature that remained unstable despite a normal setting.
In this case, the device was not completely broken. This often makes the diagnosis more subtle. A wall-mounted heat pump can appear to operate normally, respond to the remote control, open its flaps, and start its fan, but lose a large part of its efficiency if air no longer passes properly through the indoor evaporator.
Technical description of the observed equipment
The device was a residential wall-mounted mini-split heat pump, with an estimated capacity around 9,000 to 12,000 BTU, according to the format of the indoor unit visible on site. The exact brand and model were not clearly readable on the visible front, which often happens with older systems when the internal label is missing, erased, or placed on a hard-to-reach side.
Our technicians therefore worked based on verifiable elements:
- Compact wall-mounted indoor unit;
- High wall installation;
- Horizontal air discharge flaps;
- Aged front grille;
- Internal tangential fan;
- Condensate drainage through piping;
- Communication with an outdoor mini-split unit;
- Symptoms compatible with insufficient internal maintenance and partial airflow obstruction.
In an AirGreen service call, the absence of a visible label does not stop us from moving forward. It rather forces us to verify each component mechanically and electrically, without assuming a part is defective before confirming the real cause.
First step: check if the failure was due to the fan or dirt buildup
The main complaint was low airflow. On a wall-mounted heat pump, this situation can be caused by several factors: saturated filters, clogged evaporator, dirty turbine, worn-out fan motor, weakened condenser on some models, unstable electronic board, or a stuck flap.
We started by removing the filters and inspecting the inside of the unit. The dust buildup was significant. The filters trapped some of the particles, but a fine layer had settled further inside, on the heat exchanger and in the ventilation wheel. The tangential fan, often called a turbine, was particularly affected. When the blades of this turbine get coated with dust, they no longer move air properly. The motor runs, but the amount of air pushed into the room drops sharply.
This is a common problem in Montreal homes where wall units run several months a year, cooling in summer and heating in fall or spring. In Laval, Longueuil, on the North Shore and South Shore, we see the same phenomenon in houses, condos, and duplexes where maintenance is delayed because the unit still seems to work.
Inspection of the indoor coil and louvers
The indoor coil also showed signs of dirt buildup. A wall-mounted heat pump depends directly on the quality of heat exchange between the room air and the coil. If dust covers the fins, the blowing temperature becomes less stable, the compressor runs longer, and comfort decreases.
We also checked the distribution louvers. On this unit, the main louver moved, but its range was irregular. Dust buildup and slight misalignment limited its ability to direct air downward. In a room with a high or sloped ceiling, this detail becomes important. If warm air stays near the ceiling, the customer feels the heat pump isn’t heating enough, even if the unit is producing heat.
Technical cleaning of the indoor unit
The repair then involved a thorough internal cleaning. We protected the area around the unit, then cleaned the filters, the front panel, the internal coil, and the turbine. This work must be done carefully, especially on an older unit whose plastics may have become fragile over the years.
Cleaning a wall-mounted heat pump is not limited to removing visible dust. You need to reach the areas where the air actually flows:
- the coil surface;
- the internal fins;
- the cylindrical turbine;
- the edges of the condensation pan;
- the discharge louvers;
- the air passages behind the front panel;
- the filters and their supports.
Once the turbine was cleaned, the airflow improved significantly. The rubbing noise also decreased, confirming that the dirt buildup was causing imbalance in the rotation and creating internal turbulence.
Drainage check and condensate prevention
Even though the customer had not reported a major water leak, we inspected the drainage system. On a unit installed high up, a partially clogged condensate line can cause odors, intermittent dripping, or moisture buildup in the indoor pan.
We cleaned the condensation tray and tested the flow. The drainage was slow but not completely blocked. This slowness could become problematic during intensive air conditioning periods, especially on humid days in Montreal. We therefore cleared the pipe and replaced a small section of aged drainage pipe that was excessively rigid and had imperfect flow.
This minor replacement prevented a future risk of leakage. In several service calls, a client waits to see water running down the wall before calling. However, slow drainage is detected earlier and is much easier to fix when caught in time.
Electrical check and control board response
After mechanical cleaning, we checked the electrical response of the indoor unit. The system responded correctly to the remote control, ventilation speeds were available, and the control board showed no obvious signs of failure. No electronic board replacement was necessary.
We also observed the device's behavior during mode changes. In ventilation mode, the turbine spun more freely after cleaning. In air conditioning mode, the blowing temperature became more consistent. In heating mode, air distribution to the open space was more effective thanks to the flap readjustment.
This point is essential: replacing a part without correcting internal clogging would have been a mistake. The motor was not the main cause of the problem. It was simply forced to work in a unit whose air passages were blocked.
A targeted repair that restored comfort without unnecessary replacement
The result of the intervention was immediate: better airflow, reduced noise, more uniform distribution, and more predictable operation. The client was able to see that the wall-mounted heat pump was not at the end of its life but required serious refurbishment to restore its efficiency.
Corrections made by AirGreen
Our intervention included several complementary actions:
- complete cleaning of the filters;
- cleaning of the indoor coil;
- light decontamination of air passages;
- cleaning of the ventilation turbine;
- inspection and realignment of the air outlet flap;
- clearing of the condensate tray;
- preventive unclogging of the drainage pipe;
- replacement of a small section of aged drain;
- validation of ventilation speeds;
- function test in heating and air conditioning mode.
Each step had a specific goal. Cleaning improved airflow. Drainage prevented leaks. Realigning the vent corrected distribution. Electrical tests confirmed that no expensive parts needed replacement.
Why the unit’s positioning influenced comfort
Since the device was placed high up near a sloped ceiling, the direction of the airflow played a major role. A wall heat pump must be able to project air far enough, but also in the right direction. If the vent remains too horizontal, warm air can accumulate at the ceiling. If the airflow is too low, the air does not properly reach the occupied areas.
In this home in Mercier–Hochelaga-Maisonneuve, the heat pump was supposed to serve an open space from a high point. After cleaning and readjusting the vents, the air circulated better toward the living area. Comfort was not improved by a single new part, but by restoring the entire system’s coherence.
Signs that indicate a wall heat pump needs servicing
This call illustrates several symptoms that owners should not ignore:
- the device blows less strongly than before;
- the fan noise changes;
- the air feels lukewarm or poorly distributed;
- the room takes longer to reach the desired temperature;
- a dust smell appears at startup;
- the vents move poorly or stay in a bad position;
- traces of moisture appear near the unit;
- the system seems to run longer for the same result.
These signs do not always mean a replacement is necessary. In many cases, targeted HVAC repair and technical cleaning can extend the equipment’s lifespan.
Mistakes to avoid with an aging wall unit
The most common mistake is to clean only the visible filters. This is helpful but insufficient when the turbine and coil are already dirty. Another mistake is to constantly increase the temperature or set the fan to maximum to compensate for low airflow. This masks the problem without fixing it.
It is also important to avoid manually forcing the vents. On an older unit, a vent moved by hand can become misaligned or damage the small movement mechanism. When a vent no longer directs air properly, a technician should check if it is due to a blockage, dirt buildup, a vent motor, or a control problem.
Finally, fan noise should not be ignored. A dirty turbine can eventually cause premature motor wear. A quick service call usually costs less than replacing a motor or repairing a circuit board caused by prolonged operation under poor conditions.
HVAC expertise tailored to Montreal buildings
At AirGreen, we know that HVAC installations in Montreal neighborhoods require a different approach than a new house with large clearances. In Mercier–Hochelaga-Maisonneuve, Côte-des-Neiges, Rosemont, Villeray, or Ahuntsic, wall units are often installed in corridors, above stairs, near sloped ceilings, or in open spaces that are difficult to balance.
Our team also serves Laval, Longueuil, the North Shore, and the South Shore, where configurations vary between condos, single-family homes, renovated plexes, and multi-unit buildings. In every case, our diagnosis considers the unit but also its environment: installation height, airflow direction, maintenance access, drainage, air circulation, and usage habits.
Final result: a quieter, cleaner, and more efficient unit
At the end of the service call, the wall heat pump delivered a significantly higher airflow. Internal noise had decreased, the flap better directed air toward the living space, and drainage was secured before the next cooling season. The client regained more stable comfort without a full unit replacement.
This service call shows that a wall heat pump repair does not always mean replacing a compressor, a circuit board, or a motor. Sometimes, the real work is in the details: understanding why the air no longer circulates, cleaning critical components, fixing drainage, checking the electrical controls, and adjusting distribution according to the home's layout.
For an old wall system, this type of service can make a major difference. A well-maintained unit heats better, cools better, consumes less unnecessarily, and operates with less noise. This is exactly the result achieved during this AirGreen service call in Mercier–Hochelaga-Maisonneuve.
