An almost invisible wall-mounted heat pump… but whose performance was no longer keeping up

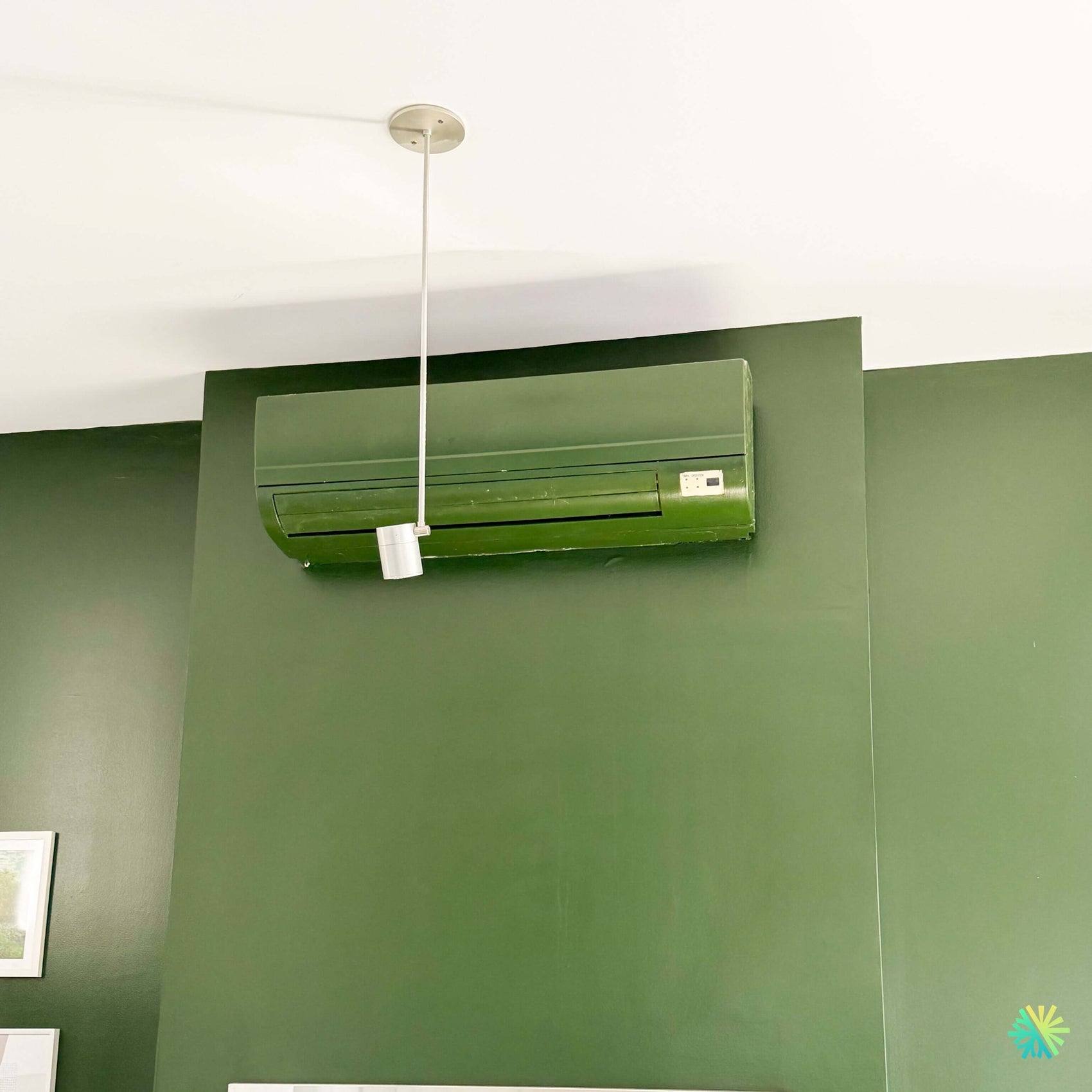

In Outremont, our AirGreen team was called for a CVAC service call on a wall-mounted heat pump installed in a residential room with a very refined design. Upon arrival, one detail stood out: the indoor unit had been painted green, exactly like the surrounding wall, to blend into the decor. The visual integration was successful, but the client had noticed for some time a drop in performance, weaker airflow, noisier operation, and a feeling of humidity under the device during long periods of air conditioning.
This type of situation requires a cautious approach. A wall-mounted heat pump may seem simple at first glance, but its indoor unit contains several essential components: filters, evaporator coil, ventilation turbine, motorized louvers, temperature sensors, electronic board, condensation tray, drain, refrigerant connections, and communication wiring. An aesthetic modification, dust buildup, or a partially clogged drain can be enough to disrupt the entire system.
The client wanted to maintain the discreet appearance of the installation, but above all to regain stable comfort. In a house in Outremont, where the interior architecture is often customized, the challenge is not just to repair: the work must be done cleanly, respecting the finishes, protecting the walls, and avoiding any handling that could damage the paint, ceiling, or nearby decorative elements.
A residential wall-mounted mini-split unit, installed high up
The observed device was a residential wall-mounted heat pump, mini-split type, probably with a common capacity of 9,000 to 12,000 BTU, depending on the room volume and housing layout. The exact brand and model were not clearly readable, notably due to the paint applied on the casing. We therefore treated the intervention as a service on a standard wall unit, with the necessary precautions when a device has been painted or modified after installation.
This setup is common in Montreal, especially in Outremont, Plateau-Mont-Royal, Rosemont, Villeray, and Notre-Dame-de-Grâce, but also in Laval, Longueuil, on the North Shore and the South Shore. Owners often want to maintain a harmonious interior aesthetic, especially when the wall unit is installed in a living room, master bedroom, office, or renovated room.
The reported symptoms were specific:
- weaker airflow than before;
- slower cooling;
- more noticeable ventilation noise;
- perceived moisture under the unit after several hours;
- less smooth diffusion flaps;
- slight odor at startup;
- feeling that the device ran longer to reach the setpoint.
These signs can be associated with insufficient maintenance, a dirty turbine, a partially clogged coil, a blocked condensation drain, a poorly exposed sensor, an obstruction of the blowing flap, or a communication problem between the indoor and outdoor units.
Why the unit’s appearance could influence the diagnosis
A painted wall unit is not automatically problematic, but it must be inspected carefully. Paint can sometimes create small mechanical resistances if it reaches the flaps, seals, openings, sensors, or air return areas. It can also hide important technical labels, complicate opening the cover, or make clips more fragile during disassembly.
In this specific case, the goal was to check whether the paint contributed to the symptoms or if the problem mainly came from a lack of internal maintenance.
Sensitive areas on a painted wall-mounted heat pump
We inspected several points:
- the horizontal blowing flap;
- the vertical diffusion fins;
- the air return openings;
- the freedom of movement of the motorized flaps;
- the filters behind the front panel;
- the condensation tray;
- the temperature sensor area;
- the housing seals;
- access to service screws and clips.
Even a thin layer of paint can alter the movement of a flap or create subtle friction. On a wall-mounted heat pump, this detail can affect air distribution and produce a noise that did not exist before.
Diagnosis: start with air, water, and control
Our technician followed a logical sequence: check airflow, inspect drainage, observe control response, then analyze thermal behavior.
Filter inspection
The filters were dirty, though not completely blocked. However, this was enough to reduce airflow. A dirty filter forces the fan wheel to work harder, reduces heat exchange capacity, and can cause a weak air conditioning sensation.
On wall units, the filter is often overlooked because the unit continues to operate. However, a partially saturated filter can cause:
- weaker airflow;
- a drop in performance;
- dust buildup on the coil;
- a dirtier fan wheel;
- odors at startup;
- an increased risk of condensation.
Evaporator coil inspection
The indoor coil showed an accumulation of dust and fine deposits. It was not a complete blockage, but enough to reduce the efficiency of heat exchange. When air does not pass properly through the coil, the unit can cool unevenly, produce more condensation, and run longer.
We cleaned the accessible surfaces using a method suitable for residential interiors, protecting the painted wall, floor, and surrounding elements.
Ventilation fan wheel inspection
The fan wheel, also called the blower wheel, was an important part of the diagnosis. When it accumulates dust and moisture, it becomes unbalanced and noisier. Even if the unit is still blowing, the airflow can decrease significantly.
The customer described a noise that was more noticeable than before, especially at medium speed. This observation corresponded well to a dirty fan wheel. Targeted cleaning helped reduce vibrations and improve airflow.
Condensation drain check
The presence of moisture under a wall unit should always be taken seriously. In this case, it was not a major visible leak at the time of the intervention, but the drain showed signs of slowing down. A partially clogged drain can allow water to accumulate in the condensation tray, especially during long periods of air conditioning or very humid weather.
We checked:
- the tray drainage;
- the drain slope;
- the presence of deposits;
- the accessible connections;
- the unit’s behavior during prolonged operation.
After cleaning and clearing the drain, water drained more freely. This step was essential to prevent the problem from recurring during the hot and humid summer days in Montreal.
Intervention: cleaning, clearing, adjustment, and performance testing
The repair did not require replacing a compressor, electronic board, or motor. The problem was rather due to a combination of factors: delayed internal maintenance, slowed drain, slightly obstructed air flap, and dirty turbine.
Complete cleaning of the indoor unit
We performed a technical cleaning of the indoor unit, including filters, coil, air intake areas, and turbine. The work was done with careful protection of the green wall, as the finish around the unit was an integral part of the room’s decor.
This detail matters a lot. A HVAC repair in a high-end residence must not leave traces, splashes, or marks around the equipment. Technical efficiency and site cleanliness go hand in hand.
Clearing the diffusion flap
We checked the movement of the horizontal flap. Slight resistance was noticeable, probably worsened by paint applied around some moving parts. The adjustment restored smoother movement without forcing the mechanism.
A flap that does not open properly can direct air toward the wall, reduce the reach of the airflow, and create an uneven comfort sensation in the room. After adjustment, the airflow was more natural and the rubbing noise decreased.
Drain cleaning and testing
The drain was cleared to confirm regular drainage. We then tested the operation in air conditioning mode to observe condensation production and drainage. Water no longer stagnated in the tray, reducing the risk of future leaks.
Sensor and remote control response check
A wall unit installed near the ceiling relies on sensors to interpret the ambient temperature. When the device is very close to a ceiling, recess, or decorative area, it can sometimes read a temperature slightly different from that felt in the center of the room. We checked the device’s response to controls, speed changes, louver openings, and cycle stability.
Result: a quieter device, better airflow, and a reassured client
After the intervention, the wall heat pump returned to more stable operation. The airflow was stronger, the ventilation noise less noticeable, and the drainage worked properly. The client also received clear explanations about what caused the symptoms and what actions to take to prevent recurrence.
The result was particularly important in this room: the unit was very visible despite its color matching the wall, so any repair had to preserve the appearance of the installation. The device was able to be put back into service without major aesthetic changes, while improving comfort and reliability.
Best practices to avoid a new breakdown on a wall heat pump
Clean the filters regularly
A wall heat pump should have its filters cleaned regularly, especially when it is often used for cooling. In a house located in Outremont or a dense neighborhood of Montreal, indoor dust, fine particles, pet hair, renovations, and humidity can accelerate clogging.
A clean filter allows:
- better airflow;
- better energy efficiency;
- less noise;
- a reduction in odors;
- a longer turbine lifespan;
- better temperature stability.
Do not paint moving parts or openings
Painting the casing of a wall unit may seem like an appealing aesthetic solution, but certain areas should never be covered: louvers, sensors, return air openings, seals, technical labels, service screws, and movable panels. When these elements are covered, maintenance becomes more complicated and some components may not operate as freely.
If an owner wants to visually integrate a wall unit into their decor, it is best to consult an HVAC specialist before the intervention. This helps avoid damaging moving parts or covering useful technical information.
Watch for signs of slow drainage
A little moisture under the unit, a persistent odor, water noise, or occasional dripping should not be ignored. The condensation drain is a sensitive point on wall units. A gradual blockage can lead to water damage, especially when the device runs for long periods during hot and humid weather.
Signs to watch for include:
- drops under the unit;
- stains on the wall;
- musty odor;
- water noise inside the device;
- sudden shutdown in cooling mode;
- excessive condensation.
Schedule professional maintenance
Even with clean filters, professional maintenance remains necessary. The turbine and coil accumulate deposits that surface cleaning does not always remove. A unit that runs every day in summer may require a thorough cleaning to maintain its efficiency.
At AirGreen, we work on wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, and other HVAC equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our service calls cover issues like water leaks, noise, lack of cooling, electrical failure, poor drainage, odors, coil freezing, dirty fans, defective circuit boards, or irregular performance.
An intervention that combines technical skill and respect for the interior space
This wall-mounted heat pump repair in Outremont shows that good HVAC service is not just about opening a device and replacing a part. You need to understand the context, observe the installation, respect interior finishes, identify the real causes, and explain the solutions precisely.
In this case, the drop in performance was due to a combination of details: clogged filters, dirty turbine, slowed drain, and a slightly obstructed flap. None of these elements alone seemed dramatic. Together, they reduced comfort, increased noise, and created a risk of future leaks.
After our intervention, the client found a more comfortable room, a quieter unit, and greater confidence in their system. The device remained discreet in its setting, but its performance became clearly noticeable again.
