A wall-mounted heat pump weakened by a dirty outdoor condenser, vibrations, and a power supply to check
In Outremont, AirGreen intervened for a wall-mounted heat pump repair installed on a rear brick facade, in a typical residential yard of older Montreal buildings: restricted access, masonry wall, outdoor unit mounted on wall brackets, visible refrigerant lines, electrical disconnect nearby, and dense vegetation around the unit. This type of setup is very common in central Montreal neighborhoods, where HVAC installations must deal with tight spaces, brick load-bearing walls, narrow yards, and architectural constraints.
The client contacted us because the heat pump was no longer delivering the same performance as before. The unit would start, but indoor comfort had become inconsistent. In cooling mode, the air seemed less cold after a few minutes of operation. In heating mode, the machine tended to run longer to reach the setpoint. A louder outdoor noise was also noticed near the unit installed on the wall mounts.
The service call concerned a residential wall-mounted mini-split heat pump, with an estimated capacity of around 12,000 to 18,000 BTU, used to serve a main area of the home. Although the brand was not the focus of the intervention, the diagnosis applied to several common models of wall-mounted heat pumps installed in Greater Montreal: performance loss, reduced heat exchange, disrupted outdoor ventilation, vibrations, wiring exposed to weather, and insufficient condenser maintenance.
An outdoor environment that directly influences HVAC performance

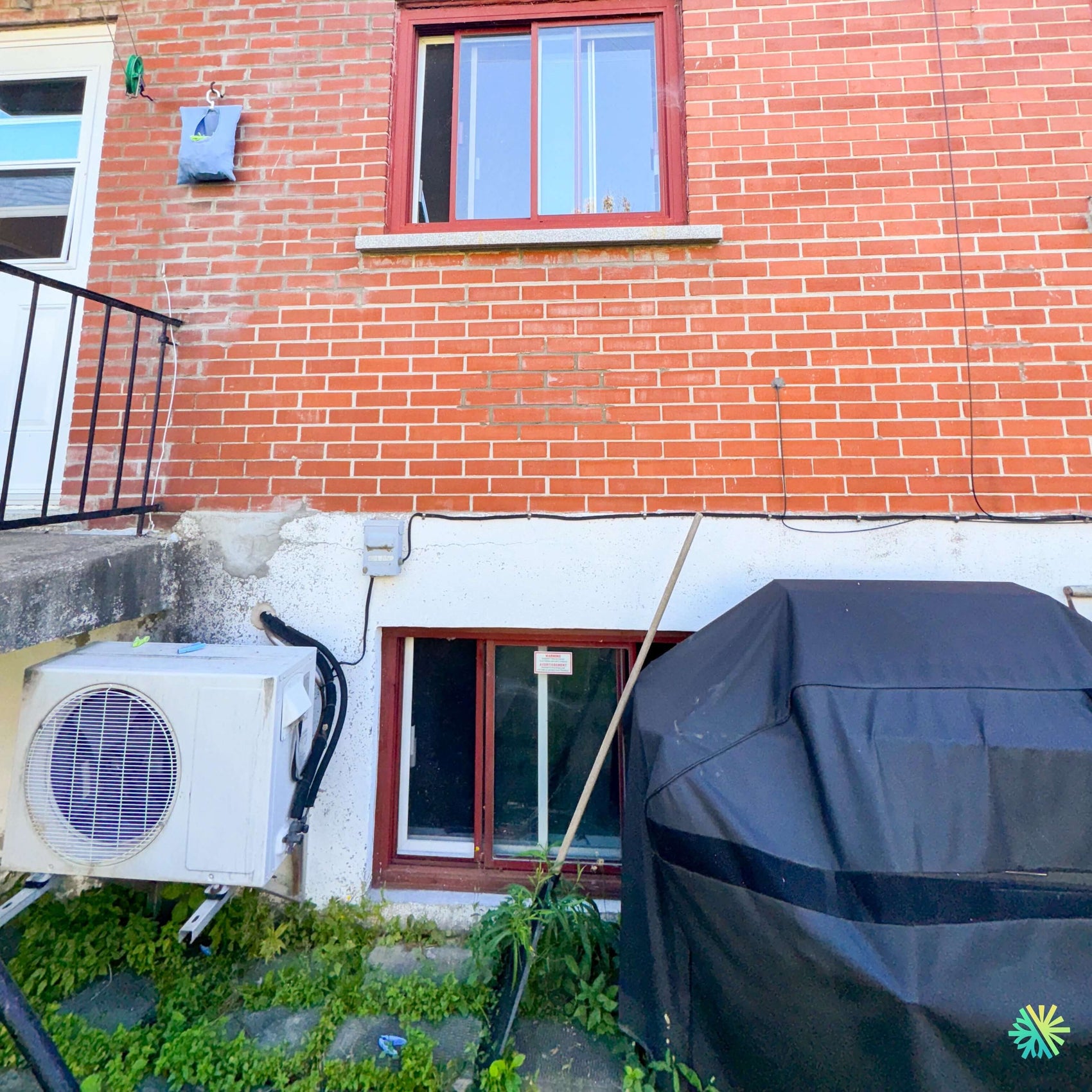

Upon arrival, the outdoor unit caught our attention. It was mounted on the wall on metal brackets, under a balcony structure, near a basement window, and close to vegetation. This type of installation is common in Outremont, but it requires careful inspection, as several factors can impair the operation of a wall-mounted heat pump.
An outdoor unit must be able to freely draw in and expel air. When plants, leaves, dust, yard debris, or nearby objects reduce airflow, the condenser becomes less efficient. In summer, this can cause higher operating pressure and reduced cooling. In winter, it can interfere with defrosting and reduce heating capacity.
In this specific case, the condenser showed a visible accumulation of dirt on the panels and around the grille. The presence of vegetation at the base of the unit also indicated that debris could be regularly sucked towards the coil. A wall-mounted heat pump can continue to operate under these conditions, but it has to work harder. The customer then feels a drop in performance, without necessarily seeing an error code.
Symptoms observed before the repair
The customer described a gradual situation, not a sudden breakdown. This detail is important. A complete failure often directs the diagnosis towards the power supply, the electronic board, the compressor, the fan motor, or a communication problem. A gradual performance drop often indicates a combination of factors.
The reported symptoms were as follows:
- less cold air in cooling after some time of operation;
- slower heating on cool days;
- more noise outside;
- vibration noticeable on the wall mounts;
- feeling that the unit was running longer than before;
- no permanent error code;
- more noticeable intermittent operation during high demand.
We therefore approached the intervention as a complete diagnosis, not just a simple cleaning. At AirGreen, a well-executed HVAC service call should help understand why the unit is losing efficiency, which components are actually responsible, and what corrections will prevent the problem from recurring.
Mechanical inspection of the outdoor unit
The first step was inspecting the outdoor condenser. We checked the grille, coil, fan, wall brackets, condition of refrigerant lines, insulation, drain passage, electrical disconnect, and contact points with the masonry.
The outdoor coil was partially blocked by fine dirt. On a brick wall exposed to the elements, dust, mineral particles, pollen, leaves, and moisture can form a layer that reduces heat exchange capacity. This problem is often underestimated. A dirty condenser does not always cause an immediate shutdown, but it can significantly reduce the heat pump’s efficiency.
We also noticed that some mounting points transmitted stronger vibrations than normal. The wall brackets were still functional, but the unit was no longer perfectly silent under load. Vibration on a brick facade can be amplified by the building structure, especially when refrigerant lines or wiring touch certain rigid points.
Electrical check and power supply of the device
The presence of an outdoor disconnect switch near the unit allowed us to perform a basic power supply check. On installations exposed to Montreal’s seasons, outdoor connections can be affected by moisture, freezing, thawing, and temperature fluctuations. A slightly loose or oxidized connection can cause intermittent symptoms: occasional shutdown, difficult restart, unusual noise at startup, or unstable performance.
We visually inspected the casing, checked that the conductors were not under excessive mechanical stress, and examined the general condition of accessible connections. A minor adjustment was made to a connection showing signs of wear and potential poor contact. This preventive action was important because an intermittent electrical problem can eventually damage a control board or cause repeated shutdowns.
Condenser cleaning and clearing around the unit
The repair then focused on restoring good air circulation. We carefully cleaned the outdoor condenser, respecting the orientation of the fins to avoid bending them. The cleaning cleared the blocked areas of the coil and improved the airflow through the unit.
We also recommended maintaining regular clearance around the unit, especially by controlling vegetation under and around the heat pump. In a backyard, plants can grow quickly and get close to the intake grille without the client noticing. A wall-mounted heat pump should not be treated like a simple outdoor appliance forgotten on the wall: it constantly breathes when it operates.
Vibration correction and support inspection
The outdoor noise was one of the client’s concerns. After confirming that the fan was not blocked and the compressor started normally, we analyzed the vibrations transmitted to the supports. In this type of case, three possible sources must be distinguished:
Normal operating vibration
Any outdoor unit produces some vibration when the compressor and fan operate. This vibration becomes problematic when amplified by the installation.
Vibration related to a support or fastener
Slightly misaligned supports, rigid contact with the wall, or aging fasteners can transmit noise to the structure.
Vibration caused by a mechanical component
An unbalanced fan, a worn motor, or an abnormally noisy compressor may require more extensive repair.
In this service call in Outremont, the vibration seemed mainly related to mechanical transmission and unit dirt buildup, rather than a major failure of the motor or compressor. We adjusted the support points, checked the unit’s level, and isolated certain contact areas to reduce resonance.
Post-service tests: a more stable heat pump
After cleaning, electrical checks, and mechanical adjustments, we restarted the heat pump to observe its behavior. The test was conducted taking real conditions into account: outdoor temperature, indoor demand, air circulation at the condenser, operating noise, and cycle stability.
The results were conclusive. The outdoor unit was breathing better, the ventilation was more consistent, the noise was reduced, and the heat pump responded more efficiently to demand. The air blown inside became more constant, and the client was able to see that the system did not need to be replaced.
This type of intervention clearly illustrates our approach: not to replace a heat pump unnecessarily when the problem can be fixed by a precise diagnosis, technical cleaning, electrical check, and well-executed mechanical correction.
Practical lessons from an HVAC service call in Outremont
A wall-mounted heat pump repair in Outremont often requires a full reading of the environment. Buildings in the area have particular characteristics: brick walls, compact backyards, sometimes difficult access, outdoor units mounted on wall supports, proximity to windows, vegetation, and exposed electrical installations.
Mistakes to avoid with an outdoor wall-mounted heat pump
The first mistake is waiting for a complete failure to occur. A drop in performance, a new noise, or an unusual vibration are already signals to take seriously. The faster the intervention, the more it is possible to avoid premature wear of the compressor, fan motor, or electronic board.
The second mistake is believing that an outdoor condenser does not need maintenance. Even when partially protected by a balcony, it accumulates dust and debris. A unit installed near the ground or near vegetation must be monitored even more carefully.
The third mistake is neglecting vibrations. On a brick facade, an external noise can be transmitted into the home and become very disturbing. A simple correction of supports or contact points can sometimes greatly improve sound comfort.
The fourth mistake is handling electrical or refrigeration connections without expertise. A wall-mounted heat pump combines refrigeration, electricity, electronics, ventilation, and drainage. Poor intervention can worsen the failure or create a risk for the equipment.
Why a complete diagnosis is more cost-effective than premature replacement
In this project, the heat pump showed worrying symptoms, but it was not at the end of its life. A too quick analysis could have led to an unnecessary replacement recommendation. In reality, the main causes were related to condenser maintenance, air circulation, vibrations, and checking certain connections.
Our team therefore prioritized targeted repair. This approach extended the equipment’s lifespan, improved its performance, and reassured the client about the overall condition of their HVAC system.
An AirGreen service adapted to the realities of Greater Montreal
AirGreen regularly services wall-mounted heat pumps, wall air conditioners, MultiZone heat pumps, central heat pumps, and other residential HVAC systems in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore. Each area presents its own challenges: high balconies, narrow yards, brick walls, older installations, limited access, units exposed to wind or snow accumulation.
In Outremont, this intervention demonstrated that effective repair relies on concrete details: condenser cleanliness, clearance, electrical supply, mounting, unit level, noise, drainage, and behavior under load. None of these elements should be analyzed alone. It is their combination that reveals the true cause of the problem.
Final result: comfort restored and quieter operation
At the end of the service call, the wall-mounted heat pump was operating more steadily. The outdoor condenser was clean, air circulation improved, vibrations were reduced, and electrical checks showed no concerning signs in the inspected connections. The client regained a more reliable system, capable of meeting demand without excessive noise or significant loss of efficiency.
This repair in Outremont confirms the importance of thorough maintenance and diagnostics. A well-installed wall-mounted heat pump can provide many years of comfort, but it must be inspected when it starts showing signs of weakness. At AirGreen, we focus on the true cause of HVAC problems to offer durable, precise repairs tailored to the realities of homes in Greater Montreal.
