A subtle water leak that revealed a drainage and airflow problem
In Sainte-Julie, our AirGreen team was called for a common but often underestimated problem: a wall-mounted heat pump installed above a window was beginning to show signs of abnormal dripping, accompanied by a drop in air conditioning performance. The client had noticed that the device cooled less quickly than before, that the lower flap sometimes remained wet after a prolonged cycle, and that a slight trace of moisture appeared near the window frame.

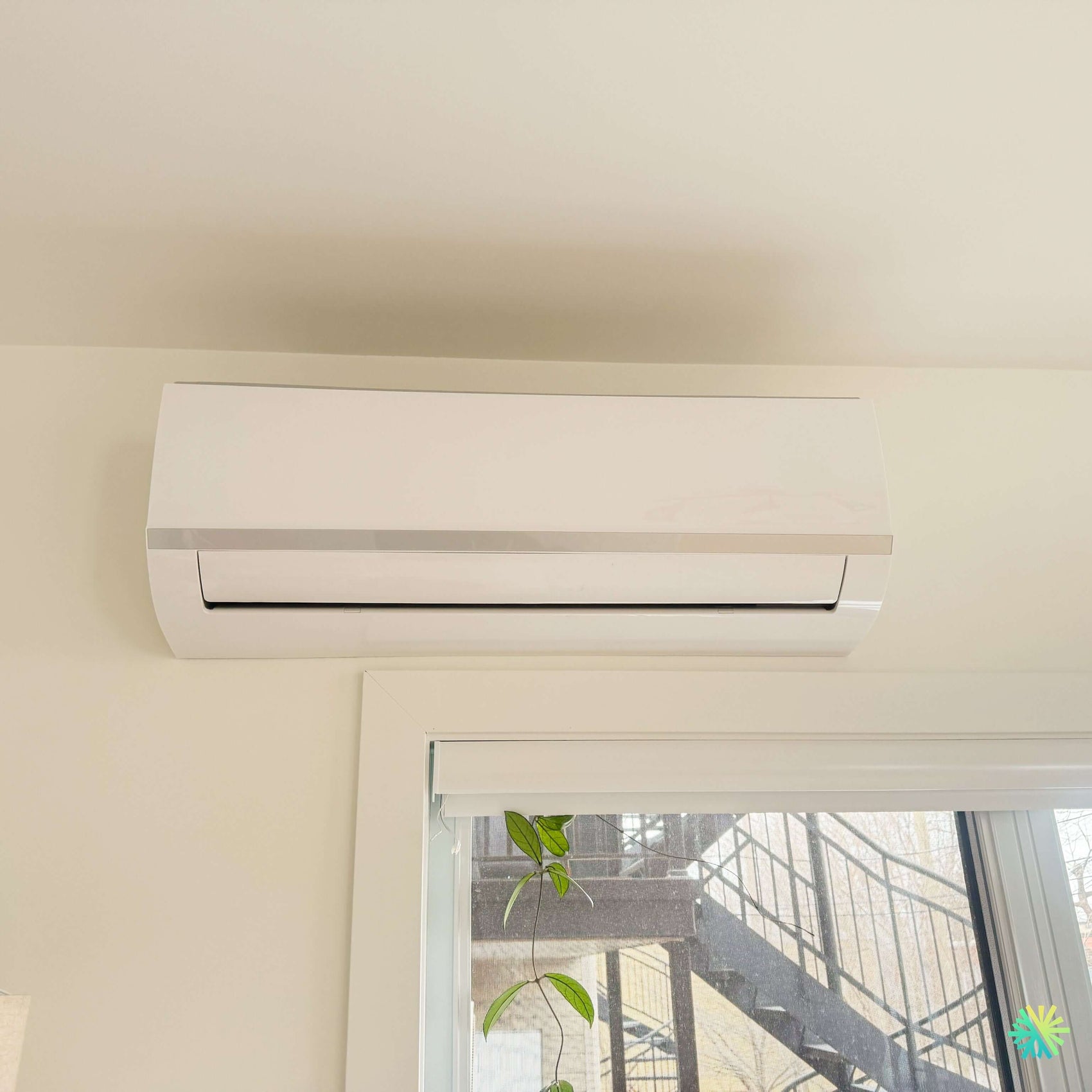

The indoor unit, a wall-mounted mini-split type, was installed very high on the wall, in a tight space between the ceiling and the window. This setup is common in homes on the South Shore, especially when aiming to optimize air distribution in a room without occupying a main wall. However, when a wall-mounted heat pump is placed so close to the ceiling, access for maintenance becomes more demanding, and signs of dust, moisture, or slow drainage can go unnoticed for several months.
From the moment we arrived, the goal was clear: to determine whether the problem was caused by a simple clogged drain, internal clogging, lack of maintenance, poor drainage slope, or a more serious HVAC system anomaly. An indoor water leak should never be taken lightly. Even when it seems minor, it can damage paint, framing, drywall, flooring, or moldings, especially when the unit is installed above a window.
A modern wall unit, but sensitive to internal clogging
The observed machine was a residential wall-mounted heat pump of compact size, installed high above a window. Its capacity was suited for a medium-sized room, likely in the range of 9,000 to 12,000 BTU depending on the area to be covered and the layout of the residence. This type of device is designed to provide both air conditioning and heating, with direct diffusion into the room.
Even when a unit looks clean on the outside, the inside can tell a different story. The white facade, closed vent, and sleek design often give the impression that the device is in good condition. Yet, the critical components are behind the panel: filters, evaporator coil, ventilation fan, condensate pan, and drain. These are precisely the elements that influence actual performance.
During this service call, the client did not report a total failure. The unit started, the remote control responded, the fan blew, and the outdoor compressor seemed to work. The problem was more subtle: the air was less cold, humidity was more present, and water drainage was starting to become concerning. This type of symptom requires a comprehensive approach, as several causes can overlap.
Symptoms observed before diagnosis
The signs noted on site corresponded to a progressive problem rather than a sudden breakdown. The main symptoms were as follows:
- gradual decrease in cooling;
- visible humidity at the lower vent;
- slow or irregular condensate drainage;
- slightly damp smell at startup;
- weaker ventilation than at initial installation;
- longer cycles to reach the requested temperature;
- risk of drops near the window.
In a wall-mounted heat pump repair, these elements quickly point to three areas to check: airflow, drainage, and coil cleanliness. If air does not circulate sufficiently through the evaporator, humidity condenses excessively. If the drain is partially blocked, water accumulates in the pan. If the fan is dirty, the system loses power and may produce a heavier noise.
We proceeded step by step, without assuming the problem was only related to the drain.
Inspection of the indoor unit: filters, coil, and fan
The first check focused on the filters. They were loaded with fine dust but not completely blocked. A partially dirty filter may seem trivial, but it can sometimes reduce airflow, especially when the unit runs for several hours a day during hot periods.
After removing the filters, we inspected the indoor coil. It showed a light dust buildup on some sections, especially in areas where the air passes most intensely. On a wall-mounted heat pump, a dirty coil reduces heat exchange: air passes less effectively through the fins, the temperature becomes less stable, and humidity remains more inside the unit.
The ventilation turbine was also dirty. This is a very common problem in wall systems. Fine particles pass beyond the filters and stick to the turbine blades, especially when the device often runs in air conditioning mode. Over time, the fan wheel loses balance, blows less strongly, and can cause humidity buildup in the tray.
Drain check: partial blockage confirmed
The most important part of the diagnosis concerned drainage. We tested the condensate flow with a controlled amount of water in the tray. The evacuation was slow, confirming a partial drain blockage. The water did not overflow immediately, but it did not leave the unit quickly enough to keep up with normal condensation production on humid days.
This situation is common in Sainte-Julie, Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially in homes where wall units are used intensively during the summer. Dust, biological deposits, small particles, and humidity gradually create a buildup in the drain. When the passage narrows, water looks for another exit: facade, vent, wall, or window framing.
In this case, the unit’s position above the window made the situation more delicate. A repeated leak could have damaged the framing and surfaces around the opening. The problem had to be fixed before it caused interior damage.
Technical cleaning and system restoration
We performed targeted cleaning of the indoor unit, protecting the surfaces around the device. The intervention included:
- Partial removal of the front panel;
- Filter cleaning;
- Cleaning of the indoor coil;
- Cleaning of the ventilation turbine;
- Disinfection of the condensate tray;
- Clearing of the clogged drain;
- Flow verification after cleaning;
- Complete test in air conditioning mode;
- Airflow check;
- Validation of the blowing temperature.
The drain was unclogged until a stable flow was restored. The condensate tray was cleaned to remove deposits that caused water stagnation. The turbine was cleaned to restore better air volume. After restarting, the unit blew stronger, the air was cooler, and humidity no longer accumulated at the vent.
An HVAC repair that protects comfort, walls, and the system’s lifespan
A wall-mounted heat pump leaking inside is not just an inconvenience. It’s a warning. The water produced by the air conditioning must always be drained smoothly. When it remains inside the unit, it can cause odors, promote dirt buildup, reduce performance, and eventually cause visible damage in the home.
Why the problem wasn’t just a simple cooling failure
The customer initially felt that the machine “wasn’t cooling enough.” This symptom could have suggested a lack of refrigerant or a problem with the outdoor compressor. However, the diagnosis showed that the core of the problem was mainly inside: weakened airflow, dirty turbine, and partially clogged drain.
This is an important distinction. Adding refrigerant to a system that doesn’t lack it solves nothing. Replacing an electronic board without checking the drain also solves nothing. A good HVAC repair consists of finding the exact cause of the symptom, not just temporarily eliminating the discomfort.
In this case, the system still had good operating capacity. It needed technical cleaning and corrected drainage, not a complete replacement.
The importance of regular maintenance on a unit installed high up
A wall unit placed near the ceiling is often more difficult to maintain. The filters are less accessible, the customer cleans them less often, and signs of dirt buildup are less visible. Yet, this type of installation precisely requires regular attention.
The most common mistakes we observe are:
- waiting for a leak to appear before having the unit cleaned;
- cleaning only the filters without checking the turbine;
- ignoring a musty smell;
- using the air conditioning for long periods with a partially blocked drain;
- setting the temperature too low to compensate for a loss of performance;
- neglecting maintenance because the unit appears clean on the outside;
- forgetting that the condensate tray can get dirty even if the facade looks perfect.
A professional maintenance allows these problems to be fixed before they cause a more costly breakdown.
Result after the intervention in Sainte-Julie
After the repair, the wall-mounted heat pump operated much more stably. The airflow was stronger, cooling was more effective, and condensate water drained properly. The client noticed that the device reached the requested temperature faster, with no visible moisture on the shutter.
The most important result was twofold: comfort was restored and the risk of damage around the window was eliminated. In a residence, a small repeated leak can become an interior finishing problem. By intervening at the right time, we avoided unnecessary surface deterioration.
Practical tips after a wall-mounted heat pump repair
At the end of the intervention, we recommended a simple routine to maintain performance:
- clean the filters regularly during the season;
- monitor any musty smell;
- check if the shutter or wall becomes damp;
- have the indoor unit cleaned when airflow decreases;
- avoid running the device for several weeks with a slow drain;
- schedule maintenance before the heat waves;
- have any indoor water leak inspected quickly.
These tips apply as much to Sainte-Julie as to Montreal, Laval, Longueuil, on the North Shore and the South Shore. A well-maintained wall-mounted heat pump can offer excellent performance for many years, but only if air flows freely and condensate drains properly.
AirGreen, specialist in wall-mounted heat pump repair on the South Shore
At AirGreen, we work on wall systems, multi-zone, central, and other HVAC equipment throughout Greater Montreal. Our approach is based on precise diagnostics, clean intervention, and thorough validation of the result. For this repair in Sainte-Julie, the solution was not spectacular, but it was exactly what was needed: clean, unblock, test, and confirm.
A system that leaks, cools less, or smells of moisture should not be ignored. A quick intervention can extend the life of the device, reduce energy consumption, and protect the interior of the home.
