An HVAC service call in Vimont for a wall-mounted heat pump that was no longer delivering full performance
In Vimont, in a residential area of Laval where wall-mounted heat pumps are very common, AirGreen was called to inspect a wall-mounted heat pump whose performance seemed to have gradually decreased. The outdoor unit, visible on site, was installed on wooden supports above a gravel surface, with a typical residential mini-split configuration: a compact outdoor compressor connected to an indoor wall unit.
The exact brand and precise model were not clearly identifiable from the visible equipment. In an HVAC service context, this situation is common: logos may be erased, stickers partially worn, nameplates poorly positioned or hard to read without disassembly. Our diagnosis therefore never relies solely on appearance. We proceed step by step: observation, functional tests, electrical measurements, ventilation check, symptom verification, and installation condition validation.
The customer had noticed several worrying signs: less efficient operation, indoor temperature taking longer to stabilize, more noise around the outdoor unit, and the impression that the system was working longer than before to produce the same comfort. This type of situation must be taken seriously because a wall-mounted heat pump that is unnecessarily overworking can consume more energy, prematurely wear some components, and eventually break down during a period of high demand.
At AirGreen, we approach every HVAC service call with a simple logic: identify the real cause before replacing parts. A wall-mounted heat pump can show similar symptoms for very different reasons: clogged indoor filter, blocked outdoor coil, worn fan motor, unstable electronic board, miscalibrated temperature sensor, refrigerant shortage, leak, poor drainage, air blockage, incomplete defrosting, or outdoor installation that limits air circulation.

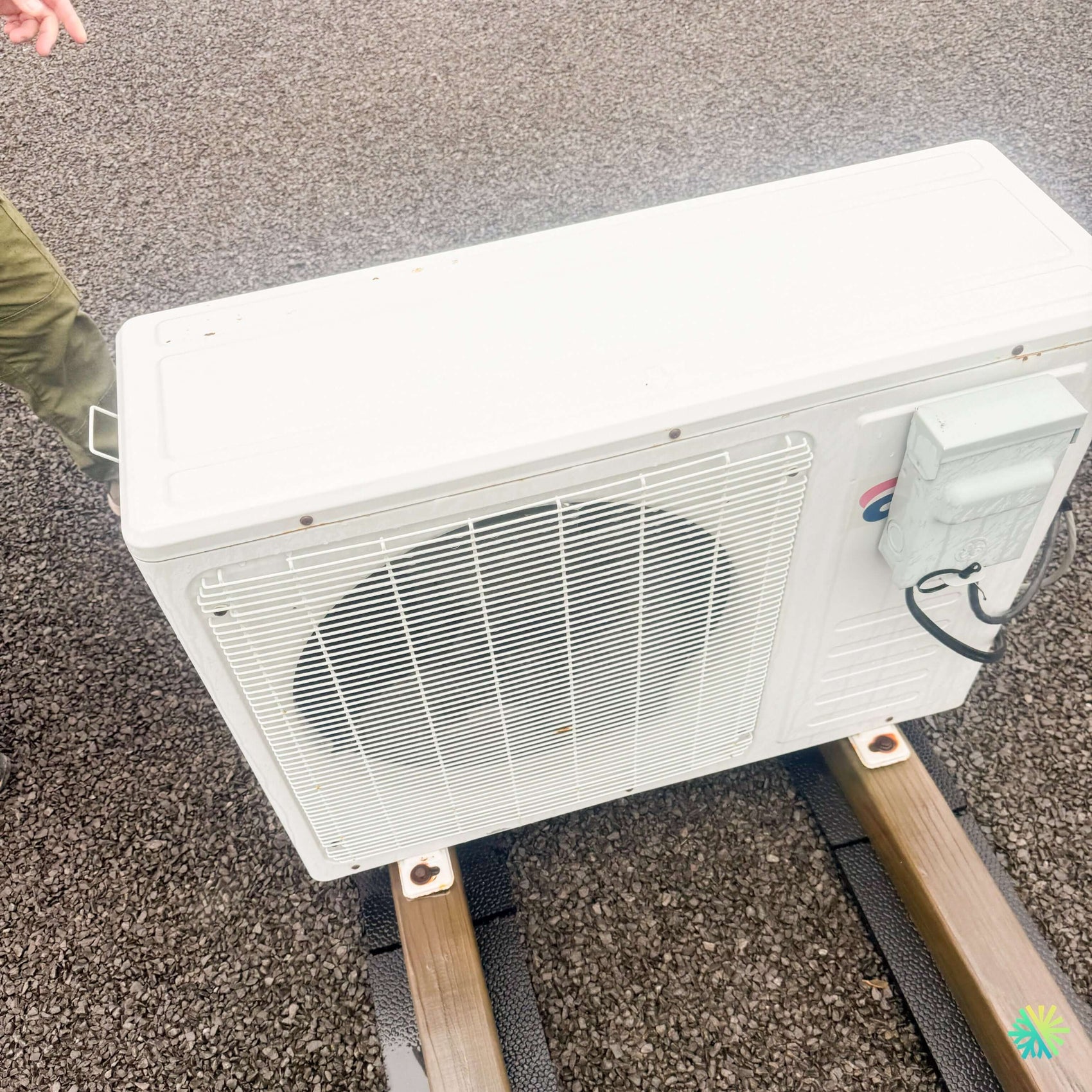

What the installation image immediately tells us
The outdoor unit observed in Vimont is positioned on a base made of wooden supports, with pads and a gravel surface. This setup can be acceptable when stable, well-leveled, and clear, but it requires special attention. A wall-mounted heat pump must breathe freely. The front fan must be able to expel air without obstruction, and the rear or side coil must receive a sufficient volume of air.
At first glance, several elements warranted a thorough inspection:
- the stability of the base under the outdoor unit;
- the condition of the supports and anchors;
- the possible presence of vibration transmitted to the wood;
- the free space in front of the fan grille;
- the accumulation of dirt, leaves, dust, or debris in the grille;
- the condition of the outdoor electrical box;
- the wiring protection;
- the general condition of the cabinet;
- the presence of moisture traces or localized corrosion.
In the greater Montreal, Laval, Longueuil area, the North Shore and the South Shore, these details are particularly important. Outdoor systems must withstand significant temperature variations, snow, freezing rain, freeze-thaw cycles, humid heat episodes, and periods of high cooling demand. A small installation or maintenance issue can become much more noticeable after a few seasons.
Reported symptoms: a drop in performance rather than a complete failure
The case in Vimont was not a sudden breakdown where the heat pump stopped starting altogether. It was rather a gradual decline in comfort. This type of service requires a more precise diagnostic method, as the device can still operate while being far from its normal performance.
Typical symptoms observed or reported in this kind of situation include:
- less warm air in heating mode;
- less cold air in cooling mode;
- longer operating times;
- short or irregular cycles;
- more noticeable fan noise;
- external vibration;
- outdoor unit that seems to be straining;
- indoor temperature that varies too much;
- higher electrical consumption;
- ice buildup in winter;
- unusual odor or moisture coming from the indoor unit.
In this case, our priority was to distinguish a maintenance issue from a mechanical, electrical, or refrigeration problem. A poorly maintained wall-mounted heat pump can seem to have a compressor problem when cleaning, ventilation correction, or adjustment may suffice. Conversely, a visibly clean system can hide a slow leak or an unstable electronic board.
Outdoor diagnosis: ventilation, coil, and compressor behavior
The first step was to observe the operation of the outdoor unit. When a wall-mounted heat pump starts, the fan must run steadily, without friction, abnormal variation, or excessive vibration. The compressor must start properly, without metallic noise, premature shutdown, or unusual sequence.
We checked:
- the start-up of the outdoor unit;
- the fan rotation;
- the cabinet vibrations;
- the clearance around the grille;
- the visible condition of the coil;
- the system’s behavior after several minutes of operation;
- the unit’s response to the demand coming from inside.
The outdoor fan plays a crucial role. If it does not move enough air, the operating pressure can become abnormal, capacity decreases, and the compressor works under worse conditions. A dirty or partially blocked outdoor coil produces a similar effect. Even a thin layer of dust, pollen, leaves, or debris can impair heat transfer.
With this type of equipment, we avoid quick conclusions. A noise can come from a loose panel, a base transmitting vibration, a worn motor, an unbalanced blade, or a stressed compressor. The diagnosis must therefore isolate each possible source.
Electrical checks: an essential step in HVAC repair
A wall-mounted heat pump repair cannot be limited to a visual inspection. The electrical components are at the heart of a mini-split’s operation: control board, power supply, terminals, capacitor depending on the type of device, fan motor, communication between the indoor and outdoor units, sensors, and internal protections.
In this type of call, we specifically check:
- the available electrical power supply;
- the condition of the connections;
- signs of overheating;
- the continuity of communication wires;
- signs of oxidation;
- system response to commands;
- error codes when the device displays them;
- stability of operation after startup.
A weakened or oxidized connection can produce intermittent symptoms. The client may then believe the heat pump "sometimes works," while the problem comes from unstable communication or an electrical component that reacts poorly to load variations. This is one reason why professional diagnosis is preferable to random part replacement.
Indoor check: filters, heat exchange, and air circulation
Even though the image shows the outdoor unit, a wall-mounted heat pump must always be diagnosed as a whole. The indoor unit directly influences the performance of the outdoor unit. Clogged filters, a dirty turbine, or a dirty indoor coil can reduce airflow, cause poor heat exchange, and create an impression of low performance.
During this type of intervention, we check:
- condition of the filters;
- cleanliness of the indoor turbine;
- airflow;
- motorized louvers;
- blowing temperature;
- return temperature;
- odors or signs of moisture;
- the condition of the condensate drain;
- water leak traces around the wall unit.
A point often underestimated is the cleaning of the turbine. Even when the filters appear clean, the fan wheel can accumulate dust, organic deposits, and fine particles. This reduces airflow and can create noise. In some cases, thorough maintenance of the indoor unit greatly improves comfort without major replacement.
A repair focused on performance, safety, and prevention of recurrence
After the diagnosis, the goal was not only to restart the heat pump but to restore reliable and lasting operation. A successful intervention should allow the client to understand what happened, what was corrected, and what to monitor to prevent recurrence.
Applied solution: cleaning, adjustments, and operation validation
In this type of service in Vimont, the intervention can combine several complementary actions. Based on the observations made on the equipment, we proceeded with targeted restoration:
- cleaning of accessible areas around the outdoor unit;
- verification of ventilation clearance;
- inspection of fastening points;
- vibration control;
- validation of accessible electrical connections;
- start-up and operation test;
- checking the response between the indoor and outdoor units;
- measurement of the blowing temperature;
- observation of the complete operating cycle.
When the problem comes from dirt buildup and reduced airflow, the result can be immediate: the system breathes better, the compressor works under better conditions, the fan runs more regularly, and the indoor temperature stabilizes faster.
When symptoms suggest a refrigerant problem, we proceed with a more thorough analysis: pressures, temperatures, refrigerant behavior, leak detection, and charge evaluation. A heat pump should never simply be “recharged” without understanding why the level was insufficient. If refrigerant is missing, a leak should be suspected and properly addressed.
The role of the outdoor base: stability, drainage, and longevity
The base of the outdoor unit is often overlooked. A wall-mounted heat pump installed on wooden supports can work properly, but the installation must remain stable over time. Wood can move, absorb moisture, transmit vibrations, or slightly deform depending on conditions.
We therefore pay special attention to:
- the unit’s horizontality;
- strength of the supports;
- presence of rubber or anti-vibration pads;
- protection against standing water;
- clearance height;
- exposure to snow accumulation;
- the risk of displacement during freeze-thaw cycles.
A unit that is not perfectly stable can generate noise, strain the connections, and make some symptoms harder to diagnose. In some cases, we recommend a more durable base, a wall bracket, an aluminum table, or leveling correction to improve the installation's longevity.
Common mistakes to avoid with a wall-mounted heat pump
During our service calls in Laval, Montreal, Longueuil, on the North Shore and the South Shore, we often observe the same errors. They seem minor, but they can reduce the performance of a wall-mounted heat pump.
Wait for the device to stop completely
A drop in performance is already a warning. When a customer waits for a complete breakdown, the repair can become more expensive, especially if the compressor or electronic board has been subjected to harsh conditions for a long time.
Cleaning only visible filters
Filters are important, but they are only part of the system. The indoor fan, indoor coil, outdoor coil, drain, and grilles must also be considered.
Blocking the outdoor unit
An object placed too close to the outdoor unit, a buildup of leaves, or poor air circulation can reduce efficiency. Air must flow freely in front of and around the unit.
Ignoring vibrations
A vibration may seem trivial, but it can indicate an unstable base, an unbalanced fan blade, a loose panel, or a struggling motor.
Constantly changing settings
Constantly changing the requested temperature can increase cycles and harm comfort. Stable programming is often more effective, especially with an inverter heat pump.
Result for the customer: stabilized comfort and better understanding of the system
At the end of the intervention, the goal was to enable the customer to have a more stable, consistent, and reassuring wall-mounted heat pump. The system was tested in operation, critical points were checked, and maintenance recommendations were clearly explained.
The customer received:
- a structured analysis of the device’s condition;
- correction of accessible elements affecting efficiency;
- validation of outdoor and indoor operation;
- specific advice to avoid another drop in performance;
- a better understanding of signs to watch for;
- clear guidance if further intervention becomes necessary.
This transparency is important. An HVAC repair should not leave the customer uncertain. They need to know if their system can continue to operate normally, if a more thorough maintenance is needed, or if certain components should be monitored.
When should a wall-mounted heat pump be inspected?
A wall-mounted heat pump should be inspected as soon as its behavior changes. The following signs justify a service call:
- The air blown is less warm or less cold than before;
- The outdoor unit makes more noise;
- The system starts then quickly stops;
- Ice appears abnormally;
- the indoor unit leaks;
- an unusual smell is emitted;
- the remote control works, but the device does not respond properly;
- an error code appears;
- the electricity bill increases without a change in usage;
- some parts of the house become uncomfortable.
For owners in Vimont and nearby areas, a quick diagnosis can prevent a breakdown during the busiest periods. During heat waves or intense cold, service times are naturally tighter. Preventive intervention often allows fixing a problem before it becomes urgent.
AirGreen in Vimont: residential HVAC repair with method
AirGreen regularly operates in Vimont, throughout Laval, as well as in Montreal, Longueuil, on the North Shore and the South Shore for HVAC repair, maintenance, and installation services. Our service calls for wall-mounted heat pumps cover both simple problems and complex diagnostics: refrigerant leaks, electrical failure, noise, ice, condensation, faulty control board, fan motor, compressor, drainage, or loss of efficiency.
In this case, the outdoor installation showed the importance of a complete inspection: a wall-mounted heat pump is not just a white box outside and a wall unit inside. It’s a complete system where air, electricity, refrigerant, controls, mechanical installation, and maintenance must work together.
For an owner, the right reflex is not to wait until the system completely stops working. A heat pump showing signs of fatigue requires a professional evaluation. A well-done diagnosis helps distinguish a simple maintenance fix from a more serious problem, while protecting the equipment’s lifespan.
In Vimont, this intervention perfectly illustrates our way of working: observe, measure, explain, correct, and prevent. A successful wall-mounted heat pump repair is not just about eliminating a symptom. It must improve system reliability, restore comfort, and give the client clear guidelines for the future.
