A Carrier wall-mounted heat pump installed at height, reduced efficiency, and a diagnosis that could not be limited to a simple cleaning
In Ville Mont-Royal, we were called for an HVAC service on a Carrier wall-mounted heat pump whose outdoor unit was installed on a facade, on a wall mount, near another outdoor unit. The client had noticed a performance drop for some time: the device was running, the fan was spinning, but the expected comfort was no longer there. The indoor temperature took too long to stabilize, the system seemed to work harder than before, and a vibration noise had become more noticeable during operating cycles.
This type of situation is common with older wall-mounted systems or those installed in exposed locations. A wall-mounted heat pump can continue to start, blow air, and give the impression it is working properly, while actually experiencing a loss of efficiency caused by a refrigerant pressure problem, reduced heat exchange, mechanical vibration, weakened refrigerant connection, or progressive fouling of the outdoor unit.

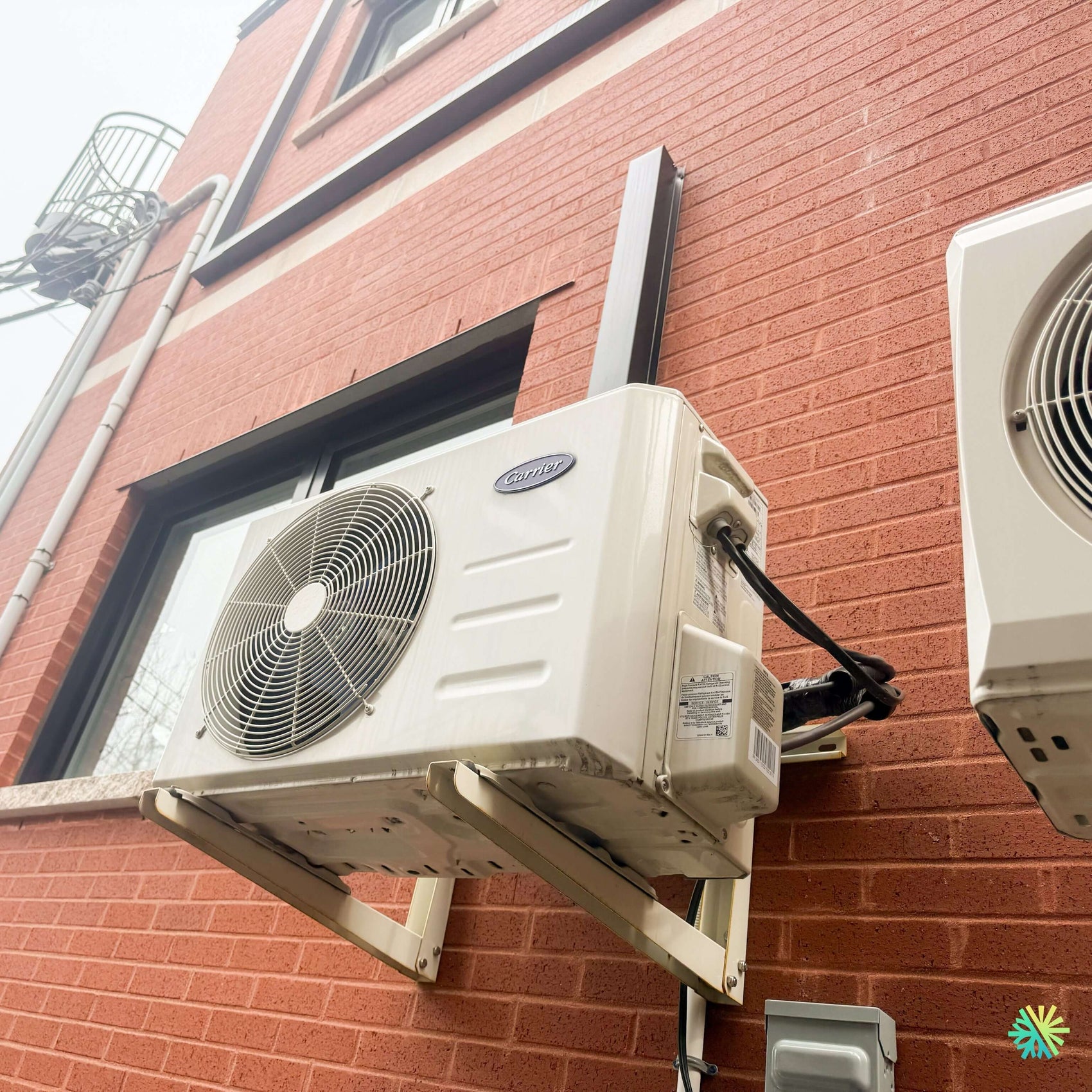

In this specific case, the Carrier outdoor unit was mounted on a brick facade, above a window, with refrigerant lines protected by a vertical line cover. The location required a careful approach: high access, proximity to the wall, limited lateral clearance, exposed wall mount, and the presence of another outdoor unit nearby. At AirGreen, we know that a good HVAC service call is not just about identifying a symptom but understanding the entire system operation chain.
Equipment description: a Carrier wall-mounted heat pump with a compact outdoor unit
The observed equipment was a Carrier residential wall-mounted heat pump, mini-split type, consisting of a wall-mounted indoor unit and a compact outdoor compressor. This type of system is very common in residential buildings in Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially in condominiums, plexes, townhouses, and buildings where adding ducts is not necessary or desired.
Although the nameplate visible on the outdoor unit did not clearly confirm the exact model number remotely, the configuration matched a typical residential capacity Carrier wall-mounted heat pump, likely used to cool and heat a main area of the home. The wall bracket installation also indicated that the unit was placed to free up floor space, avoid excessive snow buildup at the base of the unit, and comply with the building’s architectural constraints.
The visible elements during our intervention were important to establish the technical context:
- Outdoor Carrier unit installed on a metal wall bracket.
- Refrigerant lines passing through the exterior wall.
- Vertical line cover protecting the ducts and wiring.
- Reduced clearance near the facade.
- Dirt marks at the bottom of the outdoor casing.
- Risk of amplified vibration due to wall mounting.
- Service access more complex than a ground installation.
These details directly influence how to diagnose a failure. A unit installed on a wall bracket can transmit more vibration to the building if the isolators are worn, if the support screws have slightly loosened, or if the compressor is working under abnormal pressure. Additionally, when the outdoor unit is near a wall, air exchange must be carefully checked because poor circulation around the condenser can reduce system efficiency.
Symptoms reported by the customer: less comfort, longer cycles, and abnormal vibration.
The customer was not facing a complete breakdown. The heat pump did not refuse to start. The problem was more subtle: the device still seemed to be working, but it no longer delivered the same results as before. This kind of situation is often more complex than a clear failure because it requires measuring, comparing, and confirming operating parameters instead of simply replacing an obvious part.
The main symptoms were as follows:
- Indoor temperature slower to reach the setpoint.
- Longer operating cycles.
- Less convincing airflow in air conditioning mode.
- Vibration noise noticeable outside.
- Feeling that the compressor was working harder.
- Irregular performance depending on the outside temperature.
On a Carrier wall-mounted heat pump, these symptoms can stem from several causes: lack of refrigerant, dirty outdoor heat exchanger, weakened outdoor fan, unstable electronic board, inaccurate temperature sensor, weakened refrigerant connection, circuit restriction, or communication problem between the indoor and outdoor units.
Our role was therefore to proceed methodically, without assuming too quickly that the problem came solely from the refrigerant or solely from the age of the device.
An accurate HVAC diagnosis: electrical tests, refrigeration inspection, wall mount check, and performance restoration
First step: complete visual inspection of the outdoor unit
The intervention began with a detailed visual inspection. On an outdoor unit installed at height, we always check the general condition of the casing, wall mount, fasteners, refrigerant lines, wiring, insulation, line cover, and clearance around the fan.
In this case, several observations caught our attention. The bottom of the outdoor unit showed an accumulation of dirt and debris. This was not just an aesthetic issue: a partially clogged condenser can reduce heat exchange capacity and force the compressor to work longer. We also noticed mechanical vibration at startup, more audible when the compressor was under load.
The wall mount was still solid, but some contact points transmitted more vibration than usual. On a brick facade, this vibration can become very noticeable inside, especially if the unit is mounted near a window or load-bearing wall. We therefore included a mechanical inspection of the mount in our diagnosis, not just the internal components of the device.
Second step: electrical check and communication between units
Before touching the refrigeration circuit, our technicians checked the electrical supply, the disconnect switch, visible connections, and communication signals. A modern wall-mounted heat pump heavily depends on its electronic boards. Unstable voltage, poor contact, or weakened connection can cause intermittent shutdowns, irregular performance, or error codes that are difficult to reproduce.
Checks confirmed that the power supply was stable and that basic communication between the indoor and outdoor units was present. No immediate signs of a burnt electronic board, damaged connector, or broken wire were found. This step was important because it ruled out a major electrical failure and guided the next phase of diagnosis towards thermal performance and the refrigeration circuit.
Third step: checking the outdoor fan and heat exchange
We then checked the operation of the outdoor fan. The fan was running, but the air exchange around the condenser needed improvement. Outdoor coils exposed to dust, pollen, leaves, urban particles, and temperature variations often lose efficiency over time.
In areas like Ville Mont-Royal, Montreal, and residential neighborhoods with many trees, particle buildup on an outdoor unit can be gradual. The customer does not always immediately notice the drop in performance. Yet, a few seasons can sometimes create a layer that limits heat exchange.
We performed proper cleaning of the outdoor unit, taking care not to damage the condenser fins. The goal was not just to make the device cleaner but to restore effective airflow through the exchanger. Good air circulation reduces compressor effort, improves efficiency, and lowers the risk of overheating or prolonged cycles.
Fourth step: performance measurement and suspicion of a slight refrigerant loss
After cleaning and initial checks, the operating measurements indicated performance still below expectations. The temperature difference, compressor behavior, and observed pressures suggested a possible partial refrigerant loss. On a wall-mounted heat pump, even a small leak can reduce performance without immediately causing a total breakdown.
We carefully inspected the accessible refrigeration fittings, especially near the outdoor unit. Flare connections are sensitive points: over time, heat-cold cycles, vibrations, and minor movements of the installation can weaken the seal. In this service, one connection showed signs consistent with a micro-leak: slight traces, abnormal pressure behavior, and reduced performance.
Rather than simply adding refrigerant, we addressed the root cause. Adding gas without fixing the leak does not provide a lasting solution. This is a mistake we still see too often during quick diagnostics done without a proper method. A recharge may offer temporary improvement, but the problem returns, sometimes causing more costly damage to the compressor.
Repair performed: reconnection of the fitting, leak test, vacuuming, and charge adjustment
The repair involved securing the refrigerant circuit and restoring normal operating conditions. Our technicians carefully reworked the affected connection, following proper tightening and preparation practices. Then, a leak test was performed to confirm that the circuit no longer had any detectable leaks at the repaired point.
An adequate vacuuming followed, an essential step to eliminate moisture and air from the circuit. In a HVAC installation, this step must never be overlooked. Moisture in a refrigerant circuit can harm performance, cause undesirable reactions with compressor oil, and reduce system lifespan.
Once the circuit was validated, the refrigerant charge was adjusted according to the system’s needs. Restarting the system then allowed comparison of measurements before and after the intervention. The result was clear: more stable cycles, better heat exchange, quieter operation, and improved indoor performance.
Vibration correction: a mechanical detail that changes the customer experience
The second part of the intervention concerned vibration. On a wall-mounted outdoor unit, noise can be caused by the compressor, but also by the support, fasteners, isolators, the casing, or refrigerant lines touching a rigid surface.
We checked the contact points, tightened the necessary components, and improved vibration absorption at the support. We also inspected the line routing to prevent unnecessary noise transmission to the structure. After adjustment, the compressor start-up was smoother and the vibration felt on the facade had decreased.
This kind of correction may seem minor, but it has a significant impact on comfort. A heat pump can be technically functional but become annoying if it transmits a buzzing noise into the home or building structure. For AirGreen, a successful repair is not just about restarting a machine: it must also restore a normal and pleasant user experience.
Final result: comfort restored and Carrier system returned to service condition
At the end of the service call, the Carrier wall-mounted heat pump was operating much more stably. The client experienced better cooling capacity, more consistent cycles, and a more acceptable noise level. The combination of exterior cleaning, refrigerant line correction, leak testing, charge adjustment, and vibration reduction resulted in a lasting outcome.
We also explained to the customer the signs to watch for in the coming weeks: gradual performance drop, unusual frost, intermittent shutdown, louder compressor noise, or insufficient temperature difference between return air and blown air. This follow-up is important because any HVAC intervention must always include a clear understanding of the device’s actual condition.
What this service teaches: never ignore small symptoms
A wall system that works “halfway” deserves prompt attention. Many owners wait until the breakdown is complete before calling a specialist. However, a heat pump that struggles for several weeks or months can consume more energy, prematurely wear out its compressor, and cause more costly damage.
Signs not to ignore include:
- A gradual decrease in comfort.
- Much longer cycles than before.
- A noisier outdoor unit.
- New or stronger vibration.
- Off-season ice buildup.
- An unusual smell or noise.
- Less cold air blown during air conditioning.
- Less efficient heating in cold weather.
In Montreal, Laval, Longueuil, on the North Shore and the South Shore, wall-mounted heat pumps are exposed to demanding conditions: humidity, dust, temperature fluctuations, snow, ice, pollen, vibrations, and frequent cycles. Professional maintenance and diagnostics often help avoid premature replacement of a device that can still be repaired.
Mistakes to avoid with a wall-mounted heat pump installed on the facade
This service in Ville Mont-Royal also illustrates several common mistakes. The first is assuming that a lack of performance automatically means the device is too old or needs to be replaced. In many cases, targeted repairs can extend the system's lifespan.
The second mistake is adding refrigerant without looking for the leak. A recharge without a leak test is rarely a good long-term solution. It can temporarily mask the problem, but the customer often ends up with the same breakdown later.
The third mistake is neglecting vibrations. An outdoor unit mounted on the wall must be stable, well insulated, and properly adjusted. Over time, slight misalignment or a rigid contact point can turn an acceptable device into a constant noise source.
The fourth mistake is postponing outdoor cleaning. A dirty condenser can increase operating pressure and reduce the overall system efficiency. Preventive maintenance is often much less costly than major repairs.
Why call AirGreen for HVAC repair in Ville Mont-Royal
At AirGreen, we work daily on residential and commercial systems in Greater Montreal. Our teams understand the constraints specific to urban buildings: units at height, restricted access, wall mounts, condominiums, brick facades, roofs, alleys, balconies, and installations where every detail matters.
For a Carrier wall-mounted heat pump repair, our method is based on a clear sequence: inspection, measurements, diagnosis, cause correction, validation, and explanation to the client. We do not seek to replace a machine unnecessarily when repair is possible. Conversely, when the system is truly at the end of its life, we also know how to explain why replacement is more logical than a series of repairs.
This intervention in Ville Mont-Royal demonstrates the importance of complete, precise, and honest HVAC service. A performance drop can have several combined causes. Here, the device needed a full overhaul: cleaning, refrigerant correction, mechanical control, and operation verification.
Professional HVAC service for Carrier wall-mounted heat pumps and other brands
AirGreen offers service, repair, installation, and maintenance of wall-mounted heat pumps, wall air conditioners, multi-zone systems, central heat pumps, and HVAC equipment throughout the metropolitan area. Whether the device is Carrier, Fujitsu, Gree, Sharp, Midea, Mitsubishi, Panasonic, LG, or another brand, we apply a rigorous method to understand the real problem before proposing a solution.
For owners in Ville Mont-Royal, Montreal, Laval, Longueuil, on the North Shore or the South Shore, a quick service call can prevent a complete breakdown during extreme heat or cold periods. A heat pump that starts to lose efficiency often shows early warning signs. Recognizing them early helps protect comfort, energy consumption, and the equipment’s lifespan.
