A service call in the heart of Outremont for an outdoor unit lacking airflow
In Outremont, on a commercial facade located in a busy area of Montreal, our AirGreen team was called for a Costway wall-mounted heat pump repair whose performance had significantly decreased. The device served a small commercial space, with an indoor wall unit and an outdoor compressor installed high on a wall mount, under an external metal structure.
The client had noticed that the system was still working but could no longer maintain a comfortable temperature during business hours. In cooling mode, the air became lukewarm after some time. In heating mode, the heat pump seemed to start normally but lost efficiency as demand increased. The outdoor noise had also become more noticeable, with intermittent vibration perceptible near the entrance.

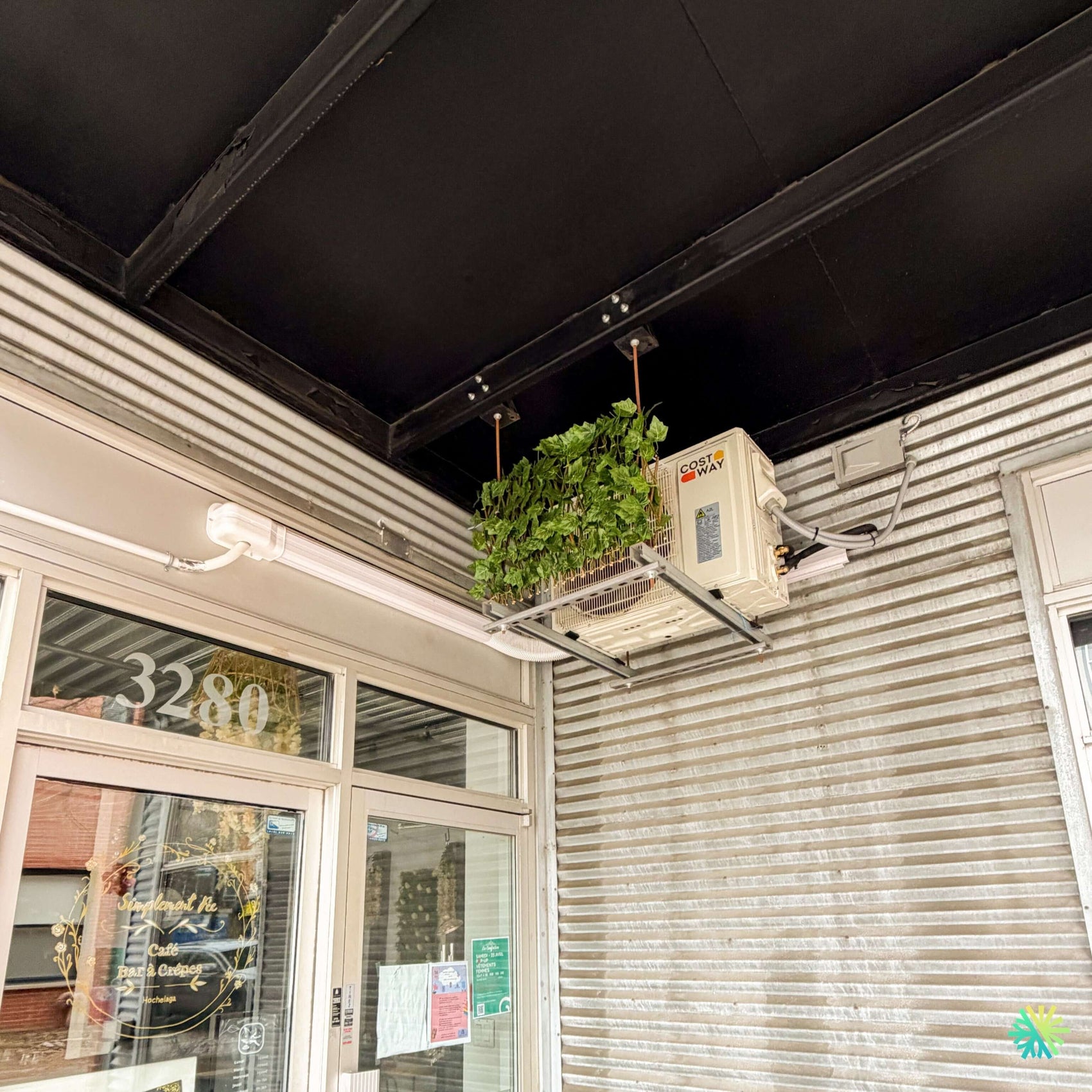

The intervention photo shows an essential detail: the Costway outdoor unit was installed on a wall mount, in a confined space, with plant decoration placed very close to the top and the grille. This situation may seem trivial, but for a wall-mounted heat pump, air circulation around the condenser is absolutely critical. Partial obstruction is enough to raise pressures, reduce heat exchange, strain the compressor, and cause a noticeable drop in performance.
A compact outdoor installation, but very sensitive to clearance
The outdoor unit observed was a wall-mounted heat pump from the brand Costway, in a compact format, typical of mini-split systems used in commercial premises, cafes, offices, or small residential spaces. Depending on the size of the equipment and its application, the capacity generally ranges from about 12,000 to 18,000 BTU, depending on the exact model confirmed during the diagnosis on the nameplate.
This type of device is designed to provide an efficient solution in places where space is limited. However, when installed near a wall, under an outdoor ceiling, under an awning, or above a door, several factors can impair its operation:
- lack of clearance around the air grille;
- accumulation of urban dust on the coil;
- recirculation of hot air around the unit;
- vibrations transmitted to the wall mount;
- deterioration of the refrigerant line insulation;
- wiring or conduit exposed to weather;
- difficult access for regular maintenance.
In this case in Outremont, the compressor was installed high enough to be protected from ground shocks, but its immediate environment limited its efficiency. The presence of decorative foliage above the machine, combined with the proximity of the metal structure, created an area where the discharged hot air could be partially recirculated by the unit.
Symptoms reported by the client
The client was not talking about a complete breakdown. It was rather a gradual loss of performance, which is often more difficult to diagnose for an owner or a merchant. The symptoms were as follows:
- less cold air conditioning during busy periods;
- longer cycles than before;
- more noticeable outdoor noise;
- intermittent vibration on the wall mount;
- occasional shutdown after prolonged demand;
- unstable comfort inside the premises;
- the impression that the device had to operate at maximum for limited results.
These signs pointed our diagnosis towards three main issues: an air circulation problem at the outdoor unit, coil fouling, and a weakened electrical component. In an HVAC repair, these elements must always be checked before concluding a refrigerant shortage or a faulty compressor.
Diagnosis of the Costway wall-mounted heat pump
Our technician started by inspecting the outdoor unit. The coil showed an accumulation of dust, fine particles, and residues related to the urban environment. On a commercial facade, especially near an entrance door, foot traffic, outdoor air, street dust, and seasonal deposits can quickly dirty the condenser grille and fins.
Air clearance check
The first important observation concerned the clearance around the machine. The heat pump needed freer air circulation. The foliage placed just above the unit hindered the natural heat dissipation. Even though the plants did not completely block the grille, they contributed to trapping hot air in an already confined area.
When an outdoor unit lacks airflow, the compressor works under more difficult conditions. In air conditioning, it must reject the heat captured inside. If this heat is not properly evacuated, pressure rises and efficiency drops. In heating mode, poor outdoor heat exchange can also disrupt the unit’s ability to extract available heat from the air.
Outdoor coil inspection
The outdoor coil was carefully inspected. The fins were not completely blocked, but they were dirty enough to reduce efficiency. A thin layer of dust can already make a significant difference on a small wall-mounted heat pump, especially when the unit runs several hours a day in a commercial setting.
We also checked that the fins were not crushed over a large area. Some areas showed slight deformations, probably related to age, past maintenance, or outdoor exposure. These sections were straightened when possible to improve airflow.
Electrical check and starting components
A heat pump that still starts can still have an electrical problem. We therefore checked the contactor, connections, capacitor, accessible wiring, and protections. On this type of device, a weakened capacitor can cause less stable starting of the fan or compressor, resulting in irregular cycles and reduced efficiency.
The test showed that the capacitor was weak compared to its nominal value. It was not completely out of service, but its condition could contribute to the observed symptoms, especially when the machine was running longer during business hours.
Refrigerant line inspection
The visible refrigerant lines were protected by insulation, but some sections showed signs of wear. Damaged insulation does not always cause a direct failure, but it harms thermal stability and can accelerate the degradation of exposed lines. We checked accessible fittings for any traces of oil, a potential sign of refrigerant leakage.
No obvious leaks were detected during this intervention. The symptoms were more consistent with a combination of air restriction, dirt buildup, and electrical weakness than with a significant refrigerant loss.
Intervention carried out by AirGreen
After explaining our findings to the client, we proceeded with targeted restoration. The goal was to restore performance without unnecessarily replacing equipment.
Clearing the outdoor unit
The first recommendation was to remove or relocate decorative items that limited air evacuation above the machine. An outdoor unit should not be used as a support for objects, plants, or decorations. Even when a wall mount seems sturdy, the top and sides of the device must remain clear to allow normal heat exchange.
We also checked the space around the side grille and air outlet to reduce the risk of recirculation. In a commercial environment like this, this step is essential because the device can run for long periods without pause.
Cleaning the outdoor coil
The coil was cleaned using a method suited for compact wall units. The goal was to remove dust and deposits without damaging the fins. Too aggressive cleaning can cause more harm than good, especially on an outdoor unit installed at height.
After cleaning, the grille breathed much better. The outdoor fan could move air more efficiently, which immediately improved the system’s performance during tests.
Replacing the weakened capacitor
The capacitor that tested weak was replaced with a part compatible with the device’s specifications. This fix stabilized startups and reduced electrical strain when the system was launched. After replacement, the operation of the fan and compressor was smoother.
Securing the lines and inspecting the support
We also reviewed the positioning of the refrigerant lines and visible wiring. Some sections were exposed and needed better protection. Worn insulation was repaired where necessary, and the fasteners were checked to prevent vibrations against the metal support.
The wall mount was also inspected. It was still functional, but the noticeable vibration partly came from the machine working harder when the heat exchange was poor. Once the coil was cleaned and the capacitor replaced, the vibration decreased.
Tests after repair
After the work, we restarted the Costway wall-mounted heat pump in cooling mode, then checked its behavior over several minutes. The outdoor airflow was stronger, the indoor blowing temperature stabilized, and the cycles became more consistent.
We monitored:
- the thermostat response;
- the starting stability;
- the operating noise;
- the blowing temperature;
- the heat evacuation outside;
- the presence of vibrations;
- the response of the outdoor fan;
- the overall consistency of the cycle.
The result was clear: the device operated with less effort and regained better cooling capacity. The client could once again maintain acceptable comfort in their commercial space without running the machine continuously at full demand.
What this HVAC repair in Outremont demonstrates
This intervention illustrates a common reality in urban wall-mounted heat pump installations: the machine does not always need to be replaced when it loses efficiency. Very often, the problem comes from its immediate environment, insufficient maintenance, or an electrical component beginning to weaken.
In Outremont as elsewhere in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we regularly see outdoor units installed in tight spaces: balconies, alleys, commercial facades, wall mounts, courtyards, or covered areas. These locations are convenient but require special attention.
Mistakes to avoid with a wall-mounted outdoor unit
Placing objects on or around the machine
An outdoor unit must remain unobstructed. Plants, decorations, boxes, panels, or makeshift covers can hinder air circulation. Even a partial blockage can lead to reduced performance.
Confusing lack of maintenance with lack of refrigerant
A device that cools less effectively does not necessarily have a leak. In this case, the readings mainly indicated a lack of air and a weakened starting component. Adding refrigerant without addressing these issues would have been ineffective.
Neglecting vibrations
An external vibration may seem minor, but it can reveal a weakened mount, a poorly secured line, an unbalanced fan, or a compressor operating under poor conditions.
Waiting for a complete breakdown
When the device is still working, it is often the best time to intervene. Preventive repair usually costs less than emergency replacement or a complete breakdown during peak season.
Why AirGreen takes a comprehensive approach
At AirGreen, we don’t just check if the machine starts. We analyze the entire system: indoor unit, outdoor unit, air circulation, electrical components, refrigerant lines, drainage, mechanical installation, and usage conditions. This approach allows us to make the right diagnosis and avoid unnecessary interventions.
In this case, the problem was not singular. It was a combination: dirty outdoor coil, insufficient clearance, weakened capacitor, vibrations on the mount, and partial protection of the lines to be redone. By correcting these elements in the right order, we restored the heat pump’s performance without a full replacement.
Final result for the client in Outremont
The client regained a more stable, quieter, and more efficient system. For a business, this result is important: an uncomfortable space directly affects the experience of customers and employees. A well-executed HVAC repair not only restores comfort but also reduces premature equipment wear.
We completed the intervention with clear recommendations: keep the outdoor unit clear, avoid placing any objects above the condenser, schedule regular coil maintenance, and have the electrical components checked before periods of heavy use.
This repair of a Costway wall-mounted heat pump in Outremont demonstrates the importance of an accurate diagnosis, especially when the outdoor unit is installed in a confined space. A compact machine can provide excellent service, but only if it breathes properly, its components are stable, and its installation is rigorously maintained.
