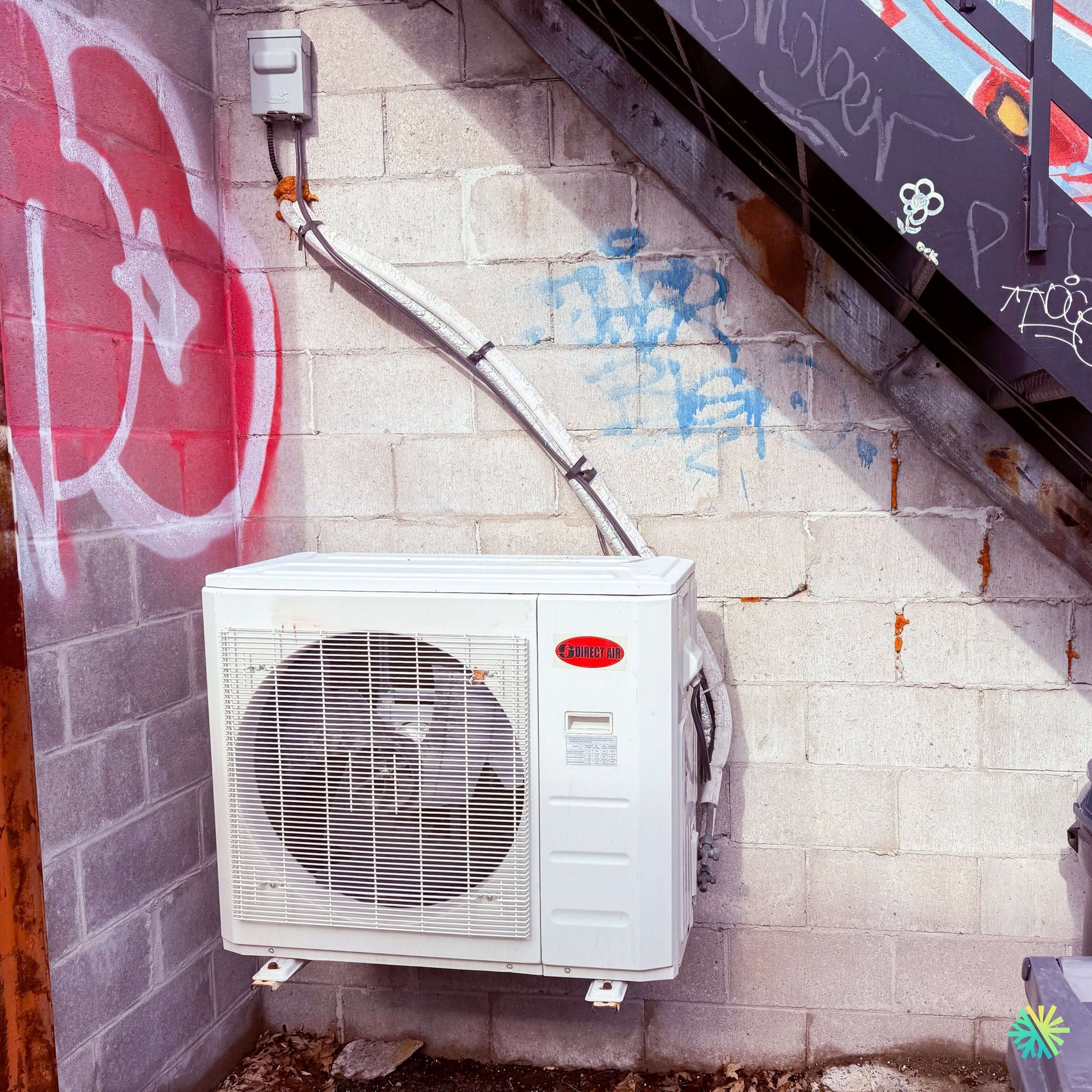

A wall-mounted heat pump installed under an outdoor staircase that was no longer delivering full performance
In Repentigny, our AirGreen team responded to a service call for a Direct Air wall-mounted heat pump installed in a demanding outdoor environment: a compressor fixed to the wall, under a metal stair structure, with refrigerant lines running up into the building. This type of installation is common in residential and semi-urban areas but requires special attention, especially when the outdoor unit is placed near a concrete block wall, in a partially shaded space exposed to moisture, dust, dead leaves, and structural vibrations.
The client contacted us because the wall-mounted heat pump no longer provided the usual comfort. The system started, the outdoor unit seemed to operate, but the air blown inside was less cold in cooling mode and less consistent in heating. The client also noticed that the cycles were longer than before and that the outdoor compressor made a louder noise at startup.
Visually, several elements immediately guided us towards a complete HVAC intervention: the outdoor unit Direct Air, a residential monosplit model, was installed on wall mounts, with relatively limited clearance around the condenser. The lines were protected by insulated sleeves, but some sections showed signs of external wear. The electrical disconnect box was accessible, but the environment under the stairs made inspection more delicate. In such a context, it is essential not to limit oneself to a quick check: a performance problem can come from lack of maintenance as much as from a weakened electrical component, reduced airflow, refrigerant loss, or vibration transmitted to the piping.
Symptoms observed by the client
Before our arrival, the client had noticed several typical signs of a wall-mounted heat pump losing efficiency. The system was not completely stopped, which made the situation more difficult to interpret. A total breakdown is often easier to diagnose; a partial failure requires more method.
The reported symptoms were as follows:
- insufficient cooling during hot periods;
- less stable heating when the outdoor temperature dropped;
- longer cycles to reach the thermostat setpoint;
- drier noise at startup of the outdoor unit;
- Feeling that the machine “works harder” than before;
- Variable performance depending on the time of day.
These signs can point to several causes. On a Direct Air wall-mounted heat pump, especially when it has several years of service, we systematically check the outdoor coil, fan, condenser, electrical connections, operating pressures, discharge temperature, filter condition, and communication between the indoor and outdoor units.
Description of the Direct Air equipment
The installation involved a Direct Air monosplit wall-mounted heat pump, consisting of a compact outdoor unit and an indoor wall head connected by insulated refrigerant lines. The observed capacity corresponded to a small to medium power residential unit, typically used for an open area, a dwelling, a condo, or a main house zone.
Even though the nameplate was not fully readable in the outdoor photo, the intervention was treated as a residential category Direct Air system, with checks adapted to a wall-mounted heat pump of about 12,000 to 18,000 BTU. In this type of service, we always verify exact data on site: electrical supply, refrigerant type, rated current, expected pressures, and component tolerances.
The outdoor unit was installed under a staircase, on a concrete block wall. This setup has some advantages, such as partial protection from direct sunlight, but it also carries risks:
More sensitive air circulation
The condenser must expel heat in cooling mode and capture external energy in heating mode. When the space around the unit is restricted, the system may recycle some of its own air, which reduces its efficiency.
Dirt accumulation
Under a staircase or near a wall, leaves, dust, urban debris, and soil particles can accumulate more easily around the coil.
Vibrations transmitted to the wall
A wall-mounted unit fixed on supports can transmit certain vibrations to the structure, especially if the supports, silent blocks, or fasteners become less effective over time.
Wear of pipe insulation
Insulation exposed to weather, friction, or UV rays can degrade, which harms system efficiency and can cause condensation.
HVAC diagnosis and restoration of the wall-mounted heat pump
Our intervention began with a complete inspection of the outdoor installation, followed by electrical and refrigeration tests. At AirGreen, we always proceed step by step, because a partially functioning wall-mounted heat pump should never be repaired randomly. Replacing a part without confirming the diagnosis can delay the real repair and unnecessarily increase costs.
Visual inspection and electrical safety
The first step was to secure the work area and check the power supply. The outdoor disconnect box, visible above the unit, was inspected to confirm the wiring condition, presence of corrosion, connection solidity, and access compliance.
On an outdoor installation, especially near a metal structure, electricity must be checked rigorously. Moisture, temperature variations, and vibrations can create less stable connections. We therefore checked:
- power supply voltage;
- continuity of the operation call;
- condition of the terminals;
- signs of overheating;
- quality of the connection to the disconnect switch;
- mechanical protection of cables.
No major safety anomalies were found, but some connections required preventive tightening. This type of adjustment is important because a slightly loose connection can cause intermittent symptoms that are difficult to reproduce.
Outdoor coil inspection
The outdoor coil showed an accumulation of dust and fine dirt. It was not a complete blockage, but enough to impair heat exchange. A wall-mounted heat pump heavily depends on the quality of airflow through its condenser. When the fins are dirty, the compressor has to work harder to produce the same result.
We performed a controlled cleaning of the coil, avoiding any excessive pressure that could bend the fins. Proper HVAC cleaning is not just about spraying the unit. It requires cleaning in the right direction, protecting electrical components, respecting the coil’s fragility, and then confirming that operating temperatures have improved.
After cleaning, the airflow through the outdoor unit was noticeably more uniform. The fan seemed less loaded and the system was breathing better.
Outdoor fan test
The outdoor fan was observed at startup and during continuous operation. The noise reported by the customer did not come from a broken blade, but rather from a less smooth start combined with a vibration transmitted through the wall structure.
We checked:
Blade balance
No major deformation was observed, but a slight accumulation of dirt could contribute to noise.
Mounts and fixings
The wall mounts were still in place, but some fixing points needed checking. A wall unit installed on concrete may seem solid, but repeated vibration over several seasons can amplify noise.
The fan motor
The motor was running, but we continued electrical tests to confirm that its start was properly assisted by the appropriate components.
Capacitor diagnosis
The capacitor is one of the parts most often responsible for hard start symptoms on an older wall-mounted heat pump. In this case, the capacitor measurement showed a weakened value, outside the ideal range. The system could still start but not with the same efficiency as originally.
A weak capacitor can cause:
- a noisier startup;
- less stable outdoor ventilation;
- motor overheating;
- a drop in performance;
- longer cycles;
- premature compressor wear.
We replaced the condenser with a compatible part, respecting the required values for the equipment. After replacement, the outdoor unit startup was smoother, quieter, and more stable.
Pressure and temperature control
Once the coil was cleaned and the condenser replaced, we proceeded with refrigerant measurements. This step must always be done after correcting ventilation and electrical problems. Otherwise, readings can be misleading.
We checked operating pressures, line temperature, indoor blowing temperature, and cycle stability. The results indicated that the refrigerant charge was consistent with the expected behavior after restoration. No refrigerant was added without proof of need.
This decision is important. In several service calls, the customer believes the system is "low on gas" because it cools less. However, the problem often comes from a dirty coil, a weakened fan, or an out-of-tolerance condenser. Adding refrigerant to a system that does not need it can harm performance and damage the compressor.
Inspection of refrigerant lines and insulation
The pipes visible on the wall showed functional protection but were exposed to the weather. We inspected the insulation to identify compressed, cracked, or poorly protected areas. Damaged insulation can cause a loss of efficiency, especially in air conditioning, as the cold line can absorb heat before reaching the indoor unit.
We recommended monitoring the condition of the duct and replacing sections of insulation that are too worn during the next maintenance if their condition continues to deteriorate. In an installation like this, under the stairs, it is also important to prevent the pipes from rubbing against metal or masonry. Repeated vibrations can, over time, cause micro-damage.
Indoor inspection of the wall head
Although the photo mainly shows the outdoor unit, a complete repair of a wall-mounted heat pump also requires checking the indoor unit. We therefore inspected the wall head associated with this Direct Air system.
The filters were inspected and cleaned as needed. We also checked the indoor fan, the blowing temperature, the response to controls, and the condensate drainage. A partially clogged drain can sometimes cause interruptions, odors, or moisture around the indoor unit. In this case, the drainage was functional, but periodic maintenance was recommended to prevent dust buildup in the condensate tray.
Result after repair
After the intervention, the Direct Air wall-mounted heat pump in Repentigny returned to much more stable operation. The customer noticed an improvement in the air blown and a reduction in startup noise. The cycles were more consistent, and the system reached the setpoint faster than before our visit.
The results obtained:
- more stable outdoor startup;
- better cooling performance;
- improved outdoor ventilation;
- condenser deeply cleaned;
- capacitor replaced;
- no unnecessary addition of refrigerant;
- reduced noise at startup;
- customer reassured about the general condition of the system.
This repair shows that an older wall-mounted heat pump can still provide good service when the diagnosis is accurate and the interventions are targeted. A complete replacement is not always necessary. In many cases, a technical cleaning, replacement of an electrical component, and a thorough check can extend the system's lifespan.
Mistakes to avoid with a Direct Air wall-mounted heat pump
An installation like this highlights several common mistakes we see during service calls in Repentigny, Montreal, Laval, Longueuil, on the North Shore and the South Shore.
Waiting for the system to completely fail
When the machine is still running, many clients delay calling for service. However, mild signs like noisy starts, reduced efficiency, or longer cycles can signal a more serious breakdown.
Neglecting outdoor cleaning
The outdoor coil must remain clear. Even if the unit looks clean from a distance, the fins can be clogged with fine particles. A dirty wall-mounted heat pump consumes more and performs less efficiently.
Automatically assuming a refrigerant leak
A drop in performance is not always related to the refrigerant. Measurements must be taken before adding anything. A well-diagnosed system avoids unnecessary repairs.
Ignoring vibrations
A compressor installed on a wall mount can transmit vibrations to the building. Worn fasteners, supports, or clamps can amplify noise and create discomfort for occupants.
Letting the pipe insulation deteriorate
The insulation of refrigerant lines is essential. When it cracks or detaches, efficiency decreases. A single damaged section of insulation can cause part of the system’s performance to be lost.
AirGreen, specialist in residential HVAC repair
At AirGreen, we work on wall-mounted heat pumps from several brands, including Direct Air, throughout the greater metropolitan area. Every service call is treated as a full diagnosis, not just a simple part replacement visit. We analyze the environment, installation, electricity, ventilation, refrigerant, drainage, and the actual symptoms experienced by the client.
This repair in Repentigny illustrates our way of working: understanding the context, measuring the components, cleaning what reduces efficiency, replacing only what needs to be replaced, and clearly explaining the system’s condition to the client.
Whether in Montreal, Laval, Longueuil, on the North Shore or the South Shore, a well-maintained wall-mounted heat pump can provide many additional years of comfort. The most important thing is to act at the right time, before small signs turn into a major breakdown.
