A Direct Air wall-mounted heat pump under a balcony: when the outdoor environment becomes the main cause of performance loss
In Sainte-Thérèse, on the North Shore, our AirGreen team was called for a Direct Air wall-mounted heat pump repair installed under a wooden balcony structure, near a brick wall and a vegetated area. The customer had contacted us because their system was no longer performing as before: the air conditioning seemed less effective during hot days, the outdoor unit became noisier at times, and some cycles seemed abnormally long before reaching the requested indoor temperature.

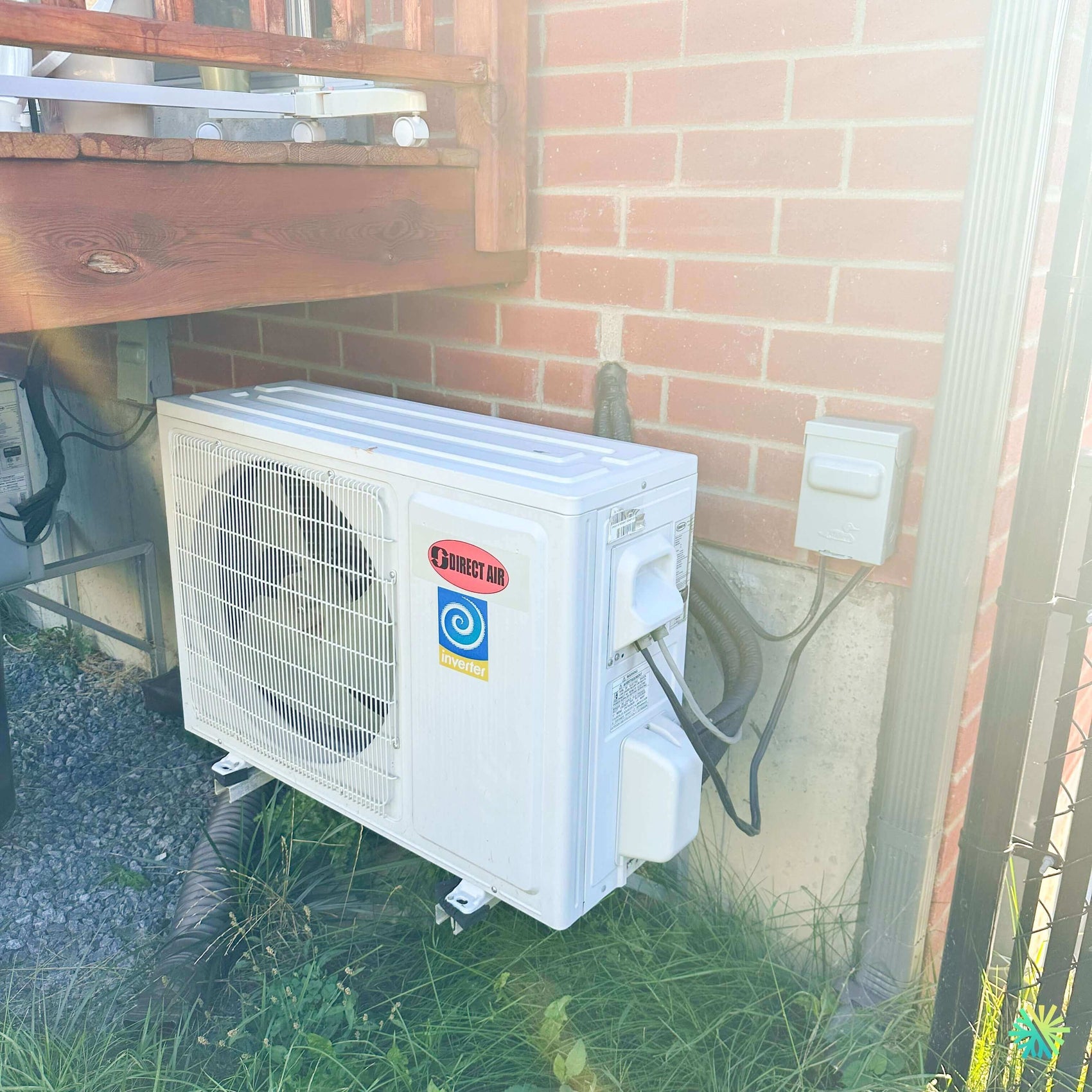

Upon our arrival, several visual clues guided our diagnosis. The outdoor Direct Air Inverter unit was installed on wall mounts, under a balcony, with close proximity between the machine, the brick wall, ground vegetation, the downspout, the electrical disconnect box, and the refrigerant line passage. This setup is not uncommon in residential areas of Sainte-Thérèse, Boisbriand, Blainville, or elsewhere on the North Shore, but it requires special attention: a wall-mounted heat pump needs good air clearance to operate properly.
The observed machine was a Direct Air wall-mounted mini-split heat pump, equipped with Inverter technology, likely with a residential capacity of about 12,000 to 18,000 BTU, depending on the connected indoor unit and the house configuration. The exact model was not necessarily visible on the outdoor unit, but the format and installation correspond to a wall system designed to heat and cool a main area of the residence.
Symptoms reported by the customer
The client did not report a complete breakdown, but rather a gradual decline in comfort. This detail is important because the most costly HVAC failures often start with subtle signs. In this case, the symptoms were as follows:
- the indoor temperature dropped more slowly in cooling mode;
- the outdoor unit seemed to run longer than before;
- the outdoor fan produced a slightly irregular noise;
- the system sometimes seemed to lack power on hot days;
- the client had noticed an accumulation of vegetation and dust around the device;
- the efficiency seemed less stable than after the initial installation.
These symptoms can have several causes: lack of refrigerant, clogged outdoor coil, weakened outdoor fan, unstable electronic board, inaccurate temperature sensor, dirty indoor filter, poor condensate drainage, or air restriction around the outdoor unit. At AirGreen, we never jump to automatic conclusions. We proceed step by step to identify the real cause before recommending a repair.
An outdoor environment that limited the machine’s breathing
The first notable element was the location of the outdoor unit. Installed under a balcony, the Direct Air heat pump was partially protected from direct sunlight and weather, which can be an advantage. However, this protection can also create a constraint when the hot air expelled by the device remains trapped under the structure or circulates poorly around the condenser.
A wall-mounted heat pump must expel heat outside in cooling mode. If the hot air is not properly evacuated, the machine operates in an environment warmer than the actual ambient temperature. This leads to increased pressure, reduced efficiency, longer cycles, and sometimes protective shutdowns. In heating mode, the same principle applies in reverse: the unit must be able to capture energy from the outside air without obstruction.
In this service call in Sainte-Thérèse, the vegetation around the base of the unit, the proximity of the balcony, and the accumulation of debris near the coil could hinder air circulation. Our technician therefore assessed the clearances, the direction of airflow, the condition of the outdoor coil, and the presence of obstacles around the fan.
Inspection of the outdoor coil and fan
The outdoor grille of the Direct Air unit showed a visible buildup of fine dust, pollen, and plant debris. This type of deposit is common when the device is installed near the ground, in an area where grass and plants grow around the base. Even if the machine appeared clean at first glance, the coil could be partially clogged deep inside.
We carefully inspected the heat exchanger. On a wall-mounted Inverter heat pump, performance strongly depends on the quality of heat exchange. A dirty coil can mimic a refrigerant shortage, while the problem is simply an air restriction. Before connecting gauges or suspecting a leak, always check if the unit is breathing properly.
The outdoor fan was also checked. We observed its rotation, noise, stability, and absence of friction. A fan that runs but spins in a blocked environment can generate louder noise and give the impression of a worn-out motor. In this case, the motor showed no obvious signs of failure, but dirt buildup and the environment limited its efficiency.
Electrical check and inspection of the disconnection box
The outdoor unit was connected to a wall-mounted disconnection box, visible nearby. We secured the installation and checked the condition of the electrical connections. On Inverter systems, electrical variations and weakened connections can cause intermittent shutdowns, communication errors between the indoor and outdoor units, or compressor instability.
Our inspection included:
- power supply voltage;
- condition of the outdoor wiring;
- disconnection connections;
- communication terminals;
- visual condition of the outdoor electronic board;
- presence of moisture or corrosion;
- tightening of accessible connections.
No major electrical anomalies were detected, but some connections were tightened as a precaution. In an HVAC repair, these small adjustments are essential: a slightly loose connection may not cause an immediate failure, but it can cause intermittent symptoms that are difficult to reproduce.
Inspection of refrigerant lines and insulation condition
The refrigerant lines ran along the wall and connected to the outdoor unit under the balcony. We checked the insulation condition, presence of oil traces, stability of connections, and the general condition of the routing. A refrigerant leak often leaves clues: oily deposits, unusually dirty connections, persistent loss of efficiency, abnormal frost, or inconsistent pressures.
In this case, we did not identify clear signs of an active leak. The system’s behavior pointed more to a loss of efficiency caused by coil dirt buildup and ventilation conditions around the unit. This distinction saved the client from an unnecessary intervention on the refrigeration circuit.
Targeted cleaning and obstruction correction
After the diagnosis, we cleaned the outdoor unit. The coil was carefully cleaned to remove deposits without damaging the fins. Debris around the base was cleared, and we recommended keeping vegetation away from the unit. In a space like this, maintaining the perimeter of the unit is as important as maintaining the machine itself.
We also inspected the wall mounting. The supports were stable, but the environment under the balcony can amplify certain vibrations. The mounting points were checked, and accessible panels were tightened as needed to reduce unwanted noise.
Operation tests after intervention
Once cleaning and checks were completed, we restarted the heat pump and observed a full cycle. The goal was to confirm that the outdoor unit was better at releasing heat, that the fan operated regularly, that the Inverter compressor modulated correctly, and that the indoor temperature responded better to demand.
After the intervention, the Direct Air system operated more steadily. The outdoor noise was more consistent, the cycles seemed more coherent, and the temperature blown inside gradually improved. The client was reassured: no major parts needed replacement at this stage. The performance had mainly been affected by a combination of dirt buildup, vegetation too close, and limited air circulation under the balcony structure.
What this repair in Sainte-Thérèse reveals about maintaining a wall-mounted heat pump
A wall-mounted heat pump can lose a lot of efficiency without showing an error code. This is precisely what makes some service calls more complex. The system works, but it’s working too hard. The client feels less comfort, the electricity bill may increase, and component wear accelerates.
An installation under a balcony requires more rigorous monitoring
Installing an outdoor unit under a balcony can be acceptable when clearances are sufficient and air circulates well. However, this type of location requires more vigilance. Wood, walls, closed corners, plants, fences, and downspouts can all affect performance.
In this case, the Direct Air machine was installed in a relatively protected space, but also more prone to accumulating heat, dust, and debris. We explained to the client that periodic cleaning and constant clearance around the unit are necessary to maintain performance.
Why you shouldn’t jump to the conclusion of low refrigerant too quickly
When a heat pump cools less effectively, many owners immediately think of a refrigerant leak. However, a dirty coil or poor ventilation can produce very similar symptoms. Adding refrigerant without a full diagnosis can create an even bigger problem, especially on an Inverter system.
At AirGreen, we first check the basics: indoor filters, coils, airflow, power supply, cleanliness, clearances, and compressor behavior. Only then do we assess the refrigerant circuit more thoroughly if the signs warrant it.
Mistakes to avoid around an outdoor wall unit
To extend the lifespan of a Direct Air wall-mounted heat pump, certain mistakes must be avoided:
Letting grass and plants grow around the unit
Vegetation can reduce air circulation, attract debris into the coil, and retain moisture around the machine.
Storing objects under the balcony near the unit
Bins, tools, garden furniture, and materials can block airflow and cause the unit to overheat in summer.
Cleaning with too much pressure
A jet that is too powerful can bend the coil fins. Cleaning must be done methodically and with the right tools.
Ignoring a noise change
A different noise can indicate vibration, air restriction, a loose panel, or fan fatigue.
Delaying maintenance until complete failure
A preventive service call often costs much less than a major repair caused by repeated compressor overheating.
An HVAC service adapted to the realities of the North Shore
This service in Sainte-Thérèse accurately reflects the realities on the ground in Greater Montreal. Each area has its constraints: semi-detached houses, narrow yards, balconies, fences, brick walls, exterior cladding, limited access, and installations sometimes exposed to vegetation. We adapt our diagnosis to each context, whether in Montreal, Laval, Longueuil, on the North Shore, or on the South Shore.
Repairing a wall-mounted heat pump is not limited to inspecting the outdoor unit. It requires understanding the entire system: the indoor unit, drainage, communication, refrigerant circuit, clearances, electrical supply, and the client’s actual usage. This comprehensive approach ensures a lasting repair.
Final result: comfort restored and system better protected
At the end of the service call, the Direct Air wall-mounted heat pump was operating more steadily. The client received a clear explanation of the problem, practical recommendations, and a tangible improvement in performance. The system did not need a major replacement: it needed an accurate diagnosis, professional cleaning, and a better-cleared environment.
AirGreen provides repair services for wall-mounted heat pumps, HVAC service calls, air conditioning diagnostics, heating issues, performance losses, abnormal noises, condensate problems, communication errors, and Inverter systems throughout Greater Montreal. This service in Sainte-Thérèse shows that a successful repair relies as much on technical expertise as on understanding the actual installation.
