When a wall-mounted heat pump starts to "run out of steam," it's not just a matter of comfort: it's often the first sign of a mechanical, electrical, or refrigeration problem that can quickly worsen. Recently, we were called out to Sainte-Rose (Laval) to repair an Elios wall-mounted heat pump (compact outdoor unit, residential installation on a raised support, refrigerant lines protected by a casing).
In this article, we show you how we diagnosed the fault , what repairs were carried out and how we validated the result, all in a clear and concrete approach – exactly as we do in the field at AirGreen.
The context: an Elios wall-mounted heater that was no longer heating as well as before
The client contacted us because the system:
-
it heated less efficiently , especially during colder periods;
-
seemed to take longer to reach the desired temperature;
-
sometimes gave the impression of "starting/stopping" irregularly.
On a wall-mounted heat pump, these kinds of symptoms can stem from several causes (sensors, communication issues, restrictions, ventilation problems, fouling… or lack of refrigerant ). Our role: not to guess , but to measure and confirm.

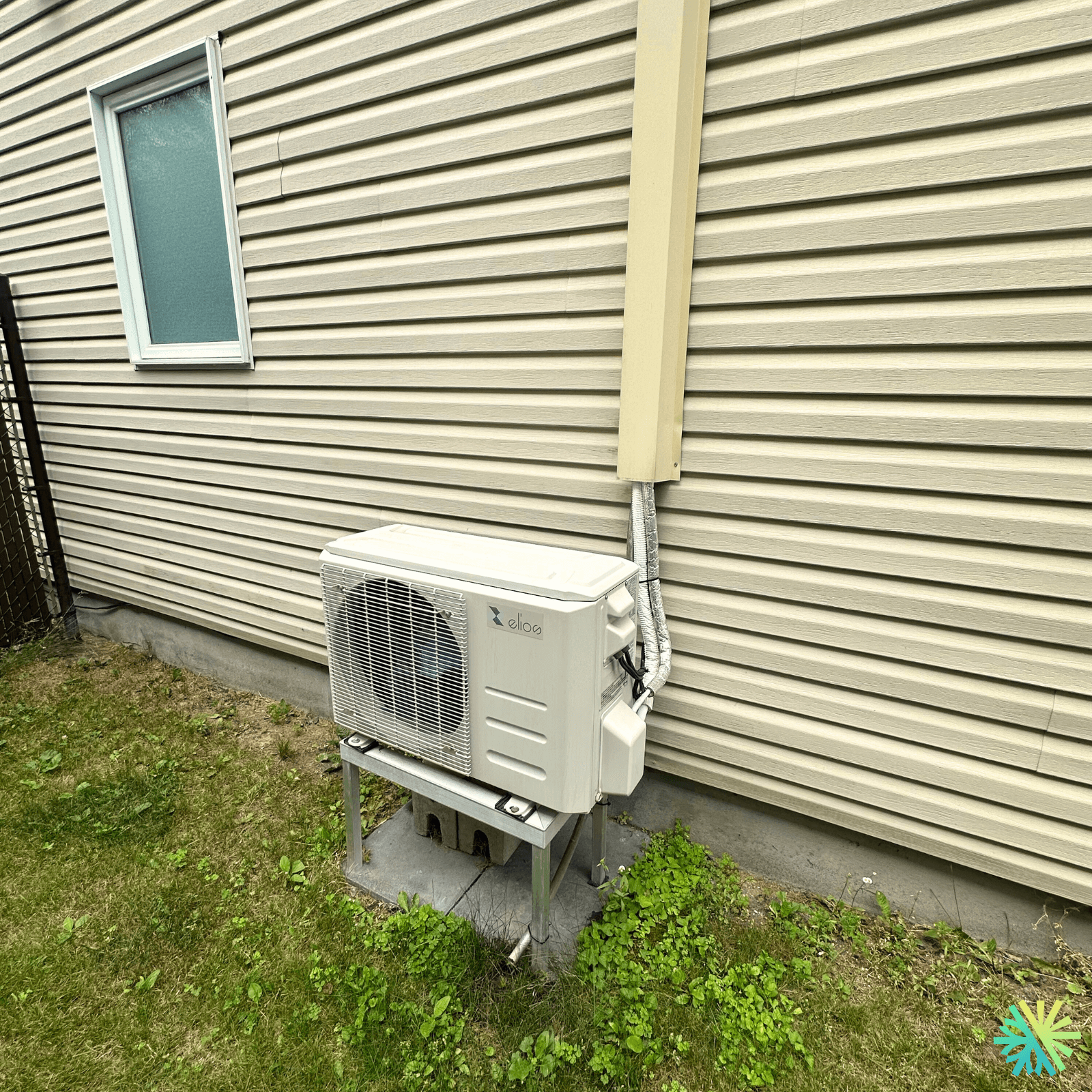

What the photo reveals: important installation details
Even before touching the system, certain visible elements indicate a typical and logical installation context :
-
Elios outdoor unit installed on a raised metal support (good practice to reduce exposure to snow, leaves, and limit humidity at the bottom of the unit).
-
Base placed on slabs , with stabilizing block under the support: we always check the level and rigidity to avoid vibrations and stresses on the joints.
-
Refrigerant lines are insulated and protected by a vertical chute (covering), which limits UV and mechanical damage.
-
Visible electrical connection on the unit side: we systematically inspect the tightness, sheathing, protection and general condition.
These details matter: an elevated and well-dressed installation often protects the equipment… but the fittings (flanges/tightenings) remain areas where a micro-leak can appear over time (vibrations, hot/cold cycles, expansion).
AirGreen Diagnosis: Step-by-step method (no assumptions)
On site, we followed our diagnostic protocol for wall-mounted heat pumps:
1) Functionality check and symptom reading
-
Test in heating then in air conditioning (depending on conditions).
-
Observation of the behavior of the outdoor fan, the inverter compressor, and the cycles.
2) Electrical controls and communication
-
Inspection of connections (power + communication).
-
Basic steps to confirm that the unit is correctly receiving its signals and power.
3) Refrigeration checks (pressures, temperatures, consistency)
-
Readings of parameters to validate if the system is within its normal range.
-
Search for inconsistencies typical of an insufficient load : low efficiency, abnormal cycle time, less efficient heat exchange.
4) Targeted leak detection
In this case, the signs pointed to a problem with the refrigeration circuit. We therefore carried out a thorough inspection of the connections near the outdoor unit (the area most exposed to micro-movements).
Result: micro-leak at a fitting (flare type), small enough not to "break down completely", but large enough to cause the performance to drop over time.
The repair: fixing the connection, leak testing, and putting it back into service.
Once the origin was confirmed, we proceeded with a complete and clean repair:
-
Correction of the faulty connection
-
Disassembly, inspection of the scope, correction/adjustment according to the observed condition.
-
Reinstallation with a methodical approach (alignment, controlled tightening, prevention of stresses).
-
-
Pressure leak test (nitrogen)
-
Pressurization and monitoring to confirm that there is no further loss.
-
-
Vacuuming
-
Rigorous vacuuming to eliminate moisture and contaminants (essential for reliability and performance).
-
-
Recharging / adjustment
-
The system is brought back to a suitable load, then validated by measurements in operation.
-
-
Final checks
-
Complete test in heating/cooling mode.
-
Airflow control, operational stability, and normal behavior of the outdoor unit.
-
Result: restored comfort, normalized cycles, renewed confidence
After the intervention, the Elios heat pump:
-
has returned to normal performance (more pronounced heating, faster temperature rise);
-
operates stably , without irregular behavior;
-
allows the customer to feel confident, with a documented and verified repair.
This is exactly the kind of situation where a "we'll see later" approach is costly: an untreated micro-leak can lead to progressive degradation, over-stressing of the compressor, and possibly a more serious breakdown.
Why this type of problem occurs (and how to avoid it)
Even with a good installation, certain factors can cause a micro-leak over time:
-
thermal cycles (expansion/contraction);
-
vibrations if the support moves slightly or if the device is no longer perfectly stable;
-
constraints on refrigeration lines (tension, torsion, alignment).
Good practice : if you notice a drop in performance, abnormal cycles, or inconsistent comfort, it's best to get a diagnosis early. A simple repair today can prevent a major replacement tomorrow.
AirGreen in Laval and throughout Greater Montreal
At AirGreen, we service wall-mounted heat pumps like this Elios every week, whether it's for:
-
performance diagnosis,
-
leak repair,
-
maintenance and cleaning,
-
electrical/electronic repair
-
Complete recommissioning with testing.
Our goal remains the same: to repair properly, measure, validate, and leave you with a reliable system .
