In Sainte-Rose, in northern Laval, our AirGreen team was called for a common problem with older mini-split type wall-mounted heat pumps: the outdoor unit was starting irregularly, the cooling performance had become weak, and the client noticed that the house took much longer to cool down than before. The unit in question was an Excel wall-mounted heat pump, installed outside on wall mounts, just under a wooden balcony structure.
This type of installation is very common in homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore. The outdoor unit is placed on a foundation or brick wall, the refrigerant lines run directly inside, and the electrical supply is connected to an outdoor disconnect switch located nearby. In the photo, we clearly see the Excel unit mounted on the wall, its front fan, the insulated lines running up toward the building, as well as the outdoor electrical box. These elements already give us several important clues for the diagnosis.
The unit was not completely out of service. This is precisely what made the call interesting: a heat pump that still works but no longer performs well can hide several possible causes. A drop in efficiency can come from a dirty condenser, a weakened outdoor fan, an unstable electrical connection, restricted airflow around the unit, a refrigerant shortage, a faulty sensor, or simply maintenance that has been postponed for too long. In this case, our job was to isolate the real cause before proposing a lasting repair.
An outdoor unit exposed to several constraints

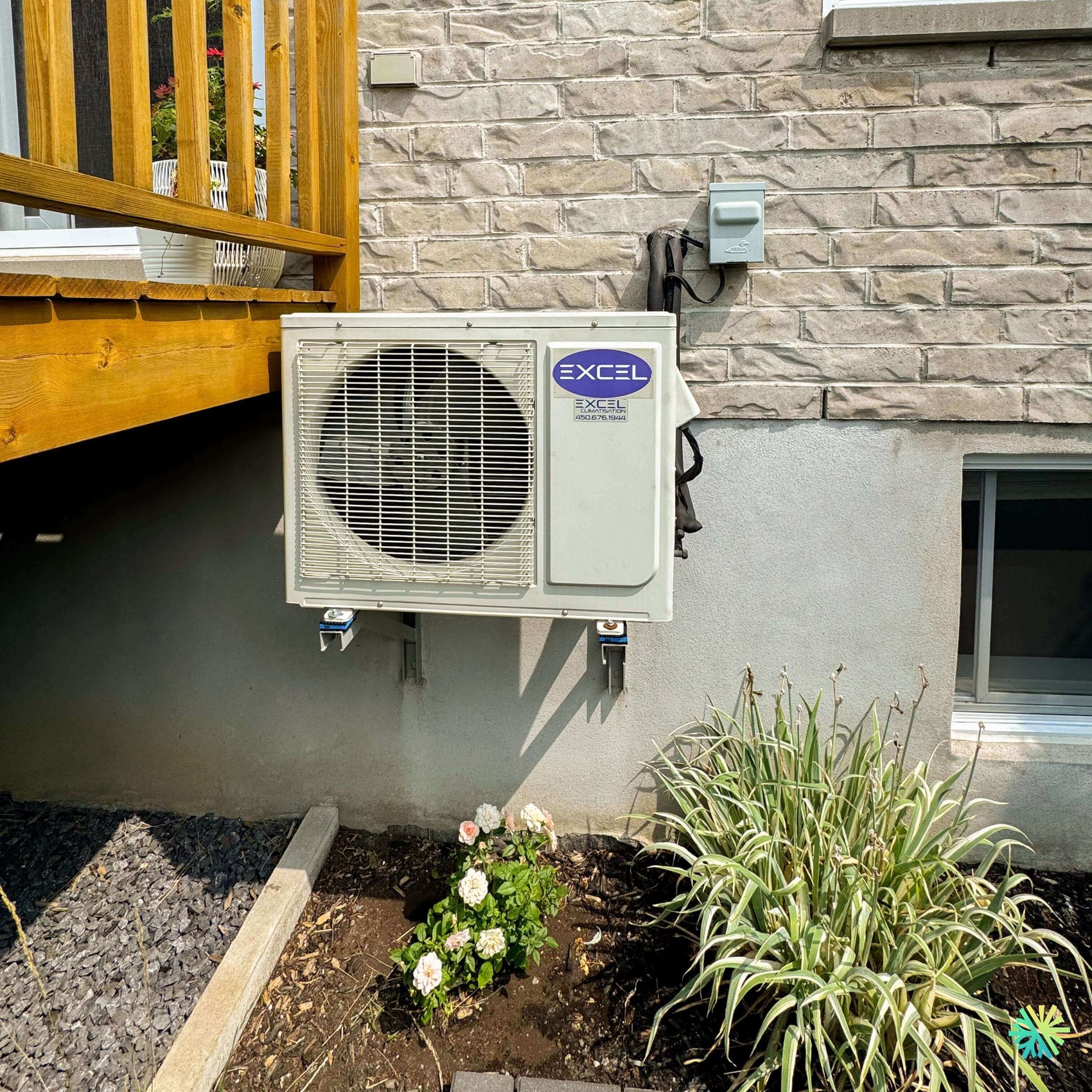

The Excel outdoor unit was installed at a low height, on wall mounts, in a landscaped backyard. This setup has several advantages: the unit is accessible, it does not rest directly on the ground, and it remains relatively protected against water accumulation. However, its location under a balcony also imposes certain constraints.
An outdoor condenser needs good airflow to reject heat in cooling mode and capture outdoor energy in heating mode. When installed near a structure, wall, vegetation, landscaping, or obstacle, it is necessary to check if air circulates freely. In this intervention in Sainte-Rose, we paid particular attention to the space around the fan, lateral clearance, presence of plants nearby, and the condition of the outdoor coil.
Aging outdoor units are often more sensitive to these stresses. A new device can sometimes tolerate a slight dust buildup without the customer immediately noticing a difference. An older device, however, loses efficiency more quickly when the coil is dirty, when the pipe insulation is damaged, or when electrical connections begin to show signs of fatigue.
Symptoms reported by the customer
The customer described a typical situation of a wall-mounted heat pump weakening over time. The indoor unit was still blowing, but the air produced was not as cold as before. At times, the outdoor unit seemed hesitant to start, and the fan did not always seem to run with the same stability.
The main symptoms were as follows:
- slower cooling inside the house;
- outdoor unit noisier at times;
- intermittent operation;
- impression that the compressor was not always working properly;
- outdoor fan to check;
- reduced performance during hot days;
- concern about the general condition of the Excel unit.
For a customer, these symptoms may seem to point directly to a major breakdown. In reality, a well-done HVAC repair always starts with a thorough check. Replacing a machine without diagnosis can be unnecessarily expensive. Conversely, ignoring an electrical or refrigeration problem can further damage the device.
Visual inspection: several important clues
Our technician started with the exterior inspection. The unit's facade showed a protective grille in generally good condition, but the device had clearly been exposed to the seasons. The condenser was installed near a masonry wall, with refrigerant lines running inside. The insulation around the pipes showed typical signs of wear: sun aging, exposure to temperature variations, and possible degradation of some sections.
This insulation is more important than it seems. On a wall-mounted heat pump, refrigerant lines carry energy between the indoor and outdoor units. Damaged insulation can reduce efficiency, promote condensation, and accelerate material wear. It doesn’t always cause immediate failure, but it is one of the points to fix when aiming to improve performance and extend the installation’s lifespan.
We also inspected the outdoor electrical box. The disconnect switch must be properly closed, secure, stable, and protected from water. A loose connection can cause intermittent outages, unstable starts, or inadequate voltage. On an older unit, this check is essential.
Electrical diagnosis of the Excel unit
The first technical part of the intervention focused on electrical power. A wall-mounted heat pump depends on stable voltage to allow the compressor, fan, and control board to operate properly. Even slight instability can create symptoms resembling a refrigerant failure.
We checked:
- condition of the outdoor disconnect switch;
- available voltage;
- visible electrical connections;
- signs of overheating;
- the condition of the power wires;
- the unit’s response during a cooling request;
- communication between the indoor and outdoor units.
This step allowed us to rule out a complete power failure. The unit was receiving power, but some elements needed tightening and securing. In many service calls, especially on long-installed units, simple loose connections can harm operational stability.
Outdoor fan inspection
The outdoor fan is an essential component. In cooling mode, it allows the condenser to release heat outside. If it spins slowly, struggles, vibrates, or stops intermittently, system pressure can rise and performance drops quickly.
On this Excel heat pump, we checked the fan rotation, motor noise, presence of obstacles, grille condition, and vibrations. The fan was not blocked, but the coil dirt and the age of the unit contributed to less smooth operation. The motor had to work under less favorable conditions, especially during hot periods.
Cleaning the condenser therefore became a priority step before concluding a motor failure.
Condenser cleaning and airflow improvement
The outdoor coil accumulates dust, pollen, plant fibers, fine leaves, and windborne particles over time. Since the device was installed near landscaping, it was exposed to this type of dirt. Even if the front grille seemed relatively clear, the inside of the coil could have enough restriction to reduce performance.
We carried out appropriate cleaning of the outdoor unit. The goal was to clear the fins without damaging them, improve airflow, and reduce the system’s working pressure. This operation is especially important on an older Excel wall-mounted heat pump, as any air restriction directly affects cooling capacity.
After cleaning, the fan could better evacuate heat. Operation became more stable and the noise from the outdoor unit slightly decreased, a sign that the system was breathing better.
A restart that combines diagnosis, correction, and prevention
The repair was not limited to restarting the device. Our goal was to make the system more reliable and explain to the client what should be monitored in the coming months. A wall-mounted heat pump installed outdoors, exposed to sun, rain, snow, frost, and debris, requires regular monitoring.
Refrigeration check: pressure, temperature, and performance
After the electrical check and condenser cleaning, we checked the system’s refrigeration behavior. Without a complete reading, it is impossible to know if a drop in performance is due to a lack of refrigerant, poor air exchange, or a malfunctioning component.
We checked the operating temperatures, the temperature difference produced by the indoor unit, and possible signs of a low charge. A refrigerant leak can manifest as weak cooling, ice formation, a struggling compressor, or irregular performance. In this case, cleaning and correcting electrical points improved operation, but we also recommended monitoring performance over time to quickly detect any signs of future leaks.
On older Excel devices, it is especially important not to add refrigerant without a diagnosis. If there is a leak, its origin must be understood. Adding gas without fixing the cause does not solve the problem and can lead to repeated service calls.
Correction of pipe insulation
The refrigerant lines visible behind the unit showed aging insulation. We recommended repairing or replacing damaged insulation sections. This intervention helps reduce heat loss, limit condensation, and protect pipes from direct exposure to the elements.
This is a detail often overlooked but very important. A good outdoor installation is not just about a unit firmly fixed to the wall. Pipes, wiring, drainage, and mechanical protection must also remain in good condition.
Wall mount and stability check
The Excel unit was installed on wall mounts. We checked their stability, anchor points, and absence of excessive vibrations. An outdoor unit that vibrates can transmit noise into the structure, especially when mounted near a balcony or an occupied wall.
In this case, the mounts still held the unit well, but inspection was necessary. When a client mentions a louder noise than before, you shouldn’t only look at the motor. You also need to check the mounts, screws, panels, clamps, and anything that can amplify vibrations.
Result of the intervention
After inspections and corrections, the Excel wall-mounted heat pump returned to more stable operation. The outdoor unit started better, the fan worked under better conditions, the coil was clearer, and cooling performance improved. The client also received clear explanations about the unit’s condition, the corrected elements, and points to monitor.
The main result: better indoor comfort without immediate replacement of the machine. This is often the best solution when a unit can still be reasonably and safely repaired.
Mistakes to avoid with an outdoor wall-mounted heat pump
During our service calls in Sainte-Rose, Laval, Montreal, Longueuil, on the North Shore and the South Shore, we often see the same mistakes around outdoor units.
Letting plants grow too close to the unit
Plants, flowers, shrubs, and leaves may seem harmless, but they can sometimes reduce airflow around the condenser. A heat pump needs to breathe freely.
Forgetting to clean the coil
A dirty coil forces the unit to work harder, increases energy consumption, and reduces comfort. Regular maintenance helps prevent many problems.
Ignoring pipe insulation
Cracked or missing insulation around refrigerant lines reduces efficiency and exposes the system to damage.
Relying solely on the fact that the fan is running
A fan running does not mean the unit is working well. Temperatures, airflow, pressures, and electrical stability must be checked.
Delaying a service call despite intermittent symptoms
Intermittent breakdowns are often the most important to diagnose early. They can indicate a weakened connection, a fragile electronic board, a worn motor, or a worsening restriction.
Why AirGreen acts differently
At AirGreen, we know that a wall-mounted heat pump repair should not be rushed in a few minutes. An outdoor unit like this Excel model requires a thorough assessment: installation, environment, electricity, ventilation, refrigeration, drainage, and mechanical condition. This approach allows us to distinguish a real breakdown from a maintenance issue and avoid unnecessary expenses for the client.
Our experience in HVAC service in Greater Montreal allows us to work on various brands, including older or less common units. Whether the equipment is installed in Sainte-Rose, Montreal, Longueuil, on the North Shore, or on the South Shore, our priority remains the same: identify the cause, clearly explain the situation, and apply a professional solution.
A useful service call to extend the lifespan of the device
This service on a Excel wall-mounted heat pump in Sainte-Rose shows that a drop in performance does not always mean immediate replacement. In this case, the diagnosis identified weak points: external dirt buildup, reduced air circulation, electrical components to check, aging pipe insulation, and general operation needing adjustment.
The client regained more efficient air conditioning and greater peace of mind. They now know which signs to watch for: reduced cooling, unusual noise, intermittent shutdown, ice formation, electrical smell, vibration, or abnormal condensation around the pipes.
A well-maintained wall-mounted heat pump can continue to provide good performance for many years. But to achieve this, action must be taken before the breakdown becomes complete. This is exactly the role of a well-executed HVAC service call: to restore comfort, prevent damage, and help the owner make an informed decision about the future of their system.
