A FONKO wall-mounted heat pump that still worked… but no longer performed as before

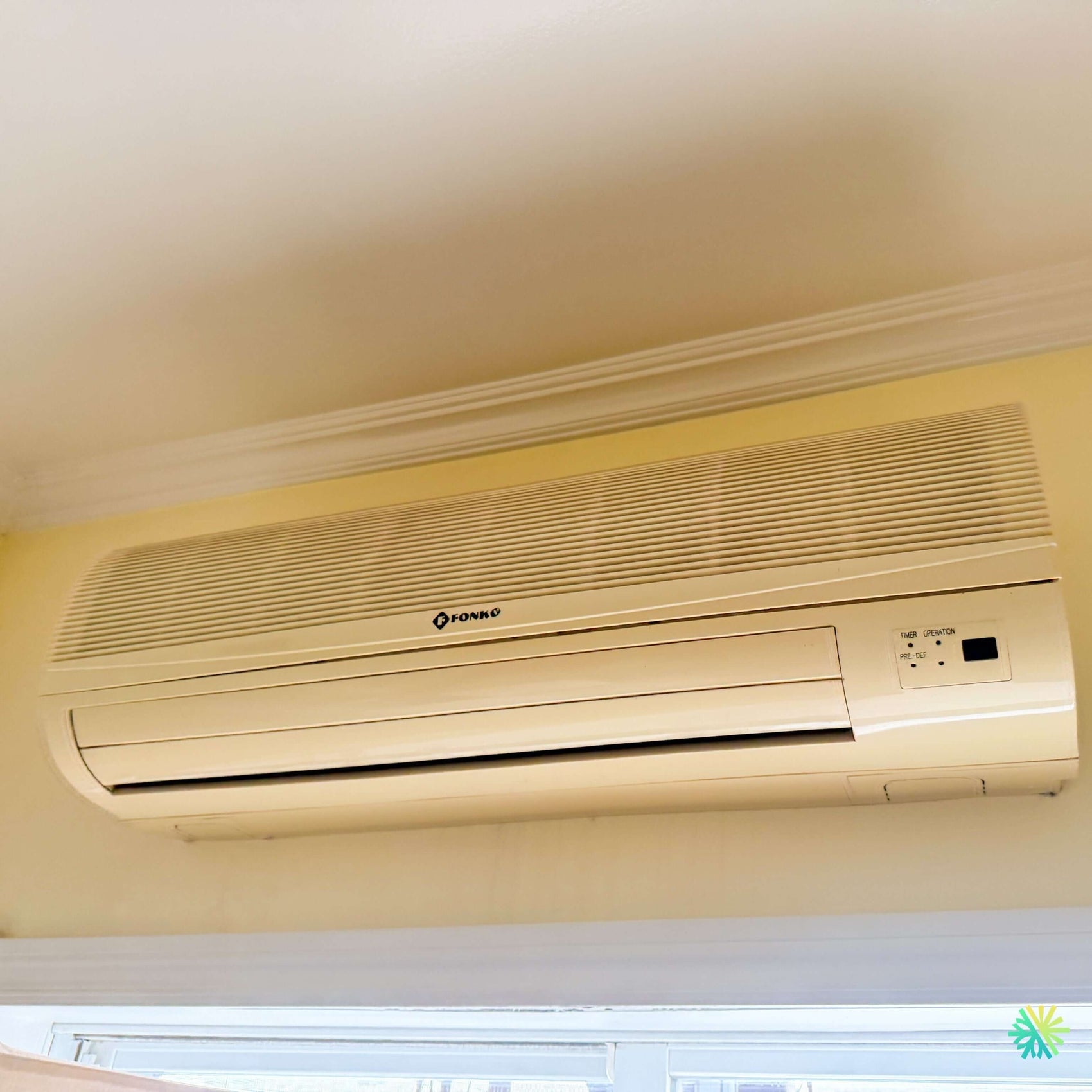

In Beaconsfield, in a residence located near the west sector of Montreal Island, our AirGreen team was called for a service call on a FONKO wall-mounted heat pump installed above a window. The indoor unit, a wall-mounted mini-split type, showed typical signs of an older device: slightly yellowed casing from years, upper grille heavily exposed to ambient dust, less smooth diffusion louvers, and performance that had become irregular.
The client contacted us because the device still seemed to start but no longer provided the expected comfort. The problem was not a total breakdown, which made diagnosis more delicate. The wall-mounted heat pump was blowing air, but the airflow seemed low, the output temperature varied, and after a prolonged operating period, a slight moisture buildup was visible near the bottom of the unit. In this kind of situation, many owners hesitate to call an HVAC specialist because the device "still works." Yet, it is precisely at this stage that a well-done intervention can prevent a more costly breakdown.
The machine in question was a FONKO wall-mounted heat pump of residential size, estimated around 12,000 BTU, mainly used for air conditioning in summer and as auxiliary heating during intermediate seasons. The exact model was not clearly readable on the front, but the configuration, size, and connections matched a compact wall unit of an older generation, still present in many homes in Beaconsfield, Montreal, Laval, Longueuil, the North Shore, and the South Shore.
Symptoms observed before our intervention
During our initial exchange with the client, several symptoms were mentioned:
- Lower airflow than before, even when the ventilation was set to a high speed.
- Less effective cooling, with a room taking much longer to reach the requested temperature.
- Light noise at startup, especially around the indoor turbine.
- Suspected condensation near the lower part of the unit.
- Intermittent operation, with cycles that seemed less stable.
- Less responsive air vent, giving the impression that the air was poorly distributed.
These symptoms can come from several causes: dirty filter, clogged evaporator, dirty turbine, partially blocked drain, inaccurate temperature sensor, refrigerant shortage, electronic board problem, or poor condensate drainage. Our role is not to jump to conclusions too quickly. A wall-mounted heat pump may seem weak for a simple reason, but it can also hide a more serious progressive failure.
A methodical HVAC diagnosis, step by step
Upon our arrival in Beaconsfield, we began with a complete visual inspection of the FONKO indoor unit. Since the unit is installed quite high, near the ceiling and above an opening, special attention had to be paid to how the air was drawn in from the top and redistributed into the room.
The upper grille showed a significant accumulation of dust. This detail is often underestimated. On a wall-mounted heat pump, room air is drawn in from the top, passes through the filters, crosses the evaporator, then is redistributed through the lower vent. When the upper grille, filters, and turbine are clogged, the system can still operate, but it works harder to produce a lesser result.
We then checked:
The condition of the filters and evaporator
The filters were heavily loaded with fine dust. The evaporator also had a layer of dirt that limited heat transfer. This means that air passed less effectively through the fins, reducing the unit’s ability to cool efficiently.
A dirty evaporator can cause several cascading problems: reduced performance, longer cycles, excessive condensation formation, odors, increased electricity consumption, and unnecessary stress on the outdoor compressor.
The indoor turbine
The ventilation turbine was unevenly dirty. This buildup can cause imbalance, create noise at startup, and significantly reduce the volume of air blown. In the case of this FONKO wall-mounted heat pump, the turbine showed no visible cracks, but its condition clearly explained part of the airflow problem.
The condensate drain
The drain was partially clogged. The water was draining, but too slowly. This kind of situation often causes intermittent moisture marks: the water doesn’t always overflow, but on more humid days or when the unit runs in air conditioning mode for a long time, the condensate tray fills up faster than it empties.
We performed a flow test to confirm the diagnosis. The water was flowing, but with abnormal resistance. A partial obstruction in a wall heat pump drain can be caused by dust, biological deposits, insufficient slope, or a combination of these factors.
The temperature sensor response
We also validated the device’s response to setpoint changes. The sensor seemed functional, but the reading was influenced by poor air circulation around the unit. When an indoor unit breathes poorly, the temperature perceived by the sensor can differ from the actual room temperature, giving the impression that the device no longer follows the setpoint correctly.
The repair carried out on site
After confirming that the failure was mainly due to advanced clogging combined with a partially blocked condensate drain, we proceeded with a complete intervention.
Technical cleaning of the wall unit
We cleaned the filters, return grille, evaporator, and accessible areas of the indoor unit. Special attention was given to the turbine, as it directly influences airflow and noise level. On an older unit like this FONKO, precise work is needed to avoid damaging plastics that have become fragile over time.
The cleaning immediately improved air circulation. Once the fins were cleared and the turbine cleaned, the airflow became more regular, quieter, and better distributed in the room.
Unblocking and rinsing the drain
We then proceeded to clear the condensate drain. The goal was not just to let the water pass once, but to restore reliable flow. After cleaning, a new flow test was performed. This time, the water drained quickly and without backing up into the indoor tray.
This point is essential: a poorly cleaned drain can give the impression that the problem is solved for a few days, then start again. In a residence in Beaconsfield, where humidity can be high during certain periods of the summer, a stable drainage is essential to avoid water damage.
Checking the flap and air diffusion
The lower flap was slightly slowed down, without being completely blocked. We cleaned the area, checked its movement, and confirmed that it could direct the air properly. The diffusion was adjusted to prevent the air jet from hitting the molding and window area directly, which could create an uneven comfort sensation.
Final performance test
Once the repair was completed, we performed a full operational test in cooling mode. The airflow was significantly higher, the output temperature more stable, and no signs of water backflow were observed during the flow test and extended operation.
The client immediately noticed the difference: less noise, better airflow, and faster cooling. The FONKO wall-mounted heat pump didn’t need to be replaced at this stage. It mainly needed thorough HVAC service, done with the right tools and method.
What this FONKO repair in Beaconsfield reminds us
An older wall-mounted heat pump can still perform well when properly maintained. In this specific case, the machine wasn’t “dead”: it was suffocated by dirt and weakened by a partially blocked drain. This is a situation we regularly encounter in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore.
Why low airflow should never be ignored
Low airflow may seem minor, but it affects the entire system’s operation logic. When air circulation is poor, the evaporator exchanges heat less effectively, the compressor may run longer, consumption increases, and comfort decreases. Over time, this can accelerate wear on certain components.
In many cases, owners simply increase the power or lower the requested temperature, thinking they are compensating for the unit’s weakness. This is a common mistake. If a wall-mounted heat pump is dirty, setting it to 18 °C instead of 22 °C doesn’t solve anything. The system will work harder, longer, without necessarily achieving the desired result.
Condensate: a small detail that can cause big problems
The condensate drain is one of the most important parts of a wall unit. In cooling mode, the air’s humidity condenses on the evaporator and must be properly drained. If water remains in the pan or drains too slowly, it can cause odors, overflows, wall stains, or even damage to materials around the installation.
In this repair in Beaconsfield, the quick intervention prevented more serious damage. The presence of slight moisture was a warning sign. Waiting until water was clearly running down the wall would have been a bad decision.
Mistakes to avoid with a FONKO wall-mounted heat pump
During our service calls, we often see the same errors:
Cleaning only the visible filters
Filters are important, but they represent only part of the system. A dirty fan or a clogged evaporator can continue to harm performance even if the filters have just been cleaned.
Using unsuitable products
Some household products can damage plastics, leave residues, or create odors. A wall unit must be cleaned with methods compatible with HVAC components.
Ignoring early signs of condensation
A water stain or unusual humidity is never normal. Even if the problem seems intermittent, the drain and condensate pan must be checked.
Jumping too quickly to a refrigerant shortage
A device that cools less is not automatically low on gas. In this case, the main problem was related to air circulation and drainage. Adding refrigerant without a complete diagnosis would have been useless and unprofessional.
Useful expertise for older systems
At AirGreen, we work on both recent systems and older devices. FONKO wall-mounted heat pumps are not always as well documented as the major current brands, which requires a more practical, attentive, and structured approach. It is important to recognize symptoms, understand the unit’s operating logic, and determine if a repair is cost-effective.
In this case in Beaconsfield, our recommendation was clear: continue using the device after cleaning and unblocking the drain, monitor its performance during periods of high humidity, and schedule periodic maintenance to prevent the same problem from recurring. Replacement was not immediately necessary, allowing the client to extend the life of their equipment without excessive expense.
Final result: comfort restored and client reassured
At the end of the intervention, the FONKO wall-mounted heat pump was operating much more stably. The air circulated better, the room cooled down faster, the ventilation noise had decreased, and the risk of condensate overflow had been corrected. The client especially appreciated receiving a clear explanation of the problem, without unnecessary pressure to replace the unit.
This is exactly what we aim to offer with every wall-mounted heat pump repair: an accurate diagnosis, a tailored solution, a clean intervention, and an honest recommendation. Whether in Beaconsfield, Montreal, Laval, Longueuil, on the North Shore or the South Shore, our AirGreen team travels to restore HVAC systems with rigor and transparency.
