When a Friedrich wall-mounted heat pump loses its ventilation power
In Laval-des-Rapides, our AirGreen team responded to a HVAC service call on a Friedrich wall-mounted heat pump installed in a residential unit. The client had noticed that the device was still working, but comfort was no longer there: the air came out weaker, the temperature dropped slowly in cooling mode, and the indoor unit made an irregular noise at startup and shutdown.

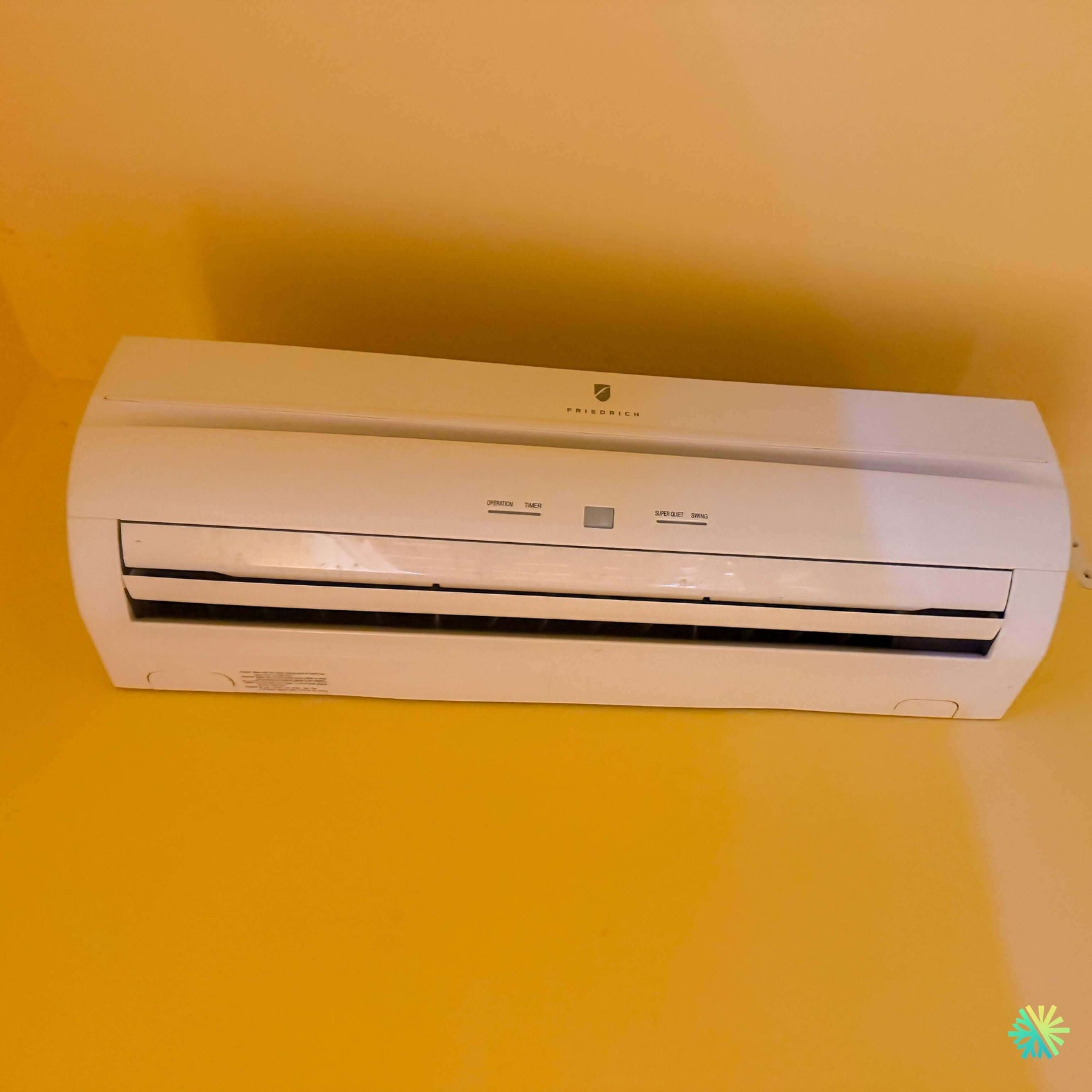

The unit seen on site was a Friedrich wall-mounted heat pump, residential size, installed high on an interior wall. It was a mini-split type wall unit, used to cool and heat a main area of the home. The exact model was no longer clearly readable on the front, but the unit size corresponded to a capacity generally around 9,000 to 12,000 BTU, a common setup in condos, apartments, and small residential spaces in Laval, Montreal, Longueuil, the North Shore, and the South Shore.
The problem was not due to a complete system shutdown. It was more of a gradual performance drop, the kind of situation many clients tolerate for several weeks before calling. However, on a wall-mounted heat pump, weak ventilation or unusual noise can be the first sign of internal clogging, a partially blocked drain, a weakened ventilation motor, or an electronic control issue.
Symptoms observed before our intervention
The client explained to us that the heat pump still responded to the remote control, that the operation lights lit up normally, but the performance had decreased. In cooling mode, the air came out cool, but not as strong as before. In ventilation mode, the airflow seemed unstable. The client had also noticed a slight damp smell at startup, especially after a long period of non-use.
On site, our technician confirmed several typical symptoms:
- airflow lower than expected;
- irregular ventilation noise;
- visible dust accumulation on some parts of the indoor unit;
- functional diffusion louvers, but less smooth;
- correct temperature difference, but performance limited by air circulation;
- risk of partially clogged condensate drain;
- need for more thorough internal cleaning.
In this type of situation, it is essential not to limit yourself to just cleaning the filters. Filters are important, but they represent only part of the system. Behind the facade, the indoor coil, turbine, condensate tray, and internal ducts can accumulate a significant amount of dust, especially when the device operates for several months a year.
Complete inspection of the Friedrich indoor unit
We started by removing the filters and inspecting the inside of the Friedrich wall-mounted heat pump. The filters were dirty but not completely clogged. The main problem was deeper inside the unit: the ventilation turbine had an accumulation of fine dust and moisture-related deposits. This type of buildup directly reduces airflow, even when the compressor and refrigeration circuit are working properly.
The indoor coil was also inspected. Some areas were blocked by dust stuck to the fins. When air does not circulate well through the coil, heat exchange becomes less efficient. The customer may then believe the machine is low on refrigerant or that the compressor is weak, when the problem is simply related to air circulation.
Our diagnosis focused on several points:
- condition of washable filters;
- cleanliness of the evaporator coil;
- condition of the ventilation turbine;
- operation of the ventilation motor;
- movement of horizontal louvers;
- reading of temperature sensors;
- inspection of the condensate tray;
- drain flow;
- unit behavior during startup;
- response to remote control commands.
The device showed no obvious signs of major compressor failure. The problem was rather related to a lack of internal maintenance and insufficient air circulation. This distinction is important because it saves the customer unnecessary expenses and helps extend the system's lifespan.
Technical cleaning of the coil, turbine, and condensate tray
After securing the device, we proceeded with a deep cleaning of the indoor unit. The goal was to restore airflow without damaging the electronic components or the coil fins. We protected the wall, the area under the unit, and the surrounding surfaces before starting the work.
The cleaning included:
- filter washing;
- cleaning of the indoor coil;
- removal of deposits on the turbine;
- cleaning of the condensate tray;
- drain check;
- inspection of diffusion flaps;
- cleaning of accessible internal surfaces;
- functionality test after reassembly.
The turbine was one of the most important elements of this intervention. On a wall-mounted heat pump, this part is responsible for pushing air into the room. When it is dirty, the device can continue to produce cold or heat, but the air no longer distributes properly. The result is a room that takes much longer to reach the requested temperature.
We also checked the condensate drain. It was not completely blocked, but the flow was slower than desired. A partial obstruction can become problematic in summer when the machine removes a lot of moisture from the air. If the water does not drain properly, it can end up leaking inside or causing a musty odor.
Electrical verification and sensor control
Once cleaning was completed, we proceeded with control tests. The remote control communicated properly with the unit. The operation indicators were functional, and the main modes responded as expected. We checked the device’s response in cooling, ventilation, and heating modes.
The ambient temperature sensor and the coil sensor were checked to verify that the unit was receiving consistent information. A faulty sensor can cause premature shutdowns, short cycles, or a misinterpretation of the actual room temperature. In this specific case, the sensors responded normally, which ruled out replacing the board or sensor.
The ventilation motor was also observed at different speeds. After cleaning, the airflow improved noticeably. The irregular noise heard initially had decreased, confirming that the buildup on the turbine was one of the main causes of the problem.
Result after the repair
After reassembly and restart, the Friedrich wall-mounted heat pump regained more stable and powerful ventilation. The client immediately noticed that the air circulated better in the room. The startup noise was reduced, the musty smell had disappeared, and the system reached the requested temperature more quickly.
The intervention did not require replacing an electronic board or a motor. The work performed rather allowed correcting the real cause of the problem: an internal buildup that was limiting performance. This approach is often the best solution when the device is still functional but no longer delivers its usual output.
What this repair in Laval-des-Rapides reveals about wall-mounted heat pumps
A wall-mounted heat pump repair is not just about finding a broken part. Very often, the problem comes from a combination of factors: incomplete maintenance, neglected filters, dirty turbine, slowed drain, poorly calibrated vents, or intensive use over several seasons.
Why a still functional device can seem broken
In this service call in Laval-des-Rapides, the Friedrich system was not dead. It started, ventilated, and responded to commands. Yet, the customer felt a real loss of comfort. This is precisely the kind of situation that requires a serious diagnosis.
A heat pump can seem weak for several reasons:
- reduced airflow due to a dirty turbine;
- clogged indoor coil;
- overloaded filters;
- slowed condensate drain;
- wrong mode selected;
- poorly programmed remote control;
- temperature sensor influenced by a heat source;
- indoor unit installed in a place with poor air circulation.
Before talking about replacement, we always check simple, measurable, and repairable causes. This method protects the customer from hasty conclusions.
Mistakes to avoid with a Friedrich wall-mounted heat pump
Many problems could have been avoided with more regular maintenance. Filters must be cleaned frequently, but it should not be forgotten that dust sometimes passes through the filters over time. It then accumulates on the turbine and in the damp areas of the unit.
Here are the most common mistakes we encounter during our HVAC service calls in Laval, Montreal, Longueuil, on the North Shore and the South Shore:
- waiting for the device to leak before cleaning the drain;
- confusing low ventilation with a refrigerant shortage;
- cleaning only the filters without inspecting the turbine;
- using the heat pump with blocked vents;
- ignoring a damp smell at startup;
- letting the unit run for months with abnormal noise;
- trying to disassemble the unit without protecting the electronic components.
A wall-mounted heat pump is compact, but its operation is precise. Poor cleaning can cause more problems than it solves, especially if water reaches the electronic boards or internal connections.
The importance of cleaning the turbine
The turbine is often the forgotten part. It is not as visible as the filters, but it plays a central role in comfort. When it is dirty, each blade moves less air. The device has to run longer to produce the same result, which increases wear and reduces efficiency.
In the case of this Friedrich wall-mounted heat pump in Laval-des-Rapides, cleaning the turbine was decisive. After the intervention, the air flowed better, the unit cooled down faster, and the noise had decreased. The client understood that the device was not necessarily too old or too weak: it simply needed proper technical maintenance.
When should you repair and when should you replace?
We always assess the relevance of the repair. If the compressor is defective, if parts are unavailable, if the device uses very old technology, or if several major components are at the end of their life, replacement may become more advantageous. But when the system responds well, the circuit boards work, the sensors are consistent, and the problem comes from dirt buildup, a targeted repair is often the best option.
In this situation, the repair was fully justified. The client avoided a significant expense while recovering much of the performance of their device.
An AirGreen intervention focused on real comfort
Our approach is to look at the system as a whole. We do not limit ourselves to the brand or the age of the unit. We analyze the actual behavior of the machine, the installation environment, previous maintenance, and the symptoms reported by the client.
For this HVAC repair in Laval-des-Rapides, the result was clear: better ventilation, quieter operation, odor eliminated, drainage checked, and the client reassured about the condition of their heat pump. This type of intervention is exactly what helps extend the lifespan of a wall system while improving daily comfort.
Whether it's a Friedrich wall-mounted heat pump, a wall air conditioner, a multi-zone unit, a central heat pump, or another residential HVAC system, AirGreen operates in Montreal, Laval, Longueuil, on the North Shore and the South Shore with a structured method: symptoms, diagnosis, correction, tests, and practical recommendations.
