A compressor stopped: diagnosis of a complex electrical fault
A residential customer in Boucherville , on Montreal's South Shore , recently contacted us after noticing that their Fujitsu wall-mounted heat pump was no longer starting. There was no noise, no vibration—the system seemed completely inert. After several unsuccessful restart attempts, the customer decided to call AirGreen , a recognized specialist in residential HVAC system repair .
Our team quickly arrived on site for a complete electrical inspection of the outdoor unit.
Initial diagnosis: no voltage to the compressor

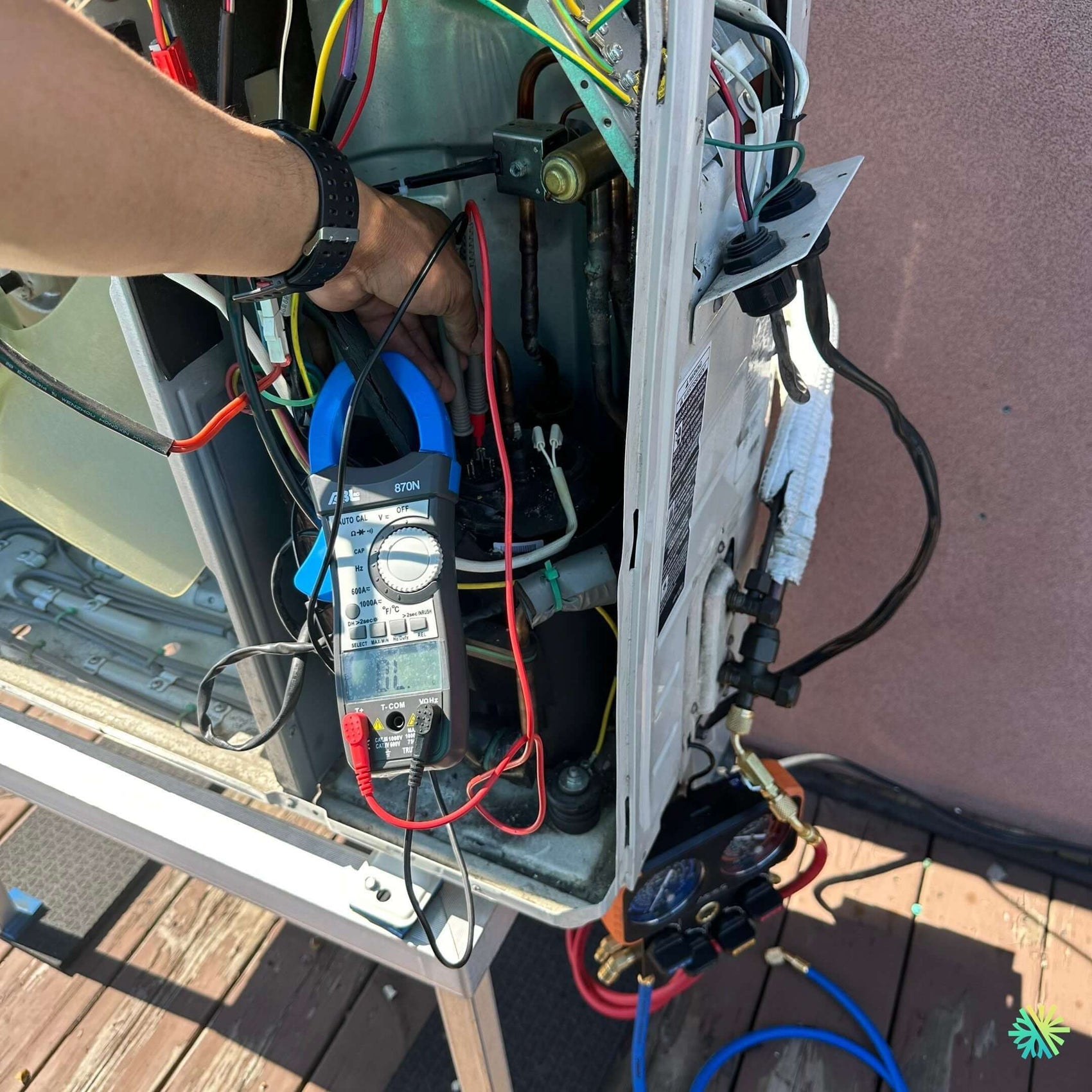

The first step was to check the power supply to the main board and the compressor. Using a Fluke 87V digital multimeter, we found a complete absence of voltage at the compressor terminal block , while the 240V input voltage was present at the main terminal.
This finding led our suspicions to a failure of the control board or the starter relay circuit .
Detailed checks: continuity test and resistance measurements
To confirm our hypothesis, we carried out several key measurements:
-
Continuity check on compressor terminals (C, R, S) — resistance values were within Fujitsu specifications (approx. 1.5 / 3.8 / 5.3 Ω).
-
Visual inspection of welds and connectors — no signs of burning or electric arcing.
-
Start relay test : no activation voltage, confirming that the main electronic board was no longer controlling the start .
Thanks to a precise diagnosis, we were able to identify the exact source of the problem: a faulty power board following a power surge probably caused by a fluctuation in the network.
Intervention: replacement and recalibration of the electronic card
Our technicians carried out a complete replacement of the Fujitsu external PCB board , an original part supplied by the manufacturer. The operation included:
-
Complete disconnection of internal wiring and systematic identification of each connector.
-
Installation of the new card , with calibrated tightening of the terminals according to the recommended values (0.8 Nm).
-
Reconnecting the temperature sensors and the communication module .
-
Checking the inrush current at startup using the integrated current clamp (reading: 8.4 A, within standards).
-
Complete operational test in heating and cooling mode.
Once the new card was installed, the heat pump came back to life instantly.
Optimization and prevention: protecting electronic components
In order to avoid a recurrence, we recommended to the client:
-
Installing a dedicated HVAC surge protector , designed to protect the PCB and compressor from voltage fluctuations.
-
Annual preventative maintenance including cleaning electrical connections and tightening terminals, particularly before the summer period.
-
Adding a line filter to improve the stability of the current supplied to the heat pump.
Result: restored performance and assured reliability
After checking the pressures and temperatures, the Fujitsu heat pump demonstrated impeccable performance :
-
Stable condensing pressure at 385 psi (R-410A).
-
Blowing temperature at 46°C in heating mode.
-
Rated power consumption at 6.1 A.
The system has returned to full efficiency, providing the residence with consistent, quiet, and energy-efficient comfort. The client was particularly pleased with the speed of diagnosis and the precision of the work carried out on a complex electrical fault.
