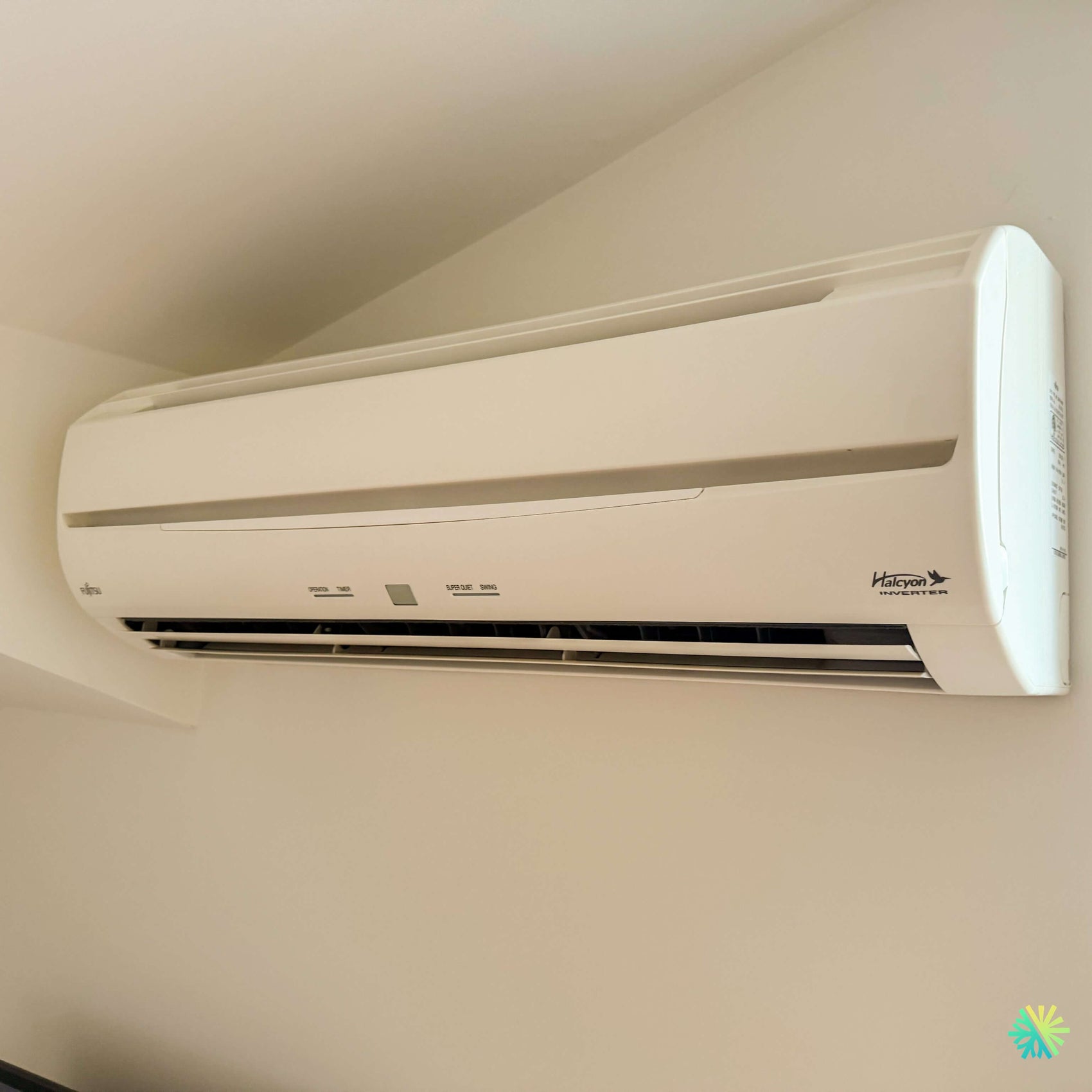

A Fujitsu Halcyon Inverter unit that was cooling less effectively and showing signs of drainage problems
In Candiac, our AirGreen team responded to a residential HVAC service call on a Fujitsu Halcyon Inverter wall heat pump installed high in a room with a sloped ceiling. The client reported two main symptoms: a gradual decrease in cooling performance and concern related to condensate drainage, with unusual humidity near the indoor unit after certain prolonged cycles.
The visible device was a Fujitsu wall unit from the Halcyon Inverter range, a system known in residential settings for its modulation, quiet operation, and ability to maintain a stable temperature when well maintained. The exact model and BTU capacity were not readable in the photo, but the unit size corresponded to a residential wall heat pump typically used in a range of about 9,000 to 12,000 BTU, depending on the room configuration and the capacity of the associated outdoor unit.
In this house in Candiac, on the South Shore, the heat pump was installed very close to a sloped ceiling. This detail is important: the available space around a wall unit influences air circulation, access for maintenance, and sometimes even how the cold air is distributed in the room. A machine can be functional but underperforming if the airflow is partially disrupted, if the evaporator is dirty, or if the condensate drain starts to clog.
Symptoms reported by the client
The client had noticed that the heat pump was no longer responding as before. It would start, the flaps would open, the indoor fan would run, but the comfort was less stable. The temperature dropped slowly, especially on warmer days, and the blown air seemed less powerful.
The symptoms observed before our intervention were as follows:
- air less cold when blowing;
- airflow weaker than before;
- slightly damp smell at startup;
- suspected moisture traces after long periods of air conditioning;
- extended operation without quickly reaching the requested temperature;
- lower flap that seemed to stay open longer;
- visible dust accumulation in the blowing area;
- customer concern about a possible water leak.
These symptoms pointed the diagnosis toward three probable causes: a dirty evaporator, a dirty fan wheel, or a partially blocked condensate drain. On a Fujitsu wall-mounted heat pump, these elements can cause a performance drop without necessarily triggering an immediate error code.
Initial inspection of the Fujitsu wall unit
We started with a complete visual inspection of the indoor unit. The casing was in good condition, the louvers opened normally, and no signs of major damage were visible on the front. However, the inside of the air outlet showed a buildup of dust and fine deposits on some surfaces.
Our inspection focused on:
- the condition of the filters;
- the cleanliness of the evaporator;
- the fan wheel;
- the drainage tray;
- the air outlet;
- the motorized louvers;
- the response to the remote control;
- the blowing temperature;
- the noise level;
- the condensate drainage;
- the available space above and around the unit.
The positioning near the sloped ceiling made access more delicate. This type of installation requires special attention during maintenance, as it is easier to neglect the upper areas or the back part of the unit. Yet, it is often there that dust accumulates and air circulation begins to deteriorate.
Airflow diagnosis
The first confirmed problem concerned the indoor airflow. The filters were dirty, but the problem did not stop there. The fan wheel had a dust buildup that reduced the fan’s ability to properly project air into the room.
On a wall-mounted heat pump, the fan wheel plays a crucial role. Even if the refrigeration system works well, a dirty wheel can give the impression that the device lacks power. Air circulates more slowly, the room takes longer to cool, and humidity is less well controlled.
This situation can also increase cycle duration. The compressor works longer, the indoor unit stays active longer, and the condensate tray receives more water. If the drain is already partially blocked, the risk of overflow increases.
Checking the condensate drain
The second critical point was drainage. In air conditioning mode, the indoor unit removes moisture from the air. This water must flow through the condensate tray, then through the drain to the outside or to a designated evacuation point.
We checked the pan and drain. The drainage was present but slowed. It was not a complete blockage, but enough to explain the humidity symptoms after long cycles. A partially clogged drain can create an intermittent situation: water drains when there is little, but starts to accumulate when the machine runs longer in hot and humid weather.
We proceeded with:
- inspection of the drainage pan;
- cleaning the accessible area;
- checking drainage;
- drain clearing;
- test with controlled water supply;
- confirmation that water drained properly after cleaning.
This type of correction is essential. Water leaks from a wall unit can damage the wall, paint, flooring, or furniture. In many cases, the customer suspects a major failure, while a clogged or poorly maintained drain is the real cause.
Technical cleaning of the indoor unit
After diagnosis, we performed targeted cleaning of the Fujitsu indoor unit. This cleaning is not just about removing visible dust. It involves working on components that directly affect efficiency: filters, evaporator, fan wheel, condensate pan, and air outlet.
The steps performed included:
- safe system shutdown;
- removal and cleaning of filters;
- evaporator inspection;
- cleaning accessible areas of the indoor heat exchanger;
- targeted cleaning of the fan wheel;
- clearing the condensate pan;
- drain cleaning;
- restart;
- cooling test;
- checking airflow and drainage.
Once cleaning was completed, the airflow was noticeably more consistent. The unit blew better, the fan noise was more regular, and the cold air spread more efficiently throughout the room.
Verification of cooling performance
After correcting the airflow and drainage, we validated the system's performance. It is important not to conclude too quickly that there is a refrigerant shortage when a heat pump cools less effectively. In this case, the symptoms mainly came from the indoor unit: filter, fan wheel, and drain.
We checked:
- the return air temperature;
- the blowing temperature;
- the stability of operation;
- the compressor's response;
- the absence of error codes;
- the behavior of the louvers;
- the unit's ability to lower the ambient temperature.
After stabilization, the Fujitsu heat pump regained consistent performance. No obvious signs of refrigerant leaks or major electronic board failures were observed during the intervention.
Why the problem was progressive
This type of failure almost never appears suddenly. A wall unit gradually accumulates dust, fine particles, moisture residues, and sometimes biological deposits in the pan or on the fan wheel. At first, the difference is subtle. Then the customer notices the room takes longer to cool, the fan seems less effective, or a smell appears at startup.
In this intervention in Candiac, the combination of reduced airflow and a partially slowed drain explained the situation well. The machine was not beyond repair. It simply needed thorough technical maintenance and drainage correction.
Performance restored, more stable air, and reduced leak risk
After the intervention, the Fujitsu Halcyon Inverter wall heat pump was tested through a full air conditioning cycle. The customer noticed improved airflow and a better feeling of coolness at the vent. The drain was evacuating properly, and the unit no longer showed the same signs of abnormal moisture.
Work performed by AirGreen
During this service call in Candiac, our team made several precise corrections:
- complete diagnosis of the Fujitsu wall unit;
- inspection of filters and indoor coil;
- filter cleaning;
- targeted cleaning of the fan wheel;
- condensate pan check;
- drain clearing;
- flow test;
- damper inspection;
- airflow check;
- air conditioning performance test;
- maintenance advice to the customer.
No major parts needed replacement. The problem was related to maintenance, drainage, and airflow. This distinction is important because it helped avoid unnecessary costs while restoring comfort.
Common mistakes to avoid with a Fujitsu wall heat pump
Fujitsu wall heat pumps are reliable when well maintained, but several habits can speed up problems.
Neglecting the filters
Dirty filters reduce airflow, increase operating time, and harm air quality. They should be checked regularly, especially during heavy use periods.
Waiting for visible water leakage
A slow condensate drain must be fixed before it overflows. A slight damp smell or irregular dripping can already be a warning sign.
Confusing lack of cold with lack of refrigerant
A wall unit that cools poorly does not always need refrigerant. Very often, the problem comes from a dirty evaporator, a clogged fan wheel, or poor airflow.
Clean only the front panel
The exterior facade may look clean while the interior is dirty. The most important part is behind the filters and in the air outlet.
Using unsuitable products
Some household products can damage plastics, leave odors, or harm internal components. HVAC cleaning must be done with an appropriate method.
Practical advice after the repair
Following our intervention, we recommended a simple but regular maintenance to the client in Candiac:
- clean the filters every 4 to 8 weeks depending on usage;
- monitor for any damp odors at startup;
- check that water drains properly during air conditioning periods;
- avoid blocking the air outlet with furniture or curtains;
- do not manually close motorized louvers;
- schedule professional cleaning when airflow decreases;
- have the unit inspected if a water leak appears;
- keep a clear space around the indoor unit.
These actions extend the system’s lifespan and help maintain good energy efficiency.
An intervention that also improves air quality
A wall-mounted heat pump does more than just heat or cool. It circulates indoor air for several hours a day. If the unit is dirty, it can redistribute dust, generate odors, and contribute to a less fresh air feeling.
In this case, the cleaning improved not only the cooling but also the quality of the airflow. The air circulated better, the damp smell disappeared, and the machine operated with less apparent effort.
Wall-mounted heat pump repair service in Candiac and Greater Montreal
AirGreen offers services for Fujitsu wall-mounted heat pump repair, HVAC diagnostics, wall unit cleaning, water leak repair, condensate drain clearing, wall air conditioner maintenance, and residential service calls in Candiac, Montreal, Laval, Longueuil, on the North Shore and South Shore.
This intervention shows that a performance issue can be resolved with a thorough analysis, without unnecessary replacement. By correcting the airflow and condensate drainage, we enabled the Fujitsu heat pump to regain stable, efficient, and reassuring operation for the client.
