A discreet FUJITSU wall unit, but whose performance no longer met the demand
In Saint-Léonard, in a residential area of Montreal where several houses still use wall systems installed many years ago, our AirGreen team was called for a service call on a FUJITSU wall-mounted heat pump. The indoor unit, from the FUJITSU Halcyon range, was installed high on a clear wall, in a main room where comfort strongly depended on the performance of this HVAC system.
At first glance, the device seemed in good condition: clean front, straight installation, no major water damage around the casing, visible indicators on the right side, closed air vents at rest. Yet, the client contacted us because the heat pump was no longer delivering the same performance as before. Air was coming out of the unit, but the cooling was weak, cycles seemed longer, and the room temperature did not drop as quickly as it should.
This type of situation is common with older FUJITSU wall-mounted heat pumps. They are known for their reliability, but they require precise diagnostics when they start to lose efficiency. A wall system can continue to operate without an obvious error code, while having a real problem with air circulation, sensor, heat exchange, drainage, or communication with the outdoor unit.

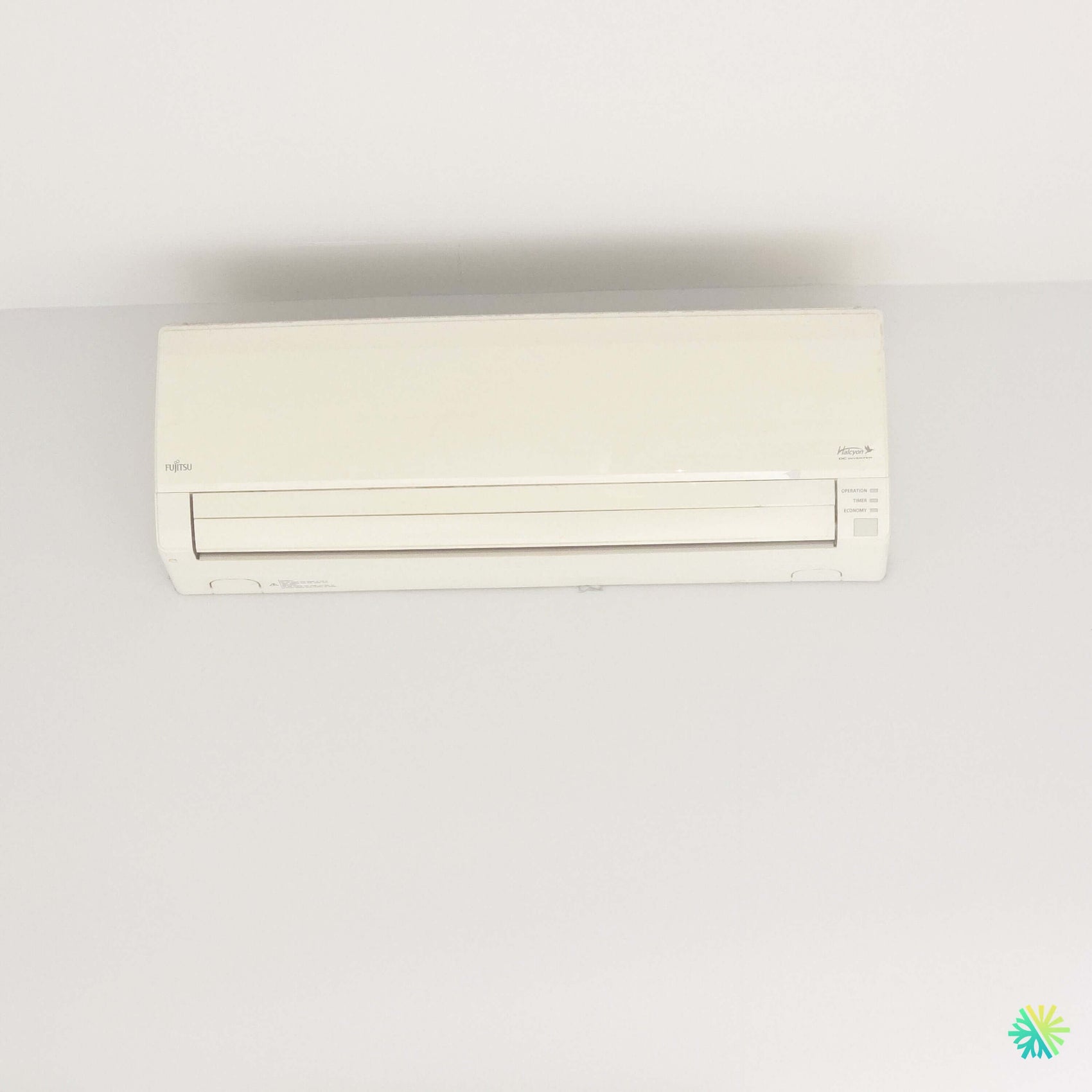

The observed equipment: a FUJITSU Halcyon wall-mounted heat pump
The visible device was a FUJITSU Halcyon wall-mounted heat pump, probably a residential capacity around 12,000 BTU, depending on its size, location, and dimensions. The exact model was not clearly readable on the front photo, but the configuration matched a compact mini-split wall unit, used both for summer air conditioning and for auxiliary or primary heating depending on the associated outdoor installation.
This type of equipment is very common in Montreal, Laval, Longueuil, on the North Shore and on the South Shore, especially in condos, duplexes, single-family homes, and extensions where you want to control a specific zone without modifying the entire duct network.
In this specific case, the FUJITSU heat pump was installed in a classic position, near the ceiling, with air intake from the top and diffusion through the lower flap. This type of installation can be efficient but becomes sensitive to dirt buildup: when dust accumulates on the filters, evaporator, or turbine, the device can lose a large part of its efficiency without necessarily showing a fault.
Symptoms reported before our intervention
The customer described a progressive problem. The heat pump had not stopped working overnight. It had gradually lost efficiency over time, becoming insufficient during hotter days.
The main symptoms were as follows:
- Less cold air blown in cooling mode.
- Reduced airflow, especially after a few minutes of operation.
- Longer cycles to reach the requested temperature.
- Persistent feeling of humidity in the room.
- Light ventilation noise, different from the usual operation.
- No permanent error code, which made the fault less obvious to the customer.
These symptoms can point to several causes. On a FUJITSU wall-mounted heat pump, both the indoor unit and the communication with the outdoor unit must be checked. A loss of efficiency can come from a dirty evaporator, a clogged turbine, a temperature sensor affected incorrectly, a partially blocked drain, insufficient refrigerant charge, a restriction in the refrigeration circuit, or an intermittent electronic problem.
Our HVAC diagnosis on site in Saint-Léonard
Upon our arrival, we conducted a thorough inspection of the indoor unit. The goal was not only to confirm that the machine started but also to understand why it no longer provided the expected comfort.
Verification of the control and operating mode
We first confirmed that the device was correctly receiving the remote control command and responding to mode changes. The system switched properly to cooling mode, the indoor fan started, and the operation indicators did not show any permanent blockage.
This first step is important because some problems simply come from incorrect settings: ventilation mode activated instead of cooling mode, setpoint too close to room temperature, fan speed too low, or timer activated without the customer realizing it. In this case, the control was correct. The problem was elsewhere.
Inspection of the filters and air intake
The filters were clogged with fine dust. They were not completely blocked, but their condition was enough to limit airflow. On a FUJITSU wall unit, even a moderate reduction in airflow can harm heat exchange. Air flows less well through the evaporator, the output temperature becomes less stable, and the device must run longer to produce the same result.
We also observed a slight buildup on the internal edges of the upper grille. This sign often confirms that the machine has been drawing in dust-laden air for a long time, especially in homes where renovations, pets, or open windows increase the amount of particles in the air.
Inspection of the evaporator
The evaporator showed visible dirt between the fins. It was not a total blockage, but enough to reduce the efficiency of heat exchange. When an evaporator becomes dirty, air passes less well through the cold surface. The system may then seem to lack power, while the problem simply comes from reduced heat exchange.
We also checked for the absence of excessive ice formation. A wall-mounted heat pump that lacks air or refrigerant can sometimes start to frost. In this intervention, frosting was not the main problem, but the airflow was clearly weakened.
Inspection of the internal turbine
The turbine was one of the most important points in the diagnosis. Even if the unit's front looked clean, the internal turbine had accumulated dust stuck on its blades. This buildup reduces the volume of air blown and can create a slight imbalance, which sometimes explains a louder noise or subtle vibration.
An owner may clean the filters regularly and believe the maintenance is complete, but the turbine often requires more technical cleaning. When it is clogged, the system loses airflow, the room is less well circulated, and the internal sensor may receive a temperature reading that is less representative of reality.
Condensate drain inspection
Since the customer mentioned a persistent feeling of humidity, we also checked the drainage. The condensate pan was not overflowing, but the flow was slow. A partially clogged drain may not cause visible water immediately, but it can promote odors, residual humidity, and less clean operation of the indoor unit.
We performed a flow test to confirm that the water was draining properly. The result showed a partial restriction, probably caused by an accumulation of damp dust and deposits in the drainage duct.
Repair performed on the FUJITSU heat pump
After identifying the main causes, we proceeded with a targeted intervention. The system did not require a complete replacement or major changes to the refrigeration components. The solution was rather to restore the indoor unit to proper working condition and eliminate restrictions that were harming performance.
Cleaning of filters, evaporator, and return grille
We first removed and cleaned the filters, then cleared the return grille and accessible areas around the evaporator. The cleaning was done carefully to avoid damaging the fins or the plastics of the device. On an older FUJITSU Halcyon unit, parts must be handled precisely, as some clips and panels become more fragile over the years.
After this step, the airflow was already improved. The difference was noticeable in the ventilation noise: the unit was breathing better, without straining as much.
Technical cleaning of the turbine
The turbine was cleaned to remove buildup that was reducing the airflow. This step had a direct impact on comfort. A clean turbine allows the unit to push air further into the room, even out the temperature, and reduce unnecessarily long cycles.
In this case in Saint-Léonard, cleaning the turbine also reduced the slight noise the customer noticed at startup. The airflow became more regular, more stable, and better directed.
Drain clearing and flow test
We then cleared the condensate drain. The goal was to restore smooth flow, not just to temporarily pass the water. After cleaning, we retested with water to confirm that the drainage was fast and without backflow.
This step is especially important in cooling. A wall-mounted heat pump that cools well also removes humidity from the air. If the drain doesn’t keep up, water can accumulate in the tray, create odors, or eventually leak onto the wall. In a house in Saint-Léonard, where the system can run for long periods on hot days, a reliable drain is essential.
Final performance check
Once the indoor unit was restored, we performed a full test in cooling mode. The airflow was significantly better, the output temperature more stable, and the device responded more quickly to the setpoint. No error codes were observed during the test.
We also checked the behavior of the diffusion flaps. The lower flap opened properly and directed air into the room, with no apparent mechanical blockage. This confirmed that the main problem was indeed dirt and drainage, not a flap motor or control board.
What this FUJITSU repair in Saint-Léonard demonstrates
A FUJITSU wall-mounted heat pump can continue to operate for several years, but it cannot maintain its efficiency without technical maintenance. In this case, the customer did not have a completely broken machine. They had a device gradually suffocated by dust buildup and slowed down by a partially clogged drain.
Why you shouldn’t jump to the conclusion of a refrigerant shortage too quickly
When a wall-mounted heat pump cools less, many owners immediately think of a refrigerant shortage. This is possible, but it is not always the primary cause. In this case, the symptoms could indeed suggest a loss of capacity, but the inspection showed that the indoor unit was the main factor.
Adding refrigerant without a diagnosis would have been a mistake. an HVAC system must be evaluated as a whole: airflow, evaporator cleanliness, return temperature, blowing temperature, outdoor unit behavior, drain condition, and control response.
Common mistakes to avoid with a wall-mounted heat pump
Limiting yourself to cleaning the filters
Cleaning the filters is essential but insufficient when the turbine and evaporator are dirty. A unit can have clean filters and still blow poorly if dirt has accumulated deeper inside.
Waiting for water to appear on the wall
A partially blocked drain must be addressed before overflow occurs. A simple slow drainage can be the first sign of a problem that will become more serious.
Forcing the temperature down
Setting the remote control to a very low temperature does not compensate for an airflow problem. If the unit struggles to breathe, it will work longer without delivering the expected result.
Ignoring noise changes
A slightly different ventilation noise can indicate an unbalanced fan due to dust buildup. It’s not always serious, but it’s a useful signal.
An intervention that extends the system’s lifespan
At the end of our service call, the FUJITSU wall-mounted heat pump was operating much more consistently. The client noticed improved airflow, faster cooling, and a better comfort feeling in the room. The device did not need immediate replacement, which helped extend its lifespan with a reasonable and well-targeted intervention.
At AirGreen, we always prioritize a clear approach: diagnose before recommending, repair when repair is appropriate, and explain to the client what actually caused the problem. Whether in Saint-Léonard, elsewhere in Montreal, in Laval, in Longueuil, on the North Shore or on the South Shore, our HVAC interventions aim to restore comfort while protecting equipment long-term.
Final result: better air circulation, corrected drainage, and restored comfort
This repair of a FUJITSU wall-mounted heat pump in Saint-Léonard resolved a common but often misunderstood issue: a device that still works but whose performance gradually declines. Thanks to technical cleaning, drain unclogging, and efficiency tests, the unit regained a more stable cooling capacity.
The client was able to resume normal use of their heat pump with greater confidence in their system. For a well-installed FUJITSU Halcyon unit, precise maintenance can make a big difference between a noisy, slow, and inefficient device and a system that once again provides reliable comfort in the home.
