An old Fujitsu wall unit that was blowing weakly and no longer meeting demand
In Vimont, in the Laval area, our AirGreen team responded to a service call for a Fujitsu wall-mounted heat pump installed above a set of interior doors. The unit, a mini-split wall type, was a Fujitsu Halcyon series, a model known for its robustness but clearly showing signs of age, dirt buildup, and performance loss.
The client contacted us because the device no longer provided the same comfort as before. The heat pump started, the indicators responded, the flap opened, but the air came out with less force. In cooling mode, the room took much longer to cool down. In ventilation mode, a slight irregular noise was noticeable, especially at startup. The client wanted to know if the device could be repaired or if a complete replacement was already necessary.
In this kind of situation, our priority is always to perform a complete HVAC diagnosis before drawing conclusions. A Fujitsu wall-mounted heat pump can lose performance for several reasons: clogged filters, dirty indoor coil, dust-loaded ventilation turbine, inaccurate temperature sensor, partially blocked drain, refrigerant shortage, weakened electronic board, or worn indoor fan.

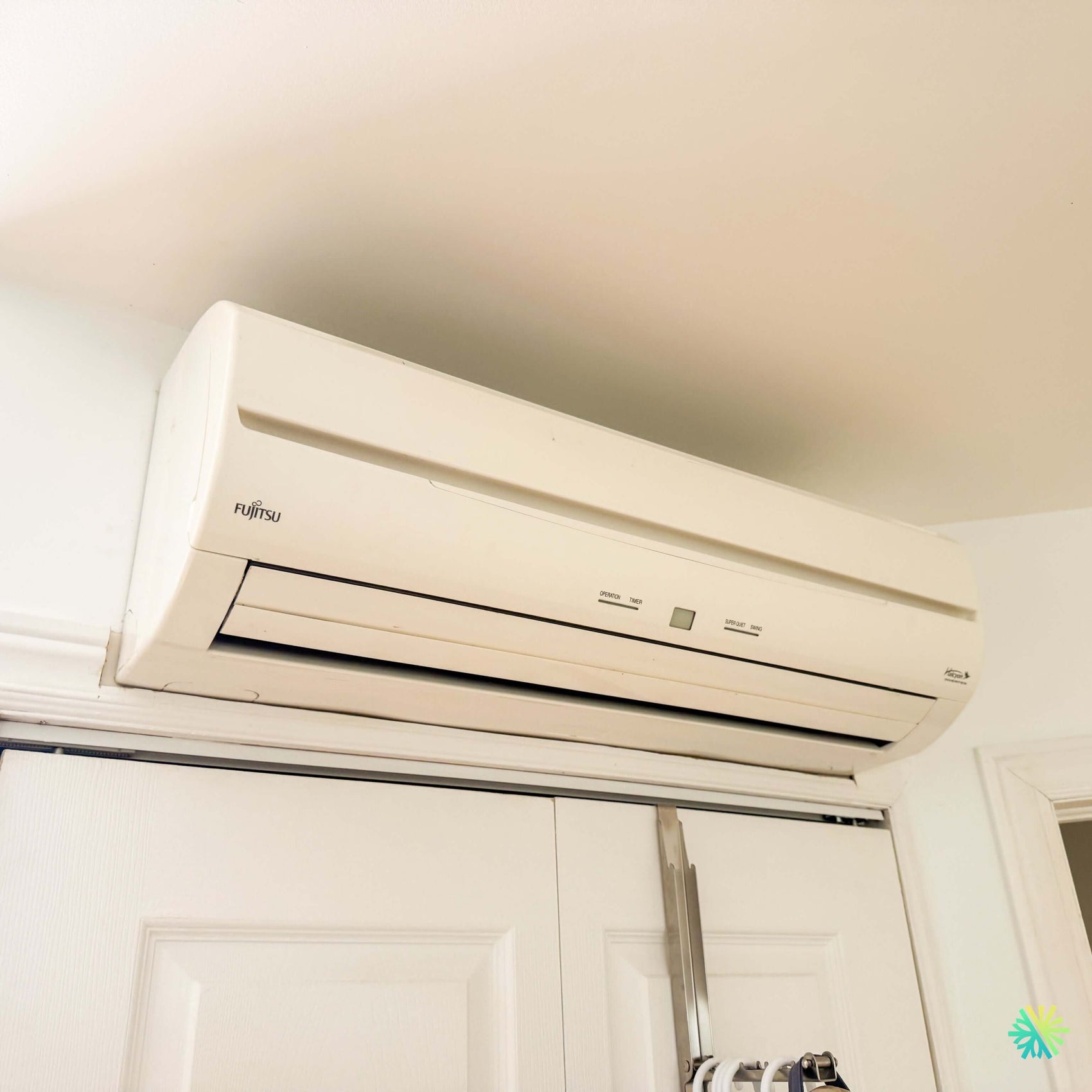

A wall installation with restricted access
The location of this unit immediately caught attention. The heat pump was installed very high, near the ceiling, directly above a door frame. This position frees up wall space but can complicate maintenance. When a device is installed near the ceiling, stagnant warm air accumulates around the unit, dust settles more easily on the upper air intake, and access to the filters becomes less convenient for the owner.
Visually, the unit showed several important signs:
- Yellowed casing over time.
- Blowing flap partially open.
- Dust accumulation near the outlet slots.
- Tight installation under the ceiling.
- Limited access for deep cleaning.
- Old device, but still mechanically recoverable.
This type of Fujitsu wall-mounted heat pump can still operate for a long time if the main components are in good condition. However, when regular maintenance is neglected, performance gradually declines. The client gets used to a lower airflow until the device can no longer maintain the desired temperature.
Symptoms reported by the client
The client described a fairly typical behavior of a dirty or partially blocked wall unit. The device responded to the remote control, but the air seemed less cold in cooling mode and less powerful in ventilation. The room remained uncomfortable during warmer days, even when the temperature was set lower.
The main symptoms were as follows:
- Reduced airflow at the unit’s outlet.
- Slow cooling of the room.
- Light noise coming from the ventilation.
- Feeling that the unit runs longer than before.
- Irregular response when demand increases.
- Concerns about the system’s age and reliability.
These symptoms can sometimes suggest a refrigerant shortage. However, in several service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we often find that the real cause is related to airflow. A wall-mounted heat pump may have a functional refrigerant circuit, but if air no longer passes properly through the indoor exchanger, comfort quickly decreases.
Inspection of the filters, evaporator, and fan
Our technician began by opening the front panel to inspect the filters. On a Fujitsu unit of this type, the filters are usually accessible from the top or behind the front cover. They must allow ambient air to enter the device freely. When they are clogged, the fan works harder and the indoor coil receives less air.
The filters were dusty, but the problem did not stop there. A more thorough inspection revealed a significant buildup in the ventilation section. The turbine, also called the blower wheel, had deposits on its fins. This is a critical element: even a thin layer of dust on the turbine can unbalance the rotation, reduce airflow, and create a vibration noise.
We also inspected the indoor heat exchanger. When the coil fins are dirty, heat transfer becomes less efficient. In cooling mode, the air cools less effectively. In heating mode, heat distribution becomes less stable. The unit compensates by running longer, which increases wear and can give the impression that the heat pump is nearing the end of its life.
Checking drainage and condensation risks
Even though the client did not report a major water leak, we checked the drainage. A wall-mounted heat pump operating in cooling mode produces condensation. This water must flow properly outside or into an appropriate drain.
On units installed high above a door, a small obstruction can be particularly problematic. Even a slight leak can affect the door frame, the wall, the paint, or the moldings. In this case, the drain was not completely blocked, but it presented enough resistance to justify preventive cleaning. A partially clogged drain may not flow during a dry day, then overflow on a humid day.
We therefore cleaned and tested the drainage to confirm that the water was flowing properly. This test is essential after internal cleaning, as dislodged particles can sometimes move towards the condensate tray.
Electrical tests and validation of the unit's response
Once the mechanical inspection was completed, we validated the electrical and electronic response of the unit. The goal was to ensure that the problem did not come from a control board, a sensor, or the ventilation motor.
We checked:
- The response to the remote control.
- The operation of the motorized flap.
- The ventilation speeds.
- The start-up of the indoor fan.
- The stability of the indicator lights.
- The absence of an active error code.
- The air temperature at the return and the blowout.
- The behavior after several minutes of operation.
The electronic board responded correctly and no critical error code was active at the time of the intervention. The ventilation motor was working, but the performance was clearly limited by the clogging of the turbine and the heat exchanger.
A targeted restoration to extend the heat pump’s lifespan
The goal of this repair in Vimont was not to replace the unit unnecessarily, but to restore clean, stable, and safe operation. Since the machine was old, care was taken to avoid damaging plastics, front panel clips, or motorized flaps.
Technical cleaning of the Fujitsu indoor unit
We carried out a technical cleaning of the indoor unit. This type of intervention goes far beyond simple filter washing. It requires accessing the areas where dust actually accumulates: turbine, coil, condensate tray, flaps, and internal air ducts.
The steps performed included:
- Removing and cleaning the filters.
- Controlled opening of the front panel.
- Inspecting the indoor coil.
- Cleaning accessible fins.
- Cleaning the ventilation turbine.
- Clearing dust from the air outlet.
- Checking the condensate tray.
- Cleaning and testing the drain.
- Gradual restart.
- Airflow test after service.
After cleaning, the change was visible and audible. The air came out stronger, the ventilation noise was more consistent, and the unit responded better to speed changes. The client realized that the heat pump was not simply “old,” but mainly needed thorough maintenance.
Why a wall-mounted heat pump loses power over time
A wall-mounted heat pump constantly draws air from the room. Over the years, it accumulates dust, textile fibers, fine particles, light cooking grease, pet hair, and moisture. Even in a clean house, these deposits gradually form.
When the turbine gets clogged, three problems arise:
- Airflow decreases.
- Noise increases.
- Thermal transfer becomes less efficient.
When the coil is dirty, the air no longer properly contacts the cold or hot fins. The system must therefore run longer to achieve the same result. This situation is common in old Fujitsu systems installed in Laval, especially when they are placed high on the wall and difficult to clean regularly.
Mistakes to avoid with an old Fujitsu wall unit
A common mistake is to replace the remote control or change settings without checking the internal condition of the unit. When the problem is airflow-related, no setting can compensate for a clogged fan.
It is also important to avoid constantly setting the unit to the lowest temperature in cooling mode. If airflow is weak, this strategy does not solve the problem. It can even promote excessive condensation or ice formation on the exchanger under certain conditions.
Another important point: never ignore ventilation noise. A slight noise can indicate a dirty fan, imbalance, or a motor under strain. Prompt intervention often prevents a more costly breakdown.
Final result: better airflow, quieter operation, and a reassured client
At the end of the service, the Fujitsu wall-mounted heat pump in Vimont was operating much more steadily. Airflow was improved, noise was reduced, and drainage was verified. The client received a clear explanation of the unit’s actual condition: an older unit, but still usable after cleaning and inspection.
This repair highlights the importance of a thorough diagnosis before recommending a replacement. In some cases, an old heat pump must be replaced due to performance, parts availability, or energy consumption. But when the main components are still functioning well, refurbishment can provide an effective and economical solution.
At AirGreen, we service Fujitsu wall-mounted heat pumps, wall air conditioners, MultiZone heat pumps, central heat pumps, and residential HVAC systems throughout the greater Montreal, Laval, Longueuil, North Shore, and South Shore areas. Our approach is based on precise diagnostics, targeted repairs, and honest recommendations according to the actual condition of the equipment.
