A Goodman condenser installed under a balcony, with performance that became unstable
In Montreal, our AirGreen team was called for a performance issue on a Goodman wall-mounted heat pump whose outdoor unit was installed under a covered balcony structure. The device, placed against a brick wall and partially protected by a light roof, presented a configuration we often encounter in Montreal residential buildings: restricted access, limited clearance, exposed refrigerant lines, and a cluttered outdoor environment.
The client contacted us because the system was no longer responding as before. In cooling mode, the indoor unit was still blowing air, but the cooling was weak and irregular. At times, the device seemed to start normally, then quickly lose efficiency. The client also noticed that the outdoor unit was making more noise than usual and that the fan did not always seem to run steadily.
In this type of situation, it is important to avoid quickly concluding a major compressor failure. A Goodman wall-mounted heat pump can lose capacity for several reasons: lack of clearance around the condenser, obstructed outdoor heat exchanger, weakened fan, unstable electronic board, communication problem, power supply fault, abnormal refrigerant pressure, or deterioration of line insulation.
A difficult-to-access outdoor installation

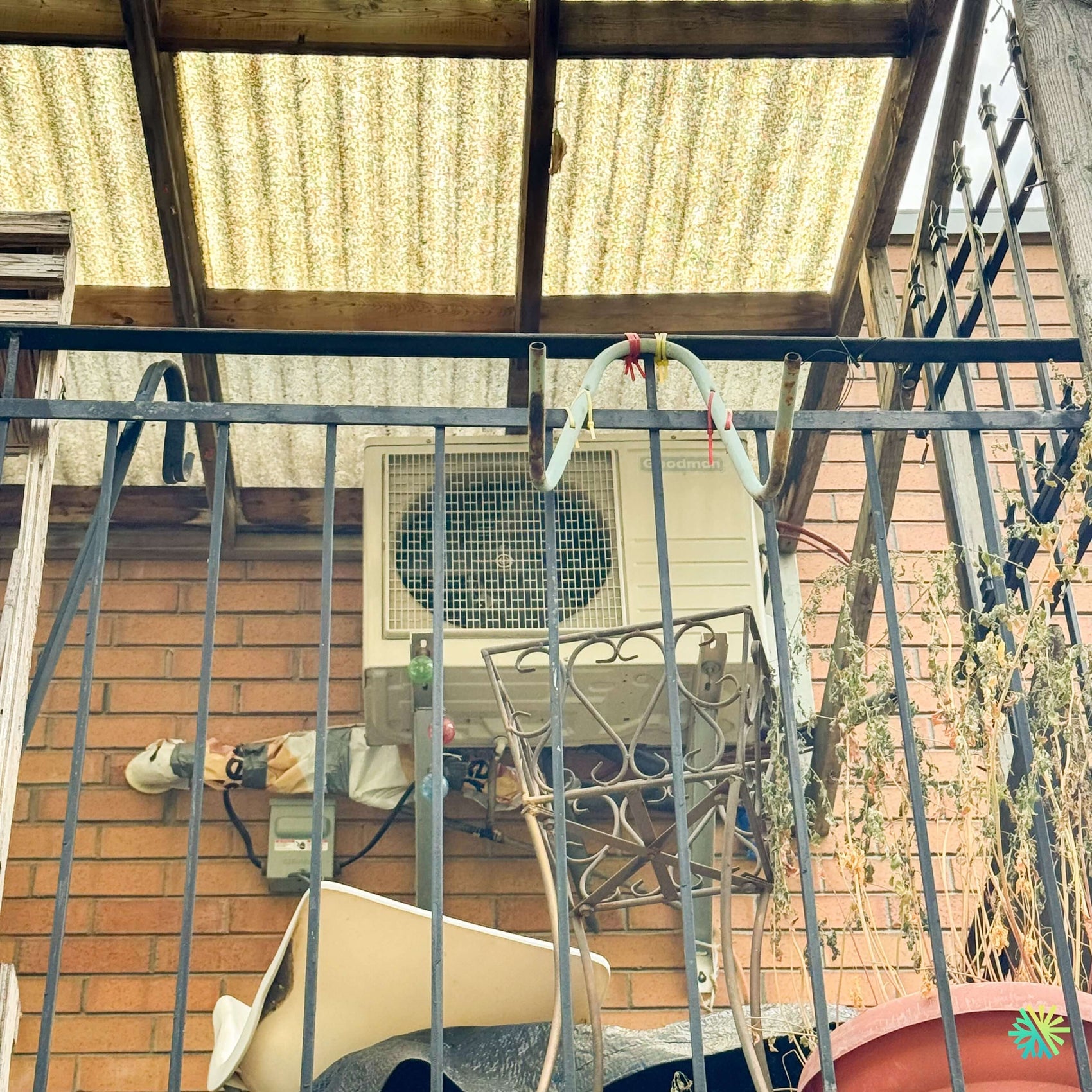

The outdoor unit visible on site was installed on a wall mount, behind a metal railing, under a balcony. Access to the condenser was therefore limited by several elements:
- a balcony railing located in front of the device;
- a roof above the unit;
- items stored nearby;
- a refrigerant line protected by aging insulation;
- an outdoor electrical box installed near the piping passage;
- a brick wall that limits repositioning options.
This type of installation is not uncommon in Montreal, especially in multiplexes, stacked apartments, and buildings with narrow backyards. An outdoor unit can operate in a confined space, but only if essential clearances are respected. The condenser must be able to properly intake and exhaust air. When hot air is trapped under a structure, the machine works harder, builds up pressure, and loses efficiency.
Symptoms observed before our diagnosis
The client described a progressive problem rather than a sudden failure. This is an important detail. An immediate failure often points to a board, power supply, or compressor. A gradual performance drop, especially in a tight outdoor installation, often indicates an airflow or maintenance issue.
The main symptoms were as follows:
- weak air conditioning despite a low setpoint;
- longer cycles than before;
- louder outdoor noise;
- feeling that the device is working harder;
- intermittent outdoor fan;
- reduced comfort in the served rooms;
- unstable operation during hot days.
In Greater Montreal, these symptoms become particularly noticeable during hot periods. A wall-mounted heat pump that seemed acceptable in spring can quickly show its limits in summer, especially when the outdoor unit is exposed to poor ventilation.
Visual inspection of the Goodman condenser
Our technician began with a complete visual inspection of the Goodman outdoor unit. The front showed a visible fan behind the grille, with an accumulation of dust and fine debris typical of a condenser installed under a balcony. Even though the device was not completely clogged, the environment reduced its ability to dissipate heat.
We also inspected the condition of the refrigerant lines. The suction line insulation was deteriorated in places, which can cause efficiency losses and condensation. On a wall-mounted heat pump, line insulation is not a minor detail: it protects system performance and limits moisture risks around wall penetrations.
The wall mount and fastening points were also checked. Excessive vibration can come from an unbalanced fan, a weakened mount, a compressor under strain, or contact between the copper line and the metal structure. In this case, the proximity of the rail and surrounding objects made the analysis more delicate.
Electrical checks and system communication
After the visual inspection, we proceeded with electrical checks. A modern wall-mounted heat pump relies on stable communication between the indoor and outdoor units. Irregular voltage, weak contact, or poor connection can cause intermittent shutdowns, even if the device appears powered.
We have checked:
- power supply to the disconnect box;
- voltage available at the outdoor unit;
- device response to cooling demand;
- fan startup;
- operational stability after a few minutes;
- accessible connections;
- signs of overheating or corrosion.
The system was responding well to demand, but the condenser’s behavior was not optimal. The fan would start, then operation became less stable as the unit began to load. This type of reaction can be worsened by poor heat dissipation around the device.
A repair focused on airflow, electrical stability, and performance restoration
The diagnosis identified a combination of factors: a dirty condenser, insufficient outdoor clearance, deteriorated line insulation, and vibration transmitted by the installation. The right solution was not to immediately replace the Goodman heat pump, but to restore the unit to healthier operating conditions.
Technical cleaning of the outdoor unit
We first performed targeted cleaning of the condenser. The goal was to clear the outdoor exchanger to improve air circulation and heat rejection capacity. When a condenser is installed under a balcony, it often accumulates more dust, dry leaves, pollen, and particles from the structure above.
A partially clogged heat exchanger creates several problems:
- higher operating pressure;
- loss of cooling capacity;
- increased noise;
- longer cycles;
- premature compressor wear;
- risk of shutdown for protection.
After cleaning, the fan could move air more freely. We then observed the device’s behavior during continuous operation to confirm that the discharge temperature and cycle stability improved.
Correction of vibration sources
The noise reported by the customer was not simply related to the fan. Part of the vibration came from the proximity of the lines and the outdoor support. In brick installations, especially when a condenser is attached to a plex wall, vibrations can be transmitted to the structure and become more noticeable inside.
We checked the contact points, secured the accessible sections, and recommended maintaining clearance around the unit to prevent objects from touching the pipes or the casing. A pot, a chair, a tool, or a ramp too close can amplify a noise that seems to come from the motor, when it is sometimes just mechanical resonance.
Partial repair of line insulation
The refrigeration line insulation showed signs of wear. We repaired the accessible sections to reduce losses and limit condensation. This correction improves efficiency but also protects the materials around the wall penetration. Poorly insulated lines can produce water, stain the wall, degrade the caulking, and give the impression of a leak coming from the unit.
In an outdoor installation like this, exposed to humidity, indirect sunlight, temperature variations, and mechanical stress, the insulation often ends up cracking. This is a point we systematically check during our service calls on wall-mounted heat pumps in Montreal, Laval, Longueuil, on the North Shore and the South Shore.
Performance tests after intervention
Once the corrections were made, we restarted the Goodman heat pump in cooling mode. The system responded more quickly, the outdoor fan maintained a more stable rotation, and the air blown inside was more consistent. The unit no longer exhibited the forced behavior it had at the start of the intervention.
We checked several elements before finishing:
- stability of the outdoor fan;
- no excessive vibration;
- response to the indoor setpoint;
- condenser behavior after several minutes;
- blow temperature;
- visual condition of the lines;
- no persistent abnormal noise.
The final result restored the comfort of the home without immediate equipment replacement.
What we explained to the client
We took the time to explain that the Goodman unit could still operate properly, but its location required special attention. Installation under a balcony can be acceptable if it remains clear, clean, and well-ventilated. However, if the space becomes cluttered or the heat exchanger is not maintained, performance can quickly decline.
We recommended monitoring the following signs:
Noise gradually increasing
A noise that gets louder may indicate a dirty fan, vibration on the mount, imbalance, or excessively high operating pressure.
Low cooling on hot days
If the machine runs continuously but does not cool well, the condenser may be clogged or lack fresh air.
Intermittent Stops
A shutdown after a few minutes can be related to electronic protection, overheating, a communication problem, or an abnormal pressure condition.
Condensation around the lines
The presence of water near the wall passage or refrigerant lines can indicate deteriorated insulation.
Mistakes to avoid with a Goodman wall-mounted heat pump
During our HVAC interventions in Greater Montreal, we often observe the same mistakes around outdoor units.
Cluttering the space in front of the condenser
A condenser needs to breathe. Balcony furniture, plants, bins, chairs, storage items, or fences too close can harm its operation.
Ignoring the condition of the insulation
A refrigerant line with cracked or missing insulation must be fixed. It’s not just a matter of appearance.
Cleaning only the indoor unit
Many clients clean the indoor filters but forget the outdoor unit. Yet, it is often outside where performance is lost.
Waiting for the device to stop completely
A gradual drop in performance is already a warning sign. A quick intervention can prevent a more costly breakdown.
Why this repair was important
This intervention in Montreal shows how much a wall-mounted heat pump can be influenced by its outdoor environment. The Goodman unit was not just a machine aging: it was operating in a constrained space, with reduced airflow, weakened line insulation, and vibrations amplified by the structure.
At AirGreen, we approach this type of service call with a comprehensive view of the system. We don’t just look at the error code or the noise the client hears. We analyze the location, access, lines, support, power supply, ventilation, and the actual behavior of the heat pump in operation.
The client regained more stable air conditioning, a quieter device, and a better understanding of the conditions needed to keep their system in good condition. This repair also helped postpone an unnecessary replacement while securing points that could cause future problems.
A Goodman wall-mounted heat pump repair in Montreal requires precision, especially when the outdoor unit is installed in such a particular space. This is exactly the kind of job where field experience makes the difference: recognizing the signs, fixing what can be fixed, testing the result, and giving the client concrete advice to maintain their comfort.
