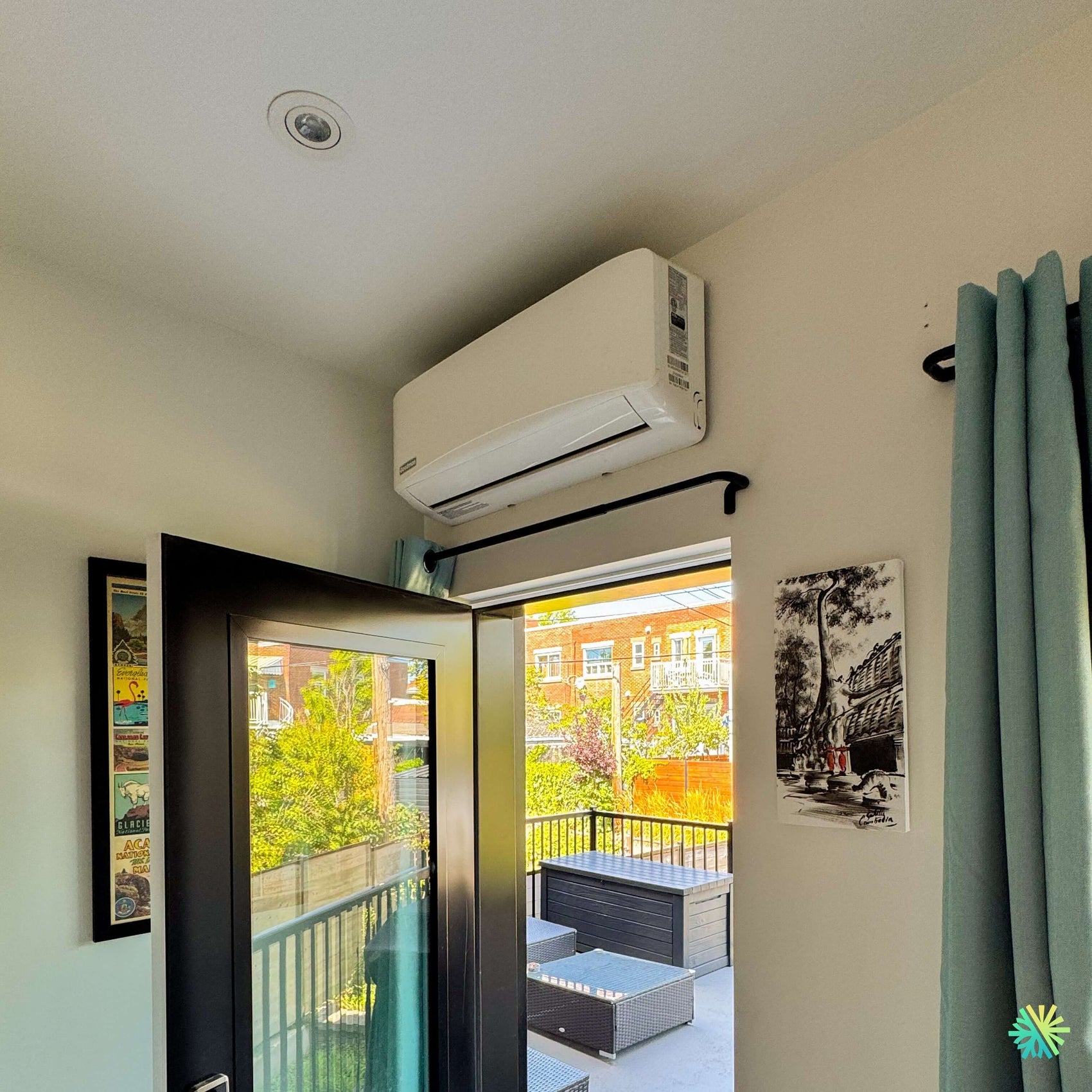

A wall-mounted heat pump installed above a patio door that no longer met comfort demands
In Saint-Eustache, on the North Shore, our AirGreen team was called for a HVAC service call concerning a Goodman wall-mounted heat pump installed in a bright room, directly above a patio door leading to a back terrace. The unit’s positioning, visible near the ceiling and exposed to strong solar gains during the afternoon, made comfort particularly sensitive: as soon as the system lost a bit of performance, the room quickly became too hot.
The client contacted us because the heat pump seemed to be working but was not producing the expected result. The indoor unit started, the flap opened, air came out, but the room temperature dropped very slowly. After prolonged periods of cooling, small traces of moisture appeared under the device, near the wall. The client had also noticed a ventilation noise that was duller than usual, as if the fan was running but not moving enough air.
In this type of situation, the mistake would be to quickly conclude a compressor failure or a refrigerant shortage. A wall-mounted heat pump can lose a lot of efficiency due to a partially blocked drain, a dirty fan, a clogged indoor coil, a misread sensor, or a communication problem between the indoor and outdoor units. Our diagnosis therefore had to be thorough, especially with an installation placed above an exterior opening, where heat, humidity, and temperature variations directly influence the system’s behavior.
The equipment in place: a residential Goodman wall unit
The device in question was a Goodman wall-mounted heat pump of residential size, with an estimated capacity of around 12,000 BTU, used to cool and heat a main area of the house. The indoor unit was installed high up, near the ceiling, with an air outlet directed toward the room. Its location normally allowed good air distribution, but it also imposed certain constraints:
- the unit had to combat heat gains coming from the patio door;
- the curtains and nearby rod could slightly influence air circulation;
- service access required a ladder and careful handling;
- any condensate leak could quickly stain the wall;
- the proximity of the ceiling limited the upper space for certain checks.
This type of installation is common in houses, condos, and multiplexes in Montreal, Laval, Longueuil, the North Shore, and the South Shore. A well-installed wall unit can offer excellent comfort, but it must remain clean, well-drained, and properly calibrated.
Symptoms observed by the client
The client described a gradual degradation. The heat pump was not completely stopped, which made the problem more subtle. It still seemed to respond to the remote control, but the actual performance had decreased.
The main symptoms were as follows:
- air blown less cold than before;
- low airflow despite high fan speed;
- bearing noise more noticeable at certain speeds;
- moisture under the unit after long cycles;
- slight musty smell at startup;
- prolonged operation without quickly reaching the requested temperature;
- marked discomfort in the room during hot days.
These signs pointed to a possible combination of air restriction and poor drainage. However, we also had to check the refrigeration part, as a wall heat pump can also lose efficiency if the refrigerant pressure is abnormal, if heat exchange is insufficient, or if the outdoor unit does not properly release heat.
Initial inspection: the external image of a clean device, but the interior needs to be checked
At first glance, the facade of the Goodman unit looked relatively clean. This is often misleading. Wall systems can maintain an acceptable appearance while being heavily clogged inside. The visible filters do not capture all particles; over time, fine dust, moisture, and organic deposits accumulate on the turbine, evaporator, and condensate pan.
Since the unit was installed near a patio door, we also paid attention to ambient humidity. Frequent openings to the outside, especially in summer, increase the system’s latent load. The heat pump must then not only cool the air but also remove some of the moisture. If the drain is slowed, condensation water can accumulate faster than it drains.
HVAC diagnosis: validate each element before repairing
Our technician first started the unit in cooling mode to observe its behavior under real conditions. We checked the remote control response, fan speeds, damper opening, return air temperature, supply air temperature, and cycle behavior.
Checking filters and air return
The filters were loaded with fine dust. It was not an extreme blockage, but enough to reduce the volume of air entering the unit. On a wall-mounted heat pump, even a moderate restriction can cause a noticeable performance drop, especially when the room receives a lot of sunlight.
We removed the filters, inspected their condition, then checked the surface of the evaporator behind them. The fins showed an accumulation of dust and residue, which reduced heat exchange.
Indoor fan inspection
The fan was one of the critical points. The blades showed a dark, damp buildup, typical of units that have operated for several seasons without thorough cleaning. This buildup slightly unbalances the wheel, reduces airflow, and can produce a duller noise.
The customer was right to report that the system seemed to blow less strongly. The motor was running, but the fan was no longer moving air as efficiently.
Condensate drain test
We then tested the drain. The drainage flow was slowed. The water eventually drained, but not quickly enough when the unit produced a lot of condensation. This condition explained the moisture traces under the unit after prolonged cycles.
The problem was not a massive leak, but a drain partially clogged by internal deposits. This type of clog gradually forms with dust, moisture, and microdebris accumulated in the tray.
Checking sensors and the distribution damper
We checked the indoor temperature sensor and the positioning of the damper. A sensor affected by poor airflow can send an inaccurate reading to the control board. In this case, the sensor was responding correctly, but the airflow around the evaporator was disrupted by dirt buildup.
The damper was working but needed cleaning to ensure more even airflow distribution.
Outdoor unit inspection
Although the photo shows the indoor unit, a serious repair of a Goodman wall heat pump does not stop at the indoor wall. We checked the operation of the outdoor unit: startup, fan noise, visual condition of the coil, compressor stability, and response during the cooling cycle.
No immediate signs of major compressor failure were observed. The main problem was on the indoor side: reduced airflow, dirty evaporator, and slowed drainage.
Intervention performed: technical cleaning, drain unclogged, and performance validated
Once the diagnosis was made, we carried out a targeted intervention to restore performance without unnecessarily replacing costly components.
Cleaning of filters and evaporator
The filters were removed and properly cleaned. We then cleaned the evaporator using a method suited for wall systems. The goal was to clear the fins without damaging them and to allow air to pass through the coil with less resistance.
This cleaning immediately improved air circulation. When the evaporator breathes better, the heat pump can extract heat from the room more efficiently.
Thorough turbine cleaning
The turbine was carefully cleaned to remove deposits accumulated on the blades. This step requires time and precision, as a poorly cleaned or partially cleared turbine can remain unbalanced.
After cleaning, the ventilation noise decreased and the airflow became more uniform across the entire width of the unit.
Unclogging the condensate drain
We cleared the drain and cleaned the condensate pan to restore smooth drainage. A water test was then performed to confirm that the drainage was working properly, without backflow inside.
This step was essential. A water leak under a wall unit can damage paint, drywall, moldings, and sometimes even nearby electrical components. In this case, the intervention prevented the problem from worsening.
Replacement of a worn-out drain fitting
A drainage fitting near the indoor outlet showed signs of wear and stiffness. We replaced it to improve sealing and reduce the risk of future leaks. This type of small part may seem minor, but in a wall system, a faulty fitting can sometimes cause a visible leak.
Performance test after repair
After reassembly, we restarted the unit in cooling mode. The airflow was noticeably better, the air blown was cooler, the noise had decreased, and the drain properly evacuated the water produced by the evaporator.
We also let the unit run long enough to confirm that the humidity problem did not reappear after a few minutes. A drain repair must always be validated during a real cycle, not just by a quick inspection.
Lessons from this Goodman service call in Saint-Eustache
A wall-mounted heat pump can lose performance without actually breaking down
This case in Saint-Eustache shows that a device can operate while being far from its normal performance. The compressor may start, the fan may run, the flap may open, but if the air circulates poorly or the water does not drain properly, comfort quickly decreases.
In a room exposed to the sun, near a large patio door, even the slightest loss of efficiency becomes more noticeable. The heat pump must fight external heat, humidity, frequent door openings, and temperature fluctuations.
Drainage is a key element of comfort
Many customers first think of the cold, the compressor, or the refrigerant. However, on a wall-mounted heat pump, the condensate drain is an essential component. In cooling mode, the unit removes moisture from the air. This water must drain properly. If it stays in the pan, it can cause:
- musty odors;
- drips under the unit;
- a risk of overflow;
- a buildup of deposits;
- wall deterioration;
- a decrease in indoor air quality.
The drain must therefore be inspected and maintained regularly, especially when the unit runs frequently during the summer.
Clean filters do not guarantee a clean unit
Even when filters are cleaned occasionally, the fan and evaporator can remain dirty. This is one of the most common mistakes with wall-mounted systems. The owner sees a clean front panel, removes the filters, washes them, and then thinks the maintenance is complete.
In reality, the most important areas are often inside. A dirty fan can significantly reduce airflow, cause noise, and create a feeling of poor performance.
Mistakes to avoid with a Goodman wall-mounted heat pump
Ignoring small water traces
A small trace of moisture is not normal. It often indicates a slow drain, a dirty pan, or a slope problem. Waiting can turn a simple fix into wall damage.
Forcing the device at low temperature
Setting the thermostat very low does not solve an airflow problem. It can prolong cycles, increase condensation, and raise the risk of leaks.
Blocking air circulation with curtains or objects
A wall unit must intake and blow air freely. In this case, the proximity of the rod and curtains required special attention. Nothing should block the air intake or distribution.
Replacing the device too quickly
A poor diagnosis can lead to unnecessary replacement. Here, the system could be effectively put back into service thanks to technical cleaning, a corrected drain, and a replaced fitting.
Neglecting annual maintenance
A wall-mounted heat pump used for heating and cooling operates almost year-round. Regular maintenance helps maintain performance, reduce noise, prevent leaks, and extend the device's lifespan.
Why AirGreen works on this type of system in Saint-Eustache
At AirGreen, we repair and maintain wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, and HVAC accessories throughout Greater Montreal. Our approach is practical and structured: we start from the symptoms, test the components, fix the root cause, and validate the result with the client.
In Saint-Eustache, as in many areas of the North Shore, homes often have wall units installed in main rooms, living rooms, bedrooms, or open spaces overlooking terraces. These locations are comfortable when well serviced, but they expose the devices to a lot of thermal load.
We also serve Montreal, Laval, Longueuil, the South Shore, and neighboring municipalities for service calls, repairs, preventive maintenance, and replacement of residential HVAC systems.
When to repair and when to consider replacement?
In this specific case, repair was the best decision. The unit responded properly, the outdoor unit was working, and the main issues were related to dirt buildup, drainage, and a worn connection.
Replacement becomes more relevant when:
- the electronic control board is defective;
- the compressor no longer starts;
- a major refrigerant leak is confirmed;
- parts are no longer available;
- the repair cost becomes too high;
- the noise persists despite maintenance;
- the unit no longer provides enough heating performance;
- the client wants to improve energy efficiency with a newer wall-mounted heat pump.
In this Saint-Eustache home, our intervention extended the system’s lifespan and gave the client more stable comfort without immediately resorting to replacement.
Restored comfort, a fixed leak, and a quieter heat pump
At the end of the service call, the Goodman wall-mounted heat pump was blowing better, cooling more efficiently, and properly draining its condensate. The client noticed an immediate difference in the room: the air circulated more forcefully, the noise was reduced, and the dampness no longer returned under the unit during testing.
This result sums up our way of working well. A successful HVAC repair is not just about eliminating a symptom. It must explain why the problem occurred, fix the cause, and help the client understand how to prevent it from happening again.
