A service call on a balcony where the diagnosis was not limited to the unit itself
In Terrebonne, our AirGreen team was called for a Gree wall-mounted heat pump repair installed in a residential condo, with the outdoor unit positioned on a balcony. The client contacted us after noticing irregular operation: the heat pump would start, ventilate, then seem to lose power after a few minutes. In cooling mode, the indoor air became less cold than before; in heating mode, the system took too long to reach the requested temperature. No major metallic noise was present, but the unit clearly seemed to be struggling.

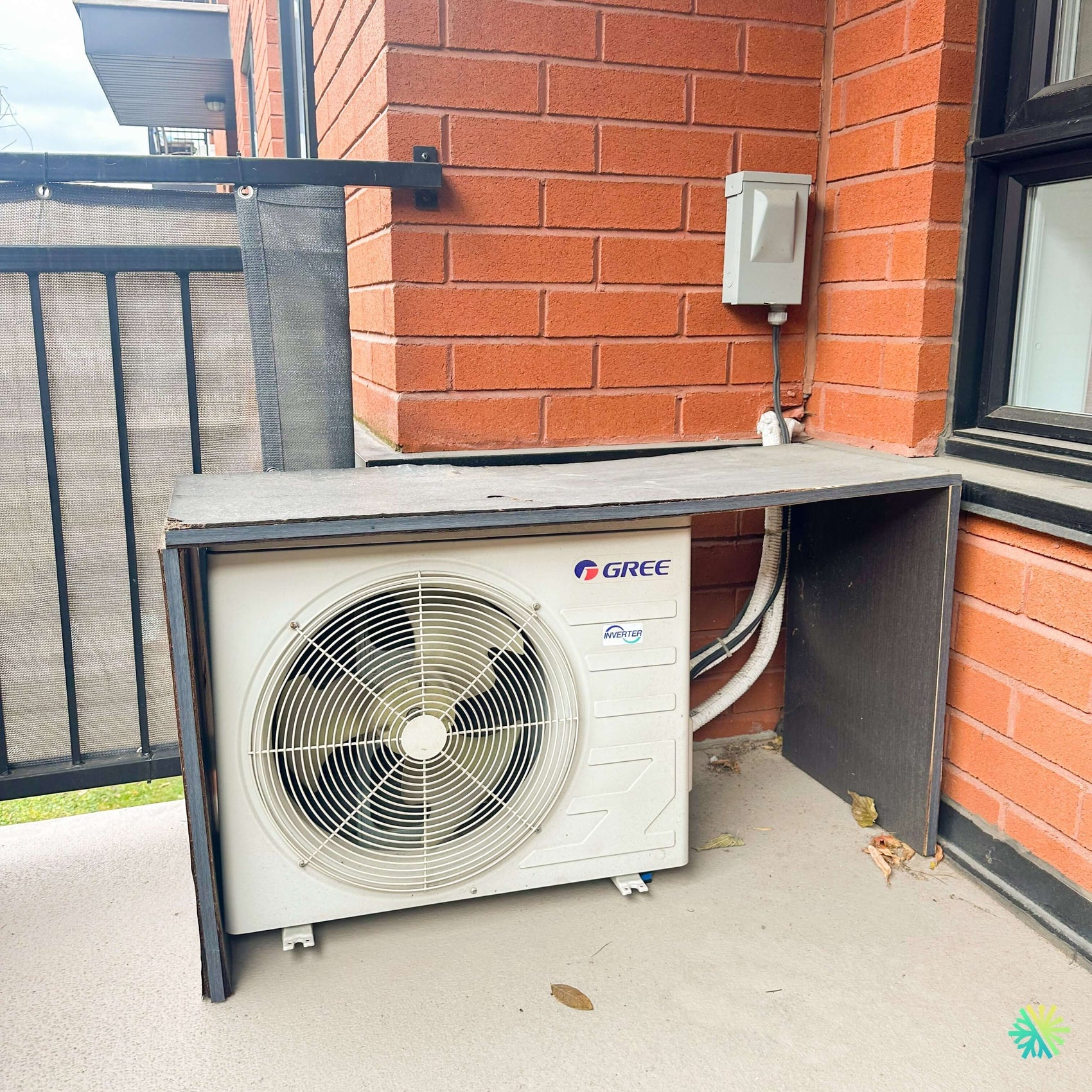

The intervention photo shows an important detail: the Gree outdoor unit was placed inside a wooden protective enclosure, probably designed for aesthetic reasons or to protect the equipment on the balcony. This type of setup may seem practical, but it can also create air restriction if the clearances are insufficient. In a wall-mounted heat pump, the outdoor unit must efficiently expel heat in summer and absorb thermal energy from the outside air in winter. When air circulation around the condenser is poor, the system quickly loses efficiency.
In this specific case, the intervention was not simply to check if the heat pump “worked.” It was necessary to understand why a Gree Inverter machine, capable of adjusting its compression speed according to demand, could no longer maintain stable performance. Our HVAC diagnosis focused on the unit, the installation, the outdoor ventilation, the refrigerant lines, the electrical supply, and the actual usage conditions of the balcony.
A Gree wall-mounted heat pump installed in a condo setting
The observed machine was a Gree Inverter wall-mounted heat pump, residential size, connected to an indoor wall unit. This type of system is very common in Terrebonne, but also in Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially in condos, plexes, and townhouses where outdoor space is limited.
The compact Gree outdoor unit was installed directly on the balcony floor, near a brick wall, a window, and a railing. The wooden casing surrounded the equipment on the sides and top, leaving the fan front visible. Even though the front access was clear, the space around the unit remained restricted, especially at the back and sides. However, an outdoor unit does not just blow air forward: it must also be able to freely draw ambient air through the heat exchanger.
In this type of setup, several problems can gradually appear:
- Loss of power in cooling;
- Unstable heating performance;
- Longer cycles;
- Intermittent shutdown of the outdoor unit;
- Abnormal refrigeration pressure;
- Overheating in summer;
- Faster frost formation in winter;
- Error code related to temperature or pressure;
- Premature compressor wear.
The customer did not see a dramatic failure but felt a drop in comfort. This is often a sign of a problem that develops slowly and needs to be addressed before damaging more costly components.
Symptoms reported before our arrival
When gathering information, the customer told us that the heat pump had started to lose efficiency after several seasons of use. The system still cooled, but more slowly. In heating mode, it ran longer than before, with periods where the air blown inside became less warm. The customer also noticed that the outdoor unit seemed to produce a warmer and more concentrated airflow inside its casing when operating in cooling mode.
The symptoms were as follows:
- Less effective air conditioning on hot days;
- Irregular heating in cool weather;
- Prolonged cycles;
- Feeling that the outdoor unit was "suffocating" in its space;
- Presence of leaves and dust around the unit;
- Slight vibration at startup;
- No obvious signs of water leakage inside;
- Remote control and wall unit functional.
This overview already guided our technician towards a possible combination of air restriction, fouling of the outdoor heat exchanger, and refrigeration check. A Gree wall-mounted heat pump can continue to operate even with insufficient outdoor airflow, but its efficiency drops and operating pressures become less stable.
Visual inspection of the outdoor unit
On site, our technician began by inspecting the outdoor unit. The device was in good overall condition, with no major impact on the casing. The fan was not blocked, the front grille was intact, and the visible connections seemed well maintained. However, the casing created a confined environment around the condenser.
We paid particular attention to several elements:
- rear clearance;
- side clearance;
- top clearance;
- free airflow circulation forward;
- presence of dead leaves under the unit;
- condition of the outdoor heat exchanger;
- device mounting on the ground;
- condition of insulated refrigerant lines;
- wall penetration and sealing;
- outdoor electrical box.
The wall-mounted electrical box was accessible, which facilitated the power supply check. The refrigerant lines were visible near the unit and seemed protected, but the outer insulation showed normal signs of exposure. On a balcony, the lines can undergo more temperature, humidity, and solar radiation variations, making their inspection essential.
Diagnosis of airflow and outdoor heat exchanger
The first confirmed problem concerned air circulation. The casing limited the space around the unit, and the outdoor heat exchanger showed an accumulation of fine dust, plant debris, and dirt embedded between the fins. It was not a complete blockage, but enough to affect performance.
A wall-mounted heat pump operates by heat exchange. If the outdoor heat exchanger breathes poorly, the compressor must work harder to achieve the same result. In air conditioning, the heat extracted from the condenser must be expelled outside; if the hot air remains trapped in a casing, the unit re-absorbs part of this hot air, which reduces efficiency. In heating, the device must capture energy from the outside air; if the air passage is limited, performance decreases and cycles become longer.
We therefore carried out targeted cleaning of the outdoor heat exchanger, respecting the fins and electrical components. The goal was not only to make the device clean but to restore its actual heat exchange capacity.
Electrical check and start-up control
After the mechanical inspection and initial cleaning, our technician checked the electrical behavior of the heat pump. On a Gree Inverter unit, the compressor start is modulated, which makes the diagnosis different from a conventional device. It is necessary to observe the start-up sequence, the reaction of the electronic board, the operation of the outdoor fan, and the stability of the power supply.
The checked points included:
- power supply voltage to the outdoor unit;
- tightening of accessible connections;
- visual condition of the board;
- fan start-up;
- compressor response;
- communication between the indoor and outdoor units;
- response to remote control commands;
- no active error code at the time of the test.
No major electronic board failure was detected. The fan started, the compressor responded, and communication between units was functional. This confirmed that the main problem did not come from a defective board or a complete electrical failure, but rather from an unfavorable operating condition affecting performance.
Refrigeration check and leak detection
Even when an airflow problem is obvious, we don’t stop there. A performance drop can also be caused by a refrigerant leak, lack of charge, a restriction in the circuit, or a dirty indoor exchanger. Our technician therefore evaluated the system’s refrigeration behavior during a full cycle.
We observed the unit’s reaction under real demand, the indoor blowing temperature, operational stability, and possible external signs of anomaly. No clear sign of a major leak was found during the intervention. The symptoms corresponded more to reduced outdoor heat exchange than to a significant refrigerant loss.
This distinction is important. Adding refrigerant without a complete diagnosis would have been a mistake. An unnecessary charge can worsen pressures and damage the compressor. In the case of this Gree wall-mounted heat pump in Terrebonne, the best correction was first to restore outdoor ventilation, clean the exchanger, check the cycle, then recommend modifying the clearances around the unit.
An HVAC repair that restored performance without unnecessary replacement
After the diagnosis, our intervention focused on three areas: technical cleaning, correcting ventilation conditions, and validating operation. The client wanted to regain stable comfort without unnecessarily replacing a still functional device. Our role was therefore to intervene precisely where the system needed it.
Cleaning and refurbishing the outdoor unit
We carefully cleaned the outdoor heat exchanger, removing accumulated debris and clearing the base of the unit. The dead leaves visible near the device may seem harmless, but they often end up lodged under the unit or against the exchanger. Over time, they retain moisture and hinder airflow.
The cleaning included:
- removal of debris around the unit;
- inspection of the fins;
- cleaning the outdoor exchanger;
- checking the fan;
- checking the front grille;
- inspection of insulated pipes;
- checking the base and supports;
- cycle observation after cleaning.
Once the exchanger was cleared, the system regained better heat evacuation capacity. The difference was seen in cycle stability: the outdoor unit worked less hard, the airflow became more regular, and the indoor temperature responded better to demand.
Recommendation on the balcony casing
The wooden casing around the heat pump was one of the central elements of the case. Even if the intention was probably to protect or hide the device, the available space was not ideal for a machine that needs to breathe freely.
We recommended that the client adjust the casing to respect better clearances, including:
- increase free space on the sides;
- avoid a cover that is too close above the unit;
- allow better rear suction;
- do not block the front air discharge;
- use perforated panels rather than solid surfaces;
- maintain sufficient service access for future maintenance.
In a condo, aesthetics and condominium rules sometimes complicate decisions. However, a heat pump enclosed in a space that is too tight consumes more, performs less well, and is more likely to break down sooner. We explained to the client that a poorly ventilated casing can negate some of the benefits of an Inverter system.
Testing in cooling and heating
After the intervention, we tested the heat pump in cooling mode, then in heating mode when conditions allowed. The goal was to confirm that the machine responded correctly to changes in demand and that performance improved after cleaning and partial clearance.
The system showed better stability. The indoor unit was blowing more consistent air, the cycles were less hesitant, and the outdoor unit no longer seemed to accumulate as much heat around it during operation. The client noticed a rapid improvement in comfort.
Mistakes to avoid with a heat pump installed on a balcony
This intervention in Terrebonne illustrates a common situation in Greater Montreal: a heat pump in good condition can be penalized by its environment. On a balcony, every inch of clearance counts.
The most common mistakes are:
- building a casing that is too tight around the unit;
- placing objects in front of the fan;
- letting leaves accumulate under the machine;
- forgetting maintenance of the outdoor exchanger;
- placing the unit too close to the wall;
- limiting access to the electrical box;
- ignoring the first signs of performance decline;
- believing that an Inverter device can compensate for all air restrictions.
A Gree system can offer excellent performance, but only if its installation respects the basic principles of air circulation. An outdoor unit is not just a mechanical box: it is an active heat exchanger that must draw in and expel large volumes of air.
Why AirGreen favors a complete diagnosis before any repair
In this case, it would have been easy to assume a refrigerant leak or a component failure. However, tests showed that the machine was functional and that the problem mainly came from operating conditions. This approach avoids unnecessary replacements and protects the client from unjustified costs.
At AirGreen, our service calls for wall-mounted heat pumps, wall air conditioners, central heat pumps, MultiZone Heat Pumps, and other HVAC systems always follow a rigorous method. We observe the environment, test the equipment, validate the symptoms, then propose an appropriate solution. This discipline is essential in Montreal, Laval, Longueuil, on the North Shore and the South Shore, where installations vary greatly from one building to another.
A concrete result for the client in Terrebonne
At the end of the intervention, the Gree wall-mounted heat pump was operating more stably. The client better understood the impact of the casing on performance and knew what changes to consider to avoid the problem recurring. Indoor comfort was restored without replacing the compressor, changing the electronic board, or unnecessarily adding refrigerant.
This repair demonstrates that good HVAC service is not just about replacing parts. It involves understanding the entire system: machine, installation, environment, usage habits, and maintenance. In this case, the solution required precise diagnostics, technical cleaning, and correction of the outdoor ventilation conditions.
